UZTX553

型号:

UZTX553

品牌:

ZETEX[ ZETEX SEMICONDUCTORS ]

页数:

2 页

PDF大小:

50 K

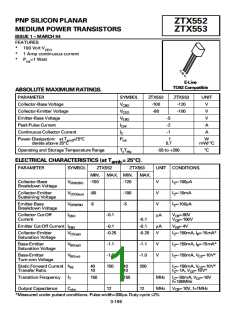

PNP SILICON PLANAR
ZTX552
ZTX553
MEDIUM POWER TRANSISTORS
ISSUE 1 – MARCH 94
FEATURES
*
*
*
100 Volt VCEO
1 Amp continuous current
Ptot=1 Watt
C
B
E
E-Line
TO92 Compatible
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
VCBO
VCEO
VEBO
ICM
ZTX552
-100
ZTX553
-120
UNIT
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
V
V
V
A
A
-80
-100
-5
-2
-1
Peak Pulse Current
Continuous Collector Current
IC
Power Dissipation: at Tamb=25°C
derate above 25°C
Ptot
1
5.7
W
mW/ °C
Operating and Storage Temperature Range
Tj:Tstg
-55 to +200
°C
ELECTRICAL CHARACTERISTICS (at T
= 25°C).
amb
PARAMETER
SYMBOL
ZTX552
ZTX553
UNIT CONDITIONS.
MIN. MAX. MIN. MAX.
Collector-Base
Breakdown Voltage
V(BR)CBO -100
VCEO(sus) -80
-120
-100
-5
V
IC=-100µA
IC=-10mA
IE=-100µA
Collector-Emitter
Sustaining Voltage
V
Emitter-Base
Breakdown Voltage
V(BR)EBO
ICBO
-5
V
Collector Cut-Off
Current
-0.1
VCB=-80V
VCB=-100V
µA
-0.1
Emitter Cut-Off Current IEBO
-0.1
-0.1
VEB=-4V
µA
Collector-Emitter
Saturation Voltage
VCE(sat)
VBE(sat)
VBE(on)
-0.25
-0.25
V
IC=-150mA, IB=-15mA*
Base-Emitter
Saturation Voltage
-1.1
-1.0
150
-1.1
-1.0
200
V
V
IC=-150mA, IB=-15mA*
IC=-150mA, VCE=-10V*
Base-Emitter
Turn-onn Voltage
Static Forward Current hFE
Transfer Ratio
40
10
40
10
IC=-150mA, VCE=-10V*
IC=-1A, VCE=-10V*
Transition Frequency
fT
150
150
MHz
MHz
IC=-50mA, VCE=-10V
f=100MHz
Output Capacitance
Cobo
12
12
VCB=-10V, f=1MHz
*Measured under pulsed conditions. Pulse width=300µs. Duty cycle 2%
3-196
ZTX552
ZTX553
TYPICAL CHARACTERISTICS
tf
ts
nS
µS
600
3
IB1=IB2=IC/10
td
tr
ns
100 200
ns
-0.8
-0.6
ts
400
2
80 160
tf
IC/IB=10
60 120
td
-0.4
-0.2
1
200
100
40 80
tr
20 40
0
0
0
0
0
-0.01
-0.1
-1
-0.001
-0.01
-0.1
-1
IC - Collector Current (Amps)
CE(sat)
IC - Collector Current (Amps)
C
V
v I
Switching Speeds
100
-1.0
-0.8
-0.6
-0.4
-0.2
IC/IB=10
80
60
40
20
VCE=-10V
-1
-0.001
-0.01
-0.1
-0.001
-0.01
-0.1
-1
-10
IC - Collector Current (Amps)
FE
IC - Collector Current (Amps)
BE(sat)
C
C
v I
h
v I
V
Single Pulse Test at Tamb=25°C
-10
-1.2
-1.0
-0.8
-0.6
VCE=-10V
-1
D.C.
1s
100ms
10ms
1.0ms
100µs
-0.1
ZTX552
-0.4
-0.0001
-0.001
-0.01
-0.1
-1
-0.01
-0.1
-1
-10
-100
IC - Collector Current (Amps)
BE(on)
VCE - Collector Voltage (Volts)
C
V
v I
Safe Operating Area
3-197
