QT510406-1000E-7F

型号:

QT510406-1000E-7F

品牌:

FOXCONN[ FOXCONN ]

页数:

1 页

PDF大小:

61 K

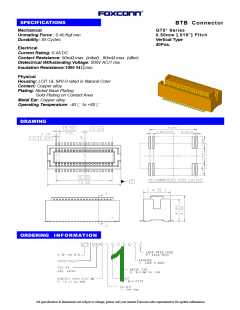

SPECIFICATIONS
BTB Connector
Mechanical
QT5* Series
Unmating Force : 0.40 Kgf min.
Durability: 30 Cycles
0.50mm [.019”] Pitch
Vertical Type
40Pos
.
Electrical
Current Rating: 0.4A DC
Contact Resistance: 50mmax. (initial) , 90mmax. (after)
Dielectrical Withstanding Voltage: 500V AC/1 min
Insulation Resistance:1000 MΩmin.
Physical
Housing: LCP, UL 94V-0 rated in Natural Color
Contact: Copper alloy
Plating: Nickel Base Plating
Gold Plating on Contact Area
Metal Ear: Copper alloy
Operating Temperature: -40to +85℃
DRAWING
ORDERING INFORMATION
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
