UZDT605

型号:

UZDT605

品牌:

DIODES[ DIODES INCORPORATED ]

页数:

3 页

PDF大小:

48 K

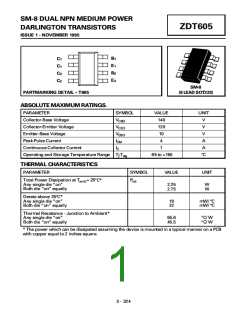

SM-8 DUAL NPN MEDIUM POWER
ZDT605
DARLINGTON TRANSISTORS
ISSUE 1 - NOVEMBER 1995
B1
E1
B2
E2
C1
C1
C2
C2
SM-8
PARTMARKING DETAIL – T605
(8 LEAD SOT223)
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
VALUE
UNIT
V
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
VCBO
VCEO
VEBO
ICM
140
120
V
10
V
Peak Pulse Current
4
1
A
Continuous Collector Current
IC
A
Operating and Storage Temperature Range Tj:Tstg
-55 to +150
°C
THERMAL CHARACTERISTICS
PARAMETER
SYMBOL
Ptot
VALUE
UNIT
Total Power Dissipation at Tamb= 25°C*
Any single die “on”
Both die “on” equally
2.25
2.75
W
W
Derate above 25°C*
Any single die “on”
Both die “on” equally
18
22
mW/ °C
mW/ °C
Thermal Resistance - Junction to Ambient*
Any single die “on”
Both die “on” equally
55.6
45.5
°C/ W
°C/ W
* The power which can be dissipated assuming the device is mounted in a typical manner on a PCB
with copper equal to 2 inches square.
3 - 324
ZDT605
ELECTRICAL CHARACTERISTICS (at T
amb
= 25°C unless otherwise stated).
PARAMETER
SYMBOL
V(BR)CBO
MIN.
140
MAX.
UNIT
V
CONDITIONS.
Collector-Base Breakdown
Voltage
IC=100µA
Collector-Emitter Breakdown VCEO(SUS)
Voltage
120
10
V
V
IC=10mA*
Emitter-Base Breakdown
Voltage
V(BR)EBO
IE=100µA
Collector Cutoff Current
ICBO
0.01
10
VCB=120V
VCB=120V, T =100°C
amb
µA
µA
Collector Cutoff Current
Emitter Cutoff Current
ICES
10
VCES=120V
VEB=8V
µA
µA
IEBO
0.1
Collector-Emitter Saturation
Voltage
VCE(sat)
1.0
1.5
V
V
IC=250mA, IB=0.25mA*
IC=1A, IB=1mA*
Base-Emitter
Saturation Voltage
VBE(sat)
1.8
1.7
V
V
IC=1A, IB=1mA*
IC=1A, VCE=5V*
Base-Emitter TurnOn Voltage VBE(on)
Static Forward
Current Transfer Ratio
hFE
2K
5K
2K
0.5K
IC=50mA, VCE=5V*
IC=500mA, VCE=5V*
IC=1A, VCE=5V*
100K
IC=2A, VCE=5V*
Transition Frequency
fT
150
MHz
IC=100mA, VCE=10V
f=20MHz
Input Capacitance
Output Capacitance
Switching Times
Cibo
Cobo
ton
90 Typical
15 Typical
pF
pF
µs
µs
VEB=0.5V, f=1MHz
VCE=10V, f=1MHz
0.5 Typical
1.6 Typical
IC=0.5A, VCE=10V
IB1=IB2=0.5mA
toff
*Measured under pulsed conditions. Pulse width=300µs. Duty cycle 2%
3 - 325
ZDT605
TYPICAL CHARACTERISTICS
I
- Collector Current (Amps)
I
- Collector Current (Amps)
hFE v IC
VCE(sat) v IC
I
- Collector Current (Amps)
I
- Collector Current (Amps)
VBE(sat) v IC
VBE(on) v IC
3 - 326
