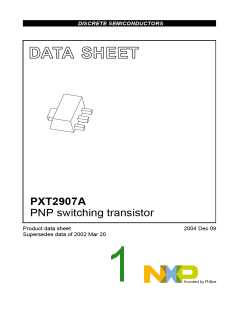

DISCRETE SEMICONDUCTORS
DATA SHEET
book, halfpage
PXT2907A
PNP switching transistor
Product data sheet
2004 Dec 09
Supersedes data of 2002 Mar 20
NXP Semiconductors
Product data sheet
PNP switching transistor
PXT2907A
FEATURES
PINNING
High current (max. 600 mA)
Low voltage (max. 60 V).
PIN
1
DESCRIPTION
emitter
collector
base
2
APPLICATIONS
3
Switching and linear amplification.
DESCRIPTION
PNP switching transistor in a SOT89 plastic package.
NPN complement: PXT2222A.
2
1
3
MARKING
3
2
1
TYPE NUMBER
PXT2907A
Note
MARKING CODE(1)
sym079
*2F
1. * = p: Made in Hong Kong.
* = t: Made in Malaysia.
* = W: Made in China.
Fig.1 Simplified outline (SOT89) and symbol.
ORDERING INFORMATION
PACKAGE
TYPE NUMBER
NAME
SC-62
DESCRIPTION
VERSION
SOT89
PXT2907A
plastic surface mounted package; collector pad for
good heat transfer; 3 leads
2004 Dec 09
2
NXP Semiconductors
Product data sheet
PNP switching transistor
PXT2907A
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL
PARAMETER
collector-base voltage
CONDITIONS
open emitter
MIN.
MAX.
60
UNIT
VCBO
VCEO
VEBO
IC
V
V
V
collector-emitter voltage
emitter-base voltage
collector current (DC)
peak collector current
peak base current
open base
60
open collector
5
600
800
200
mA
mA
mA
ICM
IBM
Ptot
total power dissipation
Tamb 25 °C
note 1
0.5
W
W
W
°C
°C
°C
note 2
0.8
note 3
1.1
Tstg
Tj
storage temperature
junction temperature
ambient temperature
65
+150
150
+150
Tamb
65
Notes
1. Device mounted on a printed-circuit board, single-sided copper, tin-plated and standard footprint.
2. Device mounted on a printed-circuit board, single-sided copper, tin-plated and mounting pad for collector 1 cm2.
3. Device mounted on a printed-circuit board, single-sided copper, tin-plated and mounting pad for collector 6 cm2.
006aaa238
1600
P
tot
(mW)
1200
(1)
(2)
(3)
800
400
0
75
25
25
75
125
T
175
(°C)
amb
(1) FR4 PCB; 6 cm2 mounting pad for collector.
(2) FR4 PCB; 1 cm2 mounting pad for collector.
(3) FR4 PCB; standard footprint.
Fig.2 Power derating curves.
2004 Dec 09
3
NXP Semiconductors
Product data sheet
PNP switching transistor
PXT2907A
THERMAL CHARACTERISTICS
SYMBOL
Rth(j-a)
PARAMETER
CONDITIONS
in free air
VALUE
UNIT
thermal resistance from junction to
ambient
note 1
note 2
note 3
250
156
113
30
K/W
K/W
K/W
K/W
Rth(j-s)
thermal resistance from junction to
soldering point
Notes
1. Device mounted on a printed-circuit board, single-sided copper, tin-plated and standard footprint.
2. Device mounted on a printed-circuit board, single-sided copper, tin-plated and mounting pad for collector 1 cm2.
3. Device mounted on a printed-circuit board, single-sided copper, tin-plated and mounting pad for collector 6 cm2.
006aaa235
3
10
Z
th
(1)
(3)
(K/W)
(2)
(4)
2
10
(5)
(6)
(7)
10
(8)
(9)
(10)
1
10
5
4
3
2
1
2
3
10
10
10
10
1
10
10
10
t
(s)
p
Mounted on FR4 printed-circuit board; standard footprint.
(1) δ = 1.
(3) δ = 0.5.
(5) δ = 0.2.
(6) δ = 0.1.
(7) δ = 0.05.
(8) δ = 0.02.
(9) δ = 0.01.
(10) δ = 0.
(2) δ = 0.75.
(4) δ = 0.33.
Fig.3 Transient thermal impedance as a function of pulse time; typical values.
2004 Dec 09
4
NXP Semiconductors
Product data sheet
PNP switching transistor
PXT2907A
006aaa236
3
10
Z
th
(K/W)
(1)
(2)
2
10
(3)
(4)
(5)
(6)
(7)
10
(8)
(9)
(10)
1
10
5
4
3
2
1
2
3
10
10
10
10
1
10
10
10
t
(s)
p
Mounted on FR4 printed-circuit board; mounting pad for collector 1 cm2.
(1) δ = 1.
(3) δ = 0.5.
(5) δ = 0.2.
(6) δ = 0.1.
(7) δ = 0.05.
(8) δ = 0.02.
(9) δ = 0.01.
(10) δ = 0.
(2) δ = 0.75.
(4) δ = 0.33.
Fig.4 Transient thermal impedance as a function of pulse time; typical values.
006aaa237
3
10
Z
th
(K/W)
(1)
(3)
2
10
(2)
(4)
(5)
(6)
(7)
10
(8)
(9)
(10)
1
10
5
4
3
2
1
2
3
10
10
10
10
1
10
10
10
t
(s)
p
Mounted on FR4 printed-circuit board; mounting pad for collector 6 cm2.
(1) δ = 1.
(3) δ = 0.5.
(5) δ = 0.2.
(6) δ = 0.1.
(7) δ = 0.05.
(8) δ = 0.02.
(9) δ = 0.01.
(10) δ = 0.
(2) δ = 0.75.
(4) δ = 0.33.
Fig.5 Transient thermal impedance as a function of pulse time; typical values.
5
2004 Dec 09
NXP Semiconductors
Product data sheet
PNP switching transistor
PXT2907A
CHARACTERISTICS
Tamb = 25 °C unless otherwise specified.
SYMBOL
ICBO
PARAMETER
CONDITIONS
IE = 0 A; VCB = 50 V
MIN.
MAX.
10
UNIT
nA
collector-base cut-off current
IE = 0 A; VCB = 50 V; Tamb = 125 °C
IC = 0 A; VEB = 5 V
10
50
µA
IEBO
hFE
emitter-base cut-off current
DC current gain
nA
IC = 0.1 mA; VCE = 1 V
IC = 1 mA; VCE = 1 V
75
100
100
100
50
IC = 10 mA; VCE = 1 V
IC = 150 mA; VCE = 2 V
IC = 500 mA; VCE = 10 V
IC = 150 mA; IB = 15 mA
IC = 500 mA; IB = 50 mA
IC = 150 mA; IB = 15 mA
IC = 500 mA; IB = 50 mA
IE = ie = 0 A; VCB = 10 V; f = 1 MHz
300
VCEsat
collector-emitter saturation
voltage
400
1.6
1.3
2.6
8
mV
V
VBEsat
base-emitter saturation voltage
V
V
Cc
Ce
collector capacitance
emitter capacitance
pF
pF
IC = ic = 0 A; VEB = 500 mV;
35
f = 1 MHz
fT
transition frequency
IC = 20 mA; VCE = 10 V;
200
MHz
f = 100 MHz
Switching times (between 10% and 90% levels); (see Fig.6)
ton
td
tr
turn-on time
delay time
rise time
ICon = 150 mA; IBon = 15 mA;
IBoff = 15 mA
40
ns
ns
ns
ns
ns
ns
12
30
toff
ts
turn-off time
storage time
fall time
365
300
65
tf
2004 Dec 09
6
NXP Semiconductors
Product data sheet
PNP switching transistor
PXT2907A
V
B
V
C
BB
CC
R
R
V
(probe)
(probe)
o
oscilloscope
oscilloscope
450
450 Ω
R2
V
DUT
i
R1
MGD624
Vi = 9.5 V; T = 500 µs; tp = 10 µs; tr = tf 3 ns.
R1 = 68 ; R2 = 325 ; RB = 325 ; RC = 160 .
BB = 3.5 V; VCC = 29.5 V.
Oscilloscope input impedance Zi = 50 .
V
Fig.6 Test circuit for switching times.
2004 Dec 09
7
NXP Semiconductors
Product data sheet
PNP switching transistor
PXT2907A
PACKAGE OUTLINE
Plastic surface-mounted package; collector pad for good heat transfer; 3 leads
SOT89
B
A
D
b
p3
E
H
E
L
p
1
2
3
c
b
p2
w
M
b
p1
e
1
e
0
2
4 mm
scale
DIMENSIONS (mm are the original dimensions)
UNIT
A
b
b
b
c
D
E
e
e
H
E
L
p
w
p1
p2
p3
1
1.6
1.4
0.48
0.35
0.53
0.40
1.8
1.4
0.44
0.23
4.6
4.4
2.6
2.4
4.25
3.75
1.2
0.8
mm
3.0
1.5
0.13
REFERENCES
EUROPEAN
PROJECTION
OUTLINE
VERSION
ISSUE DATE
IEC
JEDEC
JEITA
04-08-03
06-03-16
SOT89
TO-243
SC-62
2004 Dec 09
8
NXP Semiconductors
Product data sheet
PNP switching transistor
PXT2907A
DATA SHEET STATUS
DOCUMENT
STATUS(1)
PRODUCT
STATUS(2)
DEFINITION
Objective data sheet
Development
This document contains data from the objective specification for product
development.
Preliminary data sheet
Product data sheet
Qualification
Production
This document contains data from the preliminary specification.
This document contains the product specification.
Notes
1. Please consult the most recently issued document before initiating or completing a design.
2. The product status of device(s) described in this document may have changed since this document was published
and may differ in case of multiple devices. The latest product status information is available on the Internet at
URL http://www.nxp.com.
DISCLAIMERS
above those given in the Characteristics sections of this
document is not implied. Exposure to limiting values for
extended periods may affect device reliability.
General Information in this document is believed to be
accurate and reliable. However, NXP Semiconductors
does not give any representations or warranties,
expressed or implied, as to the accuracy or completeness
of such information and shall have no liability for the
consequences of use of such information.
Terms and conditions of sale NXP Semiconductors
products are sold subject to the general terms and
conditions of commercial sale, as published at
http://www.nxp.com/profile/terms, including those
pertaining to warranty, intellectual property rights
infringement and limitation of liability, unless explicitly
otherwise agreed to in writing by NXP Semiconductors. In
case of any inconsistency or conflict between information
in this document and such terms and conditions, the latter
will prevail.
Right to make changes NXP Semiconductors
reserves the right to make changes to information
published in this document, including without limitation
specifications and product descriptions, at any time and
without notice. This document supersedes and replaces all
information supplied prior to the publication hereof.
No offer to sell or license Nothing in this document
may be interpreted or construed as an offer to sell products
that is open for acceptance or the grant, conveyance or
implication of any license under any copyrights, patents or
other industrial or intellectual property rights.
Suitability for use NXP Semiconductors products are
not designed, authorized or warranted to be suitable for
use in medical, military, aircraft, space or life support
equipment, nor in applications where failure or malfunction
of an NXP Semiconductors product can reasonably be
expected to result in personal injury, death or severe
property or environmental damage. NXP Semiconductors
accepts no liability for inclusion and/or use of NXP
Semiconductors products in such equipment or
applications and therefore such inclusion and/or use is at
the customer’s own risk.
Export control This document as well as the item(s)
described herein may be subject to export control
regulations. Export might require a prior authorization from
national authorities.
Quick reference data The Quick reference data is an
extract of the product data given in the Limiting values and
Characteristics sections of this document, and as such is
not complete, exhaustive or legally binding.
Applications Applications that are described herein for
any of these products are for illustrative purposes only.
NXP Semiconductors makes no representation or
warranty that such applications will be suitable for the
specified use without further testing or modification.
Limiting values Stress above one or more limiting
values (as defined in the Absolute Maximum Ratings
System of IEC 60134) may cause permanent damage to
the device. Limiting values are stress ratings only and
operation of the device at these or any other conditions
2004 Dec 09
9
NXP Semiconductors
Customer notification
This data sheet was changed to reflect the new company name NXP Semiconductors, including new legal
definitions and disclaimers. No changes were made to the technical content, except for package outline
drawings which were updated to the latest version.
Contact information
For additional information please visit: http://www.nxp.com
For sales offices addresses send e-mail to: salesaddresses@nxp.com
© NXP B.V. 2009
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Printed in The Netherlands
R75/05/pp10
Date of release: 2004 Dec 09
Document order number: 9397 750 13895
厂商 型号 描述 页数 下载

ETC

PXT-10.024 中继处理温度\n[ RELAY PROCESS TEMPERATURE ] 2 页

ETC

PXT-10.115 中继处理温度\n[ RELAY PROCESS TEMPERATURE ] 2 页

ETC

PXT-10.230 中继处理温度\n[ RELAY PROCESS TEMPERATURE ] 2 页

ETC

PXT-10.924 中继处理温度\n[ RELAY PROCESS TEMPERATURE ] 2 页

NXP

PXT2222 NPN开关晶体管[ NPN switching transistor ] 8 页

NXP

PXT2222-TAPE-13 [ TRANSISTOR 600 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal ] 3 页

NXP

PXT2222-TAPE-7 [ TRANSISTOR 600 mA, 30 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal ] 3 页

NXP

PXT2222A NPN开关晶体管[ NPN switching transistor ] 8 页

KEXIN

PXT2222A NPN开关晶体管[ NPN Switching Transistor ] 2 页

HTSEMI

PXT2222A 晶体管( NPN )[ TRANSISTOR (NPN) ] 2 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.238240s
