FZT857TC

型号:

FZT857TC

品牌:

DIODES[ DIODES INCORPORATED ]

页数:

7 页

PDF大小:

450 K

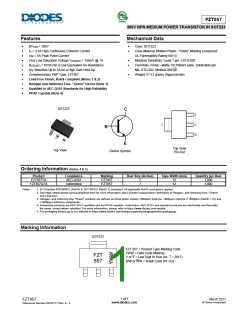

FZT857
Green
300V NPN MEDIUM POWER TRANSISTOR IN SOT223
Features
Mechanical Data
BVCEO > 300V
Case: SOT223
IC = 3.5A High Continuous Collector Current
ICM = 5A Peak Pulse Current
Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Rating 94V-0
Very Low Saturation Voltage VCE(SAT) < 155mV @ 1A
RCE(SAT) = 87mfor a Low Equivalent On-Resistance
hFE Specified Up to 3A for a High Gain Hold-Up
Complementary PNP Type: FZT957
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
e3
MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)
Lead-Free Finish; RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
SOT223
C
B
E
Top View
Pin-Out
Top View
Device Symbol
Ordering Information (Notes 4 & 5)
Product
FZT857TA
FZT857QTA
Compliance
AEC-Q101
Automotive
Marking
FZT857
FZT857
Reel Size (inches)
Tape Width (mm)
Quantity per Reel
1,000
7
7
12
12
1,000
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to https://www.diodes.com/quality/.
5. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.
Marking Information
SOT223
FZT 857 = Product Type Marking Code
YWW = Date Code Marking
Y or Y = Last Digit of Year (ex: 7 = 2017)
WW or WW = Week Code (0153)
FZT
857
1 of 7
www.diodes.com
March 2017
© Diodes Incorporated
FZT857
Document Number DS33177 Rev. 9 - 2
FZT857
Absolute Maximum Ratings (@TA = +25°C, unless otherwise specified.)
Characteristic
Symbol
VCBO
VCEO
VEBO
IC
Value
350
300
7
Unit
V
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
V
V
Continuous Collector Current
Peak Pulse Current
3.5
5
A
A
ICM
Thermal Characteristics (@TA = +25°C, unless otherwise specified.)
Characteristic
Symbol
Value
3.0
24
1.6
12.8
Unit
(Note 6)
(Note 7)
Power Dissipation
Linear Derating Factor
W
mW/°C
PD
(Note 6)
(Note 7)
(Note 8)
42
78
RθJA
RθJA
Thermal Resistance, Junction to Ambient
°C/W
Thermal Resistance Junction to Lead
8.8
RθJL
Operating and Storage Temperature Range
-55 to +150
°C
TJ, TSTG
ESD Ratings (Note 9)
Characteristic
Electrostatic Discharge - Human Body Model
Electrostatic Discharge - Machine Model
Symbol
ESD HBM
ESD MM
Value
8,000
400
Unit
V
V
JEDEC Class
3B
C
Notes:
6. For a device mounted with the collector lead on 52mm x 52mm 2oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured under still air
conditions whilst operating in steady-state.
7. Same as Note 6, except the device is mounted on 25mm x 25mm 1oz copper.
8. Thermal resistance from junction to solder-point (at the end of the collector lead).
9. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
2 of 7
www.diodes.com
March 2017
© Diodes Incorporated
FZT857
Document Number DS33177 Rev. 9 - 2
FZT857
Thermal Characteristics and Derating Information
3.0
2.5
2.0
1.5
1.0
0.5
0.0
52mmX52mm
Single sided 2oz Cu
25mmX25mm
Single sided 1oz Cu
0
20 40 60 80 100 120 140 160
Temperature (°C)
Derating Curve
52mmX52mm
Single sided 2oz Cu
Single Pulse Tamb=25°C
40
30
20
10
0
100
10
1
52mmX52mm
Single sided 2oz Cu
D=0.5
Single Pulse
D=0.2
D=0.05
D=0.1
100µ 1m 10m 100m
1
10
100
1k
100µ 1m 10m 100m
1
10
100
1k
Pulse Width (s)
Pulse Width (s)
Transient Thermal Impedance
Pulse Power Dissipation
3 of 7
www.diodes.com
March 2017
© Diodes Incorporated
FZT857
Document Number DS33177 Rev. 9 - 2
FZT857
Electrical Characteristics (@TA = +25°C, unless otherwise specified.)
Characteristic
Symbol
BVCBO
BVCER
BVCEO
BVEBO
Min
350
350
300
7
Typ
475
475
350
8
Max
Unit
V
Test Condition
IC = 100µA
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 10)
Emitter-Base Breakdown Voltage
V
IC = 1µA, RB ≤ 1kΩ
IC = 1mA
V
V
IE = 100µA
<1

50
1
nA
µA
VCB = 300V
Collector Cut-Off Current
ICBO
VCB = 300V, TA = +100°C
VCE = 300V, RB ≤ 1kΩ
VCE = 300V, TA = +100°C
VEB = 6V
<1

<1
200
200
25
50
1
nA
µA
Collector Cut-Off Current
Emitter Cut-Off Current
ICER
IEBO
100
100
15
10
nA
IC = 10mA, VCE = 5V
IC = 500mA, VCE = 10V
IC = 2A, VCE = 10V
IC = 3A, VCE = 10V
IC = 500mA, IB = 50mA
IC = 1A, IB = 100mA
IC = 2A, IB = 200mA
IC = 3.5A, IB = 600mA
IC = 3.5A, IB = 600mA
IC = 3.5A, VCE = 10V
300
DC Current Gain (Note 10)
hFE
15
59
100
155
230
345
1,250
1,120
95
Collector-Emitter Saturation Voltage (Note 10)
mV
VCE(SAT)
180
300
1,020
940
Base-Emitter Saturation Voltage (Note 10)
Base-Emitter Turn-On Voltage (Note 10)
mV
mV
VBE(SAT)
VBE(ON)
IC = 100mA, VCE = 10V,
f = 50MHz
Current Gain-Bandwidth Product (Note 10)
Output Capacitance
80
MHz
pF
fT
21
100
COBO
tON
VCB = 20V, f = 1MHz
IC = 250mA, VCC = 50V,
IB1 = -IB2 = 25mA
Switching Times
ns
5,300
tOFF
Note:
10. Measured under pulsed conditions. Pulse width ≤ 300µs. Duty cycle ≤ 2%.
4 of 7
www.diodes.com
March 2017
© Diodes Incorporated
FZT857
Document Number DS33177 Rev. 9 - 2
FZT857
Typical Electrical Characteristics (@TA = +25°C, unless otherwise specified.)
1
VCE=10V
IC/IB=10
250
200
150
100
50
150°C
100°C
25°C
150°C
100°C
25°C
0.1
-55°C
-55°C
0.01
0
1m
1m
10m
100m
1
10m
100m
1
IC Collector Current (A)
IC Collector Current (A)
VCE(sat) v IC
hFE v IC
1.0
0.8
0.6
0.4
0.2
1.0
0.8
0.6
0.4
0.2
-55°C
25°C
-55°C
25°C
100°C
100°C
IC/IB=10
VCE=10V
150°C
10m
150°C
10m
1m
100m
1
1m
100m
1
IC Collector Current (A)
IC Collector Current (A)
VBE(sat) v IC
VBE(on) v IC
1.5
1.0
0.5
0.0
f = 1MHz
IC/IB=10
IC/IB=20
1000
100
10
Cibo
IC/IB=50
IC/IB=5
Cobo
T = 25°C
4 5
10m
100m
1
10
100
0
1
2
3
Voltage(V)
IC Collector Current (A)
VCE(sat) v Gain
Capacitance v Voltage
5 of 7
www.diodes.com
March 2017
© Diodes Incorporated
FZT857
Document Number DS33177 Rev. 9 - 2
FZT857
Package Outline Dimensions
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT223
D
Q
b1
C
SOT223
Min Max Typ
1.55 1.65 1.60
Dim
A
A1 0.010 0.15 0.05
E
E1
b
b1
C
0.60 0.80 0.70
2.90 3.10 3.00
0.20 0.30 0.25
6.45 6.55 6.50
3.45 3.55 3.50
6.90 7.10 7.00
Gauge
Plane
0.25
D
Seating
Plane
E
E1
e
e1
L
Q
L
e1
b
-
-
-
-
4.60
2.30
e
0.85 1.05 0.95
0.84 0.94 0.89
A
A1
7°
All Dimensions in mm
Suggested Pad Layout
Please see http://www.diodes.com/package-outlines.html for the latest version.
SOT223
X1
Y1
C1 Y2
Y
Dimensions Value (in mm)
C
C1
X
2.30
6.40
1.20
3.30
1.60
1.60
8.00
X1
Y
Y1
Y2
C
X
Note:
For high voltage applications, the appropriate industry sector guidelines should be considered with regards to creepage and clearance distances between
device terminals and PCB tracking.
6 of 7
www.diodes.com
March 2017
© Diodes Incorporated
FZT857
Document Number DS33177 Rev. 9 - 2
FZT857
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2017, Diodes Incorporated
www.diodes.com
7 of 7
www.diodes.com
March 2017
© Diodes Incorporated
FZT857
Document Number DS33177 Rev. 9 - 2
厂商 型号 描述 页数 下载

ZETEX

FZT1047A NPN硅平面中功率高增益晶体管[ NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR ] 4 页

KEXIN

FZT1047A NPN硅平面中功率高增益晶体管[ NPN Silicon Planar Medium Power High Gain Transistor ] 2 页

DIODES

FZT1047A SOT223 NPN硅平面[ SOT223 NPN SILICON PLANAR ] 4 页

TYSEMI

FZT1047A 5安培连续电流20安培的脉冲电流。[ 5 Amp continuous current, 20 Amp pulse current. ] 2 页

DIODES

FZT1047ATA [ 暂无描述 ] 4 页

ZETEX

FZT1047ATA [ Power Bipolar Transistor, 5A I(C), 10V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 4 Pin, SOT-223, 4 PIN ] 4 页

DIODES

FZT1047ATC [ Power Bipolar Transistor, 5A I(C), 10V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 4 Pin, SOT-223, 4 PIN ] 4 页

DIODES

FZT1048 [ 暂无描述 ] 3 页

ZETEX

FZT1048A NPN硅平面中功率高增益晶体管[ NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR ] 3 页

KEXIN

FZT1048A NPN硅平面中功率高增益晶体管[ NPN Silicon Planar Medium Power High Gain Transistor ] 2 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.216870s
