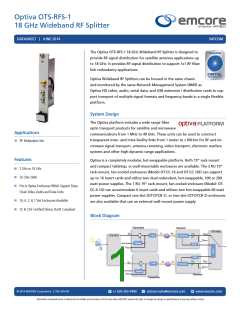

Optiva OTS-RFS-1
18 GHz Wideband RF Splitter
DATASHEET | JUNE 2014
SATCOM
The Optiva OTS-RFS-1 18 GHz Wideband RF Splitter is designed to
provide RF signal distribution for satellite antenna applications up
to 18 GHz. It provides RF signal distribution to support 1x1 RF fiber
link redundancy applications.
Optiva Wideband RF Splitters can be housed in the same chassis
and monitored by the same Network Management System (NMS) as
Optiva HD video, audio, serial data, and USB extension / distribution cards to sup-
port transport of multiple signal formats and frequency bands in a single flexible
platform.
System Design
The Optiva platform includes a wide range fiber
optic transport products for satellite and microwave
Applications
communications from 1 MHz to 40 GHz. These units can be used to construct
transparent inter- and intra-facility links from 1 meter to >100 km for RF and mi-
crowave signal transport, antenna remoting, video transport, electronic warfare
systems and other high-dynamic-range applications.
RF Redundant Link
Features
Optiva is a completely modular, hot-swappable platform. Both 19” rack-mount
and compact tabletop, or wall-mountable enclosures are available. The 3 RU 19”
rack-mount, fan-cooled enclosures (Model OT-CC-16 and OT-CC-16F) can support
up to 16 insert cards and utilize two dual-redundant, hot-swappable, 100 or 200
watt power supplies. The 1 RU 19” rack-mount, fan-cooled enclosure (Model: OT-
CC-6-1U) can accommodate 6 insert cards and utilizes two hot-swappable 60 watt
power supplies. Compact one-slot (OT-DTCR-1), or two-slot (OT-DTCR-2) enclosures
are also available that use an external wall-mount power supply.
2 GHz to 18 GHz
50 Ohm SMA
Fits in Optiva Enclosures Which Support Daisy
Chain Video, Audio and Data Links
16, 6, 2, & 1 Slot Enclosures Available
CE & CSA Certified Device, RoHS Compliant
Block Diagram
Transmitter
Receiver
OTS-RSU
PL
PR
S
in
S
out
o
Laser
Photodiode
OTS-RFS
S
mon
Push Button
Optimizer
Alarm
Alarm
o
S
mon
S
out
P
L
P
S
in
o
Laser
Photodiode
S
mon
Push Button
Optimizer
S
mon
Receiver
Transmitter
