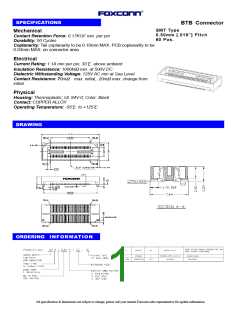

SPECIFICATIONS
BTB Connector
SMT Type
0.50mm [.019”] Pitch
60 Pos.
Mechanical
Contact Retention Force: 0.17KGF min. per pin
Durability: 50 Cycles
Coplanarity: Tail coplanarity to be 0.10mm MAX. PCB coplanarity to be
0.03mm MAX. on connector area.
Electrical
Current Rating: 1.1A min per pin, 30
℃
above ambient
min. at 500V DC
Dielectric Withstanding Voltage: 125V AC min at Sea Level
Insulation Resistance: 1000M
Ω
Contact Resistance: 70m
Ω
max. initial,. 20mΩ max. change from
initial
Physical
Housing: Thermoplastic; UL 94V-0; Color: Black
Contact: COPPER ALLOY
Operating Temperature: -55℃ to +125℃
DRAWING
ORDERING INFORMATION
