2Y1C307-12-7F

型号:

2Y1C307-12-7F

品牌:

FOXCONN[ FOXCONN ]

页数:

1 页

PDF大小:

59 K

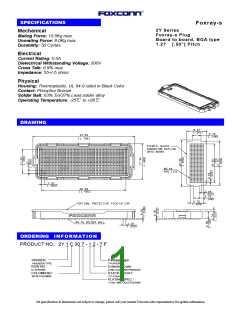

SPECIFICATIONS
Foxray-s
2Y Series
Foxray-s Plug
Board to board, BGA type
1.27 [.50”] Pitch
Mechanical
Mating Force: 10.5Kg max.
Unmating Force: 8.0Kg max.
Durability: 50 Cycles
Electrical
Current Rating: 0.5A
Dielectrical Withstanding Voltage: 200V
Cross Talk: 6.9% max.
Impedance: 55+/-5 ohms
Physical
Housing: Thermoplastic, UL 94-0 rated in Black Color
Contact: Phosphor Bronze
Solder Ball: 63% Tin/37% Lead solder alloy
Operating Temperature: -25to +85℃
DRAWING
ORDERING INFORMATION
PRODUCT NO.: 2Y 1 C 30 7 - 1 2 - 7 F
GENDER:
1=HEADER TYPE
Package Type
7=TAPE/REEL
ROW NO.:
Extension Code
2=NO CLEANING PROCESS
STACK HEIGHT:
1=1.41mm
C=10 ROWS
COLOMN NO.:
30=30 COLUMNS
PLATING SPEC.:
7=16u" MIN. GOLD PLATING
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
