MY4H-US-AC24

型号：

MY4H-US-AC24

品牌：

OMRON[ OMRON ELECTRONICS LLC ]

页数：

6 页

PDF大小：

663 K

下载PDF手册

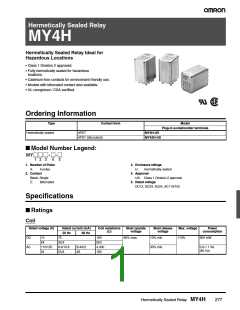

Hermetically Sealed Relay
MY4H
Hermetically Sealed Relay Ideal for
Hazardous Locations
• Class 1 Division 2 approved.
• Fully hermetically sealed for hazardous
locations.
• Cadmium-free contacts for environment-friendly use.
• Models with bifurcated contact also available.
• UL recognized / CSA certified.
Ordering Information
Type
Contact form
Model
Plug-in socket/solder terminals
Hermetically sealed
4PDT
MY4H-US
4PDT (bifurcated)
MY4ZH-US
■ Model Number Legend:
MY
- -
1 2
3
4
5
1. Number of Poles
4: 4 poles
2. Contact
Blank: Single
Z: Bifurcated
3. Enclosure ratings
H:
Hermetically sealed
4. Approval
US: Class 1 Division 2 approval
5. Rated voltage
DC12, DC24, AC24, AC110/120
Specifications
■ Ratings
Coil
Rated voltage (V)
Rated current (mA)
50 Hz 60 Hz
Coil resistance
Must operate
voltage
Must release
voltage
Max. voltage
Power
consumption
(Ω)
DC
AC
12
75
160
80% max.
10% min.
110%
900 mW
24
36.9
650
110/120
24
9.9/10.8
53.8
8.4/9.2
46
4,430
180
30% min.
0.9-1.1 VA
(60 Hz)
Hermetically Sealed Relay MY4H
277
Contact Ratings
Contact material
Rated load
Ag alloy
Resistive
p.f.=1
110 VAC, 3 A
24 VDC, 3A
Inductive
p.f.=0.4
L/R-7 ms
110 VAC, 0.8 A
24 VDC, 1.5 A
Rated carry current
3 A
Max. switching voltage
Max. switching current
Max. switching power
125 VAC, 125 VDC
3 A
330 VA
72 W
■ Characteristics
Contact resistance
50 mΩ max.
Operate time
20 ms max.
Release time
20 ms max.
Max. operating
frequency
Mechanical
18,000 operations/hr
1,800 operations/hr (under rated load)
100 MΩ min. (at 500 VDC)
Electrical
Insulation resistance
Dielectric strength
1,000 VAC, 1 min between coil and contacts
1,000 VAC, 1 min between contacts of different polarity
700 VAC, 1 min between contacts of same polarity
Vibration resistance
Shock resistance
Destruction
Malfunction
Destruction
Malfunction
10 to 55 Hz, 1.0 mm double amplitude
10 to 55 Hz, 1.0 mm double amplitude
1,000 m/s2
When energized: 200 m/s2
When not energized: 200 m/s2
Endurance
Mechanical:
Electrical:
5,000,000 operations
50,000 operations
Ambient temperature
Operating
Storage
-25 to 60°C
-25 to 60°C
5% to 85%
Approx. 50 g
Ambient humidity
Weight
278
Hermetically Sealed Relay MY4H
■ Characteristic Data
Maximum Switching Power
Endurance
MY4(Z)H
MY4ZH
AC resistive load
AC inductive load
(cosφ=0.4)
110 VAC resistive load
24 VDC resistive load
DC resistive load
DC inductive load
(L/R = 7 ms)
110 VAC inductive
load (cosφ=0.4)
24 VDC inductive load (L/R = 7 ms)
Switching current (A)
Switching voltage (V)
Note: The endurance is for bifurcated contact models.
Dimensions
Unit: mm
■ Solder Terminal Models
MY4(Z)H
Terminal Arrangement/
Internal Connections
2.6
(BOTTOM VIEW)
Fourteen, 1.2-dia.×3, round holes
22 max.
28.5 max.
6.4.
35 max.
(There is no coil polarity.)
Hermetically Sealed Relay MY4H
279
■ Socket
Track-mounted Socket Conforming to
Class 1 Division 2
• Special Socket with Class 1 Division 2 approval.
• Holding clips contribute to safety by preventing the Relay
falling out of the Socket due to vibration.
Ordering Information
Item
Pole
Model
Track-mounted socket
4
PYF14A-E
Note: 1. Class 1 Division 2 approval is obtained for use with the MY4ZH Relay.
2. PYC-A1 hold-down clips are not included, but are recommended. (Clips are packaged 2 per set)
Dimensions
Unit: mm
PYF14A-E
Terminal Arrangement/
Internal Connections
(Top View)
Mounting Holes
+0.2
-0.1
Two, 4.2×5
mounting holes
6
14-M3×8
72 max.
4
29.5 max.
31 max.
280
Hermetically Sealed Relay MY4H
MEMO
Hermetically Sealed Relay MY4H
All sales are subject to Omron Electronic Components LLC standard terms and conditions of sale, which
can be found at http://www.components.omron.com/components/web/webfiles.nsf/sales_terms.html
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
OMRON ON-LINE
Global - http://www.omron.com
USA - http://www.components.omron.com
OMRON ELECTRONIC
COMPONENTS LLC
55 E. Commerce Drive, Suite B
Schaumburg, IL 60173
847-882-2288
09/11
Specifications subject to change without notice
Printed in USA
Cat. No. X301-E-1b
Hermetically Sealed Relay MY4H
