ZXTN649FTA

型号:

ZXTN649FTA

品牌:

DIODES[ DIODES INCORPORATED ]

页数:

7 页

PDF大小:

238 K

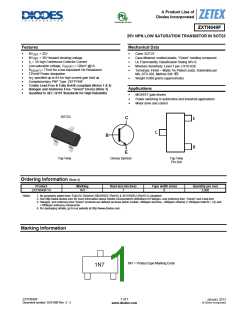

A Product Line of
Diodes Incorporated
ZXTN649F
25V NPN LOW SATURATION TRANSISTOR IN SOT23
Features
Mechanical Data
Case: SOT23
BVCEO > 25V
BVCBO > 35V forward blocking voltage
IC = 3A high Continuous Collector Current
Low saturation voltage, VCE(SAT) < 120mV @1A
Case Material: molded plastic, “Green” molding compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
RCE(SAT) = 77mfor a low equivalent On-Resistance
725mW Power dissipation
hFE specified up to 6A for high current gain hold up
Complementary PNP Type: ZXTP749F
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Weight 0.008 grams (approximate)
Applications
MOSFET gate drivers
Power switching in automotive and industrial applications
Motor drive and control
SOT23
C
E
E
C
B
B
Top View
Device Symbol
Top View
Pin-Out
Ordering Information (Note 4)
Product
ZXTN649FTA
Marking
1N7
Reel size (inches)
Tape width (mm)
Quantity per reel
7
8
3,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
1N7 = Product type Marking Code
ZXTN649F
Document number: DS31900 Rev. 3 - 2
1 of 7
www.diodes.com
January 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN649F
Maximum Ratings (@TA = +25°C, unless otherwise specified.)
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Symbol
VCBO
VCEO
VEBO
IC
Value
35
25
7
Unit
V
V
V
Continuous Collector Current
Peak Pulse Current
3
A
6
A
ICM
Base Current
500
mA
IB
Thermal Characteristics (@TA = +25°C, unless otherwise specified.)
Characteristic
Symbol
PD
Value
725
Unit
mW
°C/W
°C/W
°C
Power Dissipation
(Note 5)
(Note 5)
(Note 6)
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Leads
Operating and Storage Temperature Range
172
RθJA
RθJL
79
-55 to +150
TJ, TSTG
ESD Ratings (Note 7)
Characteristic
Electrostatic Discharge - Human Body Model
Electrostatic Discharge - Machine Model
Symbol
ESD HBM
ESD MM
Value
8,000
400
Unit
V
V
JEDEC Class
3B
C
Notes:
5. For a device surface mounted on 15mm x 15mm x 1.6mm FR4 PCB with high coverage of single sided 1oz copper, in still air conditions; the device is
measured when operating in a steady-state condition.
6. Thermal resistance from junction to solder-point (at the end of collector lead).
7. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
ZXTN649F
Document number: DS31900 Rev. 3 - 2
2 of 7
www.diodes.com
January 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN649F
Thermal Characteristics and Derating information
0.8
0.6
0.4
0.2
0.0
VCE(sat)
10
Limited
1
DC
1s
100ms
100m
10ms
Single Pulse
Tamb=25°C
1ms
100µs
10
10m
100m
1
0
20
40 60 80 100 120 140 160
Temperature (°C)
VCE Collector-Emitter Voltage (V)
Safe Operating Area
Derating Curve
180
160
140
120
Tamb=25°C
Single Pulse
Tamb=25°C
100
10
1
100 D=0.5
80
60
D=0.2
40
Single Pulse
D=0.05
D=0.1
20
0
100µ 1m 10m 100m
1
10
100
1k
100µ 1m 10m 100m
1
10
100
1k
Pulse Width (s)
Pulse Width (s)
Transient Thermal Impedance
Pulse Power Dissipation
ZXTN649F
Document number: DS31900 Rev. 3 - 2
3 of 7
www.diodes.com
January 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN649F
Electrical Characteristics (@TA = +25°C, unless otherwise specified.)
Characteristic
Symbol
BVCBO
BVCEO
BVEBO
Min
35
25
7
Typ
110
35
Max
Unit
V
Test Condition
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 8)
Emitter-Base Breakdown Voltage
-
-
-
IC = 100µA
IC = 10mA
IE = 100µA
VCB = 28V
V
8.1
V
nA
µA
50
0.5
Collector Cut-off Current
Emitter Cut-off Current
-
-
<1
<1
ICBO
IEBO
V
CB = 28V, TA = +100°C
50
nA
VEB = 5.6V
IC = 100mA, VCE = 2V
IC = 1A, VCE = 2V
200
175
155
50
320
280
250
85
500
-
-
-
Static Forward Current Transfer Ratio (Note 8)
-
hFE
I
C = 2A, VCE = 2V
IC = 6A, VCE = 2V
IC = 1A, IB = 100mA
-
-
70
200
120
300
Collector-Emitter Saturation Voltage (Note 8)
mV
VCE(sat)
I
C = 3A, IB = 300mA
Base-Emitter Saturation Voltage (Note 8)
Base-Emitter Saturation Voltage (Note 8)
-
-
900
780
1000
850
mV
mV
VBE(sat)
VBE(on)
IC = 1A, IB = 100mA
IC = 1A, VCE = 2V
Notes:
8. Measured under pulsed conditions. Pulse width 300µs. Duty cycle 2%
ZXTN649F
Document number: DS31900 Rev. 3 - 2
4 of 7
www.diodes.com
January 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN649F
Typical Electrical Characteristics (@TA = +25°C, unless otherwise specified.)
1
Tamb=25°C
IC/IB=10
0.3
0.2
0.1
0.0
IC/IB=100
IC/IB=50
150°C
100°C
100m
10m
1m
IC/IB=10
25°C
IC/IB=20
-55°C
IC10mCollect1o0r0Cmurrent (A)
IC Collector Current (A)
1m
1
10m
100m
1
VCE(sat) v IC
VCE(sat) v IC
1.2
1.0
0.8
0.6
0.4
0.2
IC/IB=10
VCE=2V
300
200
100
0
-55°C
25°C
150°C
100°C
25°C
150°C
100°C
-55°C
IC10mCollect1o0r0mCurrent (A)
IC10mCollect1o0r0Cmurrent (A)
1m
1
10
1m
1
hFE v IC
VBE(sat) v IC
200
180
160
140
120
100
80
1.2
1.0
0.8
0.6
0.4
0.2
VCE=2V
f = 1MHz
-55°C
Cibo
25°C
60
Cobo
150°C
40
20
100°C
1
0
10m
1
10
100m Voltage(V)
IC10mCollect1o0r0Cmurrent (A)
1m
Capacitance v Voltage
VBE(on) v IC
ZXTN649F
Document number: DS31900 Rev. 3 - 2
5 of 7
www.diodes.com
January 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN649F
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
A
SOT23
Dim
A
B
C
D
F
G
H
J
K
Min
0.37
1.20
2.30
0.89
0.45
1.78
2.80
0.013 0.10
0.903 1.10
-
0.45
0.085 0.18
0° 8°
Max
0.51
1.40
2.50
1.03 0.915
0.60 0.535
Typ
0.40
1.30
2.40
C
B
2.05
3.00
1.83
2.90
0.05
1.00
0.400
0.55
0.11
-
H
G
M
K
J
K1
K1
L
M
-
D
F
0.61
L
α
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
Y
Dimensions Value (in mm)
Z
X
Y
C
E
2.9
0.8
0.9
2.0
Z
C
1.35
E
X
ZXTN649F
Document number: DS31900 Rev. 3 - 2
6 of 7
www.diodes.com
January 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTN649F
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2013, Diodes Incorporated
www.diodes.com
ZXTN649F
Document number: DS31900 Rev. 3 - 2
7 of 7
www.diodes.com
January 2013
© Diodes Incorporated
厂商 型号 描述 页数 下载

ZETEX

ZXT1053AK 75V NPN低饱和中功率晶体管D- PAK[ 75V NPN LOW SATURATION MEDIUM POWER TRANSISTOR IN D-PAK ] 6 页

DIODES

ZXT1053AK 75V NPN低饱和中功率晶体管D- PAK[ 75V NPN LOW SATURATION MEDIUM POWER TRANSISTOR IN D-PAK ] 6 页

DIODES

ZXT1053AKQTC [ 暂无描述 ] 6 页

ZETEX

ZXT1053AKTC 75V NPN低饱和中功率晶体管D- PAK[ 75V NPN LOW SATURATION MEDIUM POWER TRANSISTOR IN D-PAK ] 6 页

DIODES

ZXT1053AKTC 75V NPN低饱和中功率晶体管D- PAK[ 75V NPN LOW SATURATION MEDIUM POWER TRANSISTOR IN D-PAK ] 6 页

ZETEX

ZXT10N15DE6 15V NPN硅低饱和开关晶体管[ 15V NPN SILICON LOW SATURATION SWITCHING TRANSISTOR ] 6 页

DIODES

ZXT10N15DE6 15V NPN硅低饱和开关晶体管[ 15V NPN SILICON LOW SATURATION SWITCHING TRANSISTOR ] 6 页

ZETEX

ZXT10N15DE6TA 15V NPN硅低饱和开关晶体管[ 15V NPN SILICON LOW SATURATION SWITCHING TRANSISTOR ] 6 页

DIODES

ZXT10N15DE6TA 15V NPN硅低饱和开关晶体管[ 15V NPN SILICON LOW SATURATION SWITCHING TRANSISTOR ] 6 页

ZETEX

ZXT10N15DE6TC 15V NPN硅低饱和开关晶体管[ 15V NPN SILICON LOW SATURATION SWITCHING TRANSISTOR ] 6 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.211661s
