WZ10150

型号：

WZ10150

品牌：

SEOUL[ Seoul Semiconductor ]

页数：

15 页

PDF大小：

366 K

下载PDF手册

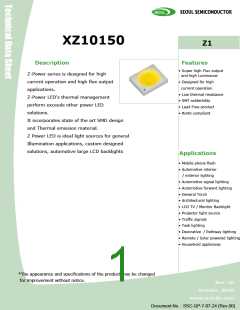

XZ10150
Z1
Description
Features
• Super high Flux output
and high Luminance
Z-Power series is designed for high
current operation and high flux output
applications.
• Designed for high
current operation
• Low thermal resistance
• SMT solderbility
Z-Power LED's thermal management
perform exceeds other power LED
solutions.
• Lead Free product
• RoHS compliant
It incorporates state of the art SMD design
and Thermal emission material.
Z Power LED is ideal light sources for general
Illumination applications, custom designed
solutions, automotive large LCD backlights
Applications
• Mobile phone flash
• Automotive interior
/ exterior lighting
• Automotive signal lighting
• Automotive forward lighting
• General Torch
• Architectural lighting
• LCD TV / Monitor Backlight
• Projector light source
• Traffic signals
• Task lighting
• Decorative / Pathway lighting
• Remote / Solar powered lighting
• Household appliances
*The appearance and specifications of the product may be changed
for improvement without notice.
Rev. 10
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Full Code of Z-Power LED Series
Full code form : X1 X2 X3 X4 X5 X6 X7 – X8 X9 –X10X11 X12 X13X14
1. Part Number
- X1 : Color
- X2 : New Z-Power LED - ‘Z’
- X3 : New Z-Power LED series number
- X4 : LENS type
- X5 : Chip quantity (or Power Dissipation)
- X6 : Package outline size
-X7: Type of PCB
2. Internal Number
- X8
- X9
3. Code Labeling
- X10 : Luminous flux (or Radiant flux for royal blue)
- X11 X12 X13: Dominant wavelength (or x,y coordinates rank code)
- X1 4: Forward voltage
4. Sticker Diagram on Reel & Aluminum Vinyl Bag
X X X X X X X – X X
9
PART NO. :
QUANTITY : ###
LOT NUMBER : ##########
1
2
3
4
5
6
7
8
X10 X11 X12 X13 X14
BIN CODE :
For more information about binning and labeling, refer to the Application Note -1
Rev. 10
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Outline Dimension
1. Flat Type
Notes :
1. All dimensions are in millimeters. (tolerance : ±0.2 )
2. Scale : none
3. Thermal pad is isolated.
4. Paste thickness:(0.2±0.05)mm
Rev. 10
*The appearance and specifications of the product may be changed for improvement without
notice.
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Characteristics for Z-Power LED
1. Pure White (WZ10150)
1-1 Electro-Optical characteristics at IF=400mA, TA=25ºC
Value
Typ
100
Parameter
Symbol
Unit
Min
Max
[1]
[2]
Luminous Flux
90
-
-
lm
K
ФV
[3]
Correlated Color Temperature
CRI
CCT
Ra
6300
68
-
-
-
-
[4]
Forward Voltage
VF
-
3.6
4.25
V
View Angle
2Θ ½
RθJ-B
RθJ-C
120
deg.
ºC /W
ºC /W
[5]
Thermal resistance
16.5
11.0
[6]
Thermal resistance
1-2 Absolute Maximum Ratings
Parameter
Symbol
Value
Unit
mA
W
Forward Current
IF
Pd
450
1.67
125
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
Tj
ºC
ºC
ºC
-
Topr
Tstg
-
-40 ~ +85
-40 ~ +100
[7]
ESD Sensitivity
±10,000V HBM
*Notes :
[1] SSC maintains a tolerance of ±10% on flux and power measurements.
[2] ФV is the total luminous flux output as measured with an integrated sphere.
[3] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
CCT ±5% tester tolerance
[4] A tolerance of ±0.06V on forward voltage measurements
[5], [6] RθJ-B is measured with a SSC metal core pcb.(25 ºC ≤TJ ≤ 110 ºC)
RθJ-C is measured with only emitter.(25 ºC ≤TJ ≤ 110 ºC)
Break voltage of Metal PCB is 6.5kVAC
[7] It is included the zener chip to protect the product from ESD.
--------------------------Caution--------------------------
1. Please do not drive at rated current more than 5 sec. without proper heat sink.
Rev. 10
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Characteristics for Z-Power LED
2. Warm White (NZ10150)
2-1 Electro-Optical characteristics at IF=400mA, TA=25ºC
Value
Typ
76
Parameter
Symbol
Unit
Min
Max
[1]
[2]
Luminous Flux
-
-
-
-
-
lm
K
ФV
[3]
Correlated Color Temperature
CRI
CCT
Ra
3000
80
-
-
-
[4]
Forward Voltage
VF
3.6
4.25
V
View Angle
2Θ ½
RθJ-B
RθJ-C
120
16.5
11.0
deg.
ºC /W
ºC /W
[5]
Thermal resistance
[6]
Thermal resistance
2-2 Absolute Maximum Ratings
Parameter
Symbol
Value
Unit
mA
W
Forward Current
IF
Pd
450
1.67
125
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
Tj
ºC
ºC
ºC
-
Topr
Tstg
-
-40 ~ +85
-40 ~ +100
[7]
ESD Sensitivity
±10,000V HBM
*Notes :
[1] SSC maintains a tolerance of ±10% on flux and power measurements.
[2] ФV is the total luminous flux output as measured with an integrated sphere.
[3] Correlated Color Temperature is derived from the CIE 1931 Chromaticity diagram.
CCT ±5% tester tolerance
[4] A tolerance of ±0.06V on forward voltage measurements
[5], [6] RθJ-B is measured with a SSC metal core pcb.(25 ºC ≤TJ ≤ 110 ºC)
RθJ-C is measured with only emitter.(25 ºC ≤TJ ≤ 110 ºC)
Break voltage of Metal PCB is 6.5kVAC
[7] It is included the zener chip to protect the product from ESD.
--------------------------Caution--------------------------
1. Please do not drive at rated current more than 5 sec. without proper heat sink
Rev. 10
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Color Spectrum, TA=25ºC
1. Pure White
1.0
Standard eye response curve
0.8
0.6
0.4
0.2
0.0
300
400
500
600
700
800
Wavelength (nm)
2. Warm White
1.0
0.8
0.6
0.4
0.2
0.0
300
400
500
600
700
800
Wavelength (nm)
Rev. 10
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Junction Temperature Characteristics
1. Relative Light Output vs. Junction Temperature at IF=400mA
160
Pure White
Warm White
140
120
100
80
60
40
20
0
25
50
75
100
125
Junction Temperature, TJ [oC]
2. Forward Voltage Shift vs. Junction Temperature at IF=400mA
0.0
-0.2
-0.4
-0.6
-0.8
Pure White & Warm White
-1.0
25
50
75
100
125
Junction Temperature, TJ [oC]
Rev. 10
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Optical characteristics
1. Forward Voltage vs. Forward Current, TA=25℃
Pure / Warm White
400
300
200
100
0
0
1
2
3
4
5
6
Forward Voltage [V]
2. Forward Current vs. Normalized Relative Luminous Flux TA=25℃
1.2
Pure / Warm White
1.0
0.8
0.6
0.4
0.2
0.0
0
100
200
300
400
500
Forward Current [mA]
Rev. 10
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Ambient Temperature vs Allowable Forward Current
1. Pure White,Warm white (TJMAX = 125 ℃, 400mA)
500
400
RjaT = 20oC/W
300
RjaT = 30oC/W
RjaT = 40oC/W
200
100
0
0
25
50
75
100
125
Ambient Temperature [oC]
Rev. 10
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Typical Flat Type Radiation pattern
1. Pure White, Warm white
0
1.0
0.8
0.6
0.4
0.2
0.0
30
60
90
-80
-60
-40
-20
0
Angle(deg.)
Rev. 10
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Packing
0.8
0.6
0.4
0.2
0 . 2
4
0 .
6
8
0 .
0 .
Note:
1)Quantity : 500 or 1000pcs/Reel
2)Cumulative Tolerance : Cumulative Tolerance/10 pitches to be ±0.2mm
3)Adhesion Strength of Cover Tape : Adhesion strength to be 0.1-0.7N when the cover tape is
turned off from the carrier tape at the angle of 10 to the carrier tape
4)Package : P/N, Manufacturing data Code No. and quantity to be indicated on a damp proof
Package
5) The appearance and specifications of the product may be changed for improvement without
notice.
Rev. 10
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
● Reel Packing Structure
Reel
QUANTITY : XXXX
LOT NUMBER : XXXXXXXXXX
PART NUMBER :
SEOUL SEMICONDUCTOR CO., LTD.
HUMIDITY INDICATOR
DESI PAK
Aluminum Vinyl Bag
QUANTITY : XXXX
LOT NUMBER : XXXXXXXXXX
PART NUMBER :
SEOUL SEMICONDUCTOR CO., LTD.
Outer Box Structure
Material : Paper(SW3B(B))
SIZE (mm)
TYPE
a
c
b
245 220 102
245 220 142
7inch
SIDE
1
c
TUV
MADE IN KOREA
1
QUANTITY : XXXX
Acriche
Semiconductor EcoLight
LOT NUMBER : XXXXXXXXXX
RoHS
b
PART NUMBER :
a
SEOUL SEMICONDUCTOR CO., LTD.
Rev. 10
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Soldering
1. Reflow Soldering Conditions / Profile
[
]
Tm : Reflow machine setting temp (max 30 sec.)
Ts : Surface temp of PCB (max)
Ts : Surface temp of PCB (recommend)
Ts : Surface temp of PCB (min)
260
240
220
200
Cooling
-5 °C/sec
Rising
5 °C/sec
Pre-heating
180
150
0
Time
[Hr]
2. Hand Soldering conditions
Lead : Not more than 3 seconds @MAX280℃
Slug : Use a thermal-adhesives
* Caution
1. Reflow soldering should not be done more than one time.
2. Repairing should not be done after the LEDs have been soldered. When
repairing is unavoidable, suitable tools have to be used.
3. Die slug is to be soldered.
4. When soldering, do not put stress on the LEDs during heating.
5. After soldering, do not warp the circuit board.
6. Recommend to use a convection type reflow machine with 7 ~ 8 zones.
Rev. 10
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Precaution for use
• Storage
To avoid the moisture penetration, we recommend storing Z Power LEDs in a dry box
(or desiccator) with a desiccant . The recommended storage conditions are Temperature 5 to 30
degrees Centigrade. Humidity 50% maximum.
• Precaution after opening packaging
However LED is correspond SMD, when LED be soldered dip, interfacial separation may affect
the light transmission efficiency, causing the light intensity to drop.
Attention in followed.
a. Soldering should be done right after opening the package(within 24Hrs).
b. Keeping of a fraction
- Sealing
- Temperature : 5 ~ 40℃ Humidity : less than 30%
c. If the package has been opened more than 1week or the color of desiccant changes,
components should be dried for 10-12hr at 60±5℃
• Any mechanical force or any excess vibration shall not be accepted to apply during cooling
process to normal temp. after soldering.
• Please avoid rapid cooling after soldering.
• Components should not be mounted on warped direction of PCB.
• Anti radioactive ray design is not considered for the products listed here in.
• Gallium arsenide is used in some of the products listed in this publication. These products are
dangerous if they are burned or shredded in the process of disposal. It is also dangerous to
drink the liquid or inhale the gas generated by such products when chemically disposed.
• This device should not be used in any type of fluid such as water, oil, organic solvent and etc.
When washing is required, IPA(Isopropyl Alcohol) should be used.
• When the LEDs are illuminating, operating current should be decided after considering the
package maximum temperature.
• LEDs must be stored to maintain a clean atmosphere. If the LEDs are stored for 3 months or
more after being shipped from SSC, a sealed container with a nitrogen atmosphere should be used
for storage.
• The appearance and specifications of the product may be modified for improvement without
notice.
• Long time exposure of sunlight or occasional UV exposure will cause lens discoloration.
• Attaching LEDs, don’t use adhesives to generate organic vapor.
Rev. 10
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
Handling of Silicone Resin LEDs
(1) During processing, mechanical stress on the surface should be minimized as much as
possible. Sharp objects of all types should not be used to pierce the sealing compound.
(2) In general, LEDs should only be handled from the side. By the way, this also applies
to LEDs without a silicone sealant, since the surface can also become scratched.
(3) When populating boards in SMT production, there are basically no restrictions
regarding the form of the pick and place nozzle, except that mechanical pressure on the
surface of the resin must be prevented.
This is assured by choosing a pick and place nozzle which is larger than the LED’s
reflector area.
(4) Silicone differs from materials conventionally used for the manufacturing of LEDs.
These conditions must be considered during the handling of such devices. Compared to
standard encapsulants, silicone is generally softer, and the surface is more likely to
attract dust.
As mentioned previously, the increased sensitivity to dust requires special care
during processing. In cases where a minimal level of dirt and dust particles cannot be
guaranteed, a suitable cleaning solution must be applied to the surface after the
soldering of components.
(5) SSC suggests using isopropyl alcohol for cleaning. In case other solvents are used, it
must be assured that these solvents do not dissolve the package or resin.
Ultrasonic cleaning is not recommended. Ultrasonic cleaning may cause damage to the
Rev. 10
LED.
October. 2010
www.acriche.com
Document No. : SSC-QP-7-07-24 (Rev.00)
厂商 型号 描述 页数 下载

WEITRON

 		WZ10110B-M [ Zener Diode ] 7 页

WEITRON

 		WZ1011B-M [ Zener Diode ] 7 页

WEITRON

 		WZ1015-M [ Zener Diode ] 7 页

WEITRON

 		WZ10150-M [ Zener Diode ] 7 页

WEITRON

 		WZ10150B-M [ Zener Diode ] 7 页

WEITRON

 		WZ1015B-M [ Zener Diode ] 7 页

WEITRON

 		WZ10200B-M [ Zener Diode ] 7 页

WEITRON

 		WZ1022-M [ Zener Diode ] 7 页

WEITRON

 		WZ1022B-M [ Zener Diode ] 7 页

WEITRON

 		WZ10250B-M [ Zener Diode ] 7 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.197889s
