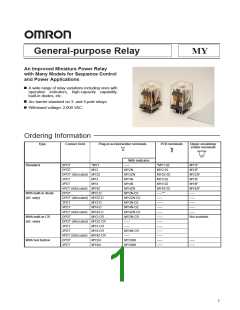

General-purpose Relay
MY
An Improved Miniature Power Relay
with Many Models for Sequence Control
and Power Applications
A
wide range of relay variations including ones with
operation indicators, high-capacity capability,
built-in diodes, etc.
Arc barrier standard on 3- and 4-pole relays.
Withstand voltage: 2,000 VAC.
Ordering Information
Type
Contact form
Plug-in socket/solder terminals
PCB terminals
Upper-mounting/
solder terminals
With indicator
Standard
SPDT
DPDT
*MY1
MY2
–––
*MY1-02
MY1F
MY2F
MY2ZF
MY3F
MY4F
MY4ZF
–––
MY2N
MY2-02
MY2Z-02
MY3-02
MY4-02
MY4Z-02
–––**
–––
DPDT (bifurcated) MY2Z
MY2ZN
MY3N
3PDT
4PDT
MY3
MY4
MY4N
4PDT (bifurcated) MY4Z
DPDT MY2-D
DPDT (bifurcated) MY2Z-D
MY4ZN
MY2N-D2
MY2ZN-D2
MY3N-D2
MY4N-D2
MY4ZN-D2
MY2N-CR
–––
With built-in diode
(DC only)
–––
3PDT
4PDT
MY3-D
MY4-D
–––
–––
–––
–––
4PDT (bifurcated) MY4Z-D
DPDT MY2-CR
DPDT (bifurcated) MY2Z-CR
–––
–––
With built-in CR
(AC only)
–––
Not available.
–––
3PDT
4PDT
MY3-CR
MY4-CR
–––
–––
MY4N-CR
–––
–––
4PDT (bifurcated) MY4Z-CR
–––
With test button
DPDT
4PDT
MY2I4
MY4I4
MY2I4N
MY4I4N
–––
–––
–––
–––
1
MY
MY
Type
Contact form
Plug-in socket/solder terminals
PCB terminals
Upper-mounting/
solder terminals
With indicator
High-humidity
DPDT
MY2-TU
–––
–––
–––
DPDT (bifurcated) MY2Z-TU
–––
–––
–––
–––
3PDT
4PDT
MY3-TU
MY4-TU
–––
–––
MY4N-TU
–––
–––
–––
4PDT (bifurcated) MY4Z-TU
–––
Not available.
High-capacity (7 A)
High-sensitivity
DPDT
3PDT
MY2-Y
MYC3
MY2N-Y
Not available
–––
MYC3-02
Note: 1. When ordering, add the rated coil voltage to the model number. Rated coil voltages are given in the coil ratings table.
Example: MY2, 6 VAC
Rated coil voltage
*2.Models mark with an asterisk are not available with international safety standard ratings.
3. Add “-G” to the model number if mounting studs are required (e.g., MY4-G).
4. The standard contacts for MY2Z-series Relays and for the MY4Z are gold-plated.
**5. Models denoted by “–––” will be manufactured upon request. Ask your OMRON representative.
6. The following variations are also available.
Plastic-sealed relays (MYQ4):
Latching relays (MY2K):
See page 46.
See page 51.
Hermetically sealed relays (MY4H): Ask your OMRON representative.
Accessories (Order Separately)
Sockets
Poles
Front-mounting socket
Back-mounting socket
(DIN-rail/screw mounting)
Solder terminals
W/ clip W/o clip
W
ire-wrap terminals
PCB
terminals
PY08–02
W/ clip
W/o clip
1 or 2
PYF08A-E, PYF08A,
PY08
PY08-Y1
PY08QN
PY08QN-Y1
PYF08A-N (finger protection)
3
4
PYF11A-E, PYF11A
PY11
PY11-Y1
PY14-Y1
PY11QN
PY14QN
PY11QN-Y1
PY14QN-Y1
PY11-02
PY14-02
PYF14A-E, PYF14A
PYF14A-N (finger protection)
PY14
PY14-3*
Note: *1.Equipped with operation check terminal.
2. The PYF08A(-E), PYF11A(-E), and PYF14A(-E) have been approved as individual sockets by UL S08 and CSA C22.2.
Mounting Plates for Sockets
Socket model
For 1 socket
For 18 sockets
For 36 sockets
PY08, PY11, PY14, PY08QN(2), PYP-1
PY11QN(2), PY14QN(2)
PYP-18
PYP-36
Note: PYP-18 and PYP-36 can be cut into any desired length in accordance with the number of sockets.
2
MY
MY
Socket Hold-down Clip Pairing
Relay type
Poles
Front-connecting
sockets
Back-connecting sockets
Solder/wire-wrap terminals
(rail-/screw-mounted)
PCB terminals
Socket Clip
Socket
Clip
Socket
Clip
PYC-P
Standard, bifurcated contacts, operation
1, 2
PYF08A-N, PYC-A1
PYF08A-E,
PY08(QN)
PY08(QN)
PYC-P
indicator, built-in diode, high-capacity
,
high-sensitivity, or high-humidity
PYF08A
3
4
PYF11A
PY11(QN)
PY14(QN)
PY11(QN)
PY14(QN)
PYF14A-N,
PYF14A-E,
PYF14A
MY2N-D4
4
PYF14A-N, Y92H-3
PYF14A-E,
PYF14A
PY14(QN)
PY08(QN)
PYC-1
PY08(QN)
PY08(QN)
PYC-1
Test button
1, 2
PYF08A-N, PYC-A1
PYF08A-E,
PYC-P2
PYC-P2
PYF08A
3
4
PYF11A
PY11(QN)
PY14(QN)
PY11(QN)
PY14(QN)
PYF14A-N,
PYF14A-E,
PYF14A
CR circuit
1, 2
PYF08A-N, Y92H-3
PYF08A-E,
PY08(QN)
PYC-1
PY08(QN)
PYC-1
PYF08A
3
4
PYF11A
PY11(QN)
PY14(QN)
PY11(QN)
PY14(QN)
PYF14A-N,
PYF14A-E,
PYF14A
Specifications
Coil Ratings
Rated voltage
Rated current
Inductance
(reference value)
Must
Must
Max.
Coil
resistance
Power
consum.
(Approx.)
operate release voltage
50 Hz
60 Hz
Arm.
OFF
Arm. ON
% of rated voltage
1.0 to
AC
6 V
214.1 mA
106.5 mA
53.8 mA
25.7 mA
183 mA
91 mA
46 mA
22 mA
12.2
Ω
0.04 H
0.17 H
0.69 H
3.22 H
14.54 H
19.20 H
54.75 H
83.50 H
0.17 H
0.73 H
3.20 H
10.60 H
45.60 H
0.08 H
0.33 H
1.30 H
5.66 H
24.6 H
32.1 H
94.07 H
136.40 H
0.33 H
1.37 H
5.72 H
21.00 H
86.20 H
80%
max.
30%
min.
110%
1.2 V
A
12 V
46 Ω
(60 Hz)
24 V
180
788
Ω
50 V
Ω
0.9 to
100/110 V
11.7/12.9 mA 10/11 mA
3,750
4,430
Ω
Ω
1.1 V
A
110/120 V 9.9/10.8 mA
8.4/9.2 mA
5.3/5.8 mA
4.2/4.6 mA
(60 Hz)
200/220 V 6.2/6.8 mA
220/240 V 4.8/5.3 mA
12,950
18,790
Ω
Ω
DC
6 V
150 mA
75 mA
40
Ω
10%
min.
0.9 W
12 V
24 V
48 V
160
650
Ω
Ω
36.9 mA
18.5 mA
2,600
Ω
100/110 V 9.1/10 mA
Note: See notes under next table on next page.
11,000 Ω
3
MY
MY
High-sensitivity Relays
Power supply ratings
Input ratings
Voltage
Current
Coil
resistance
Max.
voltage*
Power consum.
Input
voltage
Must
operate
Must
release
Power
consum.
% of rated voltage
24 VDC
36.9 mA
650 W
110%
Approx. 900 mW 2 to 12 V
2 V max.
1 V min.
0.5 to 52 mW
Note: 1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of +15%/–20% for rated currents
and ±15% for DC coil resistance.
2. Performance characteristic data are measured at a coil temperatures of 23°C.
3. The must operate and must release voltages for High-sensitivity Relays was measured at the rated power supply voltage.
4. AC coil resistance and impedance are provided as reference values (at 60 Hz).
5. Power consumption drop was measured for the above data. When driving transistors, check leakage current and connect a bleeder
resistor if required.
Contact Ratings
Item
Single-, double- or three-pole
Four-pole and High-sensitivity
High-capacity
Resistive load
(cosf = 1)
Inductive load
(cosf=0.4,
Resistive load
(cosf = 1)
Inductive load
(cosf=0.4,
Resistive load
(cosf = 1)
Inductive load
(cosf=0.4,
L/R=7 ms)
L/R=7 ms)
L/R=7 ms)
Rated load
5 A, 220 VAC
5 A, 24 VDC
2 A, 220 VAC
2 A, 24 VDC
3 A, 220 VAC
3 A, 24 VDC
0.8 A, 220 VAC)
1.5 A, 24 VDC
7 A, 220 VAC
7 A, 24 VDC
3.5 A, 220 VAC
3.5 A, 24 VDC
Carry
5 A
3 A
7 A
current
Max.
switching
voltage
250 VAC
125 VDC
250 VAC
125 VDC
250 VAC
125 VDC
Max.
5 A
5 A
3 A
3 A
7 A
7 A
switching
current
Max.
switching
capacity
1,100 V
120 W
A
440 V
48 W
A
660 V
72 W
A
176 V
36 W
A
1,540 V
168 W
A
770 VA
84 W
Min.
Standard type: 100 mA, 5 VDC
Standard and high sensitivity types: 1 –––
mA, 1 VDC
permissible Bifurcated type: 100 µA, 1 VDC
load*
Bifurcated type: 100 µA, 1 VDC
-6
*Note: P level: λ60 = 0.1 x 10 /operation, reference value
Characteristics
Item
All relays but High-sensitivity Relays
50 m max.
High-sensitivity Relays
Contact resistance
Ω
Operate time
20 ms max.
20 ms max.
Release time
Max. operating frequency
Mechanical: 18,000 operations/hr
Electrical: 1,800 operations/hr (under rated load)
Insulation resistance
1,000 MΩ min. (at 500 VDC)
Dielectric withstand voltage
2,000 VAC, 50/60 Hz for 1 min (1,000 VAC
between contacts of same polarity)
1,500 VAC, 50/60 Hz for 1 min (1,000 VAC
between contacts of same polarity)
Vibration resistance
Destruction: 10 to 55 Hz, 1.0-mm double amplitude
Malfunction: 10 to 55 Hz, 1.0-mm double amplitude
2
Shock resistance
Destruction: 1,000 m/s (approx. 100G)
2
Malfunction: 200 m/s (approx. 20G)
Life expectancy
See following table.
Ambient operating temperature*
Single- and double-pole standard, bifurcated-contact, test-button, and high-humidity relays:
–55°C to 70°C (with no icing)
All other relays: –55°C to 60°C (with no icing)
Ambient operating humidity
Weight
35% to 85%
Approx. 85 g
Note: The values given above are initial values.
4
MY
MY
Life Expectancy Characteristics
Relays
Mechanical life
(at 18,000 operations/hr)
Electrical life
(at 1,800 operations/hr under rated load)
Normal, High-humidity, With test button (except relays AC 50,000,000 operations min.
1-,2-,3-pole: 500,000 operations min.
with operation indicator), With CR
DC: 100,000,000 operations min.
4-pole:
200,000 operations min.
High-capacity
AC 50,000,000 operations min.
DC: 100,000,000 operations min.
500,000 operations min.
With operation indicator or built-in diode
With bifurcated contacts
High-sensitivity
AC 50,000,000 operations min.
DC: 100,000,000 operations min.
1-,2-,3-pole: 500,000 operations min.
4-pole:
200,000 operations min.
2-pole: 50,000,000 operations min. 2-pole: 200,000 operations min.
4-pole: 20,000,000 operations min. 4-pole: 100,000 operations min.
100,000,000 operations min.
200,000 operations min.
Note: See following tables for real load life expectancies.
Life Expectancies Under Real Loads
MY2
Rated voltage
Load type
AC motor
Conditions
Operating frequency
Electrical life
100 VAC
50 W, 100 VAC single-phase with
2.8-A inrush current, 0.4-A carry
current
ON for 2 s, OFF for 30 s
100,000 operations
50 W, 100 VAC single-phase with
1.6-A inrush current, 1-A carry current
ON for 1 s, OFF for 30 s
300,000 operations
4,000,000 operations
AC solenoid
24 W with 1-A carry current
ON for 1.5 s, OFF for 1.5 s
MY2E
Rated voltage
24 VDC
Load type
Conditions
Operating frequency
Electrical life
AC lamp
300 W with 50-A inrush current, 3-A
carry current
ON for 5 s, OFF for 55 s
55,000 operations
MY4
Rated voltage
100 VAC
Load type
Conditions
Operating frequency
Electrical life
AC solenoid
50 VA with 2-A inrush current, 0.7A
carry current
ON for 1 s, OFF for 3 s
25,000 operations
DC magnetic
switch
25 W with L/R = 40 ms , 0.2-A carry
current
AC magnetic
switch
35 VA with 1.5-A inrush current,
0.35-A carry current
500,000 operations
5,000,000 operations
6,000,000 operations
24 VDC
DC solenoid
40 W with L/R = 10 ms, 1.6-A carry
current
ON for 0.5 s, OFF for 1.5 s
ON for 0.5 s, OFF for 1.5 s
30 W with L/R = 10 ms with 0.34-A
carry current
5
MY
MY
Approved by Standards
Some MY Relays are available in models meeting various safety
standards. When ordering, you must specify the desired standards.
SEV
Model
No. of
poles
Coil
ratings
Contact ratings
Refer to Ordering Information for specific models. Note that the rat
-
ing recognized by the various standards sometimes vary from the
ratings of the individual relays.
MYj
2, 3
6 to 100
VDC
6 to 220
VAC
5 A, 200 VAC
5 A, 24 VDC
UL 508 Recognitions (File No. 41515)
No. of poles
Coil ratings
Contact ratings
2
6 to 240 VAC 5 A, 120 VAC resistive load
6 to 120 VDC 5 A, 28 VDC resistive load
5 A, 240 VAC inductive load
LR (No. 563KOB-204524)
Model
No. of
poles
Coil
ratings
Contact ratings
3
4
5 A, 28 VDC resistive load
5 A, 240 VAC inductive load
MYj-LR
2
4
6 to 240
VAC
6 to 120
VDC
2 A, 30 VDC inductive
load
2 A, 200 VAC inductive
load
6 to 240 VAC 3 A 28 VDC resistive load
6 to 120 VDC 3 A 120 VAC inductive load
1.5 A, 240 VAC inductive load
5 A, 240 VAC inductive load
(between contacts of same
polarity)
1.5 A, 30 VDC
inductive load
0.8 A, 200 VAC
inductive load
1.5 A, 115 VAC
inductive load
5 A, 28 VDC resistive load
(between contacts of same
polarity)
0.2 A, 120 VDC
CSA 22.2 No. 0 and No.14 (File No. LR31928)
Model
No. of
poles
Coil
ratings
Contact ratings
MYj
2, 3
6 to 240
VAC
5 A, 28 VDC resistive
load
6 to 120
VDC
5 A, 240 VAC inductive
load
4
3 A, 28VDC resistive
load
3 A, 240 VAC inductive
load
5 A, 240 VAC inductive
load (between contacts
of same polarity)
5 A, 28 VDC resistive
load (between contacts
of same polarity)
0.2 A, 120 VDC
Engineering Data
Maximum Switching Capacity
MY1, MY2, MY3
MY2-Y
AC resistive load
AC inductive load
(cosf = 0.4)
AC resistive load
DC resistive
load
AC inductive load
(cosf = 0.4)
DC inductive
load (L/R = 7 ms)
DC resistive
load
DC inductive load
L/R = 7 ms
Switching voltage (V)
Switching voltage (V)
6
MY
MY
MY4, MY4Z
AC resistive
load
AC inductive load
(cosf = 0.4)
DC resis-
tive load
DC resis-
tive load
L/R = 7 ms
Switching voltage (V)
Life Expectancy
MY1, MY2, MY3 (Resistive Loads)
MY1, MY2, MY3 (Inductive Loads)
5,000
5,000
110 VAC resistive load
110 VAC inductive
load (cosf = 0.4)
220 VAC
resistive load
1,000
1,000
220 VAC in-
ductive load
(cosf = 0.4)
500
500
24 VDC inductive load
(L/R = 7 ms)
24 VDC resistive
load
100
100
Switching current (A)
Switching current (A)
MY4 (Inductive Loads)
MY4 (Resistive Loads)
5,000
5,000
110 VAC resistive
load
220 VAC resis-
110 VAC resistive
load
tive load
1,000
1,000
500
500
30 VDC resistive
load
220 VAC resistive
load
30 VDC resistive
load
100
100
Switching current (A)
Switching current (A)
7
MY
MY
MY4Z (Resistive Loads)
MY4Z (Inductive Loads)
5,000
5,000
1,000
1,000
110 VAC (cosf = 0.4)
220 VAC resis-
tive load
500
100
500
100
24 VDC
L/R = 7 ms
24 VDC resistive load
220 VAC (cosf = 0.4)
Switching current (A)
MY2-Y (Resistive Loads)
MY2-Y (Inductive Loads)
5,000
5,000
110 VAC resistive
load
110 VAC (cosf = 0.4)
24 VDC L/R = 7 ms
1,000
500
1,000
500
220 VAC resistive load
220 VAC (cosf = 0.4)
24 VDC resistive
load
100
100
Switching current (A)
Switching current (A)
8
MY
MY
Dimensions
Note: All units are in millimeters unless otherwise indicated.
Relays with Solder Terminals
Terminal arrangement/internal connections
(bottom view)
MY1
2.6
MY1
Five, 1.2 dia. x 2.2 elliptic holes
0.5
28 max.
6.3
21.5
max.
35.5 max.
6.4
MY2, MY2-TU, MY2N, MY2N-D2
MY2N
DC type
AC type
2.6
Standard
Eight, 1.2 dia. x 2.2 ellipse holes
0.5
28 max.
6.3
21.5
max.
0.5
36 max.
6.4
Note: 1. AC type is equipped with a coil disconnection
self–diagnostic function.
2. Pay due attention as DC type has polarity
.
MY2N-D2
9
MY
MY
MY3, MY3-TU, MY3N, MY3N-D2, MYC3
MY3N
2.6
DC type
AC type
Standard
Eleven, 1.2 dia. x 2.2
ellipse holes
28 max
6.3
0.5
36
max.
21.5
max.
6.4
Note: 1. AC type is equipped with a coil disconnection self–
diagnostic function.
2. Do not reverse the polarity of DC relays.
MYC3
MY4N-D2
Coil connections
Input
Note: The MYC3 High–sensitivity Relay incorporates a
semi–conductor. A surge–absorb element should
be attached to it if the relay is used with a load that
can generate noise, or a surge current cannot be
avoided in the circuit.
10
MY
MY
MY4, MY4-TU
2.6
Fourteen, 1.2 dia. x 2.2
ellipse holes.
0.5
28 max.
6.3
0.5
21.5
max.
36
max.
6.4
Terminal arrangement/internal connections
(bottom view)
MY4N
MY4N-D2
DC type
AC type
Standard
Note: 1. AC type is equipped with a coil disconnection self-
diagnostic function.
2. Do not reverse the polarity of DC relays.
MYjI4
MYjI
2.6
2.6
Push button
2.6
Fourteen, 1.2 dia. x 2.2
ellipse holes
3.3
Fourteen, 1.2 dia. x 2.2
ellipse holes
3 max.
Push button
20.3
0.8
28 max.
28 max.
0.5
6.4
6.3
6.3
36
max.
4 max.
0.5
21.5 max..
21.5 max.
6.4
36
max.
Mounting holes
Note: 1. Mount the relay with a socket.
2. The above dimensions are for -G type relays
(with mounting studs).
3. Test button
16.4
I4: AC with red push button
DC with blue push button
0.5
3.8
Two, 5 dia.
holes
3.4 dia.
hole
13.2
19.4
Note: The terminal arrangement and internal connections of the above relays are as same as these of MYj relays.
11
MY
MY
MYj(N)-CR, MYj(Z)-CR, MY4N-D4
MYj(N)-C
R
MYj(Z)-C
R
2.6
Fourteen, 1.2 dia. x 2.2 ellipse holes
0.5
CR
CR
28 max.
6.3
0.5
21.5
53
max.
6.4
max.
MY4N-D4
Relays with PCB Terminals
MYj-02
PC board mounting holes
MY4-02 (4PDT)
3.5
SPDT
13.2
DPDT
13.2
3PDT
13.2
4PDT
13.2
1
3.3 (2.6)
44
4.3
6.3
4.1
0.5
12.65
28 ma
6.35
6.3
Eleven,
1.3±0.1
holes
Fourteen,
1.3±0.1
holes
Five,
1.3±0.1
holes
Eight,
1.3±0.1
holes
21.5
max.
3.75
0.5
36
max.
4
Note: The tolerance is ±0.1.
Note: 1. The figures in the parentheses are for MY4-02.
2. The above dimensions also apply to the SPDT,
DPDT, and 3PDT relays.
4. The internal connections of the above relays are as
same as these of MYj relays.
12
MY
MY
Upper-mounting Relays
MYjF
Mounting holes
MY4F
2.6
Two 3.5 dia holes or M3 holes
Fourteen, 1.2 dia. x 2.2
ellipse holes
4.35
2
38
29 max.
38
0.5
44 max.
6.4
0.5
36
max
.
3.5
22.5 max.
Note: 1. The above dimensions also apply to the SPDT,
DPDT, and 3PDT relays.
2. The internal connections of the above relays are as
same as these of MYj relays.
Mounting Height with Socket
DIN rail/surface–mounting socket
Back-mounting socket
MY
MY
70 (87)
66 (83)
54 (71)
39 (56)
MY
PYF08M
PYFjA(-E)
PYj
Note: 1. The PTF-A can be rail–mounted or screw-mounted.
2. For the MY -CR (CR circuit built-in type) model, figure
in the parentheses apply
3. PYC-P hold down clip should be used with PYF08M.
j
.
Sockets
PYF08A-E
PYF08A-N
PYF14A-N
PY14-Y1
PY14QN(2)
PY14
PY14QN(2)-Y1
PY14-02
13
MY
MY
Mounting Plates for Sockets
PYP-1
PYP-18
PYP-36
492
17 x 27.4 = 465.8 ± 0.6
13.1
492
+0.2
0
R1.7
21.4
4.5
3.4
72 wide el-
lipse hole
17 x 27.4 = 465.8 ± 0.6
13.1
4.5
3.4
Two, 3.4 dia. holes
39.7±0.2
86.4
Square
hole
42
±0.1
42±0.1
49
49
39.7±0.2
+0.2
0
28
t = 1.6
21.4
13.1
17 x 27.4 = 465.8 ± 0.6
21.6
t = 1.6
t = 1.6
Hold-down Clips
Hold-down clips are used to hold relays to sockets and prevent them from coming loose due to vibration or shock.
Connection to socket
Connection to
mounting plate
For relays with test
buttons
For relays with CR circuits
PYC-A1
PYC-P
PYC-S
PYC–P2
Y92H-3
PYC-1
PY14-3 (for 4PDT)
Mounting holes
with operation check terminal
9(7.7)
2
81
56
28
+0.3
78
38.5
0.3
3
34.5+0.4
Operation check terminal
Operation checklamp can be built-in.
Short-circuit lead wire
Three, 1.2 dia holes Two dia. holes
Safety Standards for Sockets
Item
Standards
UL508
CSA22.2
File No.
E87929
LR31928
PYF08A (-E), PYF11A
PYF14A (-E)
14
MY
MY
Precautions
Connections
Do not reverse polarity when connecting DC-operated relays with
built-in diodes or indicators or high-sensitivity DC-operated relays.
Mounting
•
•
Whenever possible, mount relays so that it is not subject to
vibration or shock in the same direction as that of contact
movement.
The test button should be be pointed upwards when mounting
(refer to the right figure).
Test button
15
MY
MY
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. J01-E1-11
In the interest of product improvement, specifications are subject to change without notice.
OMRON Corporation
Relay Division
28th Fl., Crystal Tower Bldg.
1-2-27, Shiromi, Chuo-ku,
Osaka 540 Japan
Printed in Japan
0794-2M
Phone: 06-949-6125 Fax: 06-949-6134
16
厂商 型号 描述 页数 下载

OMRON

 		MY4 通用继电器[ General-purpose Relay ] 20 页

OMRON

 		MY4 AC12 (S) [ RELAY GEN PURPOSE 4PDT 3A 12V ] 35 页

OMRON

 		MY4 AC24 (S) [ RELAY GEN PURPOSE 4PDT 3A 24V ] 35 页

OMRON

 		MY4 AC6 (S) [ RELAY GENERAL PURPOSE 4PDT 3A 6V ] 35 页

OMRON

 		MY4 DC12 (S) [ RELAY GEN PURPOSE 4PDT 3A 12V ] 35 页

OMRON

 		MY4 DC24 (S) [ RELAY GEN PURPOSE 4PDT 3A 24V ] 35 页

OMRON

 		MY4 DC6 (S) [ RELAY GENERAL PURPOSE 4PDT 3A 6V ] 35 页

OMRON

 		MY4-02-AC24 [ RELAY GEN PURPOSE 4PDT 3A 24V ] 35 页

OMRON

 		MY4-02-DC12 [ RELAY GEN PURPOSE 4PDT 3A 12V ] 35 页

OMRON

 		MY4-02-DC24 [ RELAY GEN PURPOSE 4PDT 3A 24V ] 35 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.217554s
