VUO192-16NO7

型号：

VUO192-16NO7

品牌：

IXYS[ IXYS CORPORATION ]

页数：

5 页

PDF大小：

158 K

下载PDF手册

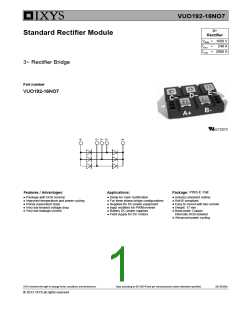

VUO192-16NO7
3~
Rectifier
Standard Rectifier Module
VRRM
IDAV
IFSM
V
= 1600
240 A
=
=
2800 A
3~ Rectifier Bridge
Part number
VUO192-16NO7
B-
C~ D~ E~
A+
PWS-E Flat
Package:
Features / Advantages:
Applications:
● Package with DCB ceramic
● Improved temperature and power cycling
● Planar passivated chips
● Very low forward voltage drop
● Very low leakage current
● Diode for main rectification
● Industry standard outline
● RoHS compliant
● Easy to mount with two screws
● Height: 17 mm
● For three phase bridge configurations
● Supplies for DC power equipment
● Input rectifiers for PWM inverter
● Battery DC power supplies
● Base plate: Copper
● Field supply for DC motors
internally DCB isolated
● Advanced power cycling
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20130328a
© 2013 IXYS all rights reserved
VUO192-16NO7
Ratings
Rectifier
Conditions
Symbol
VRSM
Definition
min. typ. max. Unit
TVJ = 25°C
TVJ = 25°C
TVJ = 25°C
TVJ = 150°C
TVJ = 25°C
1700
1600
200
V
V
max. non-repetitive reverse blocking voltage
max. repetitive reverse blocking voltage
VRRM
IR
reverse current
VR = 1600 V
VR = 1600 V
µA
3.5 mA
forward voltage drop
VF
80
1.07
V
V
V
V
A
IF =
A
1.36
0.96
1.33
240
IF = 240 A
IF = 80 A
IF = 240 A
TC = 110°C
rectangular
TVJ
=
°C
125
bridge output current
TVJ = 150°C
TVJ = 150°C
IDAV
d = ⅓
VF0
0.74
V
threshold voltage
slope resistance
for power loss calculation only
rF
2.4 mΩ
0.4 K/W
K/W
thermal resistance junction to case
thermal resistance case to heatsink
RthJC
RthCH
Ptot
0.15
TC = 25°C
TVJ = 45°C
VR = 0 V
310
2.80
3.03
2.38
2.57
W
kA
kA
kA
kA
total power dissipation
max. forward surge current
IFSM
t = 10 ms; (50 Hz), sine
t = 8,3 ms; (60 Hz), sine
t = 10 ms; (50 Hz), sine
t = 8,3 ms; (60 Hz), sine
t = 10 ms; (50 Hz), sine
t = 8,3 ms; (60 Hz), sine
t = 10 ms; (50 Hz), sine
t = 8,3 ms; (60 Hz), sine
VR = 400 V; f = 1 MHz
TVJ = 150°C
VR = 0 V
value for fusing
I²t
TVJ = 45°C
VR = 0 V
39.2 kA²s
38.1 kA²s
28.3 kA²s
27.5 kA²s
pF
TVJ = 150°C
VR = 0 V
CJ
TVJ = 25°C
133
junction capacitance
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20130328a
© 2013 IXYS all rights reserved
VUO192-16NO7
Ratings
Package PWS-E Flat
Symbol
IRMS
Definition
Conditions
per terminal
min. typ. max.
250
Unit
A
°C
°C
g
RMS current
Tstg
-40
-40
125
150
storage temperature
virtual junction temperature
TVJ
Weight
220
MD
4.25
4.25
12.0
13.0
3000
2500
5.75 Nm
mounting torque
terminal torque
M
5.75 Nm
T
terminal to terminal
terminal to backside
dSpp/App
dSpb/Apb
mm
mm
V
creepage distance on surface | striking distance through air
t = 1 second
V
isolation voltage
ISOL
50/60 Hz, RMS; IISOL ≤ 1 mA
t = 1 minute
V
Logo
Made in Germany
Circuit Diagram
Date
Code
YCW Lot#
XXX XX-XXXXX
Marking on product
Ordering
Standard
Part Number
Marking on Product
Delivery Mode
Box
Quantity Code No.
509877
VUO192-16NO7
VUO192-16NO7
5
Similar Part
Package
Voltage class
VUO190-16NO7
PWS-E
1600
TVJ = 150°C
* on die level
Equivalent Circuits for Simulation
Rectifier
V0
I
R0
threshold voltage
slope resistance *
V0 max
R0 max
0.74
1.2
V
mΩ
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20130328a
© 2013 IXYS all rights reserved
VUO192-16NO7
Outlines PWS-E Flat
Max. allowed screw-in depth: 7.2 mm
M6
26
26
23
31
C ~
D ~
E ~
B -
A +
4
5
6
3
2
1
12.2
25
66
72
80
94
B-
C~ D~ E~
A+
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20130328a
© 2013 IXYS all rights reserved
VUO192-16NO7
Rectifier
105
240
2500
2000
50 Hz
0.8 x V RRM
50Hz, 80% VRRM
200
160
TVJ= 45°C
IFSM
TVJ= 150°C
104
[A2s]
120
IF
TVJ = 45°C
[A]
1500
80
[A]
TVJ = 150°C
TVJ = 150°C
40
0
TVJ = 125°C
TVJ 25°C
1.0 1.5
=
1000
0.001
103
0.5
1
2
3
4 5 6 7 8 9
0.01
0.1
1
t [ms]
t [s]
VF [V]
Fig. 1 Forward current vs.
Fig. 2 Surge overload current
vs. time per diode
Fig. 3 I2t vs. time per diode
voltage drop per diode
100
80
280
240
200
160
120
80
RthA
:
0.2 K/W
0.4 K/W
0.6 K/W
0.8 K/W
1.0 K/W
2.0 K/W
DC =
1
0.5
DC =
1
0.5
0.4
0.4
IdAV
[A]
60
0.33
0.17
0.08
0.33
0.17
0.08
Ptot
40
20
0
[W]
40
0
0
20
40
60
80
100 0
25 50 75 100 125 150 175
0
25 50 75 100 125 150
IdAVM [A]
Tamb [°C]
TC [°C]
Fig. 4 Power dissipation vs. forward current
and ambient temperature per diode
Fig. 5 Max. forward current vs.
case temperature per diode
1
0.1
ZthJC
[K/W]
Ri
ti
0.050 0.02
0.003 0.01
0.100 0.225
0.177 0.8
0.01
0.001
0.070 0.58
1
10
100
1000
10000
t [ms]
Fig. 6 Transient thermal impedance junction to case vs. time per diode
IXYS reserves the right to change limits, conditions and dimensions.
Data according to IEC 60747and per semiconductor unless otherwise specified
20130328a
© 2013 IXYS all rights reserved
