UZMY20M

型号:

UZMY20M

品牌:

DIODES[ DIODES INCORPORATED ]

页数:

2 页

PDF大小:

16 K

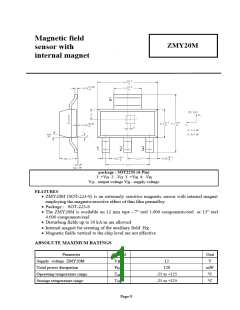

Magnetic field
sensor with
ZMY20M
internal magnet
package : SOT223S (4-Pin)
1: +V 2: -V 3: +V 4: -V
B
O
O
B
V - output voltage V - supply voltage
O
B
FEATURES
ZMY20M (SOT-223-S) is an extremely sensitive magnetic sensor with internal magnet
employing the magneto-resistive effect of thin film permalloy
Package : SOT-223-S
The ZMY20M is available on 12 mm tape - 7" reel 1.000 components/reel or 13" reel
4.000 components/reel
Disturbing fields up to 30 kA/m are allowed
Internal magnet for creating of the auxiliary field H
X
Magnetic fields vertical to the chip level are not effective
ABSOLUTE MAXIMUM RATINGS
Parameter
Supply voltage ZMY20M
Total power dissipation
Symbol
Unit
V
V
12
B
P
120
mW
°C
tot
Operating temperature range
Storage temperature range
T
T
-25 to +125
-25 to +125
amb
°C
stg
Page 9
ZMY20M
ELECTRICAL CHARACTERISTICS (at T
= 25 °C unless otherwise stated)
amb
Parameter
Bridge resistance
Symbol Min. Typ. Max.
Unit
kΩ
Test conditions
R
br
1.2
12
-
1.7
18
1.5
-
2.2
22
-
Output voltage range
Auxiliary field
V /V
mV/V
kA/m
kA/m
O
B
H
X
H
d
-
30
Disturbing field
Open circuit sensitivity
S
3.0
5.5
7.0 (mV/V)/(kA/m) no disturbing
field H allowed
d
V = const.
B
Hysteresis of output voltage
Offset voltage
V
/V
-
-1.5
0
-
-
-
-
50
+1.5
1
OH
B
µV/V
mV/V
H 2 kA/m
y
V /V
off
B
Operating frequency
f
MHz
max
Temperature coefficient of
offset voltage
TCV
-3
+3
T
amb
=
off
(µV/V)/K
-25...+125°C
Temperature coefficient of
bridge resistance
TCR
TCS
-
-
0.3
-
-
%/K
%/K
T
=
br
amb
-25...+125°C
Temperature coefficient of
open circuit sensitivity
-0.25
T
=
amb
V
-25...+125°C
V = 5 V
B
Temperature coefficient of
open circuit sensitivity
TCS
-
0.05
-
%/K
Tamb =
-25...+125°C
I
I
= 3 mA
B
Devices are identified by type on the body of the device
ZMY20M..... ZMY20M
Ordering information :
ZMY20MTA ..... 7" reel 1,000 components per reel
ZMY20MTC ..... 13" reel 4,000 components per reel
