UZLNB101X8

型号:

UZLNB101X8

品牌:

ZETEX[ ZETEX SEMICONDUCTORS ]

页数:

5 页

PDF大小:

75 K

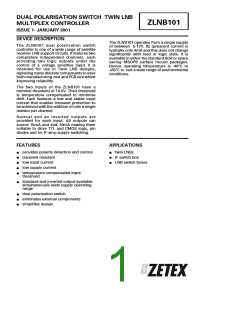

DUAL POLARISATION SWITCH TWIN LNB
MULTIPLEX CONTROLLER
ZLNB101
ISSUE 1- JANUARY 2001
DEVICE DESCRIPTION
The ZLNB101 operates from a single supply
of between 5-12V. Its quiescent current is
typically only 4mA and this does not change
significantly with load or logic state. It is
available in either the standard SO8 or space
saving MSOP8 surface mount packages.
Device operating temperature is -40°C to
+85°C to suit a wide range of environmental
conditions.
The ZLNB101 dual polarisation switch
controller is one of a wide range of satellite
receiver LNB support circuits. It features two
completely independent channels, each
providing two logic outputs under the
control of a voltage sensitive input. It is
intended for use in Twin LNB designs,
replacing manydIscretecomponents tosave
both manufacturing cost and PCB size whilst
improving reliability.
The two inputs of the ZLNB101 have a
nominal threshold of 14.5V. Their threshold
is temperature compensated to minimise
drift. Each features a low and stable input
current that enables transient protection to
beachievedwiththeaddition of only asingle
resistor per channel.
Normal and an inverted outputs are
provided for each input. All outputs can
source 15mA and sink 10mA making them
suitable to drive TTL and CMOS logic, pin
diodes and for IF-amp supply switching.
FEATURES
APPLICATIONS
provides polarity detection and control
twin LNBs
transient resistant
IF switch box
low input current
LNB switch boxes
low supply current
temperature compensated input
threshold
standard and inverted output available
simultaneously wide supply operating
range
dual polarisation switch
eliminates external components
simplifies design
75
78
ZLNB101
Power Dissipation (Tamb= 25°C)
ABSOLUTE MAXIMUM RATINGS
SO8
500mW
500mW
Supply Voltage
Supply Current
-0.6V to 15V
50mA
MSOP8
V
POL1 and VPOL2
Input Voltage
25V Continuous
-40 to 85°C
-40 to 85°
Operating Temperature
Storage Temperature
ELECTRICAL CHARACTERISTICS TEST CONDITIONS (Unless otherwise stated):
= 25°C,V =5V,I =10mA (R =33kΩ)
T
amb CC
D
CAL1
CONDITIONS
LIMITS
Typ
SYMBOL PARAMETER
UNITS
Min
5
Max
12
VCC
ICC
Supply Voltage
Supply Current All inputs and outputs open circuit
V
10
mA
IVERT1 = IVERT2 = 10mA, VPOL1
VPOL2 = 14V
=
30
30
mA
mA
IHOR1 = IHOR2 = 10mA, VPOL1
VPOL2 = 15.0V
=
VPOL1 and VPOL2 Inputs
IPOL
Current
VPOL1 = VPOL2 = 25V (Note 4)
(Note 1) (Note 4)
10
20
40
µA
µs
VTPOL
Threshold
Voltage
14.0
14.5
15.0
TSPOL
Switching Speed
100
Vert 1/2 Outputs
VVHIGH Voltage High
VVHIGH Voltage High
VVHIGH Voltage High
VVLOW Voltage Low
IVERT1=IVERT2=10mA,
VPOL1 = VPOL2 = 14V
IVERT1=IVERT2=15mA,
VPOL1 = VPOL2 = 14V
V
CC-1.0 VCC-0.8 VCC
CC-1.2 VCC-0.9 VCC
V
V
V
V
V
I
VERT1=IVERT2=10µA,
VCC-0.2 VCC-0.1 VCC
VPOL1 = VPOL2 = 14V
IVERT1=IVERT2=-10mA,
VPOL1 = VPOL2 = 15.0V
0
0.25
0.5
Hor 1/2 Outputs
VVHIGH Voltage High
IHOR1=IHOR2=10mA,
VPOL1 = VPOL2 = 15.0V
IHOR1=IHOR2=15mA,
VPOL1 = VPOL2 = 15.0V
V
CC-1.0 VCC-0.8 VCC
CC-1.2 VCC-0.9 VCC
V
V
V
V
VVHIGH Voltage High
VVHIGH Voltage High
VVLOW Voltage Low
V
I
HOR1=IHOR2=10µA,
VCC-0.2 VCC-0.1 VCC
0.25 0.5
VPOL1 = VPOL2 = 15.0V
IHOR1=IHOR2=-10mA,
VPOL1 = VPOL2 = 14V
0
76
78
ZLNB101
Note:-
1) VPOL1 and VPOL2 switching thresholds apply over the whole operating temperature range
specified above.
2) Inputs VPOL1 and VPOL2 are designed to be wired to the power input of an LNB via high value
(10k) resistors. Input VPOL1 controls outputs Vert1 and Hor1. Input VPOL2 controls outputs Vert2
and Hor2. With either input voltage set at or below 14V, the corresponding Vert pin will be high
and Hor pin low. With either input voltage at or above 15.0V, the corresponding Vert pin will be
low and Hor pin high. Any input or output not required may be left open-circuit.
3) All outputs are designed to be compatible with TTL, CMOS, pin diode and IF Amp loads.
4) Applied via 10k resistors
The following block diagram shows a typical block diagram twin LNB design. The ZLNB101
provides the two polarity switches required to decode the two independent receiver feeds.
Additionally the front end bias requirements of the LNB are provided by the ZNBG4000 or
ZNBG6000 offering a very efficient and cost effective solution.
Control Input
<=14V-Horizontal
>=15V-Vertical
DC Input
13-25V
Horizontal Gain Stage
Mixer
Antenna
GaAs/HEMTFET
3
1
+
H/V Output 1
Horizontal
PIN
Diode
MUX
IF down feed
950-1750 MHz
- Standard Band
950-2050 MHz
- Enhanced Band
Bias Generator
ZNBG40XX
Series
Control
ZLNB101 Series
Dual H/V Switch
H/V Output 2
Vertical
2
4
+
Vertical
Antenna
Gain Stage
GaAs/HEMTFET
Mixer
77
78
ZLNB101
CONNECTION DIAGRAMS
ORDERING INFORMATION
Part Number
ZLNB101X8
ZLNB101N8
Package
MSOP8
SO8
Part Mark
ZLNB101
ZLNB101
Vert2
Hor2
1
2
8
7
Hor1
Vert1
G
3
4
6
5
nd
V
cc
Vp2
Vp1
MSOP8
1
2
8
7
V
Vert1
Hor1
Vert2
cc
Vp1
Vp2
3
4
6
5
Hor2
G
nd
SO8
78
78
ZLNB101
PACKAGE DIMENSIONS
MSOP8
D
DIM
Millimetres
Inches
MIN
MIN
0.91
0.10
0.25
0.13
2.95
0.65
0.33
2.95
4.78
0.41
0°
MAX
MAX
0.044
0.008
0.014
0.007
0.120
8
7
6
3
5
4
A
A1
B
1.11
0.20
0.36
0.18
3.05
NOM
NOM
3.05
5.03
0.66
6°
0.036
0.004
0.010
0.005
0.116
1
2
e X 6
θ°
C
D
e
L
0.0256 NOM
0.0128 NOM
B
C
e1
E
0.116
0.188
0.016
0°
0.120
0.198
0.026
6°
H
L
θ°
SO8
DIM
Millimetres
Inches
Min
Min
Max
Max
A
B
C
D
E
F
4.80
4.98
0.189
0.05 BSC
0.02 REF
0.014
0.15
0.196
1.27 BSC
0.53 REF
0.36
0.46
3.99
1.75
0.25
6.20
8°
0.018
0.157
0.07
0.010
0.24
8°
3.81
1.35
0.05
G
J
0.10
0.004
0.23
5.80
K
L
0°
0°
0.41
1.27
0.016
0.050
79
78
