MY2-AC12(S)

型号：

MY2-AC12(S)

品牌：

OMRON[ OMRON ELECTRONICS LLC ]

页数：

6 页

PDF大小：

112 K

下载PDF手册

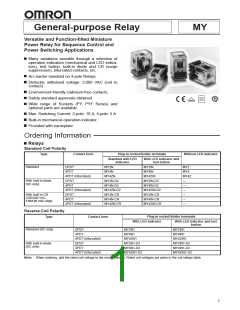

General-purpose Relay
MY
Versatile and Function-filled Miniature
Power Relay for Sequence Control and
Power Switching Applications
Many variations possible through a selection of
operation indicators (mechanical and LED indica-
tors), test button, built-in diode and CR (surge
suppression), bifurcated contacts, etc.
Arc barrier standard on 4-pole Relays.
Dielectric withstand voltage: 2,000 VAC (coil to
contact)
Environment-friendly cadmium-free contacts.
Safety standard approvals obtained.
Wide range of Sockets (PY, PYF Series) and
optional parts are available.
Max. Switching Current: 2-pole: 10 A, 4-pole: 5 A
Built-in mechanical operation indicator.
Provided with nameplate.
Ordering Information
Relays
Standard Coil Polarity
Plug-in socket/Solder terminals
Type
Contact form
Without LED indicator
Standard with LED
indicator
W
ith LED indicator and
test button
Standard
DPDT
MY2N
MY4N
MY4ZN
MY2IN
MY4IN
MY2
MY4
MY4Z
---
4PDT
4PDT (bifurcated)
DPDT
MY4ZIN
With built-in diode
(DC only)
MY2N-D2
MY4N-D2
MY4ZN-D2
MY2N-CR
MY4N-CR
MY4ZN-CR
MY2IN-D2
MY4IN-D2
MY4ZIN-D2
MY2IN-CR
MY4IN-CR
MY4ZIN-CR
4PDT
---
4PDT (bifurcated)
DPDT
---
With built-in CR
(220/240 VAC,
---
4PDT
---
110/120 VAC only)
4PDT (bifurcated)
---
Reverse Coil Polarity
Plug-in socket/Solder terminals
Type
Contact form
With LED indicator
W
ith LED indicator and test
button
Standard (DC only)
DPDT
MY2N1
MY2IN1
4PDT
MY4N1
MY4IN1
4PDT (bifurcated)
DPDT
MY4ZN1
MY4ZIN1
MY2IN1-D2
MY4IN1-D2
With built-in diode
(DC only)
MY2N1-D2
MY4N1-D2
MY4ZN1-D2
4PDT
4PDT (bifurcated)
MY4ZIN1-D2
Note: When ordering, add the rated coil voltage to the model number. Rated coil voltages are given in the coil ratings table.
1
MY
MY
Example: MY2 6VAC
Rated coil voltage
Accessories (Order Separately)
Sockets
Back-mounting Socket
Poles
Front-mounting
Socket (DIN-
track/screw
mounting)
PCB terminals
Solder terminals
Wire-wrap terminals
W
ithout clip
With clip
Without clip
With clip
2
4
PYF08A-E
PYF08A-N
PY08
PY08-Y1
PY08QN
PY08QN2
PY08QN-Y1
PY08QN2-Y1
PY08-02
PY14-02
PYF14A-E
PYF14A-N
PY14
PY14-Y1
PY14QN
PY14QN2
PY14QN-Y1
PY14QN2-Y1
Socket Hold-down Clip Pairing
Back-connecting Socket
Relay type
Poles
Front-connecting Socket
(DIN-track/screw mounting)
Solder/Wire-wrap terminals
PCB terminals
Socket
Clip
PYC-A1
Socket
Clip
PYC-P
PYC-P2
Socket
Clip
Without 2-pole
test button
PYC-P
PYC-P2
2
4
2
PYF08A-E
PYF08A-N
PY08(QN)
PY08-02
PY14-02
PY08-02
PYF14A-E
PYF14A-N
PY14(QN)
PY08(QN)
2-pole test
button
PYF08A-E
PYF08A-N
PYC-E1
PYC-P2
PYC-P2
Mounting Plates for Sockets
Socket model
For 1 Socket
For 18 Sockets
For 36 Sockets
PY08, PY08QN(2), PY14, PY14QN(2)
PYP-1
PYP-18
PYP-36
Note: PYP-18 and PYP-36 can be cut into any desired length in accordance with the number of Sockets.
Rail and Accessories
Supporting Rail (length = 500 mm)
Supporting Rail (length = 1,000 mm)
End Plate
PFP-50N
PFP-100N, PFP-100N2
PFP-M
Spacer
PFP-S
Specifications
Coil Ratings
Rated current
Inductance (reference
value)
Must
Must
Max.
Rated voltage
Coil
resistance
Power
consump-
tion
operate release voltage
50 Hz
60 Hz
Arm. OFF
Arm. ON
% of rated voltage
(approx.)
AC
80%
max.
30%
min.
110%
1.0 to
6 V*
214.1 mA
106.5 mA
53.8 mA
25.7 mA
183 mA
91 mA
46 mA
22 mA
12.2
Ω
0.04 H
0.17 H
0.69 H
3.22 H
19.20 H
0.08 H
0.33 H
1.30 H
5.66 H
32.1 H
1.2 V
A
12 V
24 V
48 V*
46 Ω
(60 Hz)
180
788
Ω
Ω
0.9 to
110/120 V
9.9/10.8 mA 8.4/9.2 mA 4,430 Ω
1.1 V
(60 Hz)
A
220/240 V
4.8/5.3 mA
4.2/4.6 mA 18,790
Ω
83.50 H
136.4 H
DC
10%
min.
0.9 W
6 V*
151 mA
75 mA
39.8
160
636
Ω
0.17 H
0.73 H
3.20 H
10.60 H
45.60 H
0.33 H
1.37 H
5.72 H
21.0 H
86.2 H
12 V
Ω
24 V
37.7 mA
18.8 mA
9.0/9.9 mA
Ω
48 V*
100/110 V
2,560
Ω
11,100
Ω
Note: 1. The rated current and coil resistance are measured at a coil temperature of 23
and ±15% for DC coil resistance.
2. Performance characteristic data are measured at a coil temperature of 23°C.
°C with tolerances of +15%/–20% for rated currents
2
MY
MY
3. AC coil resistance and impedance are provided as reference values (at 60 Hz).
4. Power consumption drop was measured for the above data. When driving transistors, check leakage current and connect a bleeder
resistor if required.
5. Rated voltage denoted by “*” will be manufactured upon request. Ask your OMRON representative.
Contact Ratings
2-pole
4-pole
Resistive load
(cosφ = 1)
4-pole (bifurcated)
Item
Resistive load
Inductive load
(cosφ = 0.4, L/R
= 7 ms)
Inductive load
(cosφ = 0.4, L/R
= 7 ms)
Resistive load
Inductive load
(cosφ = 0.4, L/R
= 7 ms)
(cosφ = 1)
(cosφ = 1)
Rated load
5A, 250 VAC
5A, 30 VDC
2A, 250 VAC
2 A, 30 VDC
3 A, 250 VAC
3 A, 30 VDC
0.8 A, 250 VAC
1.5 A, 30 VDC
3 A, 250 VAC
3 A, 30 VDC
0.8 A, 250 VAC
1.5 A, 30 VDC
Carry current
10 A (see note)
5 A (see note)
Max. switching
voltage
250 VAC
125 VDC
250 VAC
125 VDC
Max. switching
current
10 A
5 A
Max. switching
capacity
2,500 V
300 W
A
1,250 V
300 W
A
1,250 V
150 W
A
500 V
150 W
A
1,250 V
150 W
A
500 V
150 W
A
Note: Don’t exceed the carry current of a Socket in use.
Characteristics
Item
All Relays
Contact resistance
Operate time
100 mΩ max.
20 ms max.
20 ms max.
Release time
Max. operating frequency
Mechanical:18,000 operations/hr
Electrical: 1,800 operations/hr (under rated load)
Insulation resistance
1,000 M min. (at 500 VDC)
Ω
Dielectric withstand voltage
2,000 VAC, 50/60 Hz for 1.0 min (1,000 VAC between contacts of same polarity)
Vibration resistance
Destruction:10 to 55 Hz, 1.0-mm double amplitude
Malfunction:10 to 55 Hz, 1.0-mm double amplitude
2
Shock resistance
Destruction:1,000 m/s (approx. 100G)
2
Malfunction:200 m/s (approx. 20G)
Life expectancy
Ambient temperature
Ambient humidity
Weight
See the following table.
Operating: –55°C to 70°C (with no icing)
Operating: 35% to 85%
Approx. 35 g
Note: The values given above are initial values.
Life Expectancy Characteristics
Pole
Mechanical life (at 18,000 operations/hr)
Electrical life
(at 1,800 operations/hr under rated load)
AC: 50,000,000 operations min.
DC: 100,000,000 operations min.
2-pole
4-pole
500,000 operations min.
200,000 operations min.
100,000 operations min.
4-pole (bifurcated)
20,000,000 operations min.
Approved Standards
VDE, UL, CSA, IMQ
3
MY
MY
Engineering Data
Maximum Switching Capacity
MY2
MY4, MY4Z
AC resistive load
AC inductive load
(cosφ=0.4)
AC resistive load
AC inductive load
(cosφ=0.4)
DC resistive load
DC resistive load
DC inductive load
(L/R=7 ms)
DC inductive load
(L/R=7 ms)
Switching voltage (V)
Switching voltage (V)
Life Expectancy
MY2 (Resistive Loads)
MY2 (Inductive Loads)
250 VAC
250 VAC
30 VDC
30 VDC
30 VDC
30 VDC
250 VAC
250 VAC
Switching current (A)
Switching current (A)
MY4 (Resistive Loads)
MY4 (Inductive Loads)
250 VAC
30 VDC
30 VDC
30 VDC
30 VDC
250 VAC
250 VAC
250 VAC
Switching current (A)
Switching current (A)
4
MY
MY
MY4Z (Resistive Loads)
MY4Z (Inductive Loads)
250 VAC
30 VDC
30 VDC
30 VDC
250 VAC
30 VDC
250 VAC
250 VAC
Switching Current (A)
Switching Current (A)
Dimensions
Note: All units are in millimeters unless otherwise indicated.
2-Pole Models
1.2 x 2.2 long holes
28 max.
36 max.
23.5 max.
4-Pole Models
1.2-dia x 2.2 long holes
28 max.
36 max.
21.5 max.
Models with Test Button
Test button
Nameplate
36 max.
5
MY
MY
Terminal Arrangement/Internal Connections (Bottom View)
MY2
MY2N/MY2IN
(AC Models)
MY2N/MY2IN
(DC Models)
MY2N-D2/MY2IN-D2
(DC Models Only)
MY2N-CR/MY2IN-CR
(AC Models Only)
MY2N1/MY2IN1
(DC Models Only)
MY2N1-D2/MY2IN1-D2
(DC Models Only)
MY4(Z)
MY4(Z)N/MY4(Z)IN
(AC Models)
MY4(Z)N/MY4(Z)IN
(DC Models)
MY4(Z)N-D/MY4(Z)IN-D2
(DC Models Only)
MY4(Z)N-CR/MY4(Z)IN-CR MY4(Z)N1/MY4(Z)IN1 MY4(Z)N1-D2/MY4(Z)IN1-D2
(AC Models Only) (DC Models Only) (DC Models Only)
6
