LYL89K-G2H2-26

型号：

LYL89K-G2H2-26

品牌：

INFINEON[ Infineon ]

页数：

13 页

PDF大小：

156 K

下载PDF手册

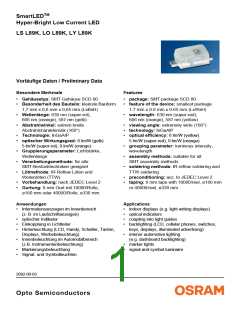

SmartLEDTM
Hyper-Bright Low Current LED
LS L89K, LO L89K, LY L89K
Vorläufige Daten / Preliminary Data
Besondere Merkmale
Features
• Gehäusetyp: SMT Gehäuse SCD 80
• Besonderheit des Bauteils: kleinste Bauform
1,7 mm x 0,8 mm x 0,65 mm (LxBxH)
• Wellenlänge: 630 nm (super-rot),
606 nm (orange), 587 nm (gelb)
• Abstrahlwinkel: extrem breite
Abstrahlcharakteristik (160°)
• package: SMT package SCD 80
• feature of the device: smallest package
1.7 mm x 0.8 mm x 0.65 mm (LxWxH)
• wavelength: 630 nm (super-red),
606 nm (orange), 587 nm (yellow)
• viewing angle: extremely wide (160°)
• technology: InGaAlP
• Technologie: InGaAlP
• optical efficiency: 6 lm/W (yellow)
5 lm/W (super-red), 9 lm/W (orange)
• grouping parameter: luminous intensity,
wavelength
• assembly methods: suitable for all
SMT assembly methods
• soldering methods: IR reflow soldering and
TTW soldering
• preconditioning: acc. to JEDEC Level 2
• taping: 8 mm tape with 10000/reel, ø180 mm
or 40000/reel, ø330 mm
• optischer Wirkungsgrad: 6 lm/W (gelb)
5 lm/W (super-rot), 9 lm/W (orange)
• Gruppierungsparameter: Lichtstärke,
Wellenlänge
• Verarbeitungsmethode: für alle
SMT-Bestücktechniken geeignet
• Lötmethode: IR Reflow Löten und
Wellenlöten (TTW)
• Vorbehandlung: nach JEDEC Level 2
• Gurtung: 8 mm Gurt mit 10000/Rolle,
ø180 mm oder 40000/Rolle, ø330 mm
Anwendungen
Applications
• Informationsanzeigen im Innenbereich
(z. B. im Laufschriftanzeigen)
• optischer Indikator
• indoor displays (e.g. light writing displays)
• optical indicators
• coupling into light guides
• backlighting (LCD, cellular phones, switches,
keys, displays, illuminated advertising)
• interior automotive lighting
(e.g. dashboard backlighting)
• marker lights
• Einkopplung in Lichtleiter
• Hinterleuchtung (LCD, Handy, Schalter, Tasten,
Displays, Werbebeleuchtung)
• Innenbeleuchtung im Automobilbereich
(z.B. Instrumentenbeleuchtung)
• Markierungsbeleuchtung
• signal and symbol luminaire
• Signal- und Symbolleuchten
2002-06-03
1
LS L89K, LO L89K, LY L89K
Typ
Emissions- Gehäusefarbe
Lichtstärke
Lichtstrom Bestellnummer
farbe
Type
Color of
Emission
Color of
Package
Luminous
Intensity
IF = 2 mA
IV (mcd)
Luminous
Flux
IF = 2 mA
ΦV (mlm)
Ordering Code
LS L89K-G1H1-1
LS L89K-H1J2-1
super-red
colorless
diffused
1.80 … 3.55
2.80 … 7.10
10 (typ.)
20 (typ.)
Q62703-Q6432
Q62703-Q6433
LO L89K-H2J2-24 orange
LO L89K-J2L1-24
colorless
diffused
3.55 … 7.10
5.60 …14.00
20 (typ.)
40 (typ.)
Q62703-Q6428
Q62703-Q6429
LY L89K-G2H2-26 yellow
LY L89K-H2K1-26
colorless
diffused
2.24 … 4.50
3.55 … 9.00
15 (typ.)
25 (typ.)
Q62703-Q6436
Q62703-Q6437
Anm.: -1 gesamter Farbbereich (siehe Seite 4)
-24 gesamter Farbbereich, Lieferung in Einzelgruppen (siehe Seite 5)
-26 gesamter Farbbereich, Lieferung in Einzelgruppen (siehe Seite 5)
Die Standardlieferform von Serientypen beinhaltet eine untere bzw. eine obere Familiengruppe, die aus nur
3 bzw. 4 Halbgruppen besteht. Einzelne Halbgruppen sind nicht erhältlich.
In einer Verpackungseinheit / Gurt ist immer nur eine Halbgruppe enthalten.
Note: -1 Total color tolerance range (please see page 4)
-24 Total color tolerance range, delivery in single groups (please see page 5)
-26 Total color tolerance range, delivery in single groups (please see page 5)
The standard shipping format for serial types includes a lower or upper family group of 3 or 4 individual groups.
Individual half groups are not available.
No packing unit / tape ever contains more than one luminous intensity half group.
Vergleichstabelle für 10 mA
Correllation Table for 10 mA
Typ
Emissions-
farbe
Lichtstärke
Lichtstärke
Lichtstrom
Type
Color of
Emission
Luminous
Intensity
IF = 2 mA
IV (mcd)
Luminous
Intensity
IF = 10 mA
IV (mcd)
Luminous Flux
IF =10 mA
ΦV (mlm)
IF = 2 mA
LS L89K-G1H1-1
LS L89K-H1J2-1
super-red
orange
yellow
1.80 … 3.55
2.80 … 7.10
15 (typ.)
25 (typ.)
55 (typ.)
100 (typ.)
LO L89K-H2J2-24
LO L89K-J2L1-24
3.55 … 7.10
5.60 …14.00
25 (typ.)
50 (typ.)
110 (typ.)
200 (typ.)
LY L89K-G2H2-26
LY L89K-H2K1-26
2.24 … 4.50
3.55 … 9.00
15 (typ.)
30 (typ.)
70 (typ.)
130 (typ.)
Siehe auch Grafik auf Seite 7 / Please see also graph on page 7
2002-06-03
2
LS L89K, LO L89K, LY L89K
Grenzwerte
Maximum Ratings
Bezeichnung
Parameter
Symbol
Symbol
Werte
Values
Einheit
Unit
LS
LO, LY
Betriebstemperatur
Operating temperature range
Top
Tstg
Tj
– 40 … + 100
°C
°C
°C
mA
A
Lagertemperatur
Storage temperature range
– 40 … + 100
Sperrschichttemperatur
Junction temperature
+ 110
15
Durchlassstrom
Forward current
IF
Stoßstrom
IFM
–
–
Surge current
t ≤ 10 µs, D = 0.1
Sperrspannung
Reverse voltage
VR
5
V
Leistungsaufnahme
Power consumption
Ptot
40
mW
Wärmewiderstand
Thermal resistance
Sperrschicht/Umgebung
Junction/ambient
Sperrschicht/Lötpad
Rth JA
Rth JS
400
210
K/W
K/W
Junction/solder point
Montage auf PC-Board FR 4 (Padgröße ≥ 5 mm2)
mounted on PC board FR 4 (pad size ≥ 5 mm 2)
2002-06-03
3
LS L89K, LO L89K, LY L89K
Kennwerte (TA = 25 °C)
Characteristics
Bezeichnung
Parameter
Symbol
Symbol
Werte
Values
Einheit
Unit
LS
LO
LY
Wellenlänge des emittierten Lichtes
Wavelength at peak emission
IF = 2 mA
Dominantwellenlänge 1)
Dominant wavelength
IF = 2 mA
(typ.) λpeak
643
610
591
nm
nm
nm
(typ.) λdom
630
± 6
606
+3/–6 +8/–7
587
Spektrale Bandbreite bei 50 % Irel max
Spectral bandwidth at 50 % Irel max
IF = 2 mA
(typ.)
16
16
15
∆λ
Abstrahlwinkel bei 50 % IV (Vollwinkel)
Viewing angle at 50 % IV
(typ.) 2ϕ
160
160
160
Grad
deg.
Durchlassspannung 2)
Forward voltage
IF = 2 mA
(typ.) VF
(max.) VF
1.8
2.2
1.8
2.2
1.8
2.2
V
V
Sperrstrom
Reverse current
VR = 5 V
(typ.) IR
(max.) IR
0.01
10
0.01
10
0.01
10
µA
µA
Temperaturkoeffizient von λpeak
Temperature coefficient of λpeak
IF = 2 mA; –10°C ≤ T ≤ 100°C
(typ.) TCλpeak
(typ.) TCλdom
(typ.) TCV
0.14
0.05
– 1.8
5
0.14
0.09
– 1.5
9
0.12
0.09
– 2.1
6
nm/K
nm/K
mV/K
lm/W
Temperaturkoeffizient von λdom
Temperature coefficient of λdom
IF = 2 mA; –10°C ≤ T ≤ 100°C
Temperaturkoeffizient von VF
Temperature coefficient of VF
IF = 2 mA; –10°C ≤ T ≤ 100°C
Optischer Wirkungsgrad
Optical efficiency
IF = 2 mA
(typ.) ηopt
1)
Wellenlängengruppen werden mit einer Stromeinprägedauer von 25 ms und einer Genauigkeit von ±1 nm ermittelt.
Wavelength groups are tested at a current pulse duration of 25 ms and a tolerance of ±1 nm.
2)
Spannungswerte werden mit einer Stromeinprägedauer von 1 ms und einer Genauigkeit von ±0,1 V ermittelt.
Voltages are tested at a current pulse duration of 1 ms and a tolerance of ±0.1 V.
2002-06-03
4
LS L89K, LO L89K, LY L89K
1) Wellenlängengruppen
Wavelength groups
Gruppe
Group
yellow
orange
Einheit
Unit
min. max. min. max.
2
3
4
5
6
580 583 600 603 nm
583 586 603 606 nm
586 589 606 609 nm
589 592
592 595
nm
nm
Helligkeits-Gruppierungsschema
Luminous Intensity Groups
Lichtgruppe
Lichtstärke
Lichtstrom
Luminous Intensity Group
Luminous Intensity
Luminous Flux
IV (mcd)
ΦV (mlm)
F1
F2
G1
G2
H1
H2
J1
1.12 … 1.40
1.40 … 1.80
1.80 … 2.24
2.24 … 2.80
2.80 … 3.55
3.55 … 4.50
4.50 … 5.60
5.60 … 7.10
7.10 … 9.00
5 (typ.)
6 (typ.)
8 (typ.)
10 (typ.)
13 (typ.)
16 (typ.)
20 (typ.)
25 (typ.)
32 (typ.)
J2
K1
Helligkeitswerte werden mit einer Stromeinprägedauer von 25 ms und einer Genauigkeit von ± 11% ermittelt.
Luminous intensity is tested at a current pulse duration of 25 ms and a tolerance of ± 11%.
Gruppenbezeichnung auf Etikett
Group Name on Label
Beispiel: H2-3
Example: H2-3
Lichtgruppe
Luminous Intensity Group
Halbgruppe
Half Group
Wellenlänge
Wavelength
H
2
3
2002-06-03
5
LS L89K, LO L89K, LY L89K
Relative spektrale Emission Irel = f (λ), TA = 25 °C, IF = 2 mA
Relative Spectral Emission
V(λ) = spektrale Augenempfindlichkeit
Standard eye response curve
OHL00555
100
%
Ιrel
orange
super-red
80
V
yellow
λ
60
40
20
0
400
450
500
550
600
650
nm
700
λ
Abstrahlcharakteristik Irel = f (ϕ)
Radiation Characteristic
40˚
30˚
20˚
10˚
0˚
OHL01440
1.0
50˚
0.8
0.6
0.4
60˚
70˚
0.2
0
80˚
90˚
100˚
1.0
0.8
0.6
0.4
0˚
6
20˚
40˚
60˚
80˚
100˚
120˚
2002-06-03
LS L89K, LO L89K, LY L89K
Durchlassstrom IF = f (VF)
Forward Current
TA = 25 °C
Relative Lichtstärke IV/IV(2 mA) = f (IF)
Relative Luminous Intensity
TA = 25 °C
OHL00376
OHL00388
102
102
mA
IV
super-red
IF
orange
yellow
IV(2 mA)
101
101
100
100
10-1
10-2
10-3
super-red
10-1
10-2
yellow
orange
10-3
10-1
100
101
mA 102
1.4 1.6 1.8 2.0 2.2
V
2.6
IV
V
Maximal zulässiger Durchlassstrom IF = f (T)
Max. Permissible Forward Current
TS: temp. solder point
Relative Lichtstärke IV/IV(25 °C) = f (TA)
Relative Luminous Intensity
IF = 2 mA
OHL00290
OHL00423
2.5
20
mA
15
IF
ΙV
ΙV (25 ˚C)
TS
TA
yellow
super-red
orange
1.5
10
5
1.0
0.5
0.0
T
A temp. ambient
TS temp. solder point
0
-60 -40 -20
0
20 40 60
˚C 100
0
20
40
60
80 ˚C 100
T
T
2002-06-03
7
LS L89K, LO L89K, LY L89K
Maßzeichnung
Package Outlines
+0.05 (0.002)
-0.03 (0.001)
0.125 (0.005)
±0.1 (0.004)
0.8 (0.031)
Cathode
marking
Cathode
marking
0.3 (0.012)
+0.02 (0.001)
-0.05 (0.002)
0.65 (0.026)
GPLY6057
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
Gewicht / Approx. weight: 1.4 mg
2002-06-03
8
LS L89K, LO L89K, LY L89K
Lötbedingungen
Vorbehandlung nach JEDEC Level 2
Soldering Conditions Preconditioning acc. to JEDEC Level 2
IR-Reflow Lötprofil
(nach IPC 9501)
IR Reflow Soldering Profile (acc. to IPC 9501)
OHLY0597
300
˚C
250
200
150
100
50
T
240-245 ˚C
10-40 s
183 ˚C
120 to 180 s
Ramp-down rate up to 6 K/s
Defined for Preconditioning: up to 6 K/s
Ramp-up rate up to 6 K/s
Defined for Preconditioning: 2-3 K/s
0
0
50
100
150
200
s
250
t
2002-06-03
9
LS L89K, LO L89K, LY L89K
Wellenlöten (TTW) (nach CECC 00802)
TTW Soldering
(acc. to CECC 00802)
OHLY0598
300
C
10 s
Normalkurve
standard curve
250
200
150
100
50
T
235 C ... 260 C
Grenzkurven
limit curves
2. Welle
2. wave
1. Welle
1. wave
ca 200 K/s
2 K/s
5 K/s
100 C ... 130 C
Zwangskühlung
2 K/s
forced cooling
0
0
50
100
150
200
s
250
t
2002-06-03
10
LS L89K, LO L89K, LY L89K
Empfohlenes Lötpaddesign IR Reflow Löten
Recommended Solder Pad IR Reflow Soldering
1.45 (0.057)
0.35 (0.014)
OHPY1301
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
Gehäuse für Wellenlöten (TTW) geeignet / Package suitable for TTW-soldering
Empfohlenes Lötpaddesign verwendbar für SmartLEDTM und Chipled - Bauform 0603
IR Reflow Löten
Recommended Solder Pad useable for SmartLEDTM and Chipled - Package 0603
IR Reflow Soldering
2.25 (0.089)
0.3 (0.012)
0.5 (0.020)
0.65 (0.026)
OHPY0203
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
Empfohlene Lötpastendicke: 120 µm/ recommended thickness of solder paste: 120 µm
Gehäuse für Wellenlöten (TTW) geeignet / Package suitable for TTW-soldering
2002-06-03
11
LS L89K, LO L89K, LY L89K
Gurtung / Polarität und Lage
Verpackungseinheit 8 mm Gurt mit 10000/Rolle,
ø180 mm oder 40000/Rolle, ø330 mm
Method of Taping / Polarity and Orientation Packing unit 8 mm tape with 10000/reel, ø180 mm
or 40000/reel, ø330 mm
4 (0.157)
1.5 (0.059)
C
A
2 (0.079)
0.4 (0.016)
0.93 (0.037)
OHAY1350
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
2002-06-03
12
LS L89K, LO L89K, LY L89K
Revision History: 2002-06-03
Previous Version: 2001-03-09
Page
Subjects (major changes since last revision)
7
exchange of diagram permissible foward current
recommended solder pad
11
2
wavelength grouping for yellow and orange
Published by OSRAM Opto Semiconductors GmbH & Co. OHG
Wernerwerkstrasse 2, D-93049 Regensburg
© All Rights Reserved.
Attention please!
The information describes the type of component and shall not be considered as assured characteristics.
Terms of delivery and rights to change design reserved. Due to technical requirements components may contain
dangerous substances. For information on the types in question please contact our Sales Organization.
If printed or downloaded, please find the latest version in the Internet.
Packing
Please use the recycling operators known to you. We can also help you – get in touch with your nearest sales office.
By agreement we will take packing material back, if it is sorted. You must bear the costs of transport. For packing
material that is returned to us unsorted or which we are not obliged to accept, we shall have to invoice you for any costs
incurred.
Components used in life-support devices or systems must be expressly authorized for such purpose! Critical
components 1 may only be used in life-support devices or systems 2 with the express written approval of OSRAM OS.
1 A critical component is a component used in a life-support device or system whose failure can reasonably be expected
to cause the failure of that life-support device or system, or to affect its safety or the effectiveness of that device or
system.
2 Life support devices or systems are intended (a) to be implanted in the human body, or (b) to support and/or maintain
and sustain human life. If they fail, it is reasonable to assume that the health of the user may be endangered.
2002-06-03
13
厂商 型号 描述 页数 下载

OSRAM

 		LYL296 SmartLED㈢ 0603超高亮LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright LED Lead (Pb) Free Product - RoHS Compliant ] 15 页

OSRAM

 		LYL296-P1R2-26 SmartLED㈢ 0603超高亮LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright LED Lead (Pb) Free Product - RoHS Compliant ] 15 页

OSRAM

 		LYL296-P2R1-26 SmartLED㈢ 0603超高亮LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright LED Lead (Pb) Free Product - RoHS Compliant ] 15 页

OSRAM

 		LYL296-Q2R2-26 SmartLED㈢ 0603超高亮LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright LED Lead (Pb) Free Product - RoHS Compliant ] 15 页

OSRAM

 		LYL296_12 [ SMARTLED ] 20 页

OSRAM

 		LYL29K SmartLED㈢ 0603的Hyper-明亮的低电流LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright Low Current LED Lead (Pb) Free Product - RoHS Compliant ] 14 页

OSRAM

 		LYL29K-H1J2-26 SmartLED㈢ 0603的Hyper-明亮的低电流LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright Low Current LED Lead (Pb) Free Product - RoHS Compliant ] 14 页

OSRAM

 		LYL29K-H1K2-26 SmartLED㈢ 0603的Hyper-明亮的低电流LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright Low Current LED Lead (Pb) Free Product - RoHS Compliant ] 14 页

OSRAM

 		LYL29K-J1K2-26 SmartLED㈢ 0603的Hyper-明亮的低电流LED铅（Pb ）免费产品 - 符合RoHS[ SmartLED㈢ 0603 Hyper-Bright Low Current LED Lead (Pb) Free Product - RoHS Compliant ] 14 页

OSRAM

 		LYL29K_12 [ LCD Backlighting ] 20 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.191279s
