EZANPE470M

型号:

EZANPE470M

品牌:

PANASONIC[ PANASONIC ]

页数:

5 页

PDF大小:

121 K

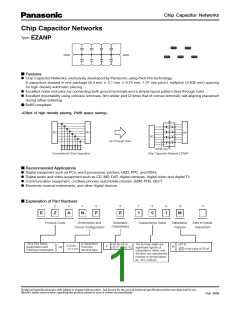

Chip Capacitor Networks
Chip Capacitor Networks
Type:
EZANP
GND
GND
Features
Chip Capacitor Networks, exclusively developed by Panasonic using thick film technology.
8 capacitors bussed in one package (6.4 mm ҂ 3.1 mm ҂ 0.75 mm, 1.27 mm pitch), halfpitch (0.635 mm) spacing
for high density automatic placing
Excellent noise reduction by connecting both ground terminals and a simple layout pattern (less through hole)
Excellent mountability using concave terminals, firm solder joint (2 times that of convex terminal), self-aligning placement
during reflow soldering
● RoHS compliant
<Effect of high density placing, PWB space saving>
I/O
I/O
I/O
I/O
No Through Hole
0.635 mm
Chip Capacitor Network EZANP
Conventional Chip Capacitors
Recommended Applications
Digital equipment such as PCs, word processors, printers, HDD, PPC, and PDAs
Digital audio and video equipment such as CD, MD, DAT, digital cameras, digital video and digital TV
Communication equipment, cordless phones, automobile phones, GSM, PHS, DECT
Electronic musical instruments, and other digital devices
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
E
Z
A
N
P
E
1
0
1
M
Product Code
Dimensions and
Circuit Configuration
Temperature
Characteristics
Capacitance Value
Capacitance
Tolerance
Suffix for Special
Requirement
Thick Film Noise
Suppression and
Filtering Components
8 Capacitors,
Common
terminal type
The first two digits are
significant figures of
capacitance value, and
the third one denotes the
number of zeroes fellow.
ex. 101100 pF
+20 %/–55 %
(–25 °C to +85 °C)
20 %
6.4 mm
҂3.1 mm
E
M
NP
+30 %
in the case of 22 pF
–20 %
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Feb. 2006
Chip Capacitor Networks
Construction
Dimensions in mm (not to scale)
fD
A1
F1
Alumina substrate
Protective coating
GND
Electrode
(Outer)
GND
Electrode
(Outer)
PIOI
PIOI
P
L
T
Electrode
(Outer)
F2
A2
Circuit Configuration
Mass (Weight) [1000 pcs.] : 52 g
A1 B1 E1 F1
10
2
9
8
7
5
Type
L
W
T
(inches)
EZANP
(2512)
0.2
0.2
+0.20
0.2
0.2
0.2
0.2
GND 1
6 GND
6.4
3.1
0.75
0.7
0.4
0.8
0.4
–0.10
3
4
f
D
A2
B2
E2
F2
P
0.20
0.2
0.2
0.2
0.10
+0.1
0.56
0.4
0.8
0.3
1.27
0.4
–0.2
Ratings
Item
Specification
Capacitance Values (25 °C, 1 kHz(1), 1 Vrms)
Capacitance Tolerance
22 pF, 47 pF, 100 pF, 220 pF
+30 ꢀ
20 ꢀ (
in the case of 22 pF)
–20 ꢀ
Temperature Characteristics
Dissipation Factor
E Characteristic: +20 ꢀ/–55 ꢀ (–25 °C to +85 °C)
Less than 2 ꢀ (25 °C, 1 kHz(1), 1 Vrms)
25 V
Rated Voltage
Category Temperature Range (Operating Temperature Range)
–25 °C to +85 °C
(1) In measuring at 1 MHz, Capacitance Value and Dissipation Factor are different.
Attenuation Characteristics
Measurement Circuit
0
10
20
30
40
50
50 ȑ
EZANP
50 ȑ
~
1M
10M
100M
1G
3G
Frequency (Hz)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Feb. 2006
Chip Capacitor Networks
Packaging Methods (Taping)
Standard Quantity
Type
Kind of Taping
Pitch (P1)
4 mm
Quantity
EZANP
Embossed Carrier Taping
4000 pcs./reel
Embossed Carrier Taping
Taping Reel
T
t1
Compartment
Sprocket hole
f
D0
fC
A
f
D1
t2
P1 P2 P0
Tape running direction
Chip component
fA
W
f
f
f
C
A
B
W
F
E
P0
A
B
Dimensions
(mm)
Dimensions
(mm)
0.20
0.20
0.05
0.30
0.20
0.05
0.20
0.20
0.10
+0
1.0
3.50
6.80
12.00
5.50
1.75
4.00
180.0
60 min.
13.0
−3.0
f
f
P1
P2
2.00
D0
t1
t2
D1
W
T
Dimensions
(mm)
Dimensions
(mm)
0.10
+0.10
−0
+0.10
−0
1.0
2.0
4.00
1.50
0.25
1.30
1.50
13.0
15.4
Recommended Land Pattern Design
b
P
(0.20)
: Land pattern
a
b
c
d
Dimensions
2.2 to 2.4 0.4 to 0.6 5.7 to 5.9 0.4 to 0.8
(mm)
f
g
P
c
g
Dimensions
(mm)
4.2 to 4.6 7.5 to 7.9
1.27
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Feb. 2006
Chip Capacitor Networks
Recommended Soldering Conditions
Recommendations and precautions are described below.
Recommended soldering conditions for reflow
For soldering (Example : Sn/Pb)
Temperature
140 °C to 160 °C
Reflow soldering shall be performed a maximum of
two times.
·
Time
· Please contact us for additional information when
used in conditions other than those specified.
· Please measure the temperature of the terminals
and study every kind of solder and printed circuit
board for solderability before actual use.
Preheating
Main heating
Peak
60 s to 120 s
30 s to 40 s
max. 10 s
Above 200 °C
235 5 °C
For lead-free soldering (Example : Sn/Ag/Cu)
Peak
Temperature
150 °C to 180 °C
Above 230 °C
max. 260 °C
Time
Preheating
Preheating
Main heating
Peak
60 s to 120 s
30 s to 40 s
max. 10 s
Heating
Time
Please contact us regarding flow soldering.
Safety Precautions
The following are precautions for individual products. Please also refer to the precautions common to EMI Filters,
Fuses, and Sensors(MR Elements) shown on page EX2 of this catalog.
1. Take measures against mechanical stress during and after mounting of Chip Capacitor Networks (hereafter called the
capacitor networks) so as not to damage their electrodes and protective coatings.
Be careful not to misplace the capacitor networks on the land patterns. Otherwise, solder bridging may occur.
2. Do not use halogen-based or other high-activity flux. Otherwise, the residue may impair the capacitor networks'
performance and/or reliability.
3. Perform sufficient preheating so that the difference of the solder temperature and the capacitor networks chip surface
°
°
temperature becomes 100 C or less. Maintain the temperature difference within 100 C during rapid cooling by immersion
into solvent after soldering.
4. When soldering with a soldering iron, never touch the capacitor networks' bodies with the tip of the soldering iron.
When using a soldering iron with a high temperature tip, finish soldering as quickly as possible (within three seconds at
°
350 C max.).
5. As the amount of applied solder becomes larger, the mechanical stress applied to the capacitor networks increases,
causing problems such as cracks and faulty characteristics. Avoid applying an excessive amounts of solder.
6. Do not apply shock to the capacitor networks or pinch them with a hard tool (e.g. pliers and tweezers). Otherwise, the
capacitor networks' protective coatings and bodies may be chipped, affecting their performance.
7. Avoid excessive bending of printed circuit boards in order to protect the capacitor networks from abnormal stress.
8. The static capacitance may decrease by a few percent from the time of shipment due to the characteristics peculiar to
dielectric materials having a high dielectric constant.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Feb. 2006
Safety Precautions (Common precautions for EMI Filters, Fuses, and Sensors[MR Elements])
• When using our products, no matter what sort of equipment they might be used for, be sure to make a written
agreement on the specifications with us in advance. The design and specifications in this catalog are subject
to change without prior notice.
• Do not use the products beyond the specifications described in this catalog.
• This catalog explains the quality and performance of the products as individual components. Before use, check
and evaluate their operations when installed in your products.
• Install the following systems for a failsafe design to ensure safety if these products are to be used in equipment
where a defect in these products may cause the loss of human life or other significant damage, such as damage to
vehicles (automobile, train, vessel), traffic lights, medical equipment, aerospace equipment, electric heating
appliances, combustion/gas equipment, rotating equipment, and disaster/crime prevention equipment.
Systems equipped with a protection circuit and a protection device
Systems equipped with a redundant circuit or other system to prevent an unsafe status in the event of a single fault
(1) Precautions for use
• These products are designed and manufactured for general and standard use in general electronic equipment
(e.g. AV equipment, home electric appliances, office equipment, information and communication equipment)
• These products are not intended for use in the following special conditions. Before using the products,
carefully check the effects on their quality and performance, and determine whether or not they can be used.
1. In liquid, such as water, oil, chemicals, or organic solvent
2. In direct sunlight, outdoors, or in dust
3. In salty air or air with a high concentration of corrosive gas, such as Cl , H S, NH , SO , or NO
4. Electric Static Discharge (ESD) Environment
2
2
3
2
2
These components are sensitive to static electricity and can be damaged under static shock (ESD).
Please take measures to avoid any of these environments.
Smaller components are more sensitive to ESD environment.
5. Electromagnetic Environment
Avoid any environment where strong electromagnetic waves exist.
6. In an environment where these products cause dew condensation
7. Sealing or coating of these products or a printed circuit board on which these products are mounted, with
resin or other materials
• These products generate Joule heat when energized. Carefully position these products so that their heat will
not affect the other components.
• Carefully position these products so that their temperatures will not exceed the category temperature range due
to the effects of neighboring heat-generating components. Do not mount or place heat-generating components
or inflammables, such as vinyl-coated wires, near these products (except Thermal Cutoffs).
• Note that non-cleaning solder, halogen-based highly active flux, or water-soluble flux may deteriorate the
performance or reliability of the products.
• Carefully select a flux cleaning agent for use after soldering. An unsuitable agent may deteriorate the performance
or reliability. In particular, when using water or a water-soluble cleaning agent, be careful not to leave water
residues. Otherwise, the insulation performance may be deteriorated.
(2) Precautions for storage
The performance of these products, including the solderability, is guaranteed for a year from the date of arrival
at your company, provided that they remain packed as they were when delivered and stored at a temperature
of 5 °C to 35 °C and a relative humidity of 45 % to 85 %. (Micro Chip Fuses: Guaranteed for 6 months from the
date of arrival at your company)
The performance of EMI Filters is guaranteed for 6 months or a year from the outgoing inspection date indicated on
the packages, provided that they are stored at a temperature of -5 °C to +40 °C and a relative humidity of 40 %
to 60 %. Check the guarantee period in the specifications. The performance of Thermal Cutoffs is guaranteed for a
year from the outgoing inspection date indicated on the packages, provided that they are stored at a temperature of
-10 °C to +40 °C and a relative humidity of 30 % to 75 %.
Even within the above guarantee periods, do not store these products in the following conditions. Otherwise,
their electrical performance and/or solderability may be deteriorated, and the packaging materials (e.g. taping
materials) may be deformed or deteriorated, resulting in mounting failures.
2
2
3
2
2
1. In salty air or in air with a high concentration of corrosive gas, such as Cl , H S, NH , SO , or NO
2. In direct sunlight
<Package markings>
Package markings include the product number, quantity, and country of origin.
In principle, the country of origin should be indicated in English.
Feb. 2006
– EX2 –
厂商 型号 描述 页数 下载

PANASONIC

EZA-CT [ Surface Mount Chip Resistors ] 2 页

PANASONIC

EZA-CT31AAAJ 片内RC网络[ Chip RC Networks ] 9 页

PANASONIC

EZA-DT [ Surface Mount Chip Resistors ] 2 页

PANASONIC

EZA-EG1A50AC [ ESD Suppressor ] 6 页

PANASONIC

EZA-EG2A50AX ESD抑制器[ ESD Suppressor ] 2 页

PANASONIC

EZA-EGCA50AV ESD抑制器阵列[ ESD Suppressor Array ] 2 页

PANASONIC

EZA-NCE221M [ Chip 3-Terminal Capacitor Array ] 7 页

PANASONIC

EZA-ST [ Surface Mount Chip Resistors ] 2 页

PANASONIC

EZA-ST21AAAJ [ Chip RC Networks ] 9 页

PANASONIC

EZA-ST61AAAJ [ Chip RC Networks ] 9 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.206136s
