8TQ80GSTRL

型号：

8TQ80GSTRL

品牌：

VISHAY[ VISHAY ]

页数：

8 页

PDF大小：

203 K

下载PDF手册

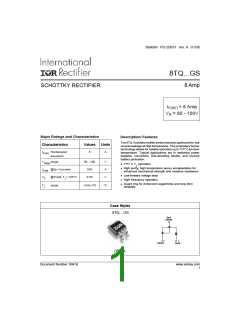

Bulletin PD-20837 rev. A 01/06
8TQ...GS
8 Amp
SCHOTTKY RECTIFIER
IF(AV) = 8 Amp
VR = 80 - 100V
Major Ratings and Characteristics
Description/ Features
The8TQ Schottkyrectifierserieshasbeenoptimizedfor low
reverse leakage at high temperature. The proprietary barrier
technology allows for reliable operation up to 175° C junction
temperature. Typical applications are in switching power
supplies, converters, free-wheeling diodes, and reverse
battery protection.
Characteristics
Values
Units
I
Rectangular
waveform
8
A
F(AV)
V
I
range
80 -100
850
V
A
V
RRM
175° C T operation
J
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
@tp=5µssine
FSM
Low forward voltage drop
High frequency operation
V
@8Apk, T =125°C
J
0.58
F
J
Guard ring for enhanced ruggedness and long term
T
range
-55to175
°C
reliability
Case Styles
8TQ... GS
Base
Cathode
1
3
Cathode
Anode
D2PAK
Document Number: 93416
www.vishay.com
1
8TQ...GS Series
Bulletin PD-20837 rev. A 01/06
Voltage Ratings
Part number
8TQ080GS
8TQ100GS
VR
Max. DC Reverse Voltage (V)
80
100
VRWM Max. Working Peak Reverse Voltage (V)
Absolute Maximum Ratings
Parameters
8TQ Units
Conditions
IF(AV) Max. Average Forward Current
*SeeFig.5
8
A
50%dutycycle@TC =157°C,rectangularwaveform
Following any rated
load condition and
IFSM Max. Peak One Cycle Non-Repetitive
SurgeCurrent *SeeFig.7
850
230
5µs Sineor3µsRect.pulse
10msSineor6msRect. pulse
A
with rated VRRM applied
EAS Non-Repetitive Avalanche Energy
7.50
0.50
mJ
A
TJ=25°C, IAS= 0.50Amps,L= 60mH
Currentdecayinglinearlytozeroin1µsec
FrequencylimitedbyTJ max.VA =1.5xVR typical
IAR
Repetitive Avalanche Current
Electrical Specifications
Parameters
8TQ Units
Conditions
VFM Max. Forward Voltage Drop
(1)
0.72
0.88
0.58
0.69
V
V
V
V
@
8A
@ 16A
8A
TJ = 25 °C
* See Fig. 1
@
@ 16A
TJ = 125 °C
IRM Max. Reverse Leakage Current (1)
* See Fig. 2
0.28
7
500
8
mA
mA
pF
TJ = 25 °C
TJ = 125 °C
VR = rated VR
CT
LS
Max. Junction Capacitance
Typical Series Inductance
VR = 5VDC (test signal range 100Khz to 1Mhz) 25 °C
Measured lead to lead 5mm from package body
nH
dv/dt Max. Voltage Rate of Change
(Rated VR)
10000
V/ µs
(1) Pulse Width < 300µs, Duty Cycle < 2%
Thermal-Mechanical Specifications
Parameters
8TQ Units
Conditions
TJ
Max. Junction Temperature Range -55to175 °C
Tstg Max. Storage Temperature Range
-55to175 °C
RthJC Max. Thermal Resistance Junction
toCase
2.0
°C/W DC operation *SeeFig.4
RthCS TypicalThermalResistance, Caseto
Heatsink
0.50
°C/W Mountingsurface, smoothandgreased
wt
T
Approximate Weight
Mounting Torque
2(0.07) g(oz.)
Min.
6(5)
Kg-cm
(Ibf-in)
Max.
12(10)
Marking Device
8TQ100GS
Document Number: 93416
www.vishay.com
2
8TQ...GS Series
Bulletin PD-20837 rev. A 01/06
100
10
1000
100
10
T = 175°C
J
150°C
125°C
1
100°C
75°C
50°C
0.1
0.01
0.001
0.0001
25°C
0
20
40
60
80
100
Reverse Voltage - V (V)
T = 175°C
J
R
Fig.2-Typical Values of Reverse Current
Vs. Reverse Voltage
T = 125°C
J
T = 25°C
J
1000
T = 25°C
J
1
0.1
100
0
0.2 0.4 0.6 0.8
1
1.2 1.4 1.6 1.8
2
2.2
0
10 20 30 40 50 60 70 80 90 100110
Forward Voltage Drop - V
(V)
Reverse Voltage - V (V)
FM
R
Fig. 1-Maximum Forward Voltage Drop Characteristics
10
Fig.3-Typical Junction Capacitance
Vs. Reverse Voltage
D = 0.75
D = 0.50
D = 0.33
1
D = 0.25
D = 0.20
Single Pulse
(Thermal Resistance)
0.1
1E-04
1E-03
1E-02
1E-01
1E+00
t1,RectangularPulseDuration(Seconds)
Fig.4-Maximum Thermal Impedance ZthJC Characteristics
Document Number: 93416
www.vishay.com
3
8TQ...GS Series
Bulletin PD-20837 rev. A 01/06
180
175
170
165
7
6
5
4
3
2
1
0
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
DC
160
RMS Lim it
DC
Square wave (D = 0.50)
155
150
145
140
80%Rated V applied
R
see note (2)
0
2
4
6
8
10
12
0
2
4
6
8
10
12
(A)
Average Forward Current - I
(A)
Average Forward Current - I
F( AV)
F( AV)
Fig. 5-Maximum Allowable Case Temperature
Fig.6-Forward Power Loss Characteristics
Vs. Average Forward Current
1000
At Any Rated Load Condition
And With Rated V
Following Surge
Applied
RRM
100
10
100
1000
10000
Square Wave Pulse Duration - t (microsec)
p
Fig. 7-Maximum Non-Repetitive Surge Current
L
HIG H-SPEED
SW ITC H
IRFP460
DUT
FREE-WHEEL
DIODE
Rg = 25 ohm
Vd = 25 Volt
+
C URRENT
MONITOR
40HFL40S02
Fig.8-Unclamped Inductive Test Circuit
(2) Formulaused:TC=TJ -(Pd+PdREV)xRthJC
;
Pd=ForwardPowerLoss=IF(AV) xVFM @(IF(AV) /D) (seeFig.6);
PdREV =InversePowerLoss=VR1 xIR(1-D); IR @VR1=80%ratedVR
Document Number: 93416
www.vishay.com
4
8TQ...GS Series
Bulletin PD-20837 rev. A 01/06
Outline Table
Conform to JEDEC outline D2Pak (SMD-220)
Dimensions in millimeters and (inches)
Part Marking Information
PART NUMBER
G = Schottky Generation
INTERNATIONAL
RECTIFIER
THIS IS A 8TQ100GS
LOT CODE 8024
ASSEMBLED ON WW 02, 2000
IN THE ASSEMBLY LINE "L"
8TQ100GS
LOGO
DATE CODE
YEAR 0 = 2000
WEEK 02
ASSEMBLY
LOT CODE
LINE L
Document Number: 93416
www.vishay.com
5
8TQ...GS Series
Bulletin PD-20837 rev. A 01/06
Ordering Information Table
Device Code
8
T
Q
100
G
S
TRL
-
2
5
6
7
8
1
4
3
1
2
3
4
5
6
7
-
-
-
-
-
-
-
Current Rating (8 = 8A)
T
= TO-220
Q
= Schottky Q Series
080 = 80V
100 =100V
Voltage Ratings
G
S
= Schottky Generation
= D2Pak
y none = Tube (50 pieces)
y TRL = Tape & Reel (Left Oriented)
y TRR = Tape & Reel (Right Oriented)
y none = Standard Production
y PbF =Lead-Free
8
-
Document Number: 93416
www.vishay.com
6
8TQ...GS Series
Bulletin PD-20837 rev. A 01/06
8TQ100
********************************************
*
*
*
*
This model has been developed by
Wizard SPICE MODEL GENERATOR (1999)
(International Rectifier Corporation)
Contain Proprietary Information
*
*
*
*
********************************************
* SPICE Model Diode is composed by a
* simple diode plus paralled VCG2T
*
*
********************************************
.SUBCKT 8TQ100 ANO CAT
D1 ANO 1 DMOD (0.07089)
*Define diode model
.MODEL DMOD D(IS=1.15938021883115E-03A,N=1.95244918720315,BV=120V,
+ IBV=5.37891460505463A,RS= 0.00127602,CJO=9.9895753025115E-09,
+ VJ=2.30070034831946,XTI=2, EG=0.758916909331649)
********************************************
*Implementation of VCG2T
VX 1 2 DC 0V
R1 2 CAT TRES 1E-6
.MODEL TRES RES(R=1,TC1=-90.2420977904848)
GP1 ANO CAT VALUE={-ABS(I(VX))*(EXP((((1.635248E-02/-90.2421)*((V(2,CAT)*1E6)/(I(VX)+1E-6)-
1))+1)*4.011038E-03*ABS(V(ANO,CAT)))-1)}
********************************************
.ENDS 8TQ100
Thermal Model Subcircuit
.SUBCKT 8TQ100 5 1
CTHERM1
CTHERM2
CTHERM3
CTHERM4
5
4
3
2
4
3
2
1
1.45E+00
4.54E+00
1.09E+01
1.01E+02
RTHERM1
RTHERM2
RTHERM1
RTHERM1
5
4
3
2
4
3
2
1
2.49E+00
5.20E-04
5.43E-01
3.05E-02
.ENDS 8TQ100
Data and specifications subject to change without notice.
This product has been designed and qualified for Industrial Level.
Qualification Standards can be found on IR's Web site.
IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7309
01/06
Document Number: 93416
www.vishay.com
7
Legal Disclaimer Notice
Vishay
Notice
The products described herein were acquired by Vishay Intertechnology, Inc., as part of its acquisition of
International Rectifier’s Power Control Systems (PCS) business, which closed in April 2007. Specifications of the
products displayed herein are pending review by Vishay and are subject to the terms and conditions shown below.
Specifications of the products displayed herein are subject to change without notice. Vishay Intertechnology, Inc., or
anyone on its behalf, assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, by
estoppel or otherwise, to any intellectual property rights is granted by this document. Except as provided in Vishay's
terms and conditions of sale for such products, Vishay assumes no liability whatsoever, and disclaims any express
or implied warranty, relating to sale and/or use of Vishay products including liability or warranties relating to fitness
for a particular purpose, merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify Vishay for any damages resulting from such improper use or sale.
International Rectifier®, IR®, the IR logo, HEXFET®, HEXSense®, HEXDIP®, DOL®, INTERO®, and POWIRTRAIN®
are registered trademarks of International Rectifier Corporation in the U.S. and other countries. All other product
names noted herein may be trademarks of their respective owners.
Document Number: 99901
Revision: 12-Mar-07
www.vishay.com
