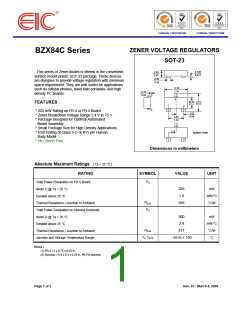

Certificate TH97/10561QM
Certificate TW00/17276EM
ZENER VOLTAGE REGULATORS
SOT-23
BZX84C Series
0.100
0.013
1.40
0.95
0.50
0.35
This series of Zener diodes is offered in the convenient,
surface mount plastic SOT-23 package. These devices
are designes to provide voltage regulation with minimum
space requirement. They are well suited for applications
such as cellular phones, hand held portables, and high
density PC boards.
3.10
2.70
0.19
0.08
3
FEATURES :
1
2
* 225 mW Rating on FR-4 or FR-5 Board
* Zener Breakdown Voltage Range 2.4 V to 75 V
* Package Designed for Optimal Automated
Board Assembly
1.02
0.89
2.04
1.78
3
* Small Package Size for High Density Applications
* ESD Rating of Class 3 (>16 KV) per Human
Body Model
bottom view
1
2
* Pb / RoHS Free
Dimensions in millimeters
Absolute Maximum Ratings ( Ta = 25 °C )
RATING
SYMBOL
VALUE
UNIT
PD
Total Power Dissipation on FR-5 Board,
(Note 1) @ Ta = 25 °C
225
1.8
mW
mW/°C
°C/W
Derated above 25 °C
RӨJA
PD
556
Thermal Resistance ( Jucntion to Ambient)
Total Power Dissipation on Alumina Substrate,
(Note 2) @ Ta = 25 °C
300
2.4
mW
mW/°C
°C/W
°C
Derated above 25 °C
RӨJA
417
Thermal Resistance ( Jucntion to Ambient)
Junction and Storage Temperature Range
TJ, TSTG
- 65 to + 150
Notes :
(1) FR-5 =1 x 0.75 x 0.62 in.
(2) Alumina = 0.4 x 0.3 x 0.24 in, 99.5% alumina
Page 1 of 2
Rev. 03 : March 4, 2006
