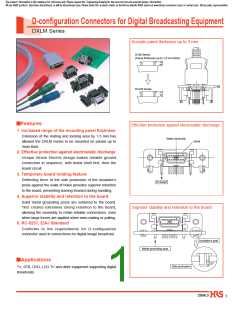

Product Specifications
Current rating
1 A DC
Operating temperature range
-25oC to +70oC
Rating
Voltage rating
250 V AC
Item
Specification
Conditions
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage
80 m ohms max.
100mA DC
500 M ohms min.
500 V DC
No flashover or insulation breakdown
500 V AC / one minute
4. Mating/un-mating forces 30N max. (mating)
4.2N min. (un-mating)
With corresponding connector assembly.
500 cycles
5. Durability
Contact resistance: 25 m ohms max. variation from initial value
(mating/un-mating)
No damage, cracks, or parts dislocation
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
2 hours / 3 axis
No electrical discontinuity of 1 ms or more
No damage, cracks, or parts dislocation
6. Vibration
7. Shock
2
Acceleration of 490 m/s , 6 ms duration, sine half-wave wave form, 3 cycles in each of the 3 axis
96 hours at 40oC, humidity of 90% to 95%
8. Humidity
Contact resistance: 25 m ohms max. variation from initial value
Insulation resistance: 100 M ohms min.
(Steady state)
Temperature: -25 oC --> +5 oC to +35 oC --> +70 oC --> +5 oC to +35oC
Contact resistance: 25 m ohms max. variation from initial value
Insulation resistance: 100 M ohms min.
Duration: 30 -->
5 cycles
2 to 3
--> 30 --> 2 to 3 (Minutes)
9. Temperature cycle
10. Salt Spray
Contact resistance: 25 m ohms max. variation from initial value
5% salt water solution for 48 hours
Material
Part
Contact: Receptacle
Contact: Plug
Insulator
Material
Finish
Selective gold plating
Remarks
Brass
.
.
UL94V-0
.
Phosphor bronze
PBT
Selective gold plating
Color: Black
.
Shell
Stainless steel
Non-Halogen
Non-Halogen
Cover
Color: Gray
Color: Gray
.
.
Cable outer insulation
Ordering Information
Receptacles
DX 10 LM 1 . 14 S E (50)
Plugs
DX 40 LM . 14 PP . 150 CV (50)
Series name: DXLM
Board mounting type E: Temporary insulator’s post
Termination type 10: PCB Right-angle through hole type
20: PCB Straight through hole type
40: Soldering type
Cable Harness type
PP: D-configuration connector at both ends
P: D-configuration connector on one end/single audio connectors on other end
Form type
Blank: Standard item
Overall length 150: 150 cm
300: 300 cm
1: Miniature type
2: Miniature panel single screw panel attachment
Cover type CV: Standard
Number of Positions: 14
Configuration of mating side S: Receptalce
Plating
(50) : Gold plating
