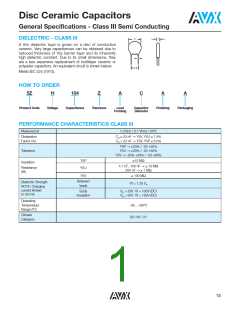

Disc Ceramic Capacitors
General Specifications - Class III Semi Conducting
DIELECTRIC - CLASS III
A thin dielectric layer is grown on a disc of conductive
ceramic. Very large capacitances can be obtained due to
reduced thickness of this barrier layer and its inherently
high dielectric constant. Due to its small dimensions, they
are a less expensive replacement of multilayer ceramic or
polyester capacitors. An equivalent circuit is shown below:
Meets IEC 324 (1970).
HOW TO ORDER
5Z
H
104
Z
A
C
A
A
Product Code
Voltage
Capacitance
Tolerance
Lead
Forming
Capacitor
Diameter
Finishing
Packaging
PERFORMANCE CHARACTERISTICS CLASS III
Measured at
1.0 kHz / 0.1 Vrms / 25ºC
Dissipation
Factor (%)
CR ≤ 22 nF → Y5V, Y5U ≤ 7.5%
CR > 22 nF → Y5V, Y5P ≤ 5.0%
Y5P → 20% / ꢀ20 ꢁ50%
Y5U → 20% / ꢀ20 ꢁ50%
Tolerance
Y5V → ꢀ20% ꢁ50% / ꢀ20 ꢁ80%
Y5P
Y5U
Y5V
≥12 MΩ
Insulation
4.7 nF...100 nF → ≥ 10 MΩ
200 nF → ≥ 1 MΩ
Resistance
(IR)
≥ 100 MΩ
Between
leads
Dielectric Strength
NOTE: Charging
current limited
to 50 mA
Vt = 1.25 VR
Body
insulation
VR = 25V Vt = 100V (DC)
VR = 50V Vt = 150V (DC)
Operating
Temperature
Range (ºC)
ꢀ30... ꢁ85ºC
30 / 85 / 21
Climate
Category
