S80-A230X

型号:

S80-A230X

品牌:

TDK[ TDK ELECTRONICS ]

页数:

4 页

PDF大小:

127 K

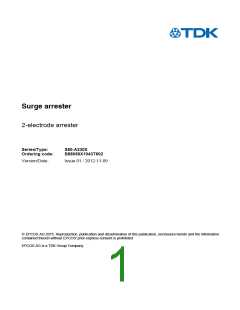

Surge arrester
2-electrode arrester
Series/Type:
S80-A230X
Ordering code:
B88069X1943T602
Version/Date:
Version:
Issue 01 / 2012-11-09
6
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the
table and then change the color to "white" (or invisible). This ensures that the table disappears for the customer
PDF. To update the data sheet, click on the symbol "Preview" and then "Close". Please do not alter the header or
footer when copying the content.
Identification/Classification 1:
(header 1 + top left header bar)
Surge arrester
Identification/Classification 2:
(header 2 + bottom left header bar)
2-electrode arrester
B88069X1943T602
S80-A230X
Ordering code:
(top right header bar)
Series/Type:
(top right header bar)
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
Surge arrester
B88069X1943T602
S80-A230X
2-electrode arrester
Features
Applications
Standard size
Very high current rating
Fast response time
Stable performance over life
Very low capacitance
High insulation resistance
Excellent SMD handling
RoHS-compatible
Consumer electronic
Alarm systems
Electrical specifications
DC spark-over voltage 1) 2)
230
V
%
20
Impulse spark-over voltage
at 100 V/µs - for 99% of measured values
- typical values of distribution
< 500
< 450
V
V
at 1 kV/µs
- for 99% of measured values
- typical values of distribution
< 650
< 600
V
V
Service life
10 operations
1 operation
50 Hz, 1 s
50 Hz; 0.18 s (9 cycles) 100
20
A
A
10 operations [5× (+) & 5× (–)] 8/20 µs
20
25
2.5
200
kA
kA
kA
A
1 operation
1 operation
8/20 µs
10/350 µs
10/1000 µs
300 operations
Insulation resistance at 100 VDC
Capacitance at 1 MHz
> 10
G
< 1.5
pF
Arc voltage at 1 A
Glow to arc transition current
Glow voltage
~ 10
~ 0.5
~ 60
V
A
V
Weight
~ 1.5
g
Operation and storage temperature
Climatic category (IEC 60068-1)
Marking, blue positive
-40 ... +90
40/ 90/ 21
°C
YY
230
YY
230
- Year of production
- Nominal voltage
1)
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
2)
Terms in accordance with ITU-T Rec. K.12; IEC 61663-2 and IEC 61643-311.
PPD AB PD / PPD AB PM
Issue 01 / 2012-11-09
Please read Cautions and warnings and
Page 2 of 4
Important notes at the end of this document.
Surge arrester
B88069X1943T602
S80-A230X
2-electrode arrester
Dimensional drawing in mm
Ordering code and packing advice
B88069X1943T602 = 600 pcs. on tape and reel
Cautions and warnings
Surge arresters must not be operated directly in power supply networks.
Surge arresters may become hot in case of longer periods of current stress (danger of burning).
If the contacts of the surge arrester are defective, current stress can lead to the formation of
sparks and loud noises.
Surge arresters may be used only within their specified values. In case of overload, the lead
contacts may fail or the component may be destroyed.
Damaged surge arresters must not be re-used.
PPD AB PD / PPD AB PM
Issue 01 / 2012-11-09
Please read Cautions and warnings and
Page 3 of 4
Important notes at the end of this document.
Important notes
The following applies to all products named in this publication:
1. Some parts of this publication contain statements about the suitability of our products for
certain areas of application. These statements are based on our knowledge of typical
requirements that are often placed on our products in the areas of application concerned. We
nevertheless expressly point out that such statements cannot be regarded as binding
statements about the suitability of our products for a particular customer application. As a
rule, EPCOS is either unfamiliar with individual customer applications or less familiar with them
than the customers themselves. For these reasons, it is always ultimately incumbent on the
customer to check and decide whether an EPCOS product with the properties described in the
product specification is suitable for use in a particular customer application.
2. We also point out that in individual cases, a malfunction of electronic components or failure
before the end of their usual service life cannot be completely ruled out in the current state
of the art, even if they are operated as specified. In customer applications requiring a very high
level of operational safety and especially in customer applications in which the malfunction or
failure of an electronic component could endanger human life or health (e.g. in accident
prevention or life-saving systems), it must therefore be ensured by means of suitable design of the
customer application or other action taken by the customer (e.g. installation of protective circuitry
or redundancy) that no injury or damage is sustained by third parties in the event of malfunction or
failure of an electronic component.
3. The warnings, cautions and product-specific notes must be observed.
4. In order to satisfy certain technical requirements, some of the products described in this
publication may contain substances subject to restrictions in certain jurisdictions (e.g.
because they are classed as hazardous). Useful information on this will be found in our Material
Data Sheets on the Internet (www.epcos.com/material). Should you have any more detailed
questions, please contact our sales offices.
5. We constantly strive to improve our products. Consequently, the products described in this
publication may change from time to time. The same is true of the corresponding product
specifications. Please check therefore to what extent product descriptions and specifications
contained in this publication are still applicable before or when you place an order.
We also reserve the right to discontinue production and delivery of products. Consequently,
we cannot guarantee that all products named in this publication will always be available.
The aforementioned does not apply in the case of individual agreements deviating from the
foregoing for customer-specific products.
6. Unless otherwise agreed in individual contracts, all orders are subject to the current version of
the “General Terms of Delivery for Products and Services in the Electrical Industry”
published by the German Electrical and Electronics Industry Association (ZVEI).
7. The trade names EPCOS, BAOKE, Alu-X, CeraDiode, CeraLink, CSMP, CSSP, CTVS, DeltaCap,
DigiSiMic, DSSP, FilterCap, FormFit, MiniBlue, MiniCell, MKD, MKK, MLSC, MotorCap, PCC,
PhaseCap, PhaseCube, PhaseMod, PhiCap, SIFERRIT, SIFI, SIKOREL, SilverCap, SIMDAD,
SiMic, SIMID, SineFormer, SIOV, SIP5D, SIP5K, ThermoFuse, WindCap are trademarks
registered or pending in Europe and in other countries. Further information will be found on the
Internet at www.epcos.com/trademarks.
Page 4 of 4
