QTLP650C-E.TR

型号：

QTLP650C-E.TR

品牌：

FAIRCHILD[ FAIRCHILD SEMICONDUCTOR ]

页数：

18 页

PDF大小：

312 K

下载PDF手册

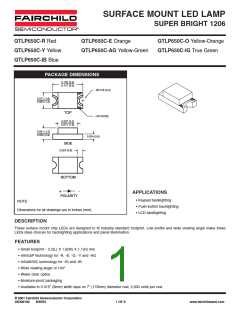

SURFACE MOUNT LED LAMP
SUPER BRIGHT 1206
QTLP650C-R Red
QTLP650C-Y Yellow
QTLP650C-IB Blue
QTLP650C-E Orange
QTLP650C-AG Yellow-Green
QTLP650C-O Yellow-Orange
QTLP650C-IG True Green
PACKAGE DIMENSIONS
0.133 (3.4)
0.117 (3.0)
R0.016 (0.4)
0.071 (1.8)
0.055 (1.4)
TOP
CATHODE
0.087 (2.2)
0.071 (1.8)
0.051 (1.3)
0.035 (0.9)
0.024 (0.6)
SIDE
0.024 (0.6)
BOTTOM
+
-
APPLICATIONS
POLARITY
• Keypad backlighting
• Push-button backlighting
• LCD backlighting
NOTE:
Dimensions for all drawings are in inches (mm).
DESCRIPTION
These surface mount chip LEDs are designed to fit industry standard footprint. Low profile and wide viewing angle make these
LEDs ideal choices for backlighting applications and panel illumination.
FEATURES
• Small footprint - 3.2(L) X 1.6(W) X 1.1(H) mm
• AllnGaP technology for -R, -E, -O, -Y and -AG
• InGaN/SiC technology for -IG and -IB
• Wide viewing angle of 140°
• Water clear optics
• Moisture-proof packaging
• Available in 0.315” (8mm) width tape on 7” (178mm) diameter reel; 2,000 units per reel
2001 Fairchild Semiconductor Corporation
DS300100
8/30/01
1 OF 8
www.fairchildsemi.com
SURFACE MOUNT LED LAMP
SUPER BRIGHT 1206
QTLP650C-R Red
QTLP650C-Y Yellow
QTLP650C-IB Blue
QTLP650C-E Orange
QTLP650C-O Yellow-Orange
QTLP650C-IG True Green
QTLP650C-AG Yellow-Green
(TA =25°C Unless otherwise specified)
ABSOLUTE MAXIMUM RATINGS
QTLP650C
Parameter
Symbol
Units
-R
-E
-O
-Y
-AG
Continuous Forward Current
Peak Forward Current
(f = 1.0 KHz, Duty Factor = 1/10)
Reverse Voltage
IF
30
30
30
25
30
mA
mA
IFM
160
160
160
120
160
VR
PD
5
5
5
5
5
V
mW
°C
Power Dissipation
72
72
72
60
72
Operating Temperature
Storage Temperature
Lead Soldering Time
TOPR
TSTG
TSOL
-40 to +85
-40 to +90
260 for 5 sec
°C
°C
(TA =25°C Unless otherwise specified)
ABSOLUTE MAXIMUM RATINGS
QTLP650C
Parameter
Symbol
Units
-IB
-IG
Continuous Forward Current
Peak Forward Current
(f = 1.0 KHz, Duty Factor = 1/10)
Reverse Voltage
IF
30
30
mA
mA
IFM
100
100
VR
PD
5
5
V
mW
°C
Power Dissipation
120
120
Operating Temperature
Storage Temperature
Lead Soldering Time
TOPR
TSTG
TSOL
-40 to +85
-40 to +90
°C
260 for 5 sec
°C
www.fairchildsemi.com
2 OF 8
8/30/01 DS300100
SURFACE MOUNT LED LAMP
SUPER BRIGHT 1206
QTLP650C-R Red
QTLP650C-Y Yellow
QTLP650C-IB Blue
QTLP650C-E Orange
QTLP650C-O Yellow-Orange
QTLP650C-IG True Green
QTLP650C-AG Yellow-Green
(TA =25°C)
ELECTRICAL / OPTICAL CHARACTERISTICS
QTLP650C
-O
Part Number
Symbol
Condition
-R
-E
-Y
-AG
Luminous Intensity (mcd)
Minimum
IV
25
70
25
70
25
70
25
70
15
30
IF = 20mA
IF = 20mA
IF = 20mA
Typical
Forward Voltage (V)
Maximum
VF
2.4
2.0
2.4
2.0
2.4
2.0
2.4
2.0
2.4
2.0
Typical
Wavelength (nm)
Peak
DP
630
624
20
620
615
18
610
605
18
590
589
15
575
573
20
Dominant
DD
ꢀD
Spectral Line Half Width (nm)
Viewing Angle (°)
IF = 20mA
IF = 20mA
201/
140
140
140
140
140
2
(TA =25°C)
ELECTRICAL / OPTICAL CHARACTERISTICS
QTLP650C
Part Number
Symbol
Condition
-IB
-IG
Luminous Intensity (mcd)
Minimum
IV
35
45
100
140
IF = 20mA
Typical
Forward Voltage (V)
Maximum
VF
4.0
3.5
4.0
3.5
IF = 20mA
IF = 20mA
Typical
Wavelength (nm)
Peak
DP
465
470
25
520
525
35
Dominant
DD
ꢀD
Spectral Line Half Width (nm)
Viewing Angle (°)
IF = 20mA
IF = 20mA
201/
140
140
2
DS300100
8/30/01
3 OF 8
www.fairchildsemi.com
SURFACE MOUNT LED LAMP
SUPER BRIGHT 1206
QTLP650C-R Red
QTLP650C-Y Yellow
QTLP650C-IB Blue
QTLP650C-E Orange
QTLP650C-AG Yellow-Green
QTLP650C-O Yellow-Orange
QTLP650C-IG True Green
TYPICAL PERFORMANCE CURVES (QTLP650C-R, -E, -O, -Y and -AG)
Fig. 1 Forward Current vs. Forward Voltage
Fig. 2 Relative Luminous Intensity
vs. DC Forward Current
100
2.5
2.0
1.5
1.0
90
80
70
60
50
40
30
20
10
0
0.5
0.0
1.0
1.5
2.0
2.5
3.0
0
10
20
30
40
50
V
- FORWARD VOLTAGE (V)
IF - DC FORWARD CURRENT (mA)
F
Fig. 3 Relative Intensity vs. Peak Wavelength
AG
Y
O
E
R
1.0
0.5
0
500
550
600
WAVELENGTH (nm)
650
700
Fig.4 Radiation Diagram
Fig.5 Maximum Forward Current
vs. Ambient Temperature
50
40
30
20
10
0
0˚
-10˚
10˚
20˚
-20˚
-30˚
30˚
R, E, O and AG
Y
-40˚
-50˚
-60˚
-70˚
40˚
50˚
60˚
70˚
80˚
90˚
-80˚
-90˚
0
25
50
75
100
1.0 0.8 0.6 0.4 0.2
QTLP650C
0
0.2 0.4 0.6 0.8 1.0
QTLP650D
REL. LUMINOUS INTENSITY (%)
AMBIENT TEMPERATURE TA (˚C)
www.fairchildsemi.com
4 OF 8
8/30/01 DS300100
SURFACE MOUNT LED LAMP
SUPER BRIGHT 1206
QTLP650C-R Red
QTLP650C-Y Yellow
QTLP650C-IB Blue
QTLP650C-E Orange
QTLP650C-AG Yellow-Green
QTLP650C-O Yellow-Orange
QTLP650C-IG True Green
TYPICAL PERFORMANCE CURVES (QTLP650C-IG and IB)
Fig. 1 Forward Current vs. Forward Voltage
Fig. 2 Relative Luminous Intensity
vs. DC Forward Current
100
90
2.5
2.0
1.5
1.0
80
70
60
50
40
30
20
10
0
IG
IB
0.5
0.0
2.0
2.5
3.0
3.5
4.0
4.5
5.0
0
10
20
30
40
50
VF - FORWARD VOLTAGE (V)
IF - DC FORWARD CURRENT (mA)
Fig. 3 Relative Intensity vs. Peak Wavelength
IB
IG
1.0
0.5
0
400
450
500
550
600
650
WAVELENGTH (nm)
Fig.4 Radiation Diagram
Fig.5 Maximum Forward Current
vs. Ambient Temperature
50
40
30
20
10
0
0˚
-10˚
10˚
20˚
-20˚
-30˚
30˚
-40˚
-50˚
-60˚
-70˚
40˚
50˚
60˚
70˚
80˚
90˚
-80˚
-90˚
1.0 0.8 0.6 0.4 0.2
0
0.2 0.4 0.6 0.8 1.0
0
25
50
75
100
REL. LUMINOUS INTENSITY (%)
AMBIENT TEMPERATURE TA (˚C)
DS300100
8/30/01
5 OF 8
www.fairchildsemi.com
SURFACE MOUNT LED LAMP
SUPER BRIGHT 1206
QTLP650C-R Red
QTLP650C-Y Yellow
QTLP650C-IB Blue
QTLP650C-E Orange
QTLP650C-AG Yellow-Green
QTLP650C-O Yellow-Orange
QTLP650C-IG True Green
RECOMMENDED PRINTED CIRCUIT BOARD PATTERN
0.079 (2.0)
0.069 (1.75)
0.069 (1.75)
0.069 (1.75)
RECOMMENDED IR REFLOW SOLDERING PROFILE
5 sec MAX
soldering time
240° C MAX
+5° C/s MAX
-5° C/s MAX
60 - 120 sec
Preheating
120 - 150° C MAX
www.fairchildsemi.com
6 OF 8
8/30/01 DS300100
SURFACE MOUNT LED LAMP
SUPER BRIGHT 1206
QTLP650C-R Red
QTLP650C-Y Yellow
QTLP650C-IB Blue
QTLP650C-E Orange
QTLP650C-AG Yellow-Green
QTLP650C-O Yellow-Orange
QTLP650C-IG True Green
TAPE AND REEL DIMENSIONS
+1.5
-0.0
8.4
+0.5
-0.0
11.0
Ø12.75 +0.25
-0.0
Progressive direction
2.0 0.05
4.0
Ø1.55. 05
0.23
1.65
4.0
1.82 0.1
Dimensional tolerance is 0.1mm unless otherwise specified
Polarity
Angle: 0.5
Unit: mm
DS300100
8/30/01
7 OF 8
www.fairchildsemi.com
SURFACE MOUNT LED LAMP
SUPER BRIGHT 1206
QTLP650C-R Red
QTLP650C-Y Yellow
QTLP650C-IB Blue
QTLP650C-E Orange
QTLP650C-AG Yellow-Green
QTLP650C-O Yellow-Orange
QTLP650C-IG True Green
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO
ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME
ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF
OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
2. A critical component in any component of a life support
device or system whose failure to perform can be
reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical
implant into the body,or (b) support or sustain life,
and (c) whose failure to perform when properly
used in accordance with instructions for use provided
in labeling, can be reasonably expected to result in a
significant injury of the user.
www.fairchildsemi.com
8 OF 8
8/30/01 DS300100
file:///D|/fair/pdf/QTLP650C-AG.html
SEARCH | Parametric | Cross Reference |
sp
Inventory
Fairchild Semiconductor
GO
space
Product Folders and
Applica
spa
sp
a
s
pa
Home >> Find products >>
find products
spa
sp
a
s
pa
QTLP650C-AG
Related Links
Products groups
High Efficiency Red Surface Mount LED
Lamp - Standard Bright 1.8 mm (Dome Lens)
Analog and Mixed
Signal
Discrete
Interface
Logic
Microcontrollers
Non-Volatile
Memory
Optoelectronics
Markets and
applications
New products
Product selection and
parametric search
Cross-reference
search
Request samples
Dotted line
How to order products
Datasheet
Download this
datasheet
Contents
Dotted line
General description | Features | Applications |
Product status/pricing/packaging
Product Change Notices
(PCNs)
PDF
Dotted line
Support
Dotted line
Distributor and field sales
representatives
General description
e-mail this datasheet
[E-
Dotted line
Quality and reliability
These surface mount chip LEDs are designed
to fit industry standard footprint. Low profile
and wide viewing angle make these LEDs ideal
choices for backlighting applications and panel
illumination.
This page
Print version
Dotted line
Design tools
back to top
Features
technical information
buy products
technical support
my Fairchild
●
●
Small footprint - 3.2(L) x 1.6(W) x
1.1(H) mm
AllnGaP technology for -R, -E, -O, -Y
and -AG
company
●
●
●
●
●
InGaN/SiC technology for -IG and -IB
Wide viewing angle of 140°
Water clear optics
Moisture-proof packaging
Available in 0.315-inch (8 mm) width
tape on 7-inch (178 mm) diameter reel;
2,000 units per reel
back to top
Applications
●
●
●
Keypad backlighting
Push-button backlighting
LCD backlighting
file:///D|/fair/pdf/QTLP650C-AG.html
back to top
Product status/pricing/packaging
Inventory check &
ordering
Product
Product status Pricing*
Package type Packing method
SMD BOX
QTLP650CAGTR Full Production $0.096
* Fairchild 1,000 piece Budgetary Pricing
Purchase
back to top
Home | Find products | Technical information | Buy products |
Support | Company | Contact us | Site index | Privacy policy
© Copyright 2002 Fairchild Semiconductor
file:///D|/fair/pdf/QTLP650C-E.html
SEARCH | Parametric | Cross Reference |
sp
Inventory
Fairchild Semiconductor
GO
space
Product Folders and
Applica
spa
sp
a
s
pa
Home >> Find products >>
find products
spa
sp
a
s
pa
QTLP650C-E
Related Links
Products groups
Green Surface Mount LED Lamp - Standard
Bright 1.8 mm (Dome Lens)
Analog and Mixed
Signal
Discrete
Interface
Logic
Microcontrollers
Non-Volatile
Memory
Optoelectronics
Markets and
applications
New products
Product selection and
parametric search
Cross-reference
search
Request samples
Dotted line
How to order products
Datasheet
Download this
datasheet
Contents
Dotted line
General description | Features | Applications |
Product status/pricing/packaging
Product Change Notices
(PCNs)
PDF
Dotted line
Support
Dotted line
Distributor and field sales
representatives
General description
e-mail this datasheet
[E-
Dotted line
Quality and reliability
These surface mount chip LEDs are designed
to fit industry standard footprint. Low profile
and wide viewing angle make these LEDs ideal
choices for backlighting applications and panel
illumination.
This page
Print version
Dotted line
Design tools
back to top
Features
technical information
buy products
technical support
my Fairchild
●
●
Small footprint - 3.2(L) x 1.6(W) x
1.1(H) mm
AllnGaP technology for -R, -E, -O, -Y
and -AG
company
●
●
●
●
●
InGaN/SiC technology for -IG and -IB
Wide viewing angle of 140°
Water clear optics
Moisture-proof packaging
Available in 0.315-inch (8 mm) width
tape on 7-inch (178 mm) diameter reel;
2,000 units per reel
back to top
Applications
●
●
●
Keypad backlighting
Push-button backlighting
LCD backlighting
file:///D|/fair/pdf/QTLP650C-E.html
back to top
Product status/pricing/packaging
Inventory check &
ordering
Product
Product status Pricing*
Package type Packing method
SMD BOX
QTLP650C-E.TR Full Production $0.081
* Fairchild 1,000 piece Budgetary Pricing
Purchase
back to top
Home | Find products | Technical information | Buy products |
Support | Company | Contact us | Site index | Privacy policy
© Copyright 2002 Fairchild Semiconductor
file:///D|/fair/pdf/QTLP650C-IB.html
SEARCH | Parametric | Cross Reference |
sp
Inventory
Fairchild Semiconductor
GO
space
Product Folders and
Applica
spa
sp
a
s
pa
Home >> Find products >>
find products
spa
sp
a
s
pa
QTLP650C-IB
Related Links
Products groups
AlGaAs Red Surface Mount LED Lamp -
Standard Bright 1.8 mm (Dome Lens)
Analog and Mixed
Signal
Discrete
Interface
Logic
Microcontrollers
Non-Volatile
Memory
Optoelectronics
Markets and
applications
New products
Product selection and
parametric search
Cross-reference
search
Request samples
Dotted line
How to order products
Datasheet
Download this
datasheet
Contents
Dotted line
General description | Features | Applications |
Product status/pricing/packaging
Product Change Notices
(PCNs)
PDF
Dotted line
Support
Dotted line
Distributor and field sales
representatives
General description
e-mail this datasheet
[E-
Dotted line
Quality and reliability
These surface mount chip LEDs are designed
to fit industry standard footprint. Low profile
and wide viewing angle make these LEDs ideal
choices for backlighting applications and panel
illumination.
This page
Print version
Dotted line
Design tools
back to top
Features
technical information
buy products
technical support
my Fairchild
●
●
Small footprint - 3.2(L) x 1.6(W) x
1.1(H) mm
AllnGaP technology for -R, -E, -O, -Y
and -AG
company
●
●
●
●
●
InGaN/SiC technology for -IG and -IB
Wide viewing angle of 140°
Water clear optics
Moisture-proof packaging
Available in 0.315-inch (8 mm) width
tape on 7-inch (178 mm) diameter reel;
2,000 units per reel
back to top
Applications
●
●
●
Keypad backlighting
Push-button backlighting
LCD backlighting
file:///D|/fair/pdf/QTLP650C-IB.html
back to top
Product status/pricing/packaging
Inventory check &
ordering
Product
Product status Pricing*
Package type Packing method
SMD BOX
QTLP650CIBTR Full Production
$0.67
Purchase
* Fairchild 1,000 piece Budgetary Pricing
back to top
Home | Find products | Technical information | Buy products |
Support | Company | Contact us | Site index | Privacy policy
© Copyright 2002 Fairchild Semiconductor
file:///D|/fair/pdf/QTLP650C-IG.html
SEARCH | Parametric | Cross Reference |
sp
Inventory
Fairchild Semiconductor
GO
space
Product Folders and
Applica
spa
sp
a
s
pa
Home >> Find products >>
find products
spa
sp
a
s
pa
QTLP650C-IG
Related Links
Products groups
High Efficiency Red Surface Mount LED
Lamp - Standard Bright 1206 (Inner Lens)
Analog and Mixed
Signal
Discrete
Interface
Logic
Microcontrollers
Non-Volatile
Memory
Optoelectronics
Markets and
applications
New products
Product selection and
parametric search
Cross-reference
search
Request samples
Dotted line
How to order products
Datasheet
Download this
datasheet
Contents
Dotted line
General description | Features | Applications |
Product status/pricing/packaging
Product Change Notices
(PCNs)
PDF
Dotted line
Support
Dotted line
Distributor and field sales
representatives
General description
e-mail this datasheet
[E-
Dotted line
Quality and reliability
These surface mount chip LEDs are designed
to fit industry standard footprint. Low profile
and wide viewing angle make these LEDs ideal
choices for backlighting applications and panel
illumination.
This page
Print version
Dotted line
Design tools
back to top
Features
technical information
buy products
technical support
my Fairchild
●
●
Small footprint - 3.2(L) x 1.6(W) x
1.1(H) mm
AllnGaP technology for -R, -E, -O, -Y
and -AG
company
●
●
●
●
●
InGaN/SiC technology for -IG and -IB
Wide viewing angle of 140°
Water clear optics
Moisture-proof packaging
Available in 0.315-inch (8 mm) width
tape on 7-inch (178 mm) diameter reel;
2,000 units per reel
back to top
Applications
●
●
●
Keypad backlighting
Push-button backlighting
LCD backlighting
file:///D|/fair/pdf/QTLP650C-IG.html
back to top
Product status/pricing/packaging
Inventory check &
ordering
Product
Product status Pricing*
Package type Packing method
SMD BOX
QTLP650CIGTR Full Production
$0.79
Purchase
* Fairchild 1,000 piece Budgetary Pricing
back to top
Home | Find products | Technical information | Buy products |
Support | Company | Contact us | Site index | Privacy policy
© Copyright 2002 Fairchild Semiconductor
Product Folder - Fairchild P/N QTLP650C-Y - AlGaAs Red Surface Mount LED Lamp - Standard Bright 1206 (Inner Lens)
SEARCH | Parametric | Cross Reference |
sp
Inventory
Fairchild Semiconductor
GO
space
Product Folders and
Applica
spa
sp
a
s
pa
Home >> Find products >>
find products
spa
sp
a
s
pa
QTLP650C-Y
Related Links
Products groups
AlGaAs Red Surface Mount LED Lamp -
Standard Bright 1206 (Inner Lens)
Analog and Mixed
Signal
Discrete
Interface
Logic
Microcontrollers
Non-Volatile
Memory
Optoelectronics
Markets and
applications
New products
Product selection and
parametric search
Cross-reference
search
Request samples
Dotted line
How to order products
Datasheet
Download this
datasheet
Contents
Dotted line
General description | Features | Applications |
Product status/pricing/packaging
Product Change Notices
(PCNs)
PDF
Dotted line
Support
Dotted line
Distributor and field sales
representatives
General description
e-mail this datasheet
[E-
Dotted line
Quality and reliability
These surface mount chip LEDs are designed
to fit industry standard footprint. Low profile
and wide viewing angle make these LEDs ideal
choices for backlighting applications and panel
illumination.
This page
Print version
Dotted line
Design tools
back to top
Features
technical information
buy products
technical support
my Fairchild
●
●
Small footprint - 3.2(L) x 1.6(W) x
1.1(H) mm
AllnGaP technology for -R, -E, -O, -Y
and -AG
company
●
●
●
●
●
InGaN/SiC technology for -IG and -IB
Wide viewing angle of 140°
Water clear optics
Moisture-proof packaging
Available in 0.315-inch (8 mm) width
tape on 7-inch (178 mm) diameter reel;
2,000 units per reel
back to top
Applications
●
●
●
Keypad backlighting
Push-button backlighting
LCD backlighting
Product Folder - Fairchild P/N QTLP650C-Y - AlGaAs Red Surface Mount LED Lamp - Standard Bright 1206 (Inner Lens)
back to top
Product status/pricing/packaging
Inventory check &
Product
Product status Pricing*
Package type Packing method
SMD BOX
ordering
QTLP650C-Y.TR Full Production $0.081
* Fairchild 1,000 piece Budgetary Pricing
Purchase
back to top
Home | Find products | Technical information | Buy products |
Support | Company | Contact us | Site index | Privacy policy
© Copyright 2002 Fairchild Semiconductor
厂商 型号 描述 页数 下载

FAIRCHILD

 		QTLP-HLMP-6405A [ Visible LED, ] 5 页

EVERLIGHT

 		QTLP-HLMP-Q150A [ Visible LED, ] 5 页

EVERLIGHT

 		QTLP-MV6300A [ Visible LED, ] 5 页

FAIRCHILD

 		QTLP-MV6700A [ Visible LED, ] 5 页

EVERLIGHT

 		QTLP-MV6700A [ Visible LED, ] 5 页

FAIRCHILD

 		QTLP282 表面安装型LED灯平板型[ SURFACE MOUNT LED LAMP FLAT TYPE ] 5 页

QT

 		QTLP282-2 表面安装型LED灯平板型[ SURFACE MOUNT LED LAMP FLAT TYPE ] 4 页

FAIRCHILD

 		QTLP282-2 表面安装型LED灯平板型[ SURFACE MOUNT LED LAMP FLAT TYPE ] 5 页

QT

 		QTLP282-2.GB [ 暂无描述 ] 4 页

FAIRCHILD

 		QTLP282-3 表面安装型LED灯平板型[ SURFACE MOUNT LED LAMP FLAT TYPE ] 5 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.161803s
