UZDT1048TA

型号:

UZDT1048TA

品牌:

DIODES[ DIODES INCORPORATED ]

页数:

6 页

PDF大小:

335 K

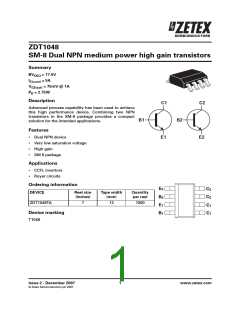

ZDT1048
SM-8 Dual NPN medium power high gain transistors
Summary
BV
> 17.5V
CEO
I
= 5A
C(cont)
V
< 75mV @ 1A
CE(sat)
P = 2.75W
D
Description
C1
E1
C2
E2
Advanced process capability has been used to achieve
this high performance device. Combining two NPN
transistors in the SM-8 package provides a compact
solution for the intended applications.
B1
B2
Features
Dual NPN device
Very low saturation voltage
High gain
SM 8 package
Applications
CCFL invertors
Royer circuits
Ordering information
DEVICE
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZDT1048TA
7
12
1000
Device marking
T1048
Issue 2 - December 2007
© Zetex Semiconductors plc 2007
1
www.zetex.com
ZDT1048
Absolute maximum ratings
Parameter
Symbol
Value
Unit
Collector-base voltage
V
V
V
I
50
V
CBO
CEO
EBO
CM
Collector-emitter voltage
Emitter-base voltage
17.5
5
V
V
Peak pulse current
20
5
A
Continuous collector current
Base current
I
I
A
C
500
mA
B
Operating and storage temperature range
T :T
-55 to +150
°C
j
stg
Thermal Characteristics
Parameter
Symbol
Value
Unit
Total power dissipation at T
Any single die “on”
Both die “on” equally
= 25°C*
P
tot
amb
2.25
2.75
W
W
Derate above 25°C*
Any single die “on”
Both die “on” equally
V
18
22
mW/°C
mW/°C
Thermal resistance - junction to ambient*
Any single die “on”
Both die “on” equally
55.6
45.5
°C/W
°C/W
* The power which can be dissipated assuming the device is mounted in a typical manner on a PCB with copper equal to
2 inches square.
Issue 2 - December 2007
© Zetex Semiconductors plc 2007
2
www.zetex.com
ZDT1048
Electrical characteristics (at T
= 25°C unless otherwise stated).
amb
Parameter
Symbol
Min.
Typ.
Max.
Unit Conditions
Collector-base breakdown V(BR)CBO
voltage
50
85
V
V
V
V
V
I =100µA
C
Collector-emitter
V
V
V
V
50
17.5
50
85
24
85
8.7
I =100µA
C
CES
breakdown voltage
Collector-emitter
breakdown voltage
I =10mA
C
CEO
Collector-emitter
breakdown voltage
I =100µA, V =1V
C EB
CEV
Emitter-base breakdown
voltage
5
I =100µA
E
(BR)EBO
Collector cut-off current
Emitter cut-off current
I
I
I
0.3
0.3
0.3
10
10
10
nA
nA
nA
V
V
=35V
=4V
CBO
EBO
CES
CB
EB
Collector-emitter cut-off
current
I
=35V
CES
(*)
Collector-emitter
saturation voltage
V
27
55
120
200
200
45
75
160
240
300
mV
mV
mV
I =0.5A, I =10mA
CE(sat)
C
B
(*)
I =1A, I =10mA
C
B
(*)
I =2A, I =10mA
C
B
(*)
mV I =5A, I =100mA
mV
C
B
(*)
I =5A, I =50mA
C
B
(*)
Base-emitter saturation
voltage
V
V
h
1000
1100
mV
I =5A, I =100mA
BE(sat)
BE(on)
C
B
(*)
Base-emitter turn on
voltage
900
1000
mV
I =5A, V =2V
C
CE
(*)
Static forward
current transfer
ratio
280
300
300
250
50
440
450
450
300
80
I =10mA, V =2V
FE
C
CE
(*)
I =0.5A, V =2V
C
CE
1200
(*)
I =1A, V =2V
C
CE
(*)
I =5A, V =2V
C
CE
(*)
I =20A, V =2V
C
CE
Transition frequency
f
150
MHz I =50mA, V =10V
T
C
CE
f=50MHz
Output capacitance
Switching times
C
60
80
pF
ns
ns
V
=10V, f=1MHz
CB
obo
t
t
120
250
IC=4A, IB=40mA,VCC=10V
IC=4A, IB= 40mA,VCC=10V
on
off
NOTES:
(*) Measured under pulsed conditions. Pulse width=300µs. Duty cycle 2%
Issue 2 - December 2007
© Zetex Semiconductors plc 2007
3
www.zetex.com
ZDT1048
Typical characteristics
Issue 2 - December 2007
© Zetex Semiconductors plc 2007
4
www.zetex.com
ZDT1048
Package outline - SM8
DIM
Millimeters
Inches
Max.
DIM
Millimeters
Inches
Min.
-
Max.
1.7
0.1
-
Typ.
Min.
Typ.
Min.
Max.
Typ.
4.59
1.53
-
Min.
Max.
Typ.
A
A1
b
-
-
0.067
-
e1
e2
He
Lp
-
-
-
-
-
-
0.1807
0.02
-
-
0.0008 0.004
-
-
-
0.0602
0.7
-
-
0.0275
6.7
0.9
-
7.3
-
0.264
0.287
-
-
c
0.24
6.3
3.3
0.32
6.7
3.7
-
-
-
0.009
0.248
0.130
0.013
0.264
0.145
-
-
-
-
0.035
-
15°
-
D
E
15°
-
-
-
-
-
-
10°
10°
Note: Controlling dimensions are in millimeters. Approximate dimensions are provided in inches
Issue 2 - December 2007
© Zetex Semiconductors plc 2007
5
www.zetex.com
ZDT1048
Definitions
Product change
Zetex Semiconductors reserves the right to alter, without notice, specifications, design, price or conditions of supply of any product or
service. Customers are solely responsible for obtaining the latest relevant information before placing orders.
Applications disclaimer
The circuits in this design/application note are offered as design ideas. It is the responsibility of the user to ensure that the circuit is fit for
the user’s application and meets with the user’s requirements. No representation or warranty is given and no liability whatsoever is
assumed by Zetex with respect to the accuracy or use of such information, or infringement of patents or other intellectual property rights
arising from such use or otherwise. Zetex does not assume any legal responsibility or will not be held legally liable (whether in contract,
tort (including negligence), breach of statutory duty, restriction or otherwise) for any damages, loss of profit, business, contract,
opportunity or consequential loss in the use of these circuit applications, under any circumstances.
Life support
Zetex products are specifically not authorized for use as critical components in life support devices or systems without the express written
approval of the Chief Executive Officer of Zetex Semiconductors plc. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body
or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to
cause the failure of the life support device or to affect its safety or effectiveness.
Reproduction
The product specifications contained in this publication are issued to provide outline information only which (unless agreed by the
company in writing) may not be used, applied or reproduced for any purpose or form part of any order or contract or be regarded as a
representation relating to the products or services concerned.
Terms and Conditions
All products are sold subjects to Zetex’ terms and conditions of sale, and this disclaimer (save in the event of a conflict between the two
when the terms of the contract shall prevail) according to region, supplied at the time of order acknowledgement.
For the latest information on technology, delivery terms and conditions and prices, please contact your nearest Zetex sales office.
Quality of product
Zetex is an ISO 9001 and TS16949 certified semiconductor manufacturer.
To ensure quality of service and products we strongly advise the purchase of parts directly from Zetex Semiconductors or one of our
regionally authorized distributors. For a complete listing of authorized distributors please visit: www.zetex.com/salesnetwork
Zetex Semiconductors does not warrant or accept any liability whatsoever in respect of any parts purchased through unauthorized sales channels.
ESD (Electrostatic discharge)
Semiconductor devices are susceptible to damage by ESD. Suitable precautions should be taken when handling and transporting devices.
The possible damage to devices depends on the circumstances of the handling and transporting, and the nature of the device. The extent
of damage can vary from immediate functional or parametric malfunction to degradation of function or performance in use over time.
Devices suspected of being affected should be replaced.
Green compliance
Zetex Semiconductors is committed to environmental excellence in all aspects of its operations which includes meeting or exceeding reg-
ulatory requirements with respect to the use of hazardous substances. Numerous successful programs have been implemented to reduce
the use of hazardous substances and/or emissions.
All Zetex components are compliant with the RoHS directive, and through this it is supporting its customers in their compliance with
WEEE and ELV directives.
Product status key:
“Preview”
“Active”
Future device intended for production at some point. Samples may be available
Product status recommended for new designs
“Last time buy (LTB)”
Device will be discontinued and last time buy period and delivery is in effect
“Not recommended for new designs” Device is still in production to support existing designs and production
“Obsolete”
Production has been discontinued
Datasheet status key:
“Draft version”
This term denotes a very early datasheet version and contains highly provisional information, which
may change in any manner without notice.
“Provisional version”
“Issue”
This term denotes a pre-release datasheet. It provides a clear indication of anticipated performance.
However, changes to the test conditions and specifications may occur, at any time and without notice.
This term denotes an issued datasheet containing finalized specifications. However, changes to
specifications may occur, at any time and without notice.
Zetex sales offices
Europe
Americas
Asia Pacific
Corporate Headquarters
Zetex GmbH
Kustermann-park
Balanstraße 59
D-81541 München
Germany
Zetex Inc
Zetex (Asia Ltd)
Zetex Semiconductors plc
Zetex Technology Park, Chadderton
Oldham, OL9 9LL
700 Veterans Memorial Highway
Hauppauge, NY 11788
USA
3701-04 Metroplaza Tower 1
Hing Fong Road, Kwai Fong
Hong Kong
United Kingdom
Telefon: (49) 89 45 49 49 0
Fax: (49) 89 45 49 49 49
europe.sales@zetex.com
Telephone: (1) 631 360 2222
Fax: (1) 631 360 8222
usa.sales@zetex.com
Telephone: (852) 26100 611
Fax: (852) 24250 494
asia.sales@zetex.com
Telephone: (44) 161 622 4444
Fax: (44) 161 622 4446
hq@zetex.com
© 2007 Published by Zetex Semiconductors plc
Issue 2 - December 2007
© Zetex Semiconductors plc 2007
6
www.zetex.com
