EZFF851Q906

型号:

EZFF851Q906

品牌:

PANASONIC[ PANASONIC ]

页数:

2 页

PDF大小:

285 K

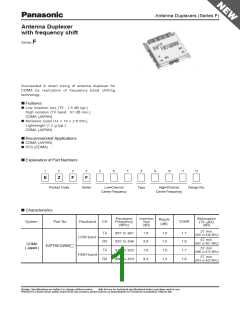

Antenna Duplexers (Series F)
Antenna Duplexer
with frequency shift
Series:F
Succeeded in down sizing of antenna duplexer for
CDMA by realization of frequency band shifting
technology.
Features
Low insertion loss (TX : 1.5 dB typ.)
High isolation (TX band : 57 dB min.):
CDMA (JAPAN)
Miniature sized (14 × 14 × 2.8 mm),
Lightweight (1.2 g typ.):
CDMA (JAPAN)
Recommended Applications
CDMA (JAPAN)
PCS (CDMA)
Explanation of Part Numbers
E
Z
F
F
Characteristics
Passband
Frequency
(MHz)
Insertion
loss
Attenuation
Ripple
(dB)
System
Part No.
Passband
LOW-band
CH
VSWR
(TX RX)
(dB)
(dB)
37 min.
TX
RX
887 to 901
832 to 846
1.8
3.8
1.0
1.5
1.7
1.8
(832 to 846 MHz)
57 min.
(887 to 901 MHz)
CDMA
( Japan )
EZFF851Q9061
37 min.
TX
RX
915 to 925
860 to 870
1.8
3.3
1.0
1.5
1.7
1.8
(860 to 870 MHz)
HIGH-band
57 min.
(915 to 925 MHz)
Antenna Duplexers (Series F)
Typical Characteristics
LOW-band TX
HIGH-band TX
LOW-band RX
HIGH-band RX
Block Diagram
Dimensions in mm (not to scale)
