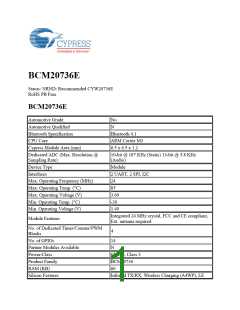

BCM20736E
Status: NRND: Recommended CYW20736E
RoHS PB Free
BCM20736E
Automotive Grade
No
Automotive Qualified
Bluetooth Specification
CPU Core
N
Bluetooth 4.1
ARM Cortex M3
6.5 x 6.5 x 1.2
Cypress Module Area (mm)
Dedicated ADC (Max. Resolution @
Sampling Rate)
10-bit @ 187 KHz (Static) 13-bit @ 5.8 KHz
(Audio)
Device Type
Module
Interfaces
2 UART, 2 SPI, I2C
Max. Operating Frequency (MHz)
Max. Operating Temp. (°C)
Max. Operating Voltage (V)
Min. Operating Temp. (°C)
Min. Operating Voltage (V)
24
85
3.60
-30
1.40
Integrated 24 MHz crystal, FCC and CE compliant,
Ext. antenna required
Module Features
No. of Dedicated Timer/Counter/PWM
Blocks
4
No. of GPIOs
14
Partner Modules Available
Power-Class
N
Class 2, Class 3
Product Family
RAM (KB)
BCM20736
60
Silicon Features
Infrared TX/RX, Wireless Charging (A4WP), LE
