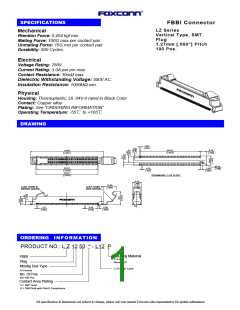

SPECIFICATIONS
FBBI Connector
LZ Series
Vertical Type, SMT
Plug
1.27mm [.050"] Pitch
100 Pos.
Mechanical
Rtention Force: 0.454 kgf min.
Mating Force: 100G max per contact pair.
Unmating Force: 15G min per contact pair.
Durability: 500 Cycles.
Electrical
Voltage Rating: 250V.
Current Rating: 3.0A per pin max.
Contact Resistance: 30mW max.
Dielectric Withstanding Voltage: 500V AC.
Insulation Resistance: 1000MW min.
Physical
Housing: Thermoplastic, UL 94V-0 rated in Black Color
Contact: Copper alloy
Plating: See “ORDERING INFORMATION”
Operating Temperature: -55℃ to +105℃
DRAWING
ORDERING INFORMATION
PRODUCT NO.: L Z 12 50 * - L12 P
Housing Material
FBBI
Plug
P=PA6T
None=LCP
Moutig End Type
2=Vertical
L12= With Latch
No. Of Pos
50=100 Pos
Contact Area Plating
3 = 30 " Gold
H = 30 "Gold with RoHS Compliance
All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
