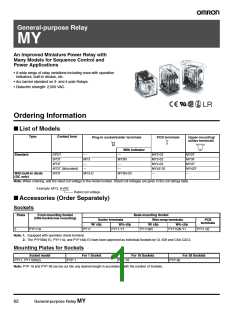

General-purpose Relay
MY
An Improved Miniature Power Relay with
Many Models for Sequence Control and
Power Applications
• A wide range of relay variations including ones with operation
indicators, built-in diodes, etc.
• Arc barrier standard on 3- and 4-pole Relays.
• Dielectric strength: 2,000 VAC.
LR
Ordering Information
■ List of Models
Type
Contact form
PCB terminals
Upper-mounting/
solder terminals
Plug-in socket/solder terminals
With indicator
Standard
DPDT
---
---
MY2-02
MY2F
MY3F
MY4F
MY4ZF
---
3PDT
MY3
---
MY3N
---
MY3-02
MY4-02
MY4Z-02
---
4PDT
4PDT (bifurcated)
3PDT
---
---
With built-in diode
(DC only)
MY3-D
MY3N-D2
Note: When ordering, add the rated coil voltage to the model number. Rated coil voltages are given in the coil ratings table.
Example: MY3, 6 VAC
Rated coil voltage
■ Accessories (Order Separately)
Sockets
Poles
Front-mounting Socket
Back-mounting Socket
Wire-wrap terminals
(DIN-track/screw mounting)
Solder terminals
W/ clip W/o clip
PY11-Y1
PCB
terminals
W/ clip
PY11QN
W/o clip
3
PYF11A
PY11
PY11QN-Y1
PY11-02
Note: 1. Equipped with operation check terminal.
2. The PYF08A(-E), PYF11A, and PYF14A(-E) have been approved as individual Sockets by UL 508 and CSA C22.2.
Mounting Plates for Sockets
Socket model
PY11, PY11QN(2)
For 1 Socket
For 18 Sockets
For 36 Sockets
PYP-1
PYP-18
PYP-36
Note: PYP-18 and PYP-36 can be cut into any desired length in accordance with the number of Sockets.
62
General-purpose Relay MY
Socket Hold-down Clip Pairing
Relay type
Poles Front-connecting Sockets
(track-/screw-mounted)
Back-connecting Sockets
Solder/wire-wrap terminals PCB terminals
Socket Clip
PY11-02 PYC-P
Socket
PYF11A
Clip
Socket
Clip
PYC-P
Standard, operation indicator, built-in diode 3
PYC-A1
PY11(QN)
Specifications
■ Coil Ratings
Rated voltage
Rated current
Coil
resistance
Coil inductance
(reference value)
Must
operate
voltage
Must
release
voltage
Max.
voltage
Power
consum.
(Approx.)
50 Hz
60 Hz
183 mA
Arm. OFF
Arm. ON
0.08 H
% of rated voltage
AC
6 V
214.1 mA
106.5 mA
53.8 mA
12.2 Ω
46 Ω
180 Ω
0.04 H
0.17 H
0.69 H
3.22 H
14.54 H
19.20 H
54.75 H
83.50 H
0.17 H
0.73 H
3.20 H
10.60 H
45.60 H
80% max. 30% min. 110%
1.0 to 1.2 VA
(60 Hz)
12 V
91 mA
0.33 H
24 V
46 mA
1.30 H
50 V
25.7 mA
22 mA
788 Ω
5.66 H
100/110 V
110/120 V
200/220 V
220/240 V
6 V
11.7/12.9 mA
9.9/10.8 mA
6.2/6.8 mA
4.8/5.3 mA
150 mA
10/11 mA
8.4/9.2 mA
5.3/5.8 mA
4.2/4.6 mA
3,750 Ω
4,430 Ω
12,950 Ω
18,790 Ω
40 Ω
160 Ω
650 Ω
2,600 Ω
11,000 Ω
24.6 H
0.9 to 1.1 VA
(60 Hz)
32.1 H
94.07 H
136.40 H
0.33 H
DC
10% min.
0.9 W
12 V
75 mA
1.37 H
24 V
36.9 mA
5.72 H
48 V
18.5 mA
21.00 H
86.20 H
100/110 V
9.1/10 mA
Note: 1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of +15%/–20% for rated currents and
15% for DC coil resistance.
2. Performance characteristic data are measured at a coil temperatures of 23°C.
3. AC coil resistance and impedance are provided as reference values (at 60 Hz).
4. Power consumption drop was measured for the above data. When driving transistors, check leakage current and connect a bleeder re-
sistor if required.
■ Contact Ratings
Item
Double- or three-pole
Four-pole
Resistive load
(cosφ = 1)
Inductive load
(cosφ=0.4,
Resistive load
(cosφ = 1)
Inductive load
(cosφ=0.4,
L/R=7 ms)
L/R=7 ms)
Rated load
5 A, 220 VAC
5 A, 24 VDC
2 A, 220 VAC
2 A, 24 VDC
3 A, 220 VAC
3 A, 24 VDC
0.8 A, 220 VAC)
1.5 A, 24 VDC
Carry current
5 A
3 A
Max. switching voltage
250 VAC
125 VDC
250 VAC
125 VDC
Max. switching current
Max. switching power
5 A
5 A
3 A
3 A
1,100 VA
120 W
440 VA
48 W
660 VA
72 W
176 VA
36 W
Failure rate (reference value)*
Standard type: 100 mA, 5 VDC
Standard types: 1 mA, 1 VDC
Bifurcated type: 100 µA, 1 VDC
*Note: P level: λ60 = 0.1 x 10-6/operation, reference value
General-purpose Relay MY
63
■ Characteristics
Item
Contact resistance
Operate time
All Relays
50 mΩ max.
20 ms max.
20 ms max.
Release time
Max. operating frequency
Mechanical:
Electrical:
18,000 operations/hr
1,800 operations/hr (under rated load)
Insulation resistance
Dielectric strength
Vibration resistance
1,000 MΩ min. (at 500 VDC)
2,000 VAC, 50/60 Hz for 1 min (1,000 VAC between contacts of same polarity)
Destruction:
Malfunction:
10 to 55 to 10 Hz, 0.5 mm single amplitude (1.0 mm double amplitude)
10 to 55 to 10 Hz, 0.5 mm single amplitude (1.0 mm double amplitude)
1,000 m/s2
Shock resistance
Destruction:
Malfunction:
200 m/s2
Endurance
See following table.
Ambient temperature*
Operating: (standard):
Built-in LED indicator; built-in diode:
–55°C to 70°C (with no icing)
–55°C to 60°C (with no icing)
Ambient humidity
Weight
Operating:
5% to 85%
Approx. 35 g
Note: The values given above are initial values.
Endurance Characteristics
Contact form
Mechanical life
(at 18,000 operations/hr)
Electrical life
(at 1,800 operations/hr under rated load)
Normal
AC: 50,000,000 operations min.
DC: 100,000,000 operations min.
2-,3-pole: 500,000 operations min.
4-pole: 200,000 operations min.
With bifurcated contacts
4-pole: 20,000,000 operations min.
4-pole: 100,000 operations min.
Note: See following tables for real load life expectancies.
■ Endurance Under Real Loads
MY2
Rated voltage
Load type
AC motor
Conditions
Operating frequency
Electrical life
100 VAC
50 W, 100 VAC single-phase with 2.8-A in- ON for 2 s, OFF for 30 s
rush current, 0.4-A carry current
100,000 operations
50 W, 100 VAC single-phase with 1.6-A in- ON for 1 s, OFF for 30 s
rush current, 1-A carry current
300,000 operations
4,000,000 operations
AC solenoid
24 W with 1-A carry current
ON for 1.5 s, OFF for 1.5 s
MY4
Rated voltage
Load type
Conditions
Operating frequency
Electrical life
100 VAC
AC solenoid
50 VA with 2-A inrush current, 0.7-A carry ON for 1 s, OFF for 3 s
current
25,000 operations
DC magnetic
switch
25 W with L/R = 40 ms , 0.2-A carry current
AC magnetic
switch
35 VA with 1.5-A inrush current, 0.35-A
carry current
500,000 operations
24 VDC
DC solenoid
40 W with L/R = 10 ms, 1.6-A carry current ON for 0.5 s, OFF for 1.5 s
5,000,000 operations
6,000,000 operations
30 W with L/R = 10 ms with 0.34-A carry ON for 0.5 s, OFF for 1.5 s
current
64
General-purpose Relay MY
■ Approved Standards
Some MY Relays are available in models meeting various safety
standards. When ordering, you must specify the desired standards.
Refer to Ordering Information for specific models. Note that the rating
recognized by the various standards sometimes vary from the ratings
of the individual Relays.
UL 508 Recognitions (File No. 41515)
No. of poles
Coil ratings
6 to 240 VAC
6 to 125 VDC
Contact ratings
Operations
6 x 103
2, 3
4
5 A, 28 VDC (Resistive)
5 A, 240 VAC (General use)
5 A, 240 VAC (General use)
(Same polarity)
5 A, 28 VDC (Resistive)
(Same polarity)
CSA C22.2 No. 14 Listings (File No. LR31928)
No. of poles
Coil ratings
6 to 240 VAC
6 to 125 VDC
Contact ratings
Operations
6 x 103
2, 3
4
5 A, 28 VDC (Resistive)
5 A, 240 VAC (General use)
5 A, 240 VAC (General use)
(Same polarity)
5 A, 28 VDC (Resistive)
(Same polarity)
SEV Listings (File No. 99.5 50902.01)
LR (No. 563KOB-204524)
No. of
poles
Coil ratings
Contact ratings
No. of
poles
Coil ratings
Contact ratings
2, 3, 4
6 to 240 VAC
6 to 125 VDC
5 A, 240 VAC1
5 A, 28 VDC1
2
4
6 to 240 VAC
6 to 120 VDC
2 A, 200 VAC (General use)
2 A, 30 VDC (General use)
0.8 A, 200 VAC (General use)
1.5 A, 115 VAC (General use)
1.5 A, 30 VDC (General use)
Engineering Data
Maximum Switching Power
MY2-02, MY2F, MY3 Series
MY4(Z)-02, MY4F, MY4ZF
AC resistive load
AC resistive
load
AC inductive load
(cosφ = 0.4)
AC inductive load
(cosφ = 0.4)
DC resistive
load
DC inductive load
(L/R = 7 ms)
DC resis-
tive load
DC inductive
load
(L/R = 7 ms)
Switching voltage (V)
Switching voltage (V)
General-purpose Relay MY
65
Endurance
MY2-02, MY2F, MY3 Series (Resistive Loads)
MY2-02, MY2F, MY3 Series (Inductive Loads)
5,000
5,000
110 VAC inductive
load (cosφ = 0.4)
110 VAC resistive load
220 VAC
resistive load
1,000
1,000
220 VAC
inductive load
500
500
(cosφ = 0.4)
24 VDC inductive load
(L/R = 7 ms)
24 VDC resistive
load
100
100
Switching current (A)
Switching current (A)
MY4-02, MY4F (Resistive Loads)
MY4-02, MY4F (Inductive Loads)
5,000
5,000
110 VAC resistive load
220 VAC resis-
tive load
110 VAC inductive load
1,000
1,000
500
500
30 VDC resistive
load
220 VAC inductive
load
30 VDC inductive
load
100
100
Switching current (A)
Switching current (A)
MY4Z-02, MY4ZF (Resistive Loads)
MY4Z-02, MY4ZF (Inductive Loads)
5,000
5,000
1,000
1,000
110 VAC (cosφ = 0.4)
220 VAC resistive load
500
500
24 VDC
L/R = 7 ms
24 VDC resistive load
100
100
220 VAC (cosφ = 0.4)
Switching current (A)
Switching current (A)
66
General-purpose Relay MY
Dimensions
Note: All units are in millimeters unless otherwise indicated.
Relays with Solder Terminals
MY3, MY3N, MY3-D, MY3N-D2
MY3N
MY3
2.6
DC Type
AC Type
Eleven, 1.2 dia. x 2.2
ellipse holes
0.5
28 max.
6.3
21.5
max.
0.5
36 max.
6.4
MY3-D
MY3N-D2
Note: 1. AC type is equipped with a coil disconnection self-diagnostic function.
2. Do not reverse the polarity of DC Relays.
3. The terminal arrangement and internal connections of the above Relays are as same as these of MY@ Relays.
Relays with PCB Terminals
MY@-02
PC Board Mounting Holes
MY4-02 (4PDT)
3.5
1
DPDT
13.2
3PDT
13.2
4PDT
13.2
3.3 (2.6)
44
4.3
6.3
4.1
12.65
0.5
28 max.
6.35
6.3
Fourteen,
1.3 0.1
holes
Eleven,
1.3 0.1
holes
Eight,
1.3 0.1
holes
21.5
max.
3.75
0.5
36 max.
4
Note: The tolerance is 0.1.
Note: 1. The figures in the parentheses are for MY4-02.
2. The above dimensions also apply to the DPDT and
3PDT Relays.
3. The internal connections of the above Relays are as
same as these of MY@ Relays.
General-purpose Relay MY
67
Upper-mounting Relays
MY@F
Mounting Holes
MY4F
Two, 3.5-dia. holes or M3 holes
2.6
Fourteen, 1.2 dia. x 2.2
ellipse holes
4.35
2
38
29 max.
38
0.5
6.4
44 max.
0.5
36 max.
3.5
22.5 max.
Note: 1. The above dimensions also apply to the DPDT, and
3PDT Relays.
2. The internal connections of the above Relays are as
same as these of MY@ Relays.
Mounting Height with Socket
DIN Track/Surface-mounting Socket
Back-mounting Socket
MY
70
66
MY
39
PYF11A
PY@
Note: The PYF( )A can be track-mounted or screw-mounted.
Sockets
PYF11A
PY11
PY11-02
68
General-purpose Relay MY
Mounting Plates for Backconnecting Sockets
PYP-36
PYP-1
Two, 3.4-dia. holes
72 elliptical holes
t=1.6
PYP-18
72 elliptical holes
Hold-down Clips
Hold-down clips are used to hold Relays to Sockets and prevent them from coming loose due to vibration or shock.
Connection to Socket
PYC-P
Connection to
mounting plate
PYC-A1
PYC-S
■ Safety Standards for Sockets
Item
Standards
UL508
CSA22.2
File No.
E87929
LR31928
PYF11A
Precautions
Refer to page 11 for general precautions.
■ Connections
Do not reverse polarity when connecting DC-operated Relays with
built-in diodes or indicators or high-sensitivity DC-operated Relays.
■ Mounting
• Whenever possible, mount Relays so that it is not subject to vibra-
tion or shock in the same direction as that of contact movement.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
In the interest of product improvement, specifications are subject to change without notice.
Cat. No. J001-E1-12
General-purpose Relay MY
69
厂商 型号 描述 页数 下载

OMRON

 		MY2 通用继电器[ General-purpose Relay ] 20 页

OMRON

 		MY2 AC12 (S) [ RELAY GEN PURPOSE DPDT 5A 12V ] 35 页

OMRON

 		MY2 AC24 (S) [ RELAY GEN PURPOSE DPDT 5A 24V ] 35 页

OMRON

 		MY2 AC6 (S) [ RELAY GENERAL PURPOSE DPDT 5A 6V ] 35 页

OMRON

 		MY2 DC12 (S) [ RELAY GEN PURPOSE DPDT 5A 12V ] 35 页

OMRON

 		MY2 DC24 (S) [ RELAY GEN PURPOSE DPDT 5A 24V ] 35 页

OMRON

 		MY2 DC6 (S) [ RELAY GENERAL PURPOSE DPDT 5A 6V ] 35 页

OMRON

 		MY2-02-AC24 [ RELAY GEN PURPOSE DPDT 5A 24V ] 35 页

OMRON

 		MY2-02-DC12 [ RELAY GEN PURPOSE DPDT 5A 12V ] 35 页

OMRON

 		MY2-02-DC24 [ RELAY GEN PURPOSE DPDT 5A 24V ] 35 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.229858s
