5P4J-ZK

型号:

5P4J-ZK

品牌:

NEC[ NEC ]

页数:

7 页

PDF大小:

1312 K

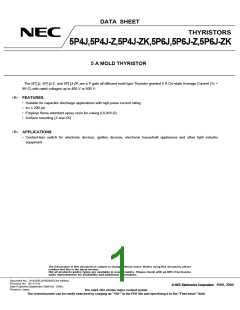

DATA SHEET
THYRISTORS
5P4J,5P4J-Z,5P4J-ZK,5P6J,5P6J-Z,5P6J-ZK
5 A MOLD THYRISTOR
The 5P[ ]J, 5P[ ]J-Z, and 5P[ ]J-ZK are a P gate all diffused mold type Thyristor granted 5 A On-state Average Current (TC =
95°C) with rated voltages up to 400 V or 600 V.
<R>
FEATURES
• Suitable for capacitor discharge applications with high pulse current rating.
• IGT 200 μA
• Employs flame-retardant epoxy resin for casing (UL94V-0).
• Surface mounting (Z and ZK)
<R>
APPLICATIONS
• Contact-less switch for electronic devices, ignition devices, electronic household appliances and other light industry
equipment
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. D18332EJ3V0DS00 (3rd edition)
(Previous No. SC-2113)
Date Published September 2006 NS CP(K)
Printed in Japan
1988, 2006
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
5P4J,5P4J-Z,5P4J-ZK,5P6J,5P6J-Z,5P6J-ZK
MAXIMUM RATINGS
<R>
CHARACTERISTICS
SYMBOL
UNIT
REMARK
5P4J, 5P4J-Z, 5P4J-ZK
5P6J, 5P6J-Z, 5P6J-ZK
Non-repetitive Peak Reverse Voltage
Non-repetitive Peak Off-state Voltage
Repetitive Peak Reverse Voltage
Repetitive Peak Off-state Voltage
Average On-state Current
VRSM
VDSM
VRRM
VDRM
IT(AV)
IT(RMS)
ITSM
500
500
400
400
700
700
600
600
V
V
RGK = 1 kΩ
RGK = 1 kΩ
RGK = 1 kΩ
RGK = 1 kΩ
See Fig. 11
V
V
5 (TC = 95°C, θ = 180°, Single phase half wave)
A
Effective On-state Current
Surge On-state Current
8
A
65 (f = 50 Hz, sine half wave, 1 cycle)
A
See Fig. 2
2
Fusing Current
iT dt
20 (1 ms t 10 ms)
A2s
A/μs
W
W
A
Critical Rate Rise of On-state Current
Peak Gate Power Dissipation
Average Gate Power Dissipation
Peak Gate Forward Current
Peak Gate Reverse Voltage
Junction Temperature
dIT/dt
PGM
PG(AV)
IFGM
VRGM
Tj
50
2 (f 50 Hz, Duty 10%)
See Fig. 3
0.2
1 (f 50 Hz, Duty 10%)
6
V
40 to +125
55 to +150
°C
°C
Storage Temperature
Tstg
<R>
ELECTRICAL CHARACTERISTICS (Tj = 25°C, RGK = 1 kΩ)
CHARACTERISTICS
SYMBOL
TEST CONDITIONS
Tj = 25°C
MIN.
TYP.
MAX.
100
2
UNIT
μA
mA
μA
mA
V/μs
V
Repetitive Peak Reverse Current
IRRM
VRM = VRRM
VDM = VDRM
Tj = 125°C
Tj = 25°C
Tj = 125°C
Repetitive Peak Off-state Current
IDRM
100
2
Critical Rate Rise of Off-state Voltage
On-state Voltage
dVD/dt
VTM
IGT
VDM = 2/3 VDRM, Tj = 125°C
ITM = 10 A
3
1.6
200
0.8
Gate-trigger Current
VDM = 6 V, RL = 100 Ω
VDM = 6 V, RL = 100 Ω
VDM = 1/2 VDRM, Tj = 125°C
VDM = 24 V, ITM = 10 A
ITM = 3 A, VR 25 V
μA
V
Gate-trigger Voltage
VGT
VGD
IH
Gate Non-trigger Voltage
Holding Current
0.2
V
1
mA
μs
Circuit Commuted Turn-off Time
tq
80
VDM = 2/3 VDRM, dIR/dt = 15 A/μs
dVD/dt = 3 V/μs, Tj = 125°C
Junction to case DC
Thermal Resistance
Rth(j-c)
Rth(j-a)
3
°C/W
Junction to ambient DC Note
62.5
Note Mount on 0.7 x 7.5 cm2 ceramic substrate
2
Data Sheet D18333EJ2V0DS
5P4J,5P4J-Z,5P4J-ZK,5P6J,5P6J-Z,5P6J-ZK
<R>
3
Data Sheet D18333EJ2V0DS
5P4J,5P4J-Z,5P4J-ZK,5P6J,5P6J-Z,5P6J-ZK
4
Data Sheet D18333EJ2V0DS
5P4J,5P4J-Z,5P4J-ZK,5P6J,5P6J-Z,5P6J-ZK
<R>
5
Data Sheet D18333EJ2V0DS
5P4J,5P4J-Z,5P4J-ZK,5P6J,5P6J-Z,5P6J-ZK
<R>
PACKAGE DRAWING (Unit: mm)
5P[ ]J
5P[ ]J-Z
6.5 ±0.2
2.3 ±0.2
6.5 ±0.2
5.0 ±0.2
4
5.0 ±0.2
4.4 ±0.2
2.3 ±0.2
0.5 ±0.1
0.5 ±0.1
Note
Note
4
1
2
3
1
2 3
1.1 ±0.2
0.5 ±0.1
2.3 ±0.3
0.5 ±0.1
2.3 ±0.3
0.15 ±0.15
0.5 +00..12
0.5 +00..21
2.3 2.3
Note The depth of notch at the top of the fin is
Pin Connection
1. Cathode
2. Anode
from 0 to 0.2 mm.
3. Gate
4. Fin (Anode)
Standard weight: 0.3 g
5P[ ]J-ZK
6.5 ±0.2
2.3 ±0.1
5.1 TYP.
4.3 MIN.
0.5 ±0.1
No Plating
4
1
2
3
0.9 MAX.
0.76 ±0.12
No Plating
0 to 0.25
0.5 ±0.1
1.14 MAX.
2.3 2.3
1.0
Pin Connection
1. Cathode
2. Anode
3. Gate
4. Fin (Anode)
6
Data Sheet D18333EJ2V0DS
5P4J,5P4J-Z,5P4J-ZK,5P6J,5P6J-Z,5P6J-ZK
The information in this document is current as of September 2006. The information is subject to
change without notice. For actual design-in, refer to the latest publications of NEC Electronics data
sheets or data books, etc., for the most up-to-date specifications of NEC Electronics products. Not
all products and/or types are available in every country. Please check with an NEC Electronics sales
representative for availability and additional information.
No part of this document may be copied or reproduced in any form or by any means without the prior
written consent of NEC Electronics. NEC Electronics assumes no responsibility for any errors that may
appear in this document.
NEC Electronics does not assume any liability for infringement of patents, copyrights or other intellectual
property rights of third parties by or arising from the use of NEC Electronics products listed in this document
or any other liability arising from the use of such products. No license, express, implied or otherwise, is
granted under any patents, copyrights or other intellectual property rights of NEC Electronics or others.
Descriptions of circuits, software and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these
circuits, software and information in the design of a customer's equipment shall be done under the full
responsibility of the customer. NEC Electronics assumes no responsibility for any losses incurred by
customers or third parties arising from the use of these circuits, software and information.
While NEC Electronics endeavors to enhance the quality, reliability and safety of NEC Electronics products,
customers agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To
minimize risks of damage to property or injury (including death) to persons arising from defects in NEC
Electronics products, customers must incorporate sufficient safety measures in their design, such as
redundancy, fire-containment and anti-failure features.
NEC Electronics products are classified into the following three quality grades: "Standard", "Special" and
"Specific".
The "Specific" quality grade applies only to NEC Electronics products developed based on a customer-
designated "quality assurance program" for a specific application. The recommended applications of an NEC
Electronics product depend on its quality grade, as indicated below. Customers must check the quality grade of
each NEC Electronics product before using it in a particular application.
"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio
and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots.
"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support).
"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems and medical equipment for life support, etc.
The quality grade of NEC Electronics products is "Standard" unless otherwise expressly specified in NEC
Electronics data sheets or data books, etc. If customers wish to use NEC Electronics products in applications
not intended by NEC Electronics, they must contact an NEC Electronics sales representative in advance to
determine NEC Electronics' willingness to support a given application.
(Note)
(1) "NEC Electronics" as used in this statement means NEC Electronics Corporation and also includes its
majority-owned subsidiaries.
(2) "NEC Electronics products" means any product developed or manufactured by or for NEC Electronics (as
defined above).
M8E 02. 11-1
