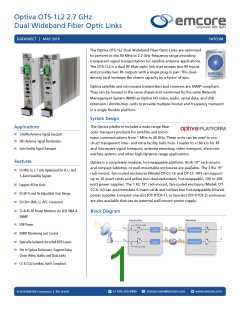

Optiva OTS-1L2 2.7 GHz
Dual Wideband Fiber Optic Links
DATASHEET | MAY 2016
SATCOM
The Optiva OTS-1L2 Dual Wideband Fiber Optic Links are optimized
to perform in the 50 MHz to 2.7 GHz frequency range providing
transparent signal transportation for satellite antenna applications.
The OTS-1L2 is a dual RF fiber optic link that accepts two RF inputs
and provides two RF outputs with a single plug-in pair. This dual-
density card increases the chassis capacity by a factor of two.
Optiva satellite and microwave transmitters and receivers are SNMP compliant.
They can be housed in the same chassis and monitored by the same Network
Management System (NMS) as Optiva HD video, audio, serial data, and USB
extension / distribution cards to provide multiple format and frequency transport
in a single flexible platform.
System Design
The Optiva platform includes a wide range fiber
Applications
optic transport products for satellite and micro-
Satellite Antenna Signal Transport
DBS Antenna Signal Distribution
Inter-Facility Signal Transport
wave communications from 1 MHz to 40 GHz. These units can be used to con-
struct transparent inter- and intra-facility links from 1 meter to >100 km for RF
and microwave signal transport, antenna remoting, video transport, electronic
warfare systems and other high-dynamic-range applications.
Features
Optiva is a completely modular, hot-swappable platform. Both 19” rack-mount
and compact tabletop, or wall-mountable enclosures are available. The 3 RU 19”
rack-mount, fan-cooled enclosures (Model OT-CC-16 and OT-CC-16F) can support
up to 16 insert cards and utilize two dual-redundant, hot-swappable, 100 or 200
watt power supplies. The 1 RU 19” rack-mount, fan-cooled enclosure (Model: OT-
CC-6-1U) can accommodate 6 insert cards and utilizes two hot-swappable 60 watt
power supplies. Compact one-slot (OT-DTCR-1), or two-slot (OT-DTCR-2) enclosures
are also available that use an external wall-mount power supply.
50 MHz to 2.7 GHz Optimized for IF, L- and
S-Band Satellite Signals
Support 40 km Links
30 dB Tx and Rx Adjustable Gain Range
50 Ohm SMA, LC-APC Connectors
Tx & Rx RF Power Monitors via LED, SMA &
SNMP
Block Diagram
LNB Power
SNMP Monitoring and Control
Optically-Isolated Uncooled DFB Lasers
Fits in Optiva Enclosures, Support Daisy
Chain Video, Audio, and Data Links
CE & CSA Certified, RoHS Compliant
