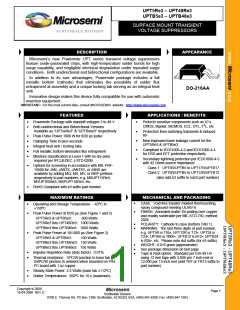

UPT5Re3 – UPT48Re3
UPTB5e3 – UPTB48e3
SURFACE MOUNT TRANSIENT
VOLTAGE SUPPRESSORS
S C O T T S D A L E D I V I S I O N
DESCRIPTION
APPEARANCE
Microsemi’s new Powermite UPT series transient voltage suppressors
feature oxide-passivated chips, with high-temperature solder bonds for high
surge capability, and negligible electrical degradation under repeated surge
conditions. Both unidirectional and bidirectional configurations are available.
In addition to its size advantages, Powermite package includes a full
metallic bottom (cathode) that eliminates the possibility of solder flux
entrapment at assembly and a unique locking tab serving as an integral heat
sink.
DO-216AA
Innovative design makes this device fully compatible for use with automatic
insertion equipment.
IMPORTANT: For the most current data, consult MICROSEMI’s website: http://www.microsemi.com
FEATURES
APPLICATIONS / BENEFITS
•
•
Powermite Package with standoff voltages 5 to 48 V
•
•
•
•
•
Protects sensitive components such as IC’s,
CMOS, Bipolar, BiCMOS, ECL, DTL, T2L, etc.
Both unidirectional and Bidirectional Versions
Available as “UPTxxRe3” & “UPTBxxe3” respectively
Protection from switching transients & induced
RF
•
•
•
•
•
Peak Pulse Power 1000 W for 8/20 µs pulse
Clamping Time in pico-seconds
New improved lower leakage current for the
UPT5Re3 & UPTB5e3
Integral heat sink / locking tabs
Compliant to IEC61000-4-2 and IEC61000-4-4
for ESD and EFT protection respectively
Full metallic bottom eliminates flux entrapment
Moisture classification is Level 1 with no dry pack
required per IPC/JEDEC J-STD-020B
Secondary lightning protection per IEC61000-4-5
with 42 Ohms source impedance:
•
Options for screening in accordance with MIL-PRF-
19500 for JAN, JANTX, JANTXV, or JANS are
available by adding MQ, MX, MV, or MSP prefixes
respectively to part numbers, e.g. MXUPT15Re3,
MVUPTB28e3, MSPUPT10Re3, etc.
Class 1: UPT5R/UPTB5 to UPT17R/UPTB17
Class 2: UPT5R/UPTB5 to UPT12R/UPTB12
(also add e3 suffix to each part number)
•
RoHS Compliant with e3 suffix part number
MAXIMUM RATINGS
MECHANICAL AND PACKAGING
•
•
CASE: Void-free transfer molded thermosetting
epoxy compound meeting UL94V-0
FINISH: Annealed matte-Tin plating over copper
and readily solderable per MIL-STD-750, method
2026
POLARITY: Cathode to case (bottom TAB 1)
MARKING: The last three digits of part number,
e.g. UPT5R is T05▪, UPT12R is T12▪, UPT24 is
T24▪, UPTB5 is TB05▪, UPTB12 is B12▪, UPTB24
is B24▪, etc. Please note dot suffix (for e3 suffix)
WEIGHT: 0.016 gram (approximate)
•
•
Operating and Storage Temperature: –65ºC to
+150ºC
Peak Pulse Power at 8/20 µs (See Figure 1 and 2)
UPT5Re3 & UPTB5e3:
600 Watts
UPT8Re3 thru UPT48Re3: 1000 Watts
UPTB8e3 thru UPTB48e3: 1000 Watts
Peak Pulse Power at 10/1000 µs (See Figure 2).
•
•
•
UPT5Re3 & UPTB5e3:
100 Watts
UPT8Re3 thru UPT48Re3: 150 Watts
UPTB8e3 thru UPTB48e3: 150 Watts
Impulse Repetition Rate (duty factor): 0.01%
•
•
•
See package dimension on last page
•
•
Tape & Reel option: Standard per EIA-481-B
using 12 mm tape with 3,000 per 7 inch reel or
12,000 per 13 inch reel (add TR7 or TR13 suffix to
part number)
Thermal resistance: 15ºC/W junction to base tab or
240ºC/W junction to ambient when mounted on FR4
PC board with 1 oz copper
•
•
Steady-State Power: 2.5 Watts (base tab ≤112ºC)
Solder Temperatures: 260ºC for 10 s (maximum)
