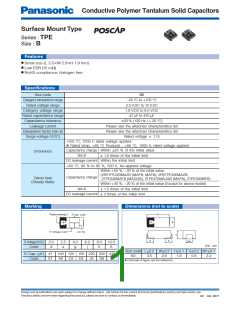

Conductive Polymer Tantalum Solid Capacitors
Surface Mount Type
Series : TPE
Size : B
Features
●
Small size (L 3.5×W 2.8×H 1.9 mm)
Low ESR (15 mΩ)
RoHS compliance, Halogen free
●
●
Specifications
Size code
B2
–55 °C to +105 °C
Category temperature range
Rated voltage range
2.0 V.DC to 10 V.DC
Category voltage range
Rated capacitance range
Capacitance tolerance
Leakage current
1.8 V.DC to 8.0 V.DC
47 μF to 470 μF
20 ꢀ (120 Hz / + 20 °C)
Please see the attached characteristics list
Please see the attached characteristics list
Rated voltage × 1.15
Dissipation factor (tan d)
Surge voltage (V.DC)
+105 °C, 1000 h rated voltage applied
✽ Rated temp, +85 °C Products : +85 °C, 1000 h, rated voltage applied
Capacitance change Within 20 ꢀ of the initial value
Endurance
tan d
< 1.5 times of the initial limit
DC leakage current Within the initial limit
+60 °C, 90 ꢀ to 95 ꢀ, 500 h, No-applied voltage
Within +50 ꢀ, −20 ꢀ of the initial value
(2R5TPE220MAZB (MAPB, MAFB), 2R5TPE330MAZB,
2TPE330MAFB (MADGB), 2TPE470MAJGB (MAFB), 2TPE330MFB)
Within +40 ꢀ, −20 ꢀ of the initial value (Except for above model)
Capacitance change
Damp heat
(Steady State)
tan d
< 1.5 times of the initial limit
< 3 times of the initial limit
DC leakage current
Marking
Dimensions (not to scale)
L
Polarity marking(+)
R.Cap. code
R. Voltage code
Lot. No.
S
S
W1
R. Voltage (V.DC)
2.0
d
2.5
e
4.0
g
6.3
j
8.0
k
10.0
A
Unit : mm
Code
Size code L 0.2 W 0.2 H 0.1 S 0.2 W1 0.1
R. Cap. (ꢁF) 47 100 120 150 220 330 470
Code S7 A8 C8 E8 J8 N8 S8
B2
3.5
2.8
1.9
0.8
2.2
Externals of figure are the reference.
✽
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02 Oct. 2017
