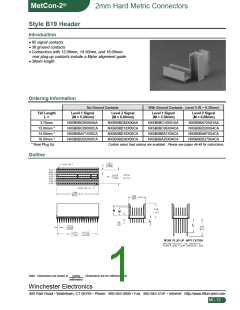

MetCon-2®
2mm Hard Metric Connectors
Style B19 Header
Introduction
• 95 signal contacts
• 38 ground contacts
• Connectors with 13.00mm, 14.50mm, and 16.00mm
rear plug-up contacts include a Mylar alignment guide
• 38mm length
Ordering Information
No Ground Contacts
With Ground Contacts - Level 3 (N = 8.30mm)
Tail Length
L =
Level 1 Signal
(M = 5.30mm)
Level 2 Signal
(M = 6.80mm)
Level 1 Signal
(M = 5.30mm)
Level 2 Signal
(M = 6.80mm)
3.70mm
13.00mm *
NX5B0BC80X00AA
NX5B0BC88X00CA
NX5B0BA71X00CA
NX5B0BD25X00CA
NX5B0BC82X00AA
NX5B0BD12X00CA
NX5B0BD16X00CA
NX5B0BD26X00CA
NX5B0BC10X01AA
NX5B0BC95X04CA
NX5B0BB51X04CA
NX5B0BA25X04CA
NX5B0BA72X01AA
NX5B0BD20X04CA
NX5B0BA87X04CA
NX5B0BD27X04CA
14.50mm *
16.00mm *
Custom select load options are available. Please see pages 46-48 for instructions.
* Rear Plug Up
Outline
Note: Dimensions are shown in
inches
.Dimensions are for reference only.
millimeters
Winchester Electronics
400 Park Road • Watertown, CT 06795 • Phone: 860-945-5000 • Fax: 860-945-5191 • Internet: http://www.litton-wed.com
MC-13
