OZT1060

型号：

OZT1060

品牌：

ETC[ ETC ]

页数：

13 页

PDF大小：

235 K

下载PDF手册
OZT1060

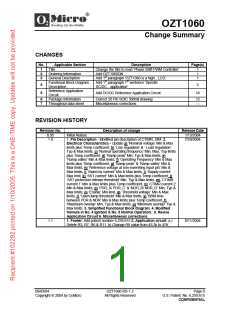

Change Summary
CHANGES
No.
1
Applicable Section
Description
Page(s)
Title
Change the title to read ‘Phase-Shift PWM Controller’
Add OZT1060GN
1
1
1
2
Ordering Information
General Description
Functional Block Diagram
Description
Reference Application
Circuit
Package information
Throughout data sheet
3
Add 1st paragraph ‘OZT1060 is a high…LCD.’
Add 1st paragraph 1st sentence ‘Specific
DC/DC…application’
4
5
5
Add DC/DC Reference Application Circuit
10
6
7
Correct 20 Pin SOIC 300mil drawing
Miscellaneous corrections
12
---
REVISION HISTORY
Revision No.
Description of change
Release Date
1/13/2004
0.95
1.0
Initial Relase
1. Pin Description - Modified pin description of CTIMR, DIM. 2.
Electrical Characteristics - Update a) ‘Nominal voltage’ Min & Max
limits plus Temp coefficient, b) ‘Line regulation’ & ‘ Load regulation’
Typ & Max limits, c) ‘Normal operating frequency’ Min, Max, Typ limits
plus Temp coefficient, d) ‘Ramp peak’ Min, Typ & Max limits, e)
‘Ramp valley’ Min & Max limits, f) ‘Operating Frequency’ Min & Max
limits plus Temp coefficient, g) ‘Ramp peak’ & ‘Ramp valley’ Min &
Max limits, h) ‘Reference voltage at non-invereting input pin’ Min &
Max limits, i) ‘Stand-by current’ Min & Max limits, j) ‘Supply current’
Max limit, k) ‘SST current’ Min & Max limits plus Temp coefficient, l)
‘SST protection release threshold’ Min, Typ & Max limits, m) ‘CTIMR
current 1’ Min & Max limits plus Temp coefficient, n) ‘CTIMR current 2’
Min & Max limits, o) ‘PDR_A/ PDR_C’ & ‘NDR_B/ NDR_D’ Min, Typ &
Max limits, p) ‘Enable’ Min limit, q) ‘Threshold voltage’ Min & Max
limits, r) ‘Open-lamp threshold’ Min & Max limits, s) ‘BBM time
between PDR & NDR’ Min & Max limits plus Temp coefficient, t)
‘Maximum overlap’ Min, Typ & Max limits, u) ‘Minimum overlap’ Typ &
Max limits. 3. Simplified Functional Block Diagram. 4. Modified
formula in No. 4 Ignition & No. 5 Normal Operation. 5. Revise
Application Circuit 6. Miscellaneous corrections.
7/29/2004
1.1
1. Footer: Add patent number 6,259,615 2. Application circuit: a.)
Delete R3, R7, R6 & R11. b) Change R9 value from 45.3k to 47K
8/11/2004
09/03/04
Copyright 2004 by O2Micro
OZT1060-DS-1.2
All Rights Reserved
Page 0
U.S. Patent No. 6,259,615
CONFIDENTIAL
OZT1060
Phase-Shift PWM Controller
resulting in a lower operating temperature and
higher system reliability.
FEATURES
•
Controller for high-voltage DC/DC and
DC/AC converters
OZT1060 supports a wide input voltage range
and provides a constant, user-defined, operating
frequency, ensuring that the CCFLs operate at a
fixed frequency. This eliminates interference
among CCFLs and the LCD panel. Interference
causes electromagnetic compatibility (EMC)
problems and may create visual effects
(waterfall) on LCD panels. The controller
provides a phase-shift square wave output that is
able to drive a full bridge power train.
•
•
•
•
High efficiency, zero-voltage switching
Supports wide input voltage range
Constant operating frequency
Built-in PWM dimming control with wide
dimming range
•
•
Soft start function
Built-in intelligence for ignition and normal
operation of CCFLs
•
•
Built-in open-lamp protection and over-
voltage protection
OZT1060 utilizes
a pulse width modulation
(PWM) dimming method to achieve a wide
dimming range. The IC performs the CCFL
dimming function with an analog or low frequency
PWM control. The PWM frequency is user-
defined.
Shutdown delay for input voltage brownout
condition
•
•
•
Built-in under-voltage lockout protection
Toggle pin to reset the IC after shutdown
Low stand-by power
To avoid over-shoot and in-rush current to the
CCFLs during ignition, a soft start function is
provided for reliable CCFL operation.
ORDERING INFORMATION
The controller provides open-lamp protection and
over-voltage protection, while providing an
appropriate response for either open-lamp
ignition or removal of a CCFL during normal
operation. Intelligent open-lamp protection and
over voltage protection provides design flexibility
with various transformer characteristics. Open-
lamp protection time is user-defined.
Temp
Part Number
OZT1060S
Package
Range
0° C to 70° C 20-pin SSOP
20-pin SSOP,
OZT1060SN
OZT1060G
OZT1060GN
0° C to 70° C
Leadfree
0° C to 70° C 20-pin SOIC
20-pin SOIC,
0° C to 70° C
Leadfree
In addition, OZT1060 provides a shutdown delay
function that will keep the inverter module in
normal operation for a short period of time if the
input voltage suddenly drops and subsequently
resumes to a normal level. The shutdown delay
time is user-defined.
GENERAL DESCRIPTION
OZT1060 is a high efficiency, Pulse Width
Modulation (PWM) controller designed for both
DC/DC and DC/AC high-voltage applications.
The average current mode control is suitable for
DC/DC converters where both voltage and
current feedback are required, as well as for Cold
Cathode Fluorescent Lamps (CCFL) backlight
applications for small and large Liquid Crystal
Displays (LCD).
OZT1060
provides
under-voltage
lockout
protection and will disable the IC if VDDA falls
below a threshold. OZT1060 will resume normal
operation when VDDA exceeds the threshold.
To reset the IC, toggle the enable (ENA) pin.
OZT1060 operates with a standby current of
approximately 200uA.
OZT1060 operates in a zero-voltage switching
mode
that
minimizes
electromagnetic
interference (EMI). In addition, OZT1060
achieves
a high power-conversion efficiency
09/03/04
Copyright 2004 by O2Micro
OZT1060-DS-1.2
All Rights Reserved
Page 1
U.S. Patent No. 6,259,615
CONFIDENTIAL
OZT1060
PIN DESCRIPTION
Names
Pin No.
Description
Timing capacitor to provide striking time and timing resistor to provide
CTIMR
1
shutdown delay time
OVP
ENA
SST
2
3
Voltage feedback
Enable input
4
Timing capacitor to provide Soft-Start Time
Supply voltage
VDDA
GNDA
REF
5
6
Signal ground
Reference voltage output
7
RT1
FB
8
Timing resistor to provide striking frequency
Current sense feedback
9
CMP
NDR_D
PDR_C
LPWM
DIM
10
11
12
13
14
15
16
17
18
19
20
Voltage control loop compensation
N-MOSFET gate drive output
P-MOSFET gate drive output
Low-frequency PWM signal for dimming control
DC voltage input for LPWM duty cycle
Timing capacitor to provide LPWM frequency
Power MOSFET driver ground
LCT
PGND
RT
Timing resistor to provide striking and operating frequency
Timing capacitor to provide striking and operating frequency
P-MOSFET gate drive output
CT
PDR_A
NDR_B
N-MOSFET gate drive output
ABSOLUTE MAXIMUM RATINGS(1)
VDDA
GNDA, PGND
Signal inputs
7.0V
+/- 0.3V
-0.3V to (VDDA +0.3)V
Operating Temp.
0oC to 70oC
Operating junction temp.
Storage temp.
125 oC
-55 oC to 150 oC
RECOMMENDED OPERATING RANGE
VDDA
4.6V to 5.5V
40 kHz to 150kHz(2)
20 kΩ to 150 kΩ
100pF to 470pF
fOP- operating frequency
Resistor connected to RT (RRT)
Capacitor connected to CT (CCT
fLF- LPWM frequency
)
100Hz to 500Hz
Thermal Impedance (θJ-A
)
80oC/W
-
20-pin SSOP
20-pin SOIC
105oC/W
-
Note (1): The “Absolute Maximum Ratings” are those values beyond which the safety of the device cannot be
guaranteed. The device should not be operated at these limits. The “Functional Specifications” table will
define the conditions for actual device operation. Exposure to absolute maximum rated conditions for
extended periods may affect device reliability.
Note (2): The frequency of PDR_A, NDR_B, PDR_C, and NDR_D outputs pulses, fOP, is half of fosc value,
fOP =(fosc/2).
CONFIDENTIAL
OZT1060-DS-1.2
Page 2
OZT1060
ELECTRICAL CHARACTERISTICS
Parameter
Symbol
Test Conditions
VDDA=5V; Tamb=25oC;
Limits
Typ
Unit
Min
Max
Reference Voltage
Nominal voltage
Vref
3.18
-
3.35
125
3.52
-
V
Iload = 30µA
Temp coefficient
ppm/oC
(Tamb=25oC)
Line regulation
KL
KV
VDDA=4.6V to 5.5V
-
-
2
2
-
-
mV/V
mV
Load regulation
Iload = 5 µA to 80 µA
Operating Frequency
Normal Operating Frequency
CCT =220pF(1)
RT =47kΩ(1)
;
fop
61.5
-
63.0
125
65.5
-
kHz
R
Temp coefficient
ppm/oC
(Tamb=25oC)
Ramp peak
CT Vpeak
CT Vvalley
2.35
1.00
2.50
1.05
2.65
1.12
V
V
Ramp valley
Low Frequency Oscillator
Operating frequency
CLCT=6.8nF(2); VDIM=1.2V
209
-
220
470
225
-
Hz
fLF
Temp coefficient
ppm/oC
(Tamb=25oC)
Ramp peak
LCT Vpeak
LCT Vvalley
LPWM
1.96
0.27
0
2.06
0.31
-
2.18
0.33
100
V
V
Ramp valley
Duty Cycle Range
Error Amplifier
%
Reference voltage at non-
inverting input pin (internal)
VSST=0V
VSST=2V
VSST=4V
0.49
0.79
1.18
0.50
0.80
1.24
0.55
0.81
1.30
V
V
V
VADJ
Under-Voltage Lockout
Positive-Going Threshold Voltage
Negative-Going Threshold Voltage
Supply
4.3
-
-
-
-
V
V
3.2
Stand-by Current
IOFF
ION
ENA=low
-
-
200
3.0
300
4.2
µA
Supply Current
DIM=1.2V; LPWM=50kΩ
Ca=Cb=Cc=Cd=0.5nF(3)
mA
C
CT =220pF(1),
R
RT =47kΩ(1) ;CLCT=6.8nF(2)
Soft Start
µA
SST current
4.5
-
5.5
6.2
-
Temp coefficient
(Tamb=25oC)
420
ppm/oC
SST Protection Release Threshold
VDDA VDDA VDDA
V
-1.25
-1.0
-0.93
CTIMR
CTIMR current 1
2.0
-
2.5
2.9
-
µA
Temp coefficient
(Tamb=25oC)
395
ppm/oC
CTIMR current 2
20
30
40
µA
Protection release threshold
2.9
3.1
3.3
V
CONFIDENTIAL
OZT1060-DS-1.2
Page 3
OZT1060
ELECTRICAL CHARACTERISTICS (CONTINUED)
Parameter
Symbol
Test Conditions
Limits
Typ
Unit
VDDA=5V; Tamb=25oC;
Min
Max
Output Driver Rds(on)
PDR_A / PDR_C
Sourcing=75mA
Sinking=75mA
12
13
25
25
35
36
Ω
Ω
NDR_B / NDR_D
Enable Thresholds
Enable
2.3
-
-
-
-
V
V
Disable
1.0
Over-Voltage Protection
Threshold Voltage
Open-Lamp Protection Threshold
Open-Lamp Threshold
OVP
1.95
2.54
2.00
2.70
2.20
2.82
V
V
CMP> open-lamp threshold
causes shutdown
Break-Before-Make (BBM)
BBM Time Between PDR and NDR
150
-
200
495
220
-
ns
Temp coefficient
(Tamb=25oC)
ppm/ oC
Maximum / Minimum Duty Cycle
Maximum Overlap
Vsst = 3.75V ;
Vcmp = 3.24V
Vsst = 0.8V ;
Vcmp = 3.5V
91
-
95
-
%
%
Minimum Overlap
2.5
3.9
Note (1)
CCT: capacitor from ”CT” (Pin 18) to ground
RRT: resistor from “RT” (Pin 17) to ground
Note (2)
CLCT: capacitor from “LCT” (Pin 15) to ground
Note (3)
Ca: capacitor from PDR_A (Pin 19) to VDDA
Cb: capacitor from NDR_B (Pin 20) to ground
Cc: capacitor from PDR_C (Pin 12) to VDDA
Cd: capacitor from NDR_D (Pin 11) to ground
CONFIDENTIAL
OZT1060-DS-1.2
Page 4
OZT1060
FUNCTIONAL BLOCK
DIAGRAM DESCRIPTION
The Protection Block intelligently monitors and
differentiates the striking condition and open-
lamp condition. The open-lamp protection
function disables the drive circuit if a fault
condition is encountered.
Specific DC/DC applications can be shown with a
Reference Application Circuit in Figure 3, page
10. The following discussions will address the
OZT1060 driving a DC/AC CCFL application.
Refer to the Functional Block Diagram in Figure
1, page 6 and the Reference Application Circuit
in Figure 2 , page 9. The drive circuit consists
of four outputs, PDR_A, NDR_B, PDR_C and
NDR_D, (pins 19, 20, 12 and 11) respectively.
The drive circuit is designed to achieve high
efficiency, zero-voltage switching operation. The
four power MOSFET gate output drives, PDR_A,
NDR_B, PDR_C and NDR_D are designed such
that switches QA/QB and QC/QD never turn-on
simultaneously. The configuration prevents any
shoot-through issues associated with bridge-type
power conversion applications. CCFL current
regulation is achieved by adjusting the overlap
conduction between diagonal switches QA/QD
and QB/QC. The overlap is adjusted when the
power source voltage varies.
A current source of 30uA coupled with an
external capacitor and external resistor
connected to pin 1 controls the shutdown delay
time. The shutdown delay time will keep the
inverter module in normal operation for a short
period of time if the input voltage suddenly drops
and subsequently increases to a normal level.
The shutdown delay time is user-defined.
The Under-Voltage Lockout block provides a
brown-out period during which the output signals
are disabled while the VDDA voltage drops below
a ~3.4V threshold. OZT1060 resumes normal
operation once VDDA voltage reaches a voltage
threshold of greater than ~4.3V.
The LPWM Generator Block provides a low
frequency PWM (LPWM) function that provides
wide dimming control for the CCFLs. The LPWM
frequency is user-defined by connecting an
external capacitor to LCT (pin 15). An analog
voltage at DIM (pin 14) is compared with the LCT
waveform that yields a LPWM signal to control
the power delivered to the CCFLs.
The Reference Block provides
a precision
reference voltage for both internal and external
uses.
OZT1060 is enabled with a voltage greater than
2V applied to ENA (pin 3). A voltage of less than
1V to ENA pin will disable the controller. Toggling
ENA (pin 3) from High-Low-High will reset the
controller.
Soft-start circuitry provides a gradual increase in
power to the drive circuit to power the CCFLs
during the ignition period. The Soft-Start Time
(SST) is user-defined by an external capacitor
connected to SST (pin 4) coupled with an SST
current source of 5.5uA.
A High Frequency Oscillator Block generates a
user-defined operating frequency determined by
an external capacitor (C5) and timing resistor
(R9) connected to CT (pin 18) and RT (pin 17)
respectively. An external resistor (R10)
connected to RT1 (pin 8) in parallel with RT
determines the striking frequency.
The current control loop monitors CCFL current
that is sensed with a voltage at FB (pin 9). The
voltage at FB (pin 9) is input to an Error Amplifier
and the output, CMP (pin 10), regulates the
CCFL current.
OZT1060 provides an Over-Voltage Protection
(OVP) function to safely operate the CCFLs
under all conditions. The OVP Block regulates
the striking voltage for the CCFL during start-up.
The striking time is user-defined and determined
by an external capacitor connected to CTIMR
(pin 1) coupled with the CTIMR current source of
2.6uA.
CONFIDENTIAL
OZT1060-DS-1.2
Page 5
OZT1060
FUNCTIONAL BLOCK DIAGRAM
1
20
Fault
Protection
Logic
19
18
17
16
2
3
4
ZVS
Phase
Shift
Driver
5
V-REF
I-BIAS
6
15
14
+
-
7
8
Control
Logic
13
12
11
9
-
+
10
Figure 1
CONFIDENTIAL
OZT1060-DS-1.2
Page 6
OZT1060
FUNCTIONAL INFORMATION
the voltage at ENA (pin 3) is greater than 2V. The
soft-start time is determined by an external
capacitor (C9) connected to the SST (pin 4). At
start-up, as C9 charges via a charging current,
the voltage level at the capacitor controls the
gradual increase in power delivered to the
transformer T1.
1. Steady-State Operation
Referring to the example schematic shown in
Figure 2, page 9, OZT1060 drives a full-bridge
power train where the transformer couples the
energy from the power supply source to the
CCFL. The switches in the bridge denoted as
QA, QB, QC and QD are configured such that the
transistors in each pair, QA/QB and QC/QD, are
turned-on complementarily. The turn-on duration
of the diagonal switches, QA/QD and QB/QC,
simultaneously determines the amount of energy
delivered to the transformer and subsequently to
the CCFL. The current in the CCFL is sensed
and regulated by adjusting the turn-on time
(overlap) for both diagonal switches. This is
accomplished through an error amplifier in the
current feedback loop.
4. Ignition
The OZT1060 provides an option of selecting a
different frequency for striking the CCFLs. The
striking time is user-defined and determined by
an external capacitor CCTIMR (C6) and external
resistor RCTIMR (R5) connected to CTIMR (pin 1).
The approximate striking time is determined by
the following equation.
CCTIMR[µF] x (3-(RCTIMR[kΩ] x 0.0026))
A voltage loop is used to regulate the output
voltage for CCFL ignition and is programmable
by using a capacitor divider (C8/C13).
T[second] =
2.6
The approximate striking frequency is determined
by the following equation.
Over Voltage Protection (OVP) limits the
transformer voltage under an open-lamp
condition. A soft-start circuit ensures a gradual
increase in power to the CCFL. The soft-start
capacitor (C9) determines the rate of rise of the
voltage on the SST pin. Meanwhile, the voltage
level determines the turn-on time of the diagonal
switches QA/QD and QB/QC.
65•104
fstriking[kHz] =
C
CT[pF]•(RRT // RRT1) [kΩ]
Note: RRT // RRT1 means RRT is in parallel with RRT.1.
5. Normal Operation
The output drives for the power MOSFET gates
include PDR_A, NDR_B, PDR_C and NDR_D
that output a complementary square pulse. The
operation of the four switches is implemented
with zero-voltage switching that provides a high-
efficiency power conversion.
Once the IC is enabled, the voltage at SST (pin
4) controls the rate of power delivered to the
load. SST voltage increases to a level such that
the CCFLs are ignited. The striking frequency is
determined by external components R10, R9 and
C5 connected to RT1 (pin 8), RT (pin 17) and CT
(pin 18) respectively.
2. Enable
Once the external resistor R16 senses sufficient
current, the control loop takes control and
regulates the CCFL current. The normal
operating frequency is determined by the
combination of external resistor R9 and external
capacitor C5. The operating frequency is
approximated by the following equation.
OZT1060 is enabled when the voltage on ENA
(pin 3) is greater than 2V. A voltage of less than
1V disables the IC. When the inverter controller is
disabled, it draws approximately 200uA. An
under-voltage lockout protection feature is
provided that will disable the IC if VDDA voltage
drops below an ~3.4V threshold. The IC will
resume normal operation once VDDA reaches a
threshold voltage of greater than ~4.3V.
65•104
fop[kHz] =
CCT[pF]•RRT[kΩ]
3. Soft-Start
To avoid component stresses and in-rush current
to the CCFLs during ignition, a soft start function
is implemented to provide reliable CCFL
operation. The soft-start function is initiated when
CONFIDENTIAL
OZT1060-DS-1.2
Page 7
OZT1060
7. Over-Voltage Protection &
6. Open Lamp Protection
Striking Time
If the controller encounters an open lamp,
damaged lamp or lamp removal during normal
operation, the control loop generates a protection
signal and will immediately shutdown the
controller.
During start-up, once the voltage at the
transformer secondary reaches a programmed
threshold, the control loop takes over and
regulates the voltage at the transformer
secondary. SST voltage at pin 4 is held constant
and CTIMR is activated to provide additional time
to ignite an aged CCFL. If no current is sensed
after approximately 1 to 2 seconds, the controller
shuts down. Toggling the ENA pin will reset the
controller.
OZT1060 provides a shutdown delay feature that
keeps the inverter module in normal operation if
the input voltage suddenly drops and
subsequently recovers. The shutdown delay time
is user-defined by external resistor RCTIMR (R5)
and external capacitor CCTIMR (C6) connected to
CTIMR (pin 1).
8. PWM Dimming Control
The shutdown delay time is approximated by the
following equation:
OZT1060 provides
a
low frequency PWM
(LPWM) dimming function to perform a wide
dimming range of 0% to 100%. The LPWM
frequency is determined by external capacitor
C10 connected to LCT (pin 15). The frequency is
approximated by the following equation.
CCTIMR[µF] x (3 – (RCTIMR [kΩ] * 0.03))
T[second] =
30
Note: RCTIMR (R5) value equal or greater than
1496
110kΩ will result in zero delay time.
f LF[Hz] =
CLCT[nF]
Toggling ENA (pin 3) from High-Low-High resets
the controller.
The LPWM frequency is user-defined by the
selection of external capacitor C10. An analog
voltage at DIM (pin 14) is compared with the LCT
waveform that yields a LPWM signal to control
the power delivered to the CCFLs. The typical
peak and valley of the LCT waveform is ~2.06V
and ~0.31V respectively.
CONFIDENTIAL
OZT1060-DS-1.2
Page 8
Rented on 1/10/2005. This is a ONE-TIME copy. Updates will not be provided.
OZT1060
REFERENCE APPLICATION CIRCUIT
VIN: 8.0V - 22V
VADJ: 2.1V Max. Brightness; 0.6V Min. Brightness
Striking frequency: 75.1KHz
Figure 2
Operating frequency: 63KHz
5VDC: 4.75V – 5.25V
CONFIDENTIAL
OZT1060-DS-1.2
Page 9
Rented on 1/10/2005. This is a ONE-TIME copy. Updates will not be provided.
OZT1060
DC/DC REFERENCE APPLICATION CIRCUIT
Figure 3
CONFIDENTIAL
OZT1060-DS-1.2
Page 10
OZT1060
PACKAGE INFORMATION – 20-PIN SOIC 300mil: OZT1060G
b
11
20
D etail X
H
E
1
10
e
c
D
Y
S E AT IN G P LA N E
N O TE S :
1. R E FE R T O JE D E C S TD . M S -013 AC .
2. D IM E N S IO N S "D " D O E S N O T IN C LU D E M O LD FLAS H , P R O TR U S IO N S O R G ATE B U R R S . M O LD
FL AS H , P R O TR U S IO N S AN D G ATE B U R R S S H ALL N O T E X C E E D 0.15m m (6m il) P E R S ID E .
3. D IM E N S IO N S "E " D O S E N O T IN C LU D E IN TE R LE AD F LAS H O R P R O TU R S IO N S . IN TE R -LE AD
FL AS H AN D P R O TR U S IO N S S H ALL N O T E X C E E D 0.25m m (10m il) P E R S ID E .
4. C O N TR O LLIN G D IM E N S IO N : M IL LIM E TE R
h x 45O
MILLIMETERS
MIL
NOM
100
8
SYMBOL
MIN
NOM
2.54
MAX
MIN
93
4
MAX
104
12
A
A1
b
2.36
0.10
0.35
0.23
12.60
7.40
2.64
0.30
0.48
0.31
13.00
7.60
0.20
0.406
0.254
12.80
7.50
14
9
16
19
c
10
12
512
299
D
E
e
496
291
504
295
50 BSC
406
26
1.27 BSC
10.31
0.66
H
h
10.00
0.25
0.51
-
10.65
0.75
1.02
0.075
8°
394
10
20
-
419
30
40
3
θ
L
0.76
30
L
DETAIL "X"
Y
θ
-
-
-
-
0°
0°
8°
CONFIDENTIAL
OZT1060-DS-1.2
Page
11
OZT1060
IMPORTANT NOTICE
No portion of O2Micro specifications/datasheets or any of its subparts may be reproduced in any form, or by
any means, without prior written permission from O2Micro.
O2Micro and its subsidiaries reserve the right to make changes to their datasheets and/or products or to
discontinue any product or service without notice, and advise customers to obtain the latest version of
relevant information to verify, before placing orders, that information being relied on is current and complete.
All products are sold subject to the terms and conditions of sale supplied at the time of order
acknowledgment, including those pertaining to warranty, patent infringement, and limitation of liability.
O2Micro warrants performance of its products to the specifications applicable at the time of sale in
accordance with O2Micro’s standard warranty. Testing and other quality control techniques are utilized to the
extent O2Micro deems necessary to support this warranty. Specific testing of all parameters of each device
is not necessarily performed, except those mandated by government requirements.
Customer acknowledges that O2Micro products are not designed, manufactured or intended for
incorporation into any systems or products intended for use in connection with life support or other
hazardous activities or environments in which the failure of the O2Micro products could lead to death, bodily
injury, or property or environmental damage (“High Risk Activities”). O2Micro hereby disclaims all warranties,
and O2Micro will have no liability to Customer or any third party, relating to the use of O2Micro products in
connection with any High Risk Activities.
Any support, assistance, recommendation or information (collectively, “Support”) that O2Micro may provide
to you (including, without limitation, regarding the design, development or debugging of your circuit board or
other application) is provided “AS IS.” O2Micro does not make, and hereby disclaims, any warranties
regarding any such Support, including, without limitation, any warranties of merchantability or fitness for a
particular purpose, and any warranty that such Support will be accurate or error free or that your circuit
board or other application will be operational or functional. O2Micro will have no liability to you under any
legal theory in connection with your use of or reliance on such Support.
COPYRIGHT © 2004, O2Micro International Limited
CONFIDENTIAL
OZT1060-DS-1.2
Page 13
12
厂商 型号 描述 页数 下载

MACOM

 		OZT-S-105D 16A微型电源印刷电路板继电器[ 16A Miniature Power PC Board Relay ] 2 页

MACOM

 		OZT-S-105D000 16A微型电源印刷电路板继电器[ 16A Miniature Power PC Board Relay ] 2 页

MACOM

 		OZT-S-105D1 16A微型电源印刷电路板继电器[ 16A Miniature Power PC Board Relay ] 2 页

MACOM

 		OZT-S-105D1000 16A微型电源印刷电路板继电器[ 16A Miniature Power PC Board Relay ] 2 页

MACOM

 		OZT-S-105D1200 16A微型电源印刷电路板继电器[ 16A Miniature Power PC Board Relay ] 2 页

MACOM

 		OZT-S-105D1294 16A微型电源印刷电路板继电器[ 16A Miniature Power PC Board Relay ] 2 页

MACOM

 		OZT-S-105D1300 16A微型电源印刷电路板继电器[ 16A Miniature Power PC Board Relay ] 2 页

MACOM

 		OZT-S-105D200 16A微型电源印刷电路板继电器[ 16A Miniature Power PC Board Relay ] 2 页

MACOM

 		OZT-S-105D294 16A微型电源印刷电路板继电器[ 16A Miniature Power PC Board Relay ] 2 页

MACOM

 		OZT-S-105D300 16A微型电源印刷电路板继电器[ 16A Miniature Power PC Board Relay ] 2 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.172022s
