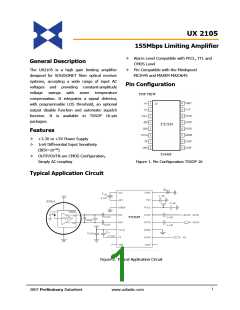

UX 2105
155Mbps Limiting Amplifier
—
—
Alarm Level Compatible with PECL, TTL and
CMOS Level
General Description
The UX2105 is a high gain limiting amplifier
designed for SDH/SONET fiber optical receiver
systems, accepting a wide range of input AC
voltages and providing constant-amplitude
voltage swings with some temperature
compensation. It integrates a signal detector,
with programmable LOS threshold, an optional
output disable function and automatic squelch
function. It is available in TSSOP 16-pin
packages.
Pin Compatible with the Mindspeed
MC2045 and MAXIM MAX3645
Pin Configuration
Features
—
—
+3.3V or +5V Power Supply
1mV Differential Input Sensitivity
(BER=10-10)
—
OUTP/OUTN are CMOS Configuration,
Simply AC-coupling
Figure 1. Pin Configuration TSSOP 16
Typical Application Circuit
Figure 2. Typical Application Circuit
1
2007 Preliminary Datasheet
www.uxfastic.com
UX 2105
155Mbps Limiting Amplifier
Pin Description
Pin No. Name
Function
Auto-zero capacitor pin. A capacitor connected between this pin and AZ2 sets the
time constant of the offset correction loop. The offset correction is disabled when
the AZ1 and AZ2 pins are shorted together.
1
AZ1
See AZ1.
2
3
4
5
6
7
AZ2
GNDA
INP
Analog Supply Ground. Must be at same potential as GNDE pin.
Positive data input
Negative data input
INN
Analog Supply Voltage. Must be at the same potential as the VCCE pin.
VCCA
CF
Level-detect filter capacitor pin. Connect a capacitor between this pin and VCCA.
The squelch function is disabled when JAM is connected to ground. The automatic
squelch function is enabled when JAM is connected to the LOSP.
8
JAM
Positive Loss-of-Signal output, CMOS level, compatible with PECL and TTL. LOSP is
low when the level of the input signal is above the preset threshold set by the VSET
input. LOSP is high when the signal level drops below the threshold. Normally
connected to JAM pin to enable automatic squelch function to operate.
Negative Loss-of-signal output, CMOS level, compatible with PECL and TTL. LOSN is
high when the level of the input signal is above the preset threshold set by the VSET
input. LOSN is low when the signal level drops below the threshold. Indicates Input
signal level status.
9
LOSP
10
LOSN
Digital Supply Ground. Must be the same potential as the GNDA pin.
11
12
13
14
GNDE
OUTN
OUTP
VCCE
Negative data output, the output buffer is CMOS structure.
Positive data output, the output buffer is CMOS structure.
Digital Supply Voltage. Must be at the same potential as the VCCA pin.
5V to 3V conversion output pin.No connection or can connect a capacitor between
this pin and GND.
V3V
15
Loss-of-Signal Threshold Pin. Resistor (RSET) to ground sets the LOS threshold. This
pin can be left open if the LOS detect function is not required and JAM is connected
to ground, otherwise connect VSET to ground.
16
VSET
Absolute Maximum Ratings
Symbol
VCC
Parameter
Rating
6
Units
V
Power supply(Note 1)
Operating ambient
Storage temperature
TA
-40 to +85
-65 to +150
°C
TSTG
°C
2
2007 Preliminary Datasheet
www.uxfastic.com
UX 2105
155Mbps Limiting Amplifier
Recommended Operating Conditions
Symbol
VCC
Parameter
Power supply(Note 1)
Operating ambient
Rating
3.0 to 5.5
-40 to +85
Units
V
TA
°C
Note 1: Related to Ground
DC Characteristics
Symbol
Parameter
Min
Typ
Max
Units
μV
VOS
VTH
Equivalent input Offset Voltage
LOS Sensitivity Range
50
20
4
2
1
mVP-P
dB
HYS
LOS Hysteresis (Note 2)
2
ICC
Power-Supply Current (Note 3)
43.5
mA
Note 2: Optical, 10log (VDEASSERT/VASSERT).
Note 3: LOSN is at CMOS level, no load terminated to the outputs, with I/O current in the output buffer.
AC Characteristics
(VCC=+3.0V to +5.5V, Typical values are at VCC = +5V, TA = +25°C, unless otherwise noted.)
Symbol
Parameter
Min
Typ
242
169
21
Max
Units
BW
Input Bandwidth@upper -3dB point: Gain>70dB
190
MHz
CAZ = open
Low-Frequency Cutoff
CAZ = 0.1μF
FLFC
KHz
mV
Single ended
Input signal voltage
0.5
1
800
1600
880
VIN
Differential
VAMP
RIN
Output Amplitude (Note 4)
Input Resistance
600
mV
KΩ
pF
ps
20
CIN
Input Capacitance
2
TR,TF
TPWD
TLOS
Data Output Transition Time (Note 5)
Pulse-Width Distortion(Note 6)
LOS Assert/Deassert Time
600
100
1000
300
100
ps
μs
Note 4: Single ended; the output buffer is CMOS structure, shown in Figure3.
Note 5: 20% to 80%
Note 6: TPWD= [(width of wider pulse)-(width of narrower pulse)]/2.
3
2007 Preliminary Datasheet
www.uxfastic.com
UX 2105
155Mbps Limiting Amplifier
Applications Information
CMOS Output Buffer
CMOS structure, please refer to Figure3. Current
sources are integrated internal in the output
buffer circuit. Different from PECL output, no 50Ω
to (VCC-2V) termination here. The output
common mode voltage is at half of VCC. The
current flows through the chip partly from the
current sources, so it corresponds to that of other
similar products with ECL load. AC coupling is
required at OUTN and OUTP, and the external
capacitors are employed to insulate the DC level
with external circuits, as shown in Typical
Application Circuit.
Figure 3. Output Buffer Circuit
terminated by a pull up resistor (4.710K), see
Figure4, it compatible with TTL level; When
terminated by 50to (VCC-2V), see Figure5, it
compatible with PECL level. The corresponding
logic states list in table LOS Level Status.
LOS Output Terminations
In UX2105, the LOS interface operates three logic
states with different termination techniques
respectively. When LOSN is connected directly to
external circuits, it operates CMOS level; When
Figure 4. Equivalent TTL Termination Circuit
at LOSN
Figure 5. Equivalent PECL Termination
Circuit at LOSN
4
2007 Preliminary Datasheet
www.uxfastic.com
UX 2105
155Mbps Limiting Amplifier
LOS level status
Logic State
High
CMOS
VCC
PECL
TTL
VCC
VCC-0.9V
VCC-2.2V
Low
Ground
Ground to 0.5V
Package Outline
Details of ‘A’ part
Figure 6. TSSOP16 Package
www.uxfastic.com
5
2007 Preliminary Datasheet
