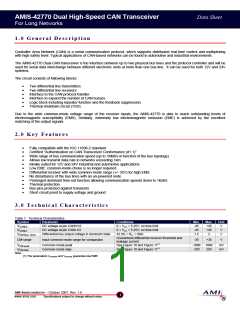

AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
1. 0 General Description
Controller Area Network (CAN) is a serial communication protocol, which supports distributed real-time control and multiplexing
with high safety level. Typical applications of CAN-based networks can be found in automotive and industrial environments.
The AMIS-42770 Dual-CAN transceiver is the interface between up to two physical bus lines and the protocol controller and will be
used for serial data interchange between different electronic units at more than one bus line. It can be used for both 12V and 24V
systems.
The circuit consists of following blocks:
•
•
•
•
•
•
Two differential line transmitters
Two differential line receivers
Interface to the CAN protocol handler
Interface to expand the number of CAN busses
Logic block including repeater function and the feedback suppression
Thermal shutdown circuit (TSD)
Due to the wide common-mode voltage range of the receiver inputs, the AMIS-42770 is able to reach outstanding levels of
electromagnetic susceptibility (EMS). Similarly, extremely low electromagnetic emission (EME) is achieved by the excellent
matching of the output signals.
2. 0 Key Features
•
•
•
•
•
•
•
•
•
•
•
•
Fully compatible with the ISO 11898-2 standard
Certified “Authentication on CAN Transceiver Conformance (d1.1)”
Wide range of bus communication speed (up to 1Mbit/s in function of the bus topology)
Allows low transmit data rate in networks exceeding 1km
Ideally suited for 12V and 24V industrial and automotive applications
Low EME: common-mode-choke is no longer required
Differential receiver with wide common-mode range (+/- 35V) for high EMS
No disturbance of the bus lines with an un-powered node
Prolonged dominant time-out function allowing communication speeds down to 1kbit/s
Thermal protection
Bus pins protected against transients
Short circuit proof to supply voltage and ground
3. 0 Technical Characteristics
Table 1: Technical Characteristics
Symbol
VCANHx
VCANLx
Parameter
Conditions
0 < VCC < 5.25V; no time limit
0 < VCC < 5.25V; no time limit
Min.
-45
-45
1.5
Max.
+45
+45
3
Unit
V
DC voltage at pin CANH1/2
DC voltage at pin CANL1/2
Differential bus output voltage in dominant state
V
V
Vi(dif)(bus_dom)
42.5Ω < RLT < 60Ω
Guaranteed differential receiver threshold and
leakage current
CM-range
Input common-mode range for comparator
-35
+35
V
Common-mode peak
Common-mode step
See Figure 10 and Figure 11(1)
See Figure 10 and Figure 11(1)
-1000
-250
1000
250
mV
mV
VCM-peak
VCM-step
Note:
(1) The parameters VCM-peak and VCM-step guarantee low EME.
AMI Semiconductor – October 2007, Rev. 1.0
www.amis.com Specifications subject to change without notice
1
AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
4. 0 Ordering Information
Ordering Code (Tubes)
Ordering Code (Tape)
Marketing Name
Package
Temp. Range
-40°C…125°C
0ICAW-001-XTD
0ICAW-001-XTP
AMIS-42770 GHA
SOIC-20 300 GREEN
5. 0 Block Diagram
VCC
12
POR
Thermal
shutdown
2 x timer
clock
13
19
18
AMIS-42770
CANH2
CANL2
CANH1
Driver
control
Driver
control
14
CANL1
Timer
Timer
Logic
Unit
Ri(cm)
2
Ri(cm)
+
Vcc
-
/
Vcc
-
/
2
+
COMP
COMP
VCC
VCC
VCC
Ri(cm)
Ri(cm)
VCC
8
5
6
15 16 17
10
3
4
7
9
2
VREF
Rint
Tx0 Rx0
ENB1
Text
ENB2
PC20071011.1
GND
Figure 1: Block Diagram
AMI Semiconductor – October 2007, Rev. 1.0
www.amis.com Specifications subject to change without notice
2
AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
6. 0 Typical Application
6.1 Application Description
AMIS-42770 is especially designed to provide the link between a CAN controller (protocol IC) and two physical busses. It is able to
operate in three different modes:
•
•
•
Dual CAN
A CAN-bus extender
A CAN-bus repeater
6.2 Application Schematics
VBAT
CAN BUS 1
CAN BUS 2
5V-reg
CD
100 nF
VCC
Vref
13
CANH1
12
8
EN1
EN2
Rx0
10
2
RLT
60 Ω
CANL1
CANH2
14
19
7
AMIS-42770
Tx0
4
Text
RLT
3
Rint
60 Ω
CANL2
9
18
5
6
15 16 17
PC20071011.3
GND
Figure 2: Application Diagram CAN-bus Repeater
VBAT
CAN BUS 1
CAN BUS 2
5V-reg
CD
100 nF
CD
100 nF
VCC
VCC
Vref
13
CANH1
12
8
EN1
10
2
RLT
EN2
Rx0
60 Ω
CANL1
CANH2
14
19
7
µC
AMIS-42770
Tx0
CAN
con-
troller
4
Text
RLT
3
Rint
60 Ω
CANL2
9
18
5
6
15 16 17
GND
GND
PC20071011.5
Figure 3: Application Diagram Dual-CAN
AMI Semiconductor – October 2007, Rev. 1.0
www.amis.com Specifications subject to change without notice
3
AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
VBAT
CAN BUS 1
CAN BUS 2
5V-reg
CD
CD
100 nF
100 nF
VCC
VCC
Vref
13
CANH1
12
8
EN1
10
2
RLT
EN2
Rx0
Tx0
60 Ω
CANL1
CANH2
14
19
7
µC
AMIS-42770
CAN
con-
troller
4
Text
RLT
3
Rint
60 Ω
CANL2
9
18
5
6
15 16 17
GND
GND
isolated +5
CAN BUS 3
CAN BUS 4
Dual
OptoCoupler
CD
100 nF
VCC
Vref
CANH1
12
8
EN1
EN2
Rx0
Tx0
13
10
2
RLT
60 Ω
CANL1
CANH2
14
19
7
AMIS-42770
4
Text
RLT
3
Rint
60 Ω
CANL2
9
18
5
6
15 16 17
PC20071011.7
GND
Figure 4: Application Diagram CAN-bus Extender
AMI Semiconductor – October 2007, Rev. 1.0
www.amis.com Specifications subject to change without notice

AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
6.3 Pin Description
6.3.1 Pin Out (top view)
1
2
20
19
18
17
16
15
14
13
12
11
NC
EN2
Text
Tx0
NC
CANH2
CANL2
GND
3
4
5
GND
GND
Rx0
GND
6
GND
7
CANL1
CANH1
VCC
8
Vref1
Rint
9
10
EN1
NC
PC20071011.2
Figure 5: Pin Configuration
6.3.2 Pin Description
Table 2: Pin Out
Pin
1
2
3
4
5
6
7
Name
NC
ENB2
Text
Description
Not connected
Enable input, bus system 2; internal pull-up
Multi-system transmitter Input; internal pull-up
Transmitter input; internal pull-up
Ground connection (1)
Tx0
GND
GND
Rx0
Ground connection (1)
Receiver output
8
9
VREF1
Rint
ENB1
NC
VCC
CANH1
CANL1
GND
GND
GND
CANL2
CANH2
NC
Reference voltage
Multi-system receiver output
Enable input, bus system 1; internal pull-up
Not connected
10
11
12
13
14
15
16
17
18
19
20
Positive supply voltage
CANH transceiver I/O bus system 1
CANL transceiver I/O bus system 1
Ground connection (1)
Ground connection (1)
Ground connection (1)
CANL transceiver I/O bus system 2
CANH transceiver I/O bus system 2
Not connected
Notes:
(1) In order to ensure the chip performance, all these pins need to be connected to GND on the PCB.
AMI Semiconductor – October 2007, Rev. 1.0
www.amis.com Specifications subject to change without notice
5
AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
7. 0 Functional Description
7.1 Overall Functional Description
AMIS-42770 is specially designed to provide the link between the protocol IC (CAN controller) and two physical bus lines. Data
interchange between those two bus lines is realized via the logic unit inside the chip. To provide an independent switch-off of the
transceiver units for both bus systems by a third device (e.g. the µC), enable-inputs for the corresponding driving and receiving
sections are provided. As long as both lines are enabled, they appear as one logical bus to all nodes connected to either of them.
The bus lines can have two logical states, dominant or recessive. A bus is in the recessive state when the driving sections of all
transceivers connected to the bus are passive. The differential voltage between the two wires is approximately zero. If at least one
driver is active, the bus changes into the dominant state. This state is represented by a differential voltage greater than a minimum
threshold and therefore by a current flow through the terminating resistors of the bus line. The recessive state is overwritten by the
dominant state.
In case a fault (like short circuit) is present on one of the bus lines, it remains limited to that bus line where it occurs. Data
interchange from the protocol IC to the other bus system and on this bus system itself can be continued.
AMIS-42770 can be also used for only one bus system. If the connections for the second bus system are simply left open it serves
as a single transceiver for an electronic unit. For correct operation, it is necessary to terminate the open bus by the proper
termination resistor.
7.2 Logic Unit and CAN Controller Interface
The logic unit inside AMIS-42770 provides data transfer from/to the digital interface to/from the two busses and from one bus to the
other bus. The detailed function of the logic unit is described in Table 3.
All digital input pins, including ENBx, have an internal pull-up resistor to ensure a recessive state when the input is not connected
or is accidentally interrupted. A dominant state on the bus line is represented by a low-level at the digital interface; a recessive
state is represented by a high-level.
Dominant state received on any bus (if enabled) causes a dominant state on both busses, pin Rint and pin Rx0. Dominant signal
on any of the input pins Tx0 and Text causes transmission of dominant on both bus lines (if enabled).
Digital inputs Tx0 and Text are used for connecting the internal logic’s of several IC’s to obtain versions with more than two bus
outputs (see Figure 4: Application Diagram CAN-bus Extender). They have also a direct logical link to pins Rx0 and Rint
independently on the EN1x pins – dominant on Tx0 is directly transferred to both Rx0 and Rint pins, dominant on Text is only
transferred to Rx0.
7.3 Transmitters
The transceiver includes two transmitters, one for each bus line, and a driver control circuit. Each transmitter is implemented as a
push and a pull driver. The drivers will be active if the transmission of a dominant bit is required. During the transmission of a
recessive bit all drivers are passive. The transmitters have a built-in current limiting circuit that protects the driver stages from
damage caused by accidental short circuit to either positive supply voltage or to ground. Additionally a thermal protection circuit is
integrated.
The driver control circuit ensures that the drivers are switched on and off with a controlled slope to limit EME. The driver control
circuit will be controlled itself by the thermal protection circuit, the timer circuit and the logic unit.
The enable signal ENBx allows the transmitter to be switched off by a third device (e.g. the µC). In the disabled state (ENBx =
high) the corresponding transmitter behaves as in the recessive state.
AMI Semiconductor – October 2007, Rev. 1.0
6
www.amis.com
Specifications subject to change without notice
AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
Table 3: Function of the Logic Unit; bold letters describe input signals
EN1B
0
EN2B
0
TX0
0
TEXT
0
Bus 1 State
Bus 2 State
RX0
RINT
dominant
dominant
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
1
1
1
dominant
dominant
recessive
dominant(1)
dominant
dominant
dominant
recessive
dominant
dominant(1)
0
0
1
0
0
0
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
1
1
1
1
0
1
0
1
1
1
dominant
dominant
dominant
recessive
dominant(1)
recessive
recessive
recessive
recessive
recessive
recessive
dominant(1)
0
0
0
1
0
1
0
0
1
1
0
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
0
1
0
1
1
1
recessive
recessive
recessive
recessive
dominant(1)
recessive
dominant
dominant
dominant
recessive
recessive
dominant(1)
0
0
0
1
1
0
0
0
1
1
1
0
1
1
1
1
1
1
1
1
1
1
1
1
0
0
1
1
1
1
0
1
0
1
1
1
recessive
recessive
recessive
recessive
dominant(1)
recessive
recessive
recessive
recessive
recessive
recessive
dominant(1)
0
0
0
1
1
1
0
0
1
1
1
1
Note:
(1) Dominant detected by the corresponding receiver.
7.4 Receivers
Two bus receiving sections sense the states of the bus lines. Each receiver section consists of an input filter and a fast and
accurate comparator. The aim of the input filter is to improve the immunity against high-frequency disturbances and also to
convert the voltage at the bus lines CANHx and CANLx, which can vary from –12V to +12V, to voltages in the range 0 to 5V, which
can be applied to the comparators.
The output signal of the comparators is gated by the ENBx signal. In the disabled state (ENBX = high), the output signal of the
comparator will be replaced by a permanently recessive state and does not depend on the bus voltage. In the enabled state the
receiver signal sent to the logic unit is identical to the comparator output signal.
7.5 Time-out Counter
To avoid that the transceiver drives a permanent dominant state on either of the bus lines (blocking all communication), time-out
function is implemented. Signals on pins Tx0 and Text as well as both bus receivers are connected to the logic unit through
independent timers. If the input of the timer stays dominant for longer than 25ms (see parameter tdom), it is replaced by a recessive
signal on the timer output.
7.6 Feedback Suppression
The logic unit described in Table 3 constantly ensures that dominant symbols on one bus line are transmitted to the other bus line
without imposing any priority on either of the lines. This feature would lead to an “interlock” state with permanent dominant signal
transmitted to both bus lines, if no extra measure is taken.
Therefore a feedback suppression is included inside the logic unit of the transceiver. This block masks-out reception on that bus
line, on which a dominant is actively transmitted. The reception becomes active again only with certain delay after the dominant
transmission on this line is finished.
AMI Semiconductor – October 2007, Rev. 1.0
7
www.amis.com
Specifications subject to change without notice

AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
7.7 Power-on-Reset (POR)
While Vcc voltage is below the POR level, the POR circuit makes sure that:
•
•
•
•
•
•
•
The counters are kept in the reset mode and stable state without current consumption
Inputs are disabled (don't care)
Outputs are high impedant; only Rx0 = high-level
Analog blocks are in power down
Oscillator not running and in power down
CANHx and CANLx are recessive
VREF output high impedant for POR not released
7.8 Over Temperature Detection
A thermal protection circuit is integrated to prevent the transceiver from damage if the junction temperature exceeds thermal
shutdown level. Because the transmitters dissipate most of the total power, the transmitters will be switched off only to reduce
power dissipation and IC temperature. All other IC functions continue to operate.
7.9 Fault Behavior
A fault like a short circuit is limited to that bus line where it occurs; hence data interchange from the protocol IC to the other bus
system is not affected.
When the voltage at the bus lines is going out of the normal operating range (-12V to +12V), the receiver is not allowed to
erroneously detect a dominant state.
7.10 Short Circuits
As specified in the maximum ratings, short circuits of the bus wires CANHx and CANLx to the positive supply voltage Vbat or to
ground must not destroy the transceiver. A short circuit between CANHx and CANLx must not destroy the IC as well.
7.11 Faulty Supply
In case of a faulty supply (missing connection of the electronic unit or the transceiver to ground, missing connection of the
electronic unit to Vbat or missing connection of the transceiver to Vcc), the power supply module of the electronic unit will operate
such that the transceiver is not supplied, i.e. the voltage Vcc is below the POR level. In this condition the bus connections of the
transceiver must be in the POR state.
If the ground line of the electronic unit is interrupted, Vbat may be applied to the Vcc pin (measured relative to the original ground
potential, to which the other units on the bus are connected).
7.12 Reverse Electronic Unit (ECU) Supply
If the connections for ground and supply voltage of an electronic unit (ECU) (max. 50V) which provides Vcc for the transceiver are
exchanged, this transceiver has a ground potential which may be up to 50V higher than that of the other transceivers. In this case
no transceiver must be destroyed even if several of them are connected via the bus system.
Any exchange among the six connections CANH1, CANH2, CANL1, CANL2, ground, and supply voltage of the electronic unit at
the connector of the unit must never lead to the destruction of any transceiver of the bus system.
AMI Semiconductor – October 2007, Rev. 1.0
8
www.amis.com
Specifications subject to change without notice
AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
8. 0 Electrical Characteristics
8.1 Definitions
All voltages are referenced to GND. Positive currents flow into the IC. Sinking current means that the current is flowing into the
pin. Sourcing current means that the current is flowing out of the pin.
8.2 Absolute Maximum Ratings
Stresses above those listed in Table 4 may cause permanent device failure. Exposure to absolute maximum ratings for extended
periods may affect device reliability.
Table 4: Absolute Maximum Ratings
Symbol
VCC
Parameter
Conditions
Min.
-0.3
-45
Max.
+7
Unit
V
Supply voltage
DC voltage at pin CANH1/2
DC voltage at pin CANL1/2
0 < VCC < 5.25V; no time limit
0 < VCC < 5.25V; no time limit
+45
+45
V
VCANHx
VCANLx
-45
V
DC voltage at digital IO pins (EN1B, EN2B, Rint, Rx0,
Text, Tx0)
-0.3
VCC + 0.3
V
VdigIO
DC voltage at pin VREF
-0.3
-150
-150
VCC + 0.3
+150
V
V
V
VREF
Transient voltage at pin CANH1/2
Transient voltage at pin CANL1/2
Note 1
Note 1
Vtran(CANHx)
Vtran(CANLx)
Vesd(CANLx/CANHx)
+150
Note 2
Note 4
Note 2
Note 4
-4
-500
-2
+4
+500
+2
kV
V
kV
V
ESD voltage at CANH1/2 and CANL1/2 pins
ESD voltage at all other pins
Vesd
-250
+250
Latch-up
Tstg
Static latch-up at all pins
Storage temperature
Note 3
100
mA
°C
°C
°C
-55
-40
-40
+155
+125
+150
Ambient temperature
Tamb
Maximum junction temperature
Tjunc
Notes:
(1) Applied transient waveforms in accordance with “ISO 7637 part 3”, test pulses 1, 2, 3a, and 3b (see Figure 6).
(2) Standardized human body model (HBM) ESD pulses in accordance to MIL883 method 3015. Supply pin 8 is ±2 kV.
(3) Static latch-up immunity: static latch-up protection level when tested according to EIA/JESD78.
(4) Standardized charged device model ESD pulses when tested according to EOS/ESD DS5.3-1993.
8.3 Thermal Characteristics
Table 5: Thermal Characteristics
Symbol
Parameter
Conditions
In free air
In free air
Value
Unit
Thermal resistance from junction to ambient in SO20 package
Thermal resistance from junction to substrate of bare die
85
45
K/W
K/W
Rth(vj-a)
Rth(vj-s
)
AMI Semiconductor – October 2007, Rev. 1.0
www.amis.com Specifications subject to change without notice
9

AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
8.4 DC Characteristics
VCC = 4.75 to 5.25V; Tjunc = -40 to +150°C; RLT =60Ω unless specified otherwise.
Table 6: DC and Timing Characteristics
Symbol
Parameter
Conditions
Min.
Typ.
Max.
Unit
Supply (pin VCC
)
Supply current, no loads on digital outputs,
both busses enabled
Power-on-reset level on VCC
Dominant transmitted
Recessive transmitted
45
137.5
19.5
4.7
mA
mA
V
ICC
PORL_VCC
2.2
Digital Inputs (Tx0, Text, EN1B, EN2B)
VIH
VIL
IIH
IIL
Ci
High-level input voltage
Low-level input voltage
High-level input current
Low-level input current
Input capacitance
0.7 x VCC
-0.3
-5
-
-
0
-200
5
VCC
0.3 x VCC
+5
-350
10
V
V
µA
µA
pF
VIN = VCC
VIN = 0V
Not tested
-75
-
Digital Outputs (pin Rx0, Rint)
Ioh
Iol
High-level output current
Low-level output current
Vo = 0.7 x VCC
Vo = 0.3 x VCC
-5
5
-10
10
-15
15
mA
mA
Reference Voltage Output (pin VREF1
)
VREF
Reference output voltage
Reference output voltage for full common
mode range
0.45 x VCC
0.40 x VCC
0.50 x VCC
0.50 x VCC
0.55 x VCC
0.60 x VCC
V
V
-50µA < IVREF < +50µA
-35V <VCANHx< +35V;
-35V <VCANLx< +35V
VREF_CM
Bus Lines (pins CANH1/2 and CANL1/2)
Vo(reces)(CANHx) Recessive bus voltage at pin CANH1/2
Vo(reces)(CANLx)
VTx0 = VCC; no load
VTx0 = VCC; no load
-35V < VCANHx < +35V;
0V < VCC < 5.25V
-35V < VCANLx < +35V;
0V < VCC < 5.25V
VTx0=0V
2.0
2.0
2.5
2.5
3.0
3.0
V
V
Recessive bus voltage at pin CANL1/2
Recessive output current at pin CANH1/2
Io(reces) (CANHx)
-2.5
-2.5
-
-
+2.5
+2.5
mA
mA
Io(reces) (CANLx)
Vo(dom) (CANHx)
Vo(dom) (CANLx)
Recessive output current at pin CANL1/2
Dominant output voltage at pin CANH1/2
Dominant output voltage at pin CANL1/2
3.0
0. 5
3.6
1.4
4.25
1.75
V
V
VTx0=0V
VTx0 = 0V; dominant;
42.5Ω < RLT < 60Ω
VTxD = VCC; recessive;
no load
1.5
2.25
0
3.0
V
Differential bus output voltage (VCANHx
VCANLx
-
Vi(dif) (bus)
)
-120
+50
mV
Io(sc) (CANHx)
Io(sc) (CANLx)
Short circuit output current at pin CANH1/2
Short circuit output current at pin CANL1/2
VCANHx = 0V;VTx0 = 0V
VCANLx = 36V; VTx0 = 0V
-5V < VCANLx < +12V;
-5V < VCANHx < +12V;
see Figure 7
-35V < VCANLx < +35V;
-35V < VCANHx < +35V;
see Figure 7
-45
45
-70
70
-120
120
mA
mA
Vi(dif)(th)
Differential receiver threshold voltage
0.5
0.3
50
0.7
0.7
70
0.9
1.05
100
V
V
Differential receiver threshold voltage for
high common-mode
Vihcm(dif) (th)
-35V < VCANL < +35V;
-35V < VCANH < +35V;
see Figure 7
Vi(dif) (hys)
Differential receiver input voltage hysteresis
mV
Common-mode input resistance at pin
CANH1/2
Common-mode input resistance at pin
CANL1/2
Matching between pin CANH1/2 and pin
CANL1/2 common-mode input resistance
Differential input resistance
Input capacitance at pin CANH1/2
Input capacitance at pin CANL1/2
Differential input capacitance
Ri(cm)(CANHx)
Ri(cm) (CANLx)
Ri(cm)(m)
15
15
26
26
0
37
37
+3
KΩ
KΩ
%
V
CANHx = VCANLx
-3
Ri(dif)
25
50
7.5
7.5
75
20
20
10
KΩ
pF
pF
pF
Ci(CANHx)
Ci(CANLx)
Ci(dif)
VTx0 = VCC; not tested
VTx0 = VCC; not tested
VTx0 = VCC; not tested
VCC < PORL_VCC;
-5.25V < VCANHx < 5.25V
VCC < PORL_VCC;
3.75
ILI(CANHx)
ILI(CANLx)
VCM-peak
VCM-step
Input leakage current at pin CANH1/2
Input leakage current at pin CANL1/2
-350
-350
170
170
350
350
µA
µA
-5.25V < VCANLx < 5.25V
Common-mode peak during transition from
dom → rec or rec → dom
Difference in common-mode between
dominant and recessive state
See Figure 11
See Figure 11
-1000
-250
1000
250
mV
mV
AMI Semiconductor – October 2007, Rev. 1.0
www.amis.com Specifications subject to change without notice
10
AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
Table 6: DC and Timing Characteristics (Continued)
Symbol
Thermal Shutdown
Tj(sd) Shutdown junction temperature
Parameter
Conditions
Min.
Typ.
Max.
Unit
150
°C
Timing Characteristics (see Figure 8: Test Circuit for Timing Characteristics and Figure 9: Timing Diagram for AC Characteristics)
td(Tx-BUSon)
td(Tx-BUSoff)
td(BUSon-RX)
td(BUSoff-RX)
td(ENxB)
Delay Tx0/Text to bus active
Delay Tx0/Text to bus inactive
Delay bus active to Rx0/Rint
Delay bus inactive to Rx0/Rint
Delay from EN1B to bus active/inactive
Delay from Tx0 to Rx0/Rint and from Text to
Rx0 (direct logical path)
40
30
25
65
85
60
55
100
100
120
115
115
145
200
ns
ns
ns
ns
ns
td(Tx-Rx)
tdom
15pF on the digital output
4
10
25
35
45
ns
ms
ns
Time out counter interval
15
5+
td(BUSon-RX)
td(FBS)
Delay for feedback suppression release
300
8.5 Measurement Set-ups and Definitions
Schematics are given for single CAN transceiver.
+5V
100 nF
VCC
Vref
1 nF
1 nF
CANH1
12
8
13
Text
Rint
Transient
Generator
3
9
CANL1
CANH2
14
19
AMIS-42770
Tx0
4
7
Rx0
CANL2
18
2
10
17 16 15
6
5
GND
PC20071011.8
EN1
EN2
Figure 6: Test Circuit for Automotive Transients
VRxD
High
Low
Hysteresis
PC20040829.7
0,9
0,5
Vi(dif)(hys)
Figure 7: Hysteresis of the Receiver
AMI Semiconductor – October 2007, Rev. 1.0
www.amis.com Specifications subject to change without notice
11
AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
+5V
100 nF
VCC
12
Vref
13
CANH1
8
Text
Rint
RLT
CLT
3
60 Ω
100 pF
CANL1
CANH2
14
19
9
AMIS-42770
Tx0
CLT
RLT
4
7
100 pF
60 Ω
Rx0
CANL2
18
5
2
10
17 16 15
6
GND
PC20071011.9
EN1
EN2
Figure 8: Test Circuit for Timing Characteristics
Tx0
Text
0,7 VCC
0,3 VCC
VCANx-BUS
VCANHx
VCANLx
VDIFF
=
VCANHx
- VCANLx
dominant
recessive
5V
0,9 V
0,9 V
0,5 V
0,5 V
0V
tPD(H)
Rx0
Rint
0,7 VCC
0,7 VCC
0,3 VCC
0,3 VCC
td(BUSon-Rx)
td(BUSoff-Rx)
td(Tx-Rx)
td(Tx-Rx)
PC20071012.1
td(Tx-BUSon)
td(Tx-BUSoff)
Figure 9: Timing Diagram for AC Characteristics
AMI Semiconductor – October 2007, Rev. 1.0
www.amis.com Specifications subject to change without notice
12
AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
+5V
100 nF
VCC
12
Vref
13
6.2 kΩ
CANH1
8
10 nF
Text
Rint
3
Active Probe
Spectrum Anayzer
CANL1
CANH2
14
19
9
6.2 kΩ
30 Ω
AMIS-42770
Tx0
30 Ω
4
7
Gen
Rx0
CANL2
18
5
2
10
17 16 15
6
47 nF
GND
EN1
EN2
PC20071011.10
Figure 10: Basic Test Set-up for Electromagnetic Measurement
CANHx
CANLx
recessive
VCM-step
VCM-peak
Vi(com) = 0.5 *
(VCANHx + VCANLx
)
PD20070614.1
VCM-peak
Figure 11: Common-mode Voltage Peaks (see measurement set-up Figure 10)
AMI Semiconductor – October 2007, Rev. 1.0
www.amis.com Specifications subject to change without notice
13
AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
9. 0 Package Outline
SOIC-20: Plastic small outline; 20 leads; body width 300mil.
AMI Semiconductor – October 2007, Rev. 1.0
14
www.amis.com
Specifications subject to change without notice
AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
10. 0 Soldering
10.1 Introduction to Soldering Surface Mount Packages
This text gives a very brief insight to a complex technology. A more in-depth account of soldering ICs can be found in the AMIS
“Data Handbook IC26; Integrated Circuit Packages” (document order number 9398 652 90011). There is no soldering method that
is ideal for all surface mount IC packages. Wave soldering is not always suitable for surface mount ICs, or for printed-circuit boards
(PCBs) with high population densities. In these situations re-flow soldering is often used.
10.2 Re-flow Soldering
Re-flow soldering requires solder paste (a suspension of fine solder particles, flux and binding agent) to be applied to the PCB by
screen printing, stencilling or pressure-syringe dispensing before package placement. Several methods exist for reflowing; for
example, infrared/convection heating in a conveyor type oven. Throughput times (preheating, soldering and cooling) vary between
100 and 200 seconds depending on heating method. Typical re-flow peak temperatures range from 215 to 250°C. The top-surface
temperature of the packages should preferably be kept below 230°C.
10.3 Wave Soldering
Conventional single wave soldering is not recommended for surface mount devices (SMDs) or PCBs with a high component
density, as solder bridging and non-wetting can present major problems. To overcome these problems the double-wave soldering
method was specifically developed.
If wave soldering is used the following conditions must be observed for optimal results:
•
Use a double-wave soldering method comprising a turbulent wave with high upward pressure followed by a smooth
laminar wave.
•
For packages with leads on two sides and a pitch (e):
Larger than or equal to 1.27mm, the footprint longitudinal axis is preferred to be parallel to the transport direction of
the PCB;
Smaller than 1.27mm, the footprint longitudinal axis must be parallel to the transport direction of the PCB. The
footprint must incorporate solder thieves at the downstream end.
•
For packages with leads on four sides, the footprint must be placed at a 45º angle to the transport direction of the PCB.
The footprint must incorporate solder thieves downstream and at the side corners.
During placement and before soldering, the package must be fixed with a droplet of adhesive. The adhesive can be applied by
screen printing, pin transfer or syringe dispensing. The package can be soldered after the adhesive is cured. Typical dwell time is
four seconds at 250°C. A mildly-activated flux will eliminate the need for removal of corrosive residues in most applications.
10.4 Manual Soldering
Fix the component by first soldering two diagonally-opposite end leads. Use a low voltage (24V or less) soldering iron applied to
the flat part of the lead. Contact time must be limited to 10 seconds at up to 300°C.
When using a dedicated tool, all other leads can be soldered in one operation within two to five seconds between 270 and 320°C.
Table 7: Soldering Process
Soldering Method
Package
Wave
Re-flow(1)
Suitable
Suitable
Suitable
Suitable
Suitable
BGA, SQFP
Not suitable
Not suitable (2)
HLQFP, HSQFP, HSOP, HTSSOP, SMS
PLCC (3) , SO, SOJ
Suitable
LQFP, QFP, TQFP
Not recommended (3)(4)
Not recommended (5)
SSOP, TSSOP, VSO
Notes:
1.
All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum temperature (with respect to time) and body size
of the package, there is a risk that internal or external package cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For
details, refer to the drypack information in the “Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods.”
These packages are not suitable for wave soldering as a solder joint between the PCB and heatsink (at bottom version) can not be achieved, and as solder may
stick to the heatsink (on top version).
If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction. The package footprint must incorporate solder
thieves downstream and at the side corners.
Wave soldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8mm; it is definitely not suitable for packages with a
pitch (e) equal to or smaller than 0.65mm.
2.
3.
4.
5.
Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65mm; it is definitely not suitable for packages with a
pitch (e) equal to or smaller than 0.5mm.
AMI Semiconductor – October 2007, Rev. 1.0
www.amis.com Specifications subject to change without notice
15
AMIS-42770 Dual High-Speed CAN Transceiver
For Long Networks
Data Sheet
11. 0 Revision History
Revision
Date
Description
1.0
October 2007
Initial version
12. 0 Company or Product Inquiries
For more information about AMI Semiconductor’s products or services visit our Web site at http://www.amis.com/sales.
Devices sold by AMIS are covered by the warranty and patent indemnification provisions appearing in its Terms of Sale only. AMIS makes no warranty, express,
statutory, implied or by description, regarding the information set forth herein or regarding the freedom of the described devices from patent infringement. AMIS makes
no warranty of merchantability or fitness for any purposes. AMIS reserves the right to discontinue production and change specifications and prices at any time and
without notice. AMI Semiconductor's products are intended for use in commercial applications. Applications requiring extended temperature range, unusual
environmental requirements, or high reliability applications, such as military, medical life-support or life-sustaining equipment, are specifically not recommended without
additional processing by AMIS for such applications. Copyright ©2007 AMI Semiconductor, Inc.
AMI Semiconductor – October 2007, Rev. 1.0
16
www.amis.com
Specifications subject to change without notice
厂商 型号 描述 页数 下载

AMI

 		0ICAA-001-XTD 高速低功耗CAN收发器[ High-Speed Low Power CAN Transceiver ] 12 页

AMI

 		0ICAA-001-XTP 高速低功耗CAN收发器[ High-Speed Low Power CAN Transceiver ] 12 页

AMI

 		0ICAB-001-XTD 高速CAN收发器[ High-Speed CAN Transceiver ] 12 页

AMI

 		0ICAB-001-XTP 高速CAN收发器[ High-Speed CAN Transceiver ] 12 页

AMI

 		0ICAG-001-XTD 高速CAN收发器[ High Speed CAN Transceiver ] 12 页

AMI

 		0ICAG-001-XTP 高速CAN收发器[ High Speed CAN Transceiver ] 12 页

AMI

 		0ICAH-002-XTD 高速CAN收发器[ High-Speed CAN Transceiver ] 12 页

AMI

 		0ICAH-002-XTP 高速CAN收发器[ High-Speed CAN Transceiver ] 12 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.226436s
