CYT6606

型号:

CYT6606

描述:

- 12号的铝制车身绘( RAL 7032 )

品牌:

ETC[ ETC ]

页数:

7 页

PDF大小:

126 K

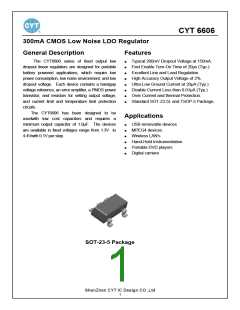

CYT 6606
300mA CMOS Low Noise LDO Regulator
General Description
Features
The CYT6606 series of fixed output low
dropout linear regulators are designed for portable
battery powered applications, which require low
power consumption, low noise environment, and low
dropout voltage. Each device contains a bandgap
voltage reference, an error amplifier, a PMOS power
transistor, and resistors for setting output voltage,
and current limit and temperature limit protection
circuits.
Typical 200mV Dropout Voltage at 150mA.
Fast Enable Turn-On Time of 20µs (Typ.)
Excellent Line and Load Regulation.
High Accuracy Output Voltage of 2%.
Ultra-Low Ground Current at 20µA (Typ.)
Disable Current Less than 0.01µA (Typ.)
Over Current and thermal Protection.
Standard SOT-23-5L and TSOP-5 Package.
The CYT6606 has been designed to be
usedwith low cost capacitors and requires a
minimum output capacitor of 1.0µF. The devices
are available in fixed voltages range from 1.3V to
4.4Vwith 0.1V per step.
Applications
USB removable devices
MPEG4 devices
Wireless LAN’s
Hand-Held Instrumentation.
Portable DVD players
Digital camera
SOT-23-5 Package
ShenZhen CYT IC Design CO ,Ltd
1
CYT 6606
Pin Configuration
1.VIN
2.GND
3.EN
4.BYPASS
5.VOUT
SOT-23-5L / TSOP-5
Typical Application
VIN=5V
VOUT=3.3V
COUT:2.2uF
CB:0.1uF
VIN
CYT6606-3.3V
EN BYPASS
GND
VOUT
CIN:2.2uF
ON
OFF
Block Diagram
CYT6606-3.3
ShenZhen CYT IC Design CO ,Ltd
2
CYT 6606
Ordering/Marking Information
CYT6606-
X
X
X
PIN G:
VIN/GND/EN/BYPASS/VOU
Package Type: L : SOT-23-5L
Output Voltage:1 A:Vout=3.3V
2 B:Vout=2.8V
3 C:Vout=2.5V
4 D:Vout=1.8V
5 E:Vout=1.5V
6 F: Vout=3.0V
Operating Rating (1)
Parameter
Supply Input Voltage
Symbol
VIN
Value
5
Units
V
Junction Temperature
TJ
0 to +125
Absolute Maximum Rating (2)
Parameter
Input Supply Voltage
Enable Voltage
Symbol
Value
Units
VIN
VEN
VOUT
PD
6
V
V
V
-0.3 to VIN
Output Voltage
-0.3 to 4.6
Power Dissipation
Internally Limited (3)
Infinite
Output Short Circuit Duration
Thermal Resistance,
Junction-to-Ambient
ӨJA
230(SOT-23)
/W
Lead Temperature (Soldering,5 sec.)
Junction Temperature
Storage Temperature
260
TJ
0 to +150
-40 to +150
TS
ShenZhen CYT IC Design CO ,Ltd
3
CYT 6606
Electrical Characteristics
VIN = 5V; IOUT = 10mA, CIN = 2.2µF; COUT = 2.2µF; TJ = 25°C; unless otherwise specified.
Symbol
Parameter
Conditions
CYT6606-1.5V
CYT6606-1.8V
CYT6606-2.5V
CYT6606-2.8V
CYT6606-3.0V
CYT6606-3.3V
Min
Typ Max Units
1.470
1.764
2.450
2.744
2.940
3.234
1.5
1.8
2.5
2.8
3.0
3.3
1.530
1.836
2.550
2.856
3.060
3.366
VOUT
Output Voltage Accuracy
V
Output Voltage
Temperature Coefficient
Line Regulation
mV/℃
VOUT/T
Note4
--
0.26
--
VOUT/VOUT
VOUT/VOUT
VIN=VOUT+1V to 5.0V
IOUT=10 to 300mA
IOUT=10mA
--
--
--
--
0.3
2.0
8
--
--
--
--
/V
Load Regulation(5)
VIN-VOUT
Dropout Voltage(6)
Thermal Protection
mV
IOUT=150mA
140
IOUT=300mA
Thermal Protection
Temperature
--
310
--
--
130
--
TPROTECTION
Protection Hysterisys
F=10KHz, Bypass=0.1uF
--
--
15
70
--
--
PSRR
Ripple Rejection
dB
uA
VEN=0V
--
--
0.1
22
--
--
IQ
Quiescent Current
VEN=VTH(EN) ; IOUT=10mA
Voltage Increasing, Output
Tums On, Logic High
1.6
--
--
Enable Input Threshold
Voltage
VTH(EN)
ILIMIT
V
Voltage Decreasing, Output
Tums Off, Logic Low
VOUT=0V
--
--
--
0.4
--
Current Limit
600
mA
Note 1: Exceeding the absolute maximum rating may damage the device.
Note 2: The device is not guaranteed to function outside its operating rating.
Note 3: The maximum allowable power dissipation at any TA (ambient temperature) is calculated using:
PD(MAX) = (TJ(MAX) – TA)/ΘJA. Exceeding the maximum allowable power dissipation will
result in excessive die temperature,and the regulator will go into thermal shutdown. See
“Thermal Consideration” section for details
Note 4: Output voltage temperature coefficient is the worst case voltage change divided by the total
temperature range.
Note 5: Regulation is measured at constant junction temperature using low duty cycle pulse testing.
Parts are tested for load regulation in the load range from 0.1mA to 300mA. Changes in
output voltage due to heating effects arecovered by the thermal regulation specification.
Note 6: Dropout voltage is defined as the input to output differential at which the output voltage drops
2% below its nominal value measured at 1V differential.
ShenZhen CYT IC Design CO ,Ltd
4
CYT 6606
Typical Performance Characteristics
ShenZhen CYT IC Design CO ,Ltd
5
CYT 6606
Application
Hints Like any low dropout regulator, CYT6606 requiresexternal capacitors to ensure stability.
Theexternal capacitors must be carefully selected toensure performance.
Input Capacitor
An input capacitor of at least 1µF is required.Ceramic or Tantalum can be used. The value canbe
increase without upper limit.
Output Capacitor
An output capacitor is required for stability. It mustbe placed no more than 1 cm away from the
VOUTpin, and connected directly between VOUT and GNDpins. The minimum value is 1µF but may
beincrease without limit.
Thermal Considerations
It is important that the thermal limit of the package isnot exceeded. The CYT6606 has built-in
thermalprotection. When the thermal limit is exceeded,the IC will enter protection, and VOUT will be
pulledto ground. The power dissipation for a givenapplication can be calculated as following: The
power dissipation (PD) is
PD = IOUT * [VIN – VOUT]
The thermal limit of the package is then limited toPD(MAX) = [TJ – TA]/ΘJA where TJ is the
junctiontemperature, TA is the ambient temperature, andΘJAis around 230°C/W for CYT6606.
CYT6606 isdesigned to enter thermal protection at 150°C. Forexample, if TA
ShenZhen CYT IC Design CO ,Ltd
6
CYT 6606
Outline Drawing SOT-23-5
DIMENSIONS
INCHES
MIN
MM
DIMN
MAX
0.120
0.070
0.051
0.020
0.037
0.075
0.006
0.008
0.118
MIN
2.80
1.50
0.90
0.35
-
MAX
3.05
1.75
1.30
0.50
0.95
1.90
0.15
0.20
3.00
0.110
0.059
0.036
0.014
-
A
B
C
D
E
F
H
J
K
-
-
-
-
0.0035
0.102
0.090
2.60
ShenZhen CYT IC Design CO ,Ltd
7
