CYT431

型号：

CYT431

描述：

- 12号的铝制车身绘（ RAL 7032 ）

品牌：

ETC[ ETC ]

页数：

7 页

PDF大小：

236 K

下载PDF手册

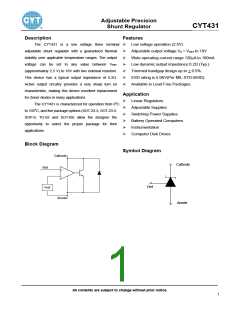

Adjustable Precision
Shunt Regulator
CYT431
Description
Features
The CYT431 is
a low voltage three terminal
¾
¾
¾
¾
¾
¾
¾
Low voltage operation (2.5V)
adjustable shunt regulator with a guaranteed thermal
stability over applicable temperature ranges. The output
voltage can be set to any value between VREF
(approximately 2.5 V) to 18V with two external resistors.
This device has a typical output impedance of 0.2Ω.
Active output circuitry provides a very sharp turn on
characteristic, making this device excellent replacement
for Zener diodes in many applications.
Adjustable output voltage V0 = VREF to 18V
Wide operating current range 120µA to 100mA
Low dynamic output impedance 0.2Ω (Typ.).
Trimmed bandgap design up to + 0.5%.
ESD rating is 5.5KV(Per MIL-STD-883D).
Available in Lead Free Packages.
Application
¾
¾
¾
¾
¾
¾
Linear Regulators
The CYT431 is characterized for operation from 0oC
to 105oC, and five package options (SOT-23-3, SOT-23-5,
SOP-8, TO-92 and SOT-89) allow the designer the
opportunity to select the proper package for their
applications.
Adjustable Supplies
Switching Power Supplies
Battery Operated Computers
Instrumentation
Computer Disk Drives
Block Diagram
Symbol Diagram
Cathode
Cathode
Ref
+
-
Ref
Vref
Anode
Anode
All contents are subject to change without prior notice.
1
Adjustable Precision
Shunt Regulator
CYT431
Marking Information
Package
Marking
Production Year Code
Production Week Code
Lead-Free Package
Starting with S, a bar on top of S is for production
year 2001, and underlined S is for year 2002.
The next character is marked on top for 2003, and
underlined for 2004. The naming pattern continues
with consecutive characters for later years.
SOT-23-3
SC59-3L
431
Lead-free package is
indicated by a dot on
top of the week code.
A-Z: 1-26
a-z: 27-52
431
SOT-23-3
SOT-23-5L
SOP-8
(431S)
431W
CYT431
YYWW
CYT431
YYWW
CYT431
YYWW
WW is the week of
Lead-free package is
indicated by LF after
YYWW.
YY is the year of production. 04 means the production. 26 means the
SOT-89
TO-92
product is manufactured in year of 2004.
product is manufactured in
the 26th week.
Pin Configuration
SOT-23-3
SOT-23-3
SOT-23-5L
SOT-23-3L (SC59-3L)
(Order as CYT431S)
TO-92
SOP-8
SOT-89
(Top View)
All contents are subject to change without prior notice.
2
Adjustable Precision
Shunt Regulator
CYT431
Absolute Maximum Ratings
Parameter
Symbol
Maximum
Units
Cathode Voltage
VKA
I KA
18
150
V
Continuous Cathode Current
Reference Current
mA
mA
°C
I REF
TJ
10
Operating Junction Temperature Range
Storage Temperature Range
150
TSTG
-65 to 150
120 (SOT-89)
230 (SOT-23-3)
230 (SOT-23-5L)
150 (SOP-8)
220 (TO-92)
260
°C
Thermal Resistance
°C/W
°C
θ JA
Lead Temperature (Soldering) 10 seconds
TLEAD
Electrical Characteristics
TEST
PARAMETER
SYMBOL
TEST CONDITIONS
MIN
TYP
MAX
UNIT
CIRCUIT
0.5%
1%
2483
2470
2445
2495
2495
2495
2507
2520
2545
Reference Voltage
VREF
1
VKA = VREF, IKA = 10mA
mV
2%
Deviation of reference voltage over
full temperature range
VKA = VREF, IKA = 10mA
TA = 0°C to 105°C
VI(dev)
1
2
--
--
4
25
mV
Ratio of change in reference
voltage to the change in cathode
voltage
∆ VREF
________
∆ VKA
IKA = 10mA,
-1.4
-2.7
mV/V
∆VKA = 10 V - VREF
IKA = 10mA,
Reference current
IREF
2
2
--
--
2
4
µA
µA
R1=10kΩ, R2 = ∞
Deviation of Reference current
over full temperature range
Minimum cathode current for
regulation
IKA = 10mA, R1=10kΩ,
R2 = ∞, TA = 0°C to 105°C
II(dev)
0.4
1.2
IMIN
IOFF
ZKA
1
3
1
VKA = VREF
--
--
--
0.2
0.1
0.2
1
1
mA
µA
Ω
Off-state cathode current
VKA = 18V, VREF = 0
IKA = 1mA to 100mA, VKA
REF, f ≤ 1kHZ
=
Dynamic impedance
0.7
V
All contents are subject to change without prior notice.
3
Adjustable Precision
Shunt Regulator
CYT431
Typical Performance Characteristics
CATHODE CURRENT
Vs.
CATHODE CURRENT
Vs.
CATHODE VOLTAGE
CATHODE VOLTAGE
800
600
400
200
0
150
125
100
75
VKA = Vref
TA = 25oC
VKA = Vref
TA = 25oC
50
25
0
-25
-50
-75
-100
- 200
-2
-1
0
1
2
3
- 1
0
1
2
3
Cathode Voltage (V)
Cathode Voltage (V)
REFERENCE VOLTAGE
Vs.
REFERENCE INPUT CURRENT
Vs.
JUNCTION TEMPERATURE
JUNCTION TEMPERATURE
2520
2515
2510
2505
2500
2495
2490
2485
2480
3
2. 5
2
R1 = 10k
Ω
VKA =Vref
R2 =
∞
IKA =10mA
I
KA =10mA
1. 5
1
0. 5
0
- 60 - 40 - 20
0
20 40 60 80 100 120
- 20
0
20
40
60
80
100
120
Junction Temperature ( oC)
Junction Temperature ( oC)
All contents are subject to change without prior notice.
4
Adjustable Precision
Shunt Regulator
CYT431
Test Circuits
V KA
Input
V
KA
Input
V
KA
Input
I off
IKA
I KA
R1
R2
Iref
Vref
Vref
R1
R2
) + Iref x R1
V
KA = Vref (1+
Test Circuit 1:
KA = VREF
Test Circuit 2:
VKA > VREF
Test Circuit 3:
V
Off State Current
Application Diagram
R
V
OUT
VIN
R1
R1
R2
CYT431
Vref
)
= Vref (1+
V
OUT
R2
GND
Thermal Consideration
Package
Power Rating
(TA=25°C)
435mW
Power Rating
(TA=50°C)
326mW
Power Rating
(TA=70°C)
239mW
SOT-23-3 (θJA=230°C/W)
SOT-23-5L (θJA=230°C/W)
TO-92 (θJA=220°C/W)
435mW
326mW
239mW
455mW
341mW
250mW
1. Maximum junction temperature is 125°C
2. θJA is measured with packages mounted onboard under still-air condition with 1W power applied.
3. Power rating is calculated using PD = (TJ – TA) /θJA, where TJ denotes junction temperature and TA denotes ambient temperature.
All contents are subject to change without prior notice.
5
Adjustable Precision
Shunt Regulator
CYT431
OUTLINE DRAWING SOT-23-3
C
DIMENSIONS
INCHES
MIN MAX
0.110 0.120
0.047 0.055
0.083 0.104
0.035 0.040
0.070 0.080
0.018 0.024
0.015 0.020
J
H
B
MM
DIMN
MIN
2.80
1.20
2.10
0.89
1.78
0.45
0.37
MAX
3.04
1.40
2.64
1.03
2.05
0.60
0.51
0.10
1.02
0.18
0.69
A
B
C
D
E
F
G
H
J
D
A
E
G
F
0.0005 0.004 0.013
0.034 0.040 0.887
0.003 0.007 0.085
K
K
L
L
-
0.027
-
OUTLINE DRAWING SC59-3L (SOT-23-3L)
DIMENSIONS
INCHE
MM
MIN MAX
DIMN
H
MIN
0.035 0.043 0.90
0.0004
MAX
A
E
A
A1
B
C
D
1.10
0.13
0.50
0.20
3.10
3.10
1.70
A1
0.005 0.01
0.012 0.020 0.30
0.004 0.008 0.09
0.110 0.122 2.80
0.098 0.122 2.50
0.059 0.067 1.50
B
e1
D
H
E
0.037REF
0.95REF
e
0.075REF
1.90REF
e1
L1
L
L
0.008 0.022
0.014 0.031
0.20
0.35
0.55
0.80
Q
SC 59-3L
Q
0
10
0
10
℃
℃
℃
℃
L1
C
OUTLINE DRAWING SOT-23-5L
K
B
DIMENSIONS
INCHES
MIN MAX MIN MAX
MM
DIMN
H
D
0.110 0.120
2.80
1.50
0.90
0.35
-
3.05
1.75
1.30
0.50
0.95
1.90
0.15
0.20
3.00
A
B
C
D
E
F
H
J
F
A
0.059 0.070
0.036 0.051
0.014 0.020
E
-
-
-
0.037
0.075
0.006
-
-
C
J
0.0035 0.008 0.090
0.102 0.118 2.60
K
All contents are subject to change without prior notice.
6
Adjustable Precision
Shunt Regulator
CYT431
OUTLINE DRAWING TO-92
DIMENSIONS
INCHES
A
MM
DIMN
B
D
MIN MAX MIN MAX
0.175 0.205 4.445 5.207
0.170 0.210 4.318 5.334
0.500 0.610 12.70 15.50
0.016 0.021 0.407 0.533
0.045 0.055 1.143 1.397
0.095 0.105 2.413 2.667
0.080 0.105 2.032 2.667
0.125 0.165 3.175 4.191
A
B
E
F
G
H
J
E
G
F
H
K
K
J
OUTLINE DRAWING SOP-8
DIMENSIONS
INCHES
MIN MAX MIN MAX
0.0532 0.0688 1.35
0.0040 0.0098 0.10
0.0130 0.0200 0.33
1
2
3
4
8
7
6
5
B
MM
DIMN
D
1.75
0.25
0.51
A
A1
B
B1
C
D
H
E
B1
A1
A
E
H
0.050 BSC
1.27 BSC
0.0075 0.0098 0.19
0.1890 0.1968 4.80
0.2284 0.2440 5.80
0.1497 0.1574 3.80
0.25
5.00
6.20
4.00
C
OUTLINE DRAWING SOT-89
DIMENSIONS
INCHES
MIN MAX
MM
MAX
DIMN
SOT-89
MIN
A
C
D
0.173 0.181 4.400 4.600
0.159 0.167 4.050 4.250
0.067 0.075 1.700 1.900
0.051 0.059 1.300 1.500
0.094 0.102 2.400 2.600
0.035 0.047 0.890 1.200
A
B
C
D
E
F
G
H
I
J
K
L
0.118REF
0.059REF
3.00REF
1.50REF
0.016 0.020 0.400 0.520
0.055 0.063 1.400 1.600
0.014 0.016 0.350 0.410
J
K
L
G
H
I
10°TYP
10°TYP
0.028REF
0.70REF
M
All contents are subject to change without prior notice.
7
厂商 型号 描述 页数 下载

CYT

 		CYT1001A [ Single Integrated LIne-ReductIon LED Control Integrated Circuit ] 11 页

CYT

 		CYT1001B [ Single Integrated LIne-ReductIon LED Control Integrated Circuit ] 11 页

CYT

 		CYT1001D [ Single Integrated LIne-ReductIon LED Control Integrated Circuit ] 11 页

ETC

 		CYT101 电压和电流控制器[ Voltage and Current Controller ] 3 页

ETC

 		CYT101AM/D 电压和电流控制器[ Voltage and Current Controller ] 3 页

ETC

 		CYT101M/D 电压和电流控制器[ Voltage and Current Controller ] 3 页

ETC

 		CYT167ELG 400毫安CMOS LDO稳压器[ 400mA CMOS LDO Regulator ] 7 页

CENTRAL

 		CYT1933D [ Power Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 2-Element, NPN and PNP, Silicon, Plastic/Epoxy, 8 Pin, PLASTIC PACKAGE-8 ] 2 页

ETC

 		CYT2506 - 12号的铝制车身绘（ RAL 7032 ） 7 页

ETC

 		CYT2508 - 12号的铝制车身绘（ RAL 7032 ） 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.280112s
