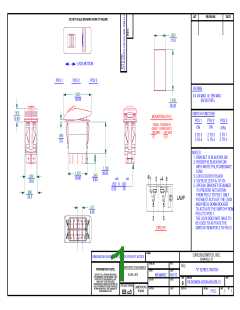

LET
REVISIONS
DATE
DO NOT SCALE DRAWING WORK TO FIGURE
.830
21.0
LOCK MOTION
POS 1
POS 2
POS 3
RATING
1.933
49.09
0.4 VA MAX. @ 28V MAX
(RESISTIVE)
1.450
36.83
.505
12.83
SWITCH FUNCTION
MOUNTING HOLE
POS 1
ON
POS 2
ON
POS 3
PANEL THICKNESS
(SNAP - IN BRACKET)
.030 MIN ---- .187 MAX
(ON)
2 TO 1
5 TO 4
2 TO 3
5 TO 6
2 TO 3
5 TO 4
.080
2.0
.76
4.75
NOTES:
1. BRACKET IS BLACK NYLON
2. ROCKER IS BLACK NYLON
WITH WHITE POLYCARBONATE
LENS
3. LOCK COLOR IS BLACK
4. 12V BLUE LED T4+ TO T8-
5. SPECIAL BRACKET DESIGNED
TO PREVENT ACTUATION
FROM POS 2 TO POS 1 ONLY
YOU MUST ACTUATE THE LOCK
AND PRESS DOWN ROCKER
TO ACTUATE THE SWITCH FROM
POS 2 TO POS 1
1.126
28.60
1.370
34.80
.340
8.64
.820
20.8
-8
±.003
±.001
1 3 +4 6
.250 X .031
6.35 .78
.960
24.3
2
LAMP
.317
8.05
THE LOCK DOES NOT HAVE TO
BE USED TO ACTUATE THE
SWITCH FROM POS 2 TO POS 3
2
5
CIRCUIT
FINISH
CARLINGSWITCH, INC.
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE
PLAINVILLE, CT
TOOL NO.
REV
TITLE
UNSPECIFIED TOLERANCES
PROPRIETARY NOTE:
"V" SERIES SWITCH
DR BY
DATE
NOTICE TO ALL PERSONS RECEIVING
X.XXX ±.015
8-8-12
KRAMARZ
THIS DRAWING. THIS DOCUMENT IS THE
PROPERTY OF CARLINGSWITCH, INC.
AND IS NOT TO BE DISCLOSED,
REPRODUCED IN WHOLE OR IN PART OR
USED FOR MANUFACTURING PURPOSES
SIZE
DWG NO.
REV.
CHK BY
DATE
VX1KXWXX-C8100-000-XBLU1
B
USED ON
PROJECTIONS
DIMENSIONS
APPD BY
DATE
SCALE:
SHT
OF
BY ANYONE WITHOUT THE CONSENT OF
CARLINGSWITCH, INC.
IN [mm]
FULL
1
1
