XW3A-P643-G11

型号：

XW3A-P643-G11

品牌：

OMRON[ OMRON ELECTRONICS LLC ]

页数：

10 页

PDF大小：

255 K

下载PDF手册
9

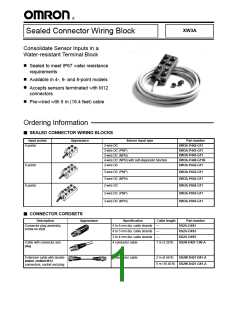

XW3A
Sealed Connector Wiring Block
Consolidate Sensor Inputs in a
Water-resistant Terminal Block
1 Sealed to meet IP67 water resistance
requirements
1 Available in 4-, 6- and 8-point models
1 Accepts sensors terminated with M12
connectors
1 Pre-wired with 5 m (16.4 feet) cable
Ordering Information
3 SEALED CONNECTOR WIRING BLOCKS
Input points
4 points
Appearance
Sensor input type
Part number
2-wire DC
XW3A-P442-G11
XW3A-P443-G11
XW3A-P445-G11
XW3A-P448-G11R
XW3A-P642-G11
3-wire DC (PNP)
3-wire DC (NPN)
4-wire DC (NPN) with self-diagnostic function
2-wire DC
6 points
8 points
3-wire DC (PNP)
3-wire DC (NPN)
2-wire DC
XW3A-P643-G11
XW3A-P645-G11
XW3A-P842-G11
3-wire DC (PNP)
3-wire DC (NPN)
XW3A-P843-G11
XW3A-P845-G11
3 CONNECTOR CORDSETS
Description
Appearance
Specification
Cable length
Part number
XS2G-D4S1
Connector plug assembly,
screw-on style
5 to 6 mm dia. cable strands ---
4 to 5 mm dia. cable strands ---
3 to 4 mm dia. cable strands ---
XS2G-D4S3
XS2G-D4S5
Cable with connector and
plug
4 conductor cable
1 m (3.28 ft)
XS2H-D421-C80-A
Extension cable with double-
ended, molded M12
connectors, socket and plug
4 conductor cable
2 m (6.56 ft)
XS2W-D421-D81-A
5 m (16.40 ft) XS2W-D421-G81-A
XW3A
XW3A
3 ACCESSORIES
Description
Appearance
Specification
Part number
XS2Z-12
Water-resistant covers for empty
connector sockets
For M12 female screw thread
For M12 male screw thread
For M12 female screw thread
For M12 male screw thread
XS2Z-11
XS2Z-13
XS2Z-15
Dust cover for connectors
Application Examples
XW3A sealed wiring blocks simplify and organize
the installation of connector cordsets. Just one
cable carries signals for up to 8 sensor inputs back
to a controller from any manufacturer. The XW3A
blocks maintain the IP67 water resistance rating at
all connection points.
Special models are available for high vibration
environments and for sensors with diagnostic
outputs.
E2E-X7D1S-M1J
Vibration-resistant cable
XW3A-P448-P11-R
Conventional sensor installation.
The XW3A Sealed Connector Wiring
Block consolidates sensor wiring.
Peripheral wiring with vibration-
resistant XW3A and sensors with
self-diagnostic function.
2
XW3A
XW3A
Specifications
3 CHARACTERISTICS
Rated current
4 points: 0.6 A
6 points: 0.4 A
8 points: 0.3 A
Rated voltage
10 to 30 VDC
Contact resistance
Insulation resistance
Dielectric strength
Enclosure rating
40 mΩ max. with 100 mA max. at 20 mV max. (See Note 1)
100 MΩ min. at 500 VDC
500 VAC for 1 min with a current leakage of 1 mA max. (See Note 2)
IP67 (IEC529)
Electrical protection
Cable retention force
Withstand insertion times
Ambient temperature
Class 0
98 N (10 kgf)/15 s
200 times
Operating: --25°C to 70°C (--13°F to 158°F)
Note: 1. The resistance indicated is the contact resistance of the connector.
2. The voltage indicated is the dielectric strength of the connector.
3 MATERIALS/FINISH
Item
Connector
Parts
Materials/Processing
Bracket
Brass plated with nickel
Contact block
Contact
Light gray polyamide resin (UL94V-0)
Brass and nickel plated with 0.4-µm-thick gold
Cable
Case
Cable
Light gray sheath.
Conductor size: 0.34 mm
Case
2-wire model: Light gray PBT resin (UL94V-0)
3-wire model: Dark gray PBT resin (UL94V-0)
Bushing
PCB
Rubber
Glass-epoxy board (FCL-GE4)
Epoxy resin
Sealing
Note: The XW3A-P448-P11-R uses a vibration-resistant cable with a black sheath and a conductor size of 0.3 mm.
3
XW3A
XW3A
3 CONNECTOR COVERS
Water-resistant Covers
XS2Z-11
XS2Z-11
M12
XS2Z-12
The water-resistant cover ensures IP67. When mounting
M12 x 1.0 female screw (thread
bracket)
the water-resistant cover to a connector, be sure to apply a
torque range between 0.39 and 0.49 N • m (4 and
5 kgf • cm) to tighten the water-resistant cover.
XS2Z-12
M12
Suitable connector
Part number
XS2Z-11
Material
Model
Mounting portion
White aluminum
XS2G/XS2H/XS2M/XS2R
XS2C/XS2R/XS2F/XS2P
M12 male screw
XS2Z-12
M12 female screw (thread bracket)
Dust Covers
XS2Z-13
XS2Z-13
The dust cover is for dust prevention and does
not ensure IP67. When mounting the dust cover
to a connector, be sure to press the dust cover
onto the connector until the connector is fully
inserted into the dust cover.
XS2Z-15
M12 female screw
(thread bracket)
XS2Z-15
Pin block (female pins)
Suitable connector
Mounting portion
Part number
Material
Model
XS2Z-13
XS2Z-15
Transparent polyvinyl chloride
Red polyvinyl chloride
XS2G/XS2H/XS2M/XS2R
XS2C/XS2R/XS2F/XS2P
M12 male screw
M12 female screw (mounting bracket)
4
XW3A
XW3A
Dimensions
Unit: mm (inch)
3 SEALED CONNECTOR WIRING BLOCKS
XW3A-P44P-G11(R)
(Four I/O Points)
Power indicator (green LED)
Operation indicator (red LED)
Three, 4.5 dia.
9 dia.
Mounting Holes
Three M3 or
a. holes
54
(2.12)
±
33 0.1
±
(1.30 0.004)
±
73 0.1
±
(2.87 0.004)
82 (3.23)
14 dia.
Note: Mounting dimensions do
not change with the
number of input points.
27.5
(1.08)
XW3A-P64P-G11
(Six I/O Points)
Power indicator (green LED)
Operation indicator (red LED)
Two, 4.5 dia.
9 dia.
54
(2.12)
82 (3.23)
100 (3.94)
9 dia. 14 dia.
27.5
(1.08)
4.5 dia.
XW3A-P84P-G11
(Eight I/O Points)
Power indicator (green LED)
Operation indicator (red LED)
Two, 4.5 dia.
9 dia.
54
(2.12)
127 (5.00)
14 dia.
9 dia.
27.5
(1.08)
4.5 dia.
5
XW3A
XW3A
3 TERMINAL ARRANGEMENT
XW3A-PP42-G11 for 2-wire DC
(With or Without Polarity)
XW3A-PP43-G11 for 3-wire DC
(PNP)
XW3A-PP45-G11 for 3-wire DC
(NPN) and 2-wire DC
(Without Polarity)
Blue (Negative
power supply)
Blue (Negative
power supply)
Blue (Negative
power supply)
Brown (Positive
power supply)
Brown (Positive
power supply)
Brown (Positive
power supply)
or
or
r
White (Signal 1)
White (Signal 1)
White (Signal 1)
O
(re
Gray (Signal 2)
Gray (Signal 2)
Pink (Signal 3)
Gray (Signal 2)
Pink (Signal 3)
Red (Signal 4)
Pink (Signal 3)
Red (Signal 4)
Black (Signal 5)
Red (Signal 4)
Black (Signal 5)
Black (Signal 5)
Purple (Signal 6)
Purple (Signal 6)
Purple (Signal 6)
White/red (Signal 7)
White/red (Signal 7)
White/red (Signal 7)
White/blue (Signal 8)
White/blue (Signal 8)
White/blue (Signal 8)
XW3A-P448-G11R for 4-wire DC
(NPN) with self-diagnostics
Blue (Negative
power supply)
Yellow (Positive
power supply)
Power indicator (green LED)
White (Signal 1)
Orange (Signal 5)
Operation indicator (red LED)
Gray (Signal 2)
White 1 (Signal 6)
Yellow 1 (Signal 3)
Blue 1 (Signal 7)
Orange 1 (Signal 4)
Gray 1 (Signal 8)
Sensor output: Signal lines 1, 2, 3, and 4
Self--diagnostic output: Signal lines 5, 6, 7, and 8
Note: 1. The above wiring diagrams are for eight-point input use.
2. Figures in parentheses indicate conductor numbers.
3. The expression “white/red” means white and red stripes.
6
XW3A
XW3A
3 INPUT DEVICE CONNECTION TYPES
Direct Connection Type
Pre-wired Type Terminated in
M12 Connector
Pre-wired Type with Optional
Screw-on Connector
XS2W Cable
with connector
Proximity Sensor
Limit Switch
Photoelectric Sensor
Proximity Sensor
Limit Switch
Photoelectric Sensor
Proximity Sensor
Limit Switch
Photoelectric Sensor
XS2G Connector
Assembly
(solderless/soldering
type)
XW3A Connector
Wiring Block
XW3A Connector
Wiring Block
XW3A Connector
Wiring Block
3 INPUT DEVICES USING SENSOR I/O CONNECTORS
Connector Terminal
Box
Cable
Input devices using Sensor I/O Connectors
XW3A-PP42-G11
-- -- --
2-wire DC Proximity Pre-wired type with E2E-X3D1-M1GJ, E2E-X3D1-M1J-T,
Sensor
M12 connector
E2E-X7D1-M1GJ, E2E-X7D1-M1J-T
E2E-X10D1-M1GJ, E2E-X10D1-M1J-T
E2E-X8MD1-M1GJ
E2E-X14MD1-M1GJ
E2E-X20MD1-M1GJ
E2EQ-X3D1-M1GJ
E2EQ-X7D1-M1GJ
E2EQ-X10D1-M1GJ
XS2W-D42P-P81-A
Direct connection
type
E2E-X3D1-M1G, E2E-X7D1-M1G
E2E-X10D1-M1G
E2E-X8MD1-M1G, E2E-X14MD1-M1G
E2E-X20MD1-M1G
-- -- --
Limit Switch
Pre-wired type with WL
- DK1EJ (See Note 1)
P P P
M12 connector
D4C-P0PP-DK1EJP (See Note 2)
XS2W-D42P-P81-A
Direct connection
type
WLP-PK13 (See Note 1)
D4E-PP10N (See Note 2)
D4CC-PPPP (See Note 2)
XW3A-PP43-G11
XW3A-PP45-G11
XS2W-D42P-P81-A
XS2W-D42P-P81-A
3-wire DC Proximity Direct connection
E2E-X2F1-M1, E2E-X5F1-M1
E2E-X10F1-M1
Sensor (PNP)
type
E2E-X5MF1-M1, E2E-X10MF1-M1
E2E-X18MF1-M1
Photoelectric
Sensor (PNP)
Direct connection
type
E3S-AT36, E3S-AT86, E3S-AD36,
E3S-AD37, E3S-AD38, E3S-AD86,
E3S-AD87, E3S-AD88, E3S-AR36, and
E3S-AR86
-- -- --
2-wire DC Proximity Pre-wired type with E2E-X3D1-M1J-T
Sensor
M12 connector
E2E-X7D1-M1J-T
E2E-X10D1-M1J-T
XS2W-D42P-P81-A
3-wire DC Proximity Direct connection
E2E-X2E1-M1, E2E-X5E1-M1
E2E-X10E1-M1
Sensor (NPN)
type
E2E-X5ME1-M1, E2E-X10ME1-M1
E2E-X18ME1-M1
XS2W-D42P-P81-A
Photoelectric
Sensor (NPN)
Direct connection
type
E3S-AT16, E3S-AT66, E3S-AD16,
E3S-AD17, E3S-AD18, E3S-AD66,
E3S-AD67, E3S-AD68, E3S-AR16, and
E3S-AR66
-- -- --
Limit Switch
Pre-wired type with WL
- DK1EJ (See Note 1)
P P P
M12 connector
D4C-P0PP-DK1EJP (See Note 2)
XS2W-D42P-P81-A
Direct connection
type
WLP-PK13 (See Note 1)
D4E-PP10N (See Note 2)
Note: 1. Any of these models is available provided that only its SPST-NO contact is used.
2. Any of these models is available provided that it uses an NO connection.
3. Use the XS2G Connector assembly in combination with a pre-wired input device.
7
XW3A
XW3A
3 ATTACHING THE XS2G CONNECTOR TO PRE-WIRED INPUT DEVICE
Input devices and connector terminal number
Connector
Wiring Block
3-wire DC (NPN)
1: +, 3: --,
2-wire DC
(with polarity)
1: +, 4: --
2-wire DC
(with polarity) (with no polarity)
3: --, 4: + 3, 4
2-wire DC
Limit switch
3-wire DC (PNP)
1: +, 3: --,
4: output
4: output
XW3A-PP42-G11 No
XW3A-PP43-G11 No
XW3A-PP45-G11 Yes
Yes
No
No
No
No
Yes
Yes
No
Yes
No
Yes
No
No
Yes
Yes
3 CONNECTOR WIRING BLOCKS FOR INPUT DEVICES WITH SENSOR I/O CONNECTORS
Input device
Cable
Connector
Wiring Block
Type
Connection method
Model
E3S-AT16/66,
E3S-AR16/66, and
Photoelectric
Sensor
Direct connection
type
XS2W-D42
-
81-A
NPN
P P
P
XW3A-P 45-G11
E3S-AD16/17/18/66/67/68
PNP
E3S-AT36/86,
E3S-AR36/86, and
E3S-AD36/37/38/86/87/88
XW3A-P 43-G11
P
Proximity
Sensor
2-wire DC
Pre-wired type with
M12 connector
-- -- --
E2E-XPD1-M1J-T
XW3A-PP45-G11
XW3A-PP42-G11
E2E-XPD1-M1GJ and
E2E-XPD1-M1J-T
E2E-XPMD1-M1GJ
E2EQ-XPD1-M1GJ
E2E-XPD1-M1G
E2E-XPMD1-M1G
E2E-XPE1-M1
Direct connection
type
XS2W-D42
-
P P
81-A
3-wire NPN
DC
P
XW3A-P 45-G11
E2E-XPME1-M1
E2E-XPF1-M1
PNP
P
XW3A-P 43-G11
E2E-XPMF1-M1
Limit Switch
XW3A-P 42-G11
XW3A-PP45-G11
Pre-wired type with
M12 connector
WL
P P
-
DK1EJ
-- -- --
P
P
(See Note 1) and
D4C-P0PP-DK1EJP
(See Note 2)
Direct connection
type
XS2W-D42
-
P P
81-A
WLP-PK13 (See Note 1)
D4E-PP10N (See Note 2)
D4CC-PPPP (See Note 2)
XW3A-PP42-G11
Note: 1. Any of these models is available provided that only its SPST-NO contact is used.
2. Any of these models is available provided that it uses an NO connection.
8
XW3A
XW3A
Precautions
3 CONNECTOR CONNECTION OR
3 APPLICABLE CONNECTORS
DISCONNECTION
Applicable Connectors are the XS2G (assembly type), XS2H
(molded type), and XS2W (molded type).
Before using a Sensor or Limit Switch, check this datasheet and
be sure that the Sensor or Limit Switch can be connected.
After a Connector is engaged, tighten the Connector securely
with a mounting bracket.
Be sure to turn off the power supplied to the XW3A before
Connector connection or disconnection.
The XS2B (assembly type) and XS2E (molded type) cannot be
used.
Do not touch the engaged side of any Connector with a wet
hand.
Be sure to put the XS2Z-12 Waterproof Cover or XS2Z-15 Dust
Cover on any Connector that is not used.
If a Connector is wet with water, wipe the Connector and be sure
that the connector is completely dry.
3 POWER SUPPLY AND OPERATION
Be sure that there is no metal plate or power on the engaged side
of any Connector.
INDICATORS
When power is supplied, the green power indicator will be lit.
When the Sensors connected to the XW3A are in operation, the
corresponding operation indicators will be lit.
3 CABLE CONNECTION
Be sure to wire the cable correctly according to the wiring
diagram so that the blue wire will be connected to the negative
power supply terminal and the brown wire will be connected to
the positive power supply terminal.
Only DC Sensors can be connected to the XW3A. Do not
connect AC Sensors. Such DC Sensors are two-wire (with
light-gray casings) or three-wire DC (with dark-gray casings)
models, both of which need negative common connection.
If there is any wiring mistake, the load will not operate or the
operation indicator will not light.
Be sure to connect a load to the signal lines to operate the
Sensor.
9
XW3A
XW3A
NOTE: DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters to inches divide by 25.4.
9
OMRON ELECTRONICS, INC.
OMRON CANADA, INC.
One East Commerce Drive
885 Milner Avenue
Schaumburg, IL 60173
Scarborough, Ontario M1B 5V8
1-800-55-OMRON
416-286-6465
Cat. No. GC RIO-1
04/00
Specifications subject to change without notice.
Printed in U.S.A.
厂商 型号 描述 页数 下载

ETC

 		XW300S4805 模拟IC\n[ Analog IC ] 2 页

OMRON

 		XW3A-P442-G11 [ Analog Circuit, ] 10 页

OMRON

 		XW3A-P445-G11 [ Analog Circuit, ] 10 页

OMRON

 		XW3A-P448-G11R [ Analog Circuit, ] 10 页

OMRON

 		XW3A-P845-G11 [ Analog Circuit, ] 10 页

OMRON

 		XW3D 连接器端子盒（ M12 ）[ Connector Terminal Boxes (M12) ] 6 页

OMRON

 		XW3D-P452-G11 连接器端子盒（ M12 ）[ Connector Terminal Boxes (M12) ] 6 页

OMRON

 		XW3D-P453-G11 连接器端子盒（ M12 ）[ Connector Terminal Boxes (M12) ] 6 页

OMRON

 		XW3D-P455-G11 连接器端子盒（ M12 ）[ Connector Terminal Boxes (M12) ] 6 页

OMRON

 		XW3D-P457-G11 连接器端子盒（ M12 ）[ Connector Terminal Boxes (M12) ] 6 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.198718s
