LY5466-PR

型号：

LY5466-PR

品牌：

INFINEON[ Infineon ]

页数：

10 页

PDF大小：

117 K

下载PDF手册

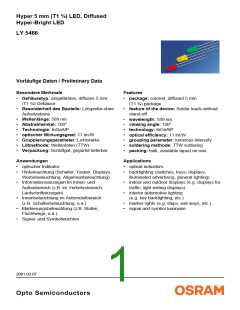

Hyper 5 mm (T1 ¾) LED, Diffused
Hyper-Bright LED
LY 5466
Vorläufige Daten / Preliminary Data
Besondere Merkmale
Features
• Gehäusetyp: eingefärbtes, diffuses 5 mm
(T1 ¾) Gehäuse
• package: colored, diffused 5 mm
(T1 ¾) package
• Besonderheit des Bauteils: Lötspieße ohne
Aufsetzebene
• feature of the device: Solder leads without
stand-off
• Wellenlänge: 589 nm
• wavelength: 589 nm
• Abstrahlwinkel: 100°
• viewing angle: 100°
• Technologie: InGaAlP
• technology: InGaAlP
• optischer Wirkungsgrad: 11 lm/W
• Gruppierungsparameter: Lichtstärke
• Lötmethode: Wellenlöten (TTW)
• Verpackung: Schüttgut, gegurtet lieferbar
• optical efficiency: 11 lm/W
• grouping parameter: luminous intensity
• soldering methods: TTW soldering
• packing: bulk, available taped on reel
Anwendungen
Applications
• optischer Indikator
• optical indicators
• Hinterleuchtung (Schalter, Tasten, Displays,
Werbebeleuchtung, Allgemeinbeleuchtung)
• Informationsanzeigen im Innen- und
Außenbereich (z.B. im Verkehrsbereich;
Laufschriftanzeigen)
• Innenbeleuchtung im Automobilbereich
(z.B. Schalterbeleuchtung, u.ä.)
• Markierungsbeleuchtung (z.B. Stufen,
Fluchtwege, u.ä.)
• backlighting (switches, keys, displays,
illuminated advertising, general lighting)
• indoor and outdoor displays (e.g. displays for
traffic; light writing displays)
• interior automotive lighting
(e.g. key backlighting, etc.)
• marker lights (e.g. steps, exit ways, etc.)
• signal and symbol luminaire
• Signal- und Symbolleuchten
2001-02-07
1
LY 5466
Typ
Emissions-
farbe
Color of
Emission
Gehäusefarbe
Lichtstärke
Lichtstrom
Bestellnummer
Ordering Code
Type
Color of
Package
Luminous
Intensity
IF = 20 mA
IV (mcd)
Luminous
Flux
IF = 20 mA
ΦV (mlm)
LY 5466-PR
LY 5466-Q
LY 5466-R
LY 5466-QS
yellow
colored, diffused
45 ... 180
71 ... 112
112 ... 180
71 ... 280
340 (typ.)
270 (typ.)
430 (typ.)
530 (typ.)
Q62703-Q3608
Q62703-Q3610
Q62703-Q3611
Q62703-Q3609
Helligkeitswerte werden mit einer Stromeinprägedauer von 25 ms und einer Genauigkeit von ±11 % ermittelt.
Luminous intensity is tested at a current pulse duration of 25 ms and an accuracy of ±11 %.
Anm.: Die Standardlieferform von Serientypen beinhaltet eine untere bzw. eine obere Familiengruppe
oder mindestens zwei Einzelgruppen.
In einer Verpackungseinheit / Gurt ist immer nur eine Helligkeitsgruppe enthalten.
Die technologiebedingte Helligkeits-Streuung der heutigen LED-Herstellprozesse über einen
längeren Fertigungszeitraum (Halbleitermaterial - Chipherstellung - Montageprozesss) erlaubt
keine Zusage einer einzelnen Helligkeitsgruppe. Daher müssen mindestens zwei
Helligkeitsgruppen vorgesehen werden!
Note: The standard shipping format for serial types includes a lower or upper family group or at least
two individual groups.
No packing unit / tape ever contains more than one luminous intensity group.
Luminosity variations caused by the technology used in current LED manufacturing processes
over a protracted manufacturing period (semiconductor material - chip fabrication - assembly
process) mean that it is not possible to assign LEDs to a single luminous intensity group. For this
reason at least two luminous intensity groups must be provided!
2001-02-07
2
LY 5466
Grenzwerte
Maximum Ratings
Bezeichnung
Parameter
Symbol
Symbol
Wert
Value
Einheit
Unit
Betriebstemperatur
Operating temperature range
Top
Tstg
Tj
– 55 … + 100
– 55 … + 100
+ 100
°C
Lagertemperatur
Storage temperature range
°C
°C
mA
A
Sperrschichttemperatur
Junction temperature
Durchlassstrom
Forward current
IF
30
Stoßstrom
IFM
0.2
Surge current
t ≤ 10 µs, D = 0.005
Sperrspannung
Reverse voltage
VR
3
V
Leistungsaufnahme
Power consumption
TA ≤ 25 °C
Ptot
80
mW
Wärmewiderstand
Thermal resistance
Sperrschicht/Umgebung
Junction/ambient
Sperrschicht/Lötpad
Rth JA
Rth JS
500
280
K/W
K/W
Junction/solder point
Montage auf PC-Board FR 4 (Padgröße ≥ 16 mm2)
mounted on PC board FR 4 (pad size ≥ 16 mm 2)
Minimale Beinchenlänge
Minimum lead length
2001-02-07
3
LY 5466
Kennwerte (TA = 25 °C)
Characteristics
Bezeichnung
Parameter
Symbol
Symbol
Wert
Value
Einheit
Unit
Wellenlänge des emittierten Lichtes
Wavelength at peak emission
IF = 20 mA
(typ.) λpeak
591
589
15
nm
Dominantwellenlänge
Dominant wavelength
IF = 20 mA
(typ.) λdom
(typ.) ∆λ
(typ.) 2ϕ
nm
nm
Spektrale Bandbreite bei 50 % Irel max
Spectral bandwidth at 50 % Irel max
IF = 20 mA
Abstrahlwinkel bei 50 % IV (Vollwinkel)
Viewing angle at 50 % IV
100
Grad
deg.
Durchlassspannung 1)
Forward voltage 1)
IF = 20 mA
(typ.) VF
(max.) VF
2.0
2.4
V
V
Sperrstrom
Reverse current
VR = 5 V
(typ.) IR
(max.) IR
0.01
10
µA
µA
Temperaturkoeffizient von λpeak
Temperature coefficient of λpeak
IF = 20 mA; –10°C ≤ T ≤ 100°C
(typ.) TCλpeak
(typ.) TCλdom
(typ.) TCV
0.13
0.10
– 2.5
11
nm/K
nm/K
mV/K
lm/W
Temperaturkoeffizient von λdom
Temperature coefficient of λdom
IF = 20 mA; –10°C ≤ T ≤ 100°C
Temperaturkoeffizient von VF
Temperature coefficient of VF
IF = 20 mA; –10°C ≤ T ≤ 100°C
Optischer Wirkungsgrad
Optical efficiency
IF = 20 mA
(typ.) ηopt
1)
Spannungswerte werden mit einer Stromeinprägedauer von 1 ms und einer Genauigkeit von ±0.1 V ermittelt.
Voltages are tested at a current pulse duration of 1 ms and an accuracy of ±0.1 V.
2001-02-07
4
LY 5466
Relative spektrale Emission Irel = f (λ), TA = 25 °C, IF = 20 mA
Relative Spectral Emission
V(λ) = spektrale Augenempfindlichkeit
Standard eye response curve
OHL00443
100
%
Ιrel
80
V
yellow
λ
60
40
20
0
400
450
500
550
600
650
nm
700
λ
Abstrahlcharakteristik Irel = f (ϕ)
Radiation Characteristic
40˚
30˚
20˚
10˚
0˚
1.0
OHL01681
ϕ
50˚
0.8
0.6
0.4
0.2
0
60˚
70˚
80˚
90˚
100˚
1.0
0.8
0.6
0.4
0˚
20˚
40˚
60
80˚
100˚
120˚
2001-02-07
5
LY 5466
Durchlassstrom IF = f (VF)
Forward Current
TA = 25 °C
Relative Lichtstärke IV/IV(20 mA) = f (IF)
Relative Luminous Intensity
TA = 25 °C
OHL00232
OHL01276
102
mA
5
10 1
IV
IV (20 mA)
IF
10 0
101
5
5
10 -1
5
100
5
10 -2
5
10-1
10 -3
10 -1
5
10 0
5
10 1
mA 10 2
1
1.4
1.8
2.2
2.6
3
V 3.4
VF
IF
Maximal zulässiger Durchlassstrom IF = f (T)
Max. Permissible Forward Current
Relative Lichtstärke IV/IV(25 °C) = f (TA)
Relative Luminous Intensity
IF = 20 mA
OHL01013
OHL01282
35
2.0
IV
IV (25 ˚C)
mA
IF
30
1.6
TA
TS
25
20
15
10
5
1.2
0.8
0.4
0
T
A temp. ambient
TS temp. solder point
0
0
20 40 60
80 ˚C 100
-20
0
20
40
60
˚C 100
T
T
A
2001-02-07
6
LY 5466
Zulässige Impulsbelastbarkeit IF = f (tp)
Permissible Pulse Handling Capability
Duty cycle D = parameter, TA = 25 °C
Zulässige Impulsbelastbarkeit IF = f (tp)
Permissible Pulse Handling Capability
Duty cycle D = parameter, TA = 85 °C
OHL01415
OHL00316
100
100
tP
tP
A
A
IF
IF
tP
T
tP
T
IF
IF
D
=
D
=
5
5
T
T
D
=
0.005
0.01
0.02
0.05
0.1
10-1
5
10-1
5
D
=
0.2
0.005
0.01
0.02
0.05
0.1
0.5
0.2
0.5
10-2
10-2
10-5 10-4 10-3 10-2 10-1 100 101 s 102
10-5 10-4 10-3 10-2 10-1 100 101 s 102
tp
tp
2001-02-07
7
LY 5466
Maßzeichnung
Package Outlines
Area not flat
7.8 (0.307)
7.5 (0.295)
5.9 (0.232)
5.5 (0.217)
1.8 (0.071)
1.2 (0.047)
29.0 (1.142)
27.0 (1.063)
0.6 (0.024)
0.4 (0.016)
Cathode
9.0 (0.354)
8.2 (0.323)
GEXY6713
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch).
Kathodenkennung:
Cathode mark:
kürzerer Lötspieß
short solder lead
Gewicht / Approx. weight: 0.35 g
2001-02-07
8
LY 5466
Lötbedingungen
Soldering Conditions
Wellenlöten (TTW)
TTW Soldering
(nach CECC 00802)
(acc. to CECC 00802)
OHLY0598
300
C
10 s
Normalkurve
standard curve
250
200
150
100
50
T
235 C ... 260 C
Grenzkurven
limit curves
2. Welle
2. wave
1. Welle
1. wave
ca 200 K/s
5 K/s
2 K/s
100 C ... 130 C
Zwangskühlung
forced cooling
2 K/s
0
0
50
100
150
200
s
250
t
Empfohlenes Lötpaddesign Wellenlöten (TTW)
Recommended Solder Pad
TTW Soldering
4 (0.157)
OHLPY985
Maße werden wie folgt angegeben: mm (inch) / Dimensions are specified as follows: mm (inch)
2001-02-07
9
LY 5466
Revision History: 2001-02-07
Previous Version: 2001-02-07
Page
Subjects (major changes since last revision)
Published by OSRAM Opto Semiconductors GmbH & Co. OHG
Wernerwerkstrasse 2, D-93049 Regensburg
© All Rights Reserved.
Attention please!
The information describes the type of component and shall not be considered as assured characteristics.
Terms of delivery and rights to change design reserved. Due to technical requirements components may contain
dangerous substances. For information on the types in question please contact our Sales Organization.
Packing
Please use the recycling operators known to you. We can also help you – get in touch with your nearest sales office.
By agreement we will take packing material back, if it is sorted. You must bear the costs of transport. For packing
material that is returned to us unsorted or which we are not obliged to accept, we shall have to invoice you for any costs
incurred.
Components used in life-support devices or systems must be expressly authorized for such purpose! Critical
components 1 may only be used in life-support devices or systems 2 with the express written approval of OSRAM OS.
1 A critical component is a component used in a life-support device or system whose failure can reasonably be expected
to cause the failure of that life-support device or system, or to affect its safety or the effectiveness of that device or
system.
2 Life support devices or systems are intended (a) to be implanted in the human body, or (b) to support and/or maintain
and sustain human life. If they fail, it is reasonable to assume that the health of the user may be endangered.
2001-02-07
10
厂商 型号 描述 页数 下载

SEOUL

 		LY500Z 绿色椭圆LED灯[ GREEN OVAL LAMP LED ] 12 页

SEOUL

 		LY501 红外灯LED[ INFRARED LAMP LED ] 14 页

POLYFET

 		LY502 [ SILICON GATE ENHANCEMENT MODE ] 2 页

POLYFET

 		LY502_14 [ RF POWER LDMOS TRANSISTOR ] 2 页

STMICROELECTRONICS

 		LY503ALH MEMS运动传感器：高性能± 30 ° / s的模拟偏航率陀螺仪[ MEMS motion sensor: high performance ±30 °/s analog yaw-rate gyroscope ] 12 页

STMICROELECTRONICS

 		LY503ALHTR MEMS运动传感器：高性能± 30 ° / s的模拟偏航率陀螺仪[ MEMS motion sensor: high performance ±30 °/s analog yaw-rate gyroscope ] 12 页

LIGITEK

 		LY5040-PF 回型LED灯[ RECTANGLE TYPE LED LAMPS ] 6 页

STMICROELECTRONICS

 		LY510ALH MEMS运动传感器：高性能± 100 ° / s的模拟偏航率陀螺仪[ MEMS motion sensor: high performance ±100 °/s analog yaw-rate gyroscope ] 12 页

STMICROELECTRONICS

 		LY510ALHTR MEMS运动传感器：高性能± 100 ° / s的模拟偏航率陀螺仪[ MEMS motion sensor: high performance ±100 °/s analog yaw-rate gyroscope ] 12 页

SEOUL

 		LY511 红外灯LED[ INFRARED LAMP LED ] 14 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.215002s
