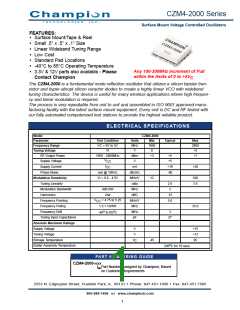

CZM4-2000 Series
Surface Mount Voltage Controlled Oscillators
Notes:
Exceeding Limits may cause permanent damage.
A series dropping resistor will allow operation at higher voltage
External bypassing of both Vcc and Vt can improve phase noise performance and power supply
decoupling.
Specifications subject to change without notice.
MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS
TEST METHODS
REFERENCE PROCEDURES
DESCRIPTION
-55°C to +125°C; Air-to-Air; 100 cycles; 10 min.
Temperature Cycle
MIL-STD-833, Mtd 1010, Cond. B
dwell
Mechanical Shock
Vibration
Humidity Steady State
Thermal Shock
Electrostatic Discharge
Solderability
MIL-STD-202, Mtd 213, Cond. D
MIL-STD 202, Mtd 204, Cond. B
MIL-STD-202, Mtd 103
MIL-STD-883, Mtd 1011.7 Cond. A
MIL-STD-883, Mtd 3015 Class II
MIL-STD-883, Mtd 2022.2
500 g’s
10-2000 Hz; 0.06 inch; 15g; 3 planes
40°C; 90%-95% R.H.; 56 days
100°C to 0°C; Water-to-Water; 15 cycles
2 KV to 4 KV Threshold
Solder dip; Meniscograph Criteria
Resistance to Soldering MIL-STD-202, Mtd 210D, Cond. J
235°C; 30 seconds
Resistance to solvents
Marking Permanence
MIL-STD-883, Mtd 2015.8
Life Test
MIL-STD-883, Mtd 1005.6
125°C, powered, 1000 hours minimum
2553 N. Edgington Street, Franklin Park, IL 60131 y Phone: 847.451.1000 y Fax: 847.451.7585
800-888-1499 or www.champtech.com
2
