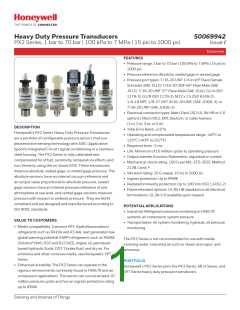

Heavy Duty Pressure Transducers
50069942
Datasheet
PX2 Series, 1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to 1000 psi
Issue I
Datasheet
FEATURES
• Pressure range: 1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to
1000 psi
• Pressure reference: Absolute, sealed gage or vented gage
• Pressure port types: 7/16-20 UNF 1/4 in 45° Flare Female
Schrader (SAE J512), 7/16-20 UNF 45° Flare Male (SAE
J513), 7/16-20 UNF 37° Flare Male (SAE J514), G1/4 (ISO
1179-3), G1/8 (ISO 1179-3), M12 x 1.5 (ISO 6149-3),
1/4-18 NPT, 1/8-27 NPT, 9/16-18 UNF, (SAE J1926-3), or
7/16-20 UNF (SAE J1926-3)
• Electrical connector types: Metri-Pack 150 (UL 94 HB or V-0
options), Micro M12, DIN, Deutsch, or cable harness
(1 m, 2 m, 3 m, or 5 m)
DESCRIPTION
• Total Error Band: 2.0 ꢀ
Honeywell’s PX2 Series Heavy Duty Pressure Transducers
are a portfolio of configurable pressure sensors that use
piezoresistive sensing technology with ASIC (Application
Specific Integrated Circuit) signal conditioning in a stainless
steel housing. The PX2 Series is fully calibrated and
compensated for offset, sensitivity, temperature effects and
non-linearity using the on-board ASIC. These transducers
measure absolute, sealed gage, or vented gage pressure. The
absolute versions have an internal vacuum reference and
an output value proportional to absolute pressure, sealed
gage versions have an internal pressure reference of one
atmosphere at sea level, and vented gage versions measure
pressure with respect to ambient pressure. They are RoHS
compliant and are designed and manufactured according to
ISO 9001 standards.
• Operating and compensated temperature range: -40°C to
125°C [-40°F to 257°F]
• Response time: <2 ms
• Life: Minimum of 10 million cycles to operating pressure
• Output transfer function: Ratiometric, regulated or current
• Mechanical shock rating: 100 G per MIL-STD-202F, Method
213B, Cond. F
• Vibration rating: 20 G sweep, 10 Hz to 2000 Hz
• Ingress protection: Up to IP69K
• Radiated immunity protection: Up to 100 V/m (ISO 11452-2)
• Flame retardant options: UL 94 HB standard on all electrical
terminations; UL 94 V-0 available upon request
POTENTIAL APPLICATIONS
• Industrial: Refrigerant pressure monitoring in HVAC/R
systems; air compressor system pressure
• Transportation: Air system monitoring; hydraulic oil pressure
monitoring
VALUE TO CUSTOMERS
• Media compatibility: Common HFC (hydrofluorocarbon)
refrigerants such as R410A and R134A, next generation low
global warming potential (GWP) refrigerants such as R448A
(Solstice® N40), R32 and R1234ZE, engine oil, petroleum-
based hydraulic fluids, DOT 3 brake fluid, and dry air. For
ammonia and other corrosive media, see Honeywell’s SPT
Series.
The PX2 Series is not recommended for use with media
involving water, saturated air such as steam and vapor, and
ammonia.
PORTFOLIO
• Enhanced durability: The PX2 Series can operate in the
rigorous environments commonly found in HVAC/R and air
compressor applications. The sensor can survive at least 10
million pressure cycles and has an ingress protection rating
up to IP69K.
Honeywell’s PX2 Series joins the PX3 Series, MLH Series, and
SPT Series heavy duty pressure transducers.
Sensing and Internet of Things
Heavy Duty Pressure Transducers
PX2 Series, 1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to 1000 psi
Table 1. Performance Specifications1
Characteristic
Parameter
-40°C to 125°C [-40°F to 257°F]
-40°C to 125°C [-40°F to 257°F]
-40°C to 125°C [-40°F to 257°F]
(See Table 3.)
Operating temperature range2
Storage temperature range3
Compensated temperature range4
Overpressure minimum rating5
Burst pressure minimum rating6
Long term stability
Accuracy7
(See Table 3.)
0.5 ꢀFSS9 (1000 hr at 25°C [77°F])
0.25 ꢀFSS9 (See Figure 1.)
1 ꢀFSS9
Offset error8
Total Error Band10
2 ꢀFSS9 (-40°C to 125°C [-40°F to 257°F]) (See Figure 1.)
Response time11
<2 ms
Turn on time12
<7 ms
Life13
minimum of 10 million cycles to operating pressure
1
2
All specifications apply at 25°C and under operating conditions unless otherwise noted.
Operating Temperature Range: The temperature range over which the product will produce an output proportional to pressure but may not remain
within the specified performance limits.
Storage Temperature Range: The temperature range over which the product may safely be exposed without excitation or pressure applied. Under
these conditions the product will remain in specification after excursion to any temperatures within this range. Exposure to temperatures outside
this range may cause permanent damage to the product.
Compensated Temperature Range: The temperature range (or ranges) over which the product will produce an output proportional to pressure
within the specified performance limits.
3
4
5
Overpressure: The absolute maximum rating for pressure which may be safely applied to the product for it to remain in specification once pressure
is returned to the operating pressure range. Exposure to higher pressure may cause permanent damage to the product.
Burst Pressure: The maximum pressure that may be applied to the product without causing escape of the pressure media. The product should not
be expected to function after exposure to any pressure beyond the rated burst pressure. This rating is also the case burst rating of the product.
Accuracy: The maximum deviation in output from a Best Fit Straight Line (BFSL) fitted to the output measured over the pressure range at 25°C.
Includes all errors due to pressure non-linearity, pressure hysteresis, and non-repeatability.
Offset Error: the maximum deviation in the output signal obtained when the reference pressure is applied at 25°C relative to the ideal transfer
function.
Full Scale Span (FSS): The algebraic difference between the output signal measured at the maximum (Pmax.) and minimum (Pmin.) limits of the
pressure range.
6
7
8
9
10
Total Error Band: The maximum deviation from the ideal transfer function over the entire compensated temperature and pressure range. Includes
all errors due to offset, full scale span, pressure non-linearity, pressure hysteresis, repeatability, thermal effect on offset, thermal effect on span,
and thermal hysteresis.
11
Response Time: The response time of the transducer is the maximum amount of time that the transducer will take for the transducer to output a
change from 10ꢀ to 90ꢀ of full scale in response to a 0ꢀ to 100ꢀ full scale step input pressure range.
12 Turn On Time: Duration from power applied until first valid output.
13
Life may vary depending on the application in which transducer is used.
Figure 1. Total Error Band (TEB) for the Total Error Band Series
All Possible Errors
Offset
Full Scale Span
Pressure Non-Linearity
Pressure Hysteresis
Pressure Non-Repeatability
Thermal Effect on Offset
Thermal Effect on Span
Thermal Hysteresis
Total
Error
Band
Accuracy
BFSL
Sensing and Internet of Things
2
Heavy Duty Pressure Transducers
PX2 Series, 1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to 1000 psi
Table 2. Electrical Specifications
Current
Ratiometric Output
Regulated Output
Output
Characteristic
Output Transfer Function Order Code1
AA
AB
AC
AD
CH
BC
BD
BE
BG
Output transfer function1:
null output value
full scale output value
10ꢀ of Vs 5ꢀ of Vs 10ꢀ of Vs 5ꢀ of Vs
90ꢀ of Vs 95ꢀ of Vs 90ꢀ of Vs 95ꢀ of Vs
4 mA
4 mA
1 V
6 V
0.25 V 0.5 V
10.25 V 4.5 V
1 V
5 V
full scale span (FSS)
80ꢀ of Vs 90ꢀ of Vs 80ꢀ of Vs 90ꢀ of Vs 16 mA
5 V
9 V
—
30 V3
10 V
13 V
—
30 V3
4 V
8 V
—
30 V3
4 V
8 V
operating supply voltage, min.(Vs)2
operating supply voltage, typ. (Vs)2
operating supply voltage, max. (Vs)2
4.75 V
5 V
4.5 V
5 V
3.135 V
3.3 V
3.135 V
3.3 V
8 V
—
30 V4
—
5.25 V
5.5 V
3.465 V
3.465 V
30 V3
Supply current (typ.)
5 mA
4 mA
—
5.5 mA
Output load (pull up or down):
minimum
maximum
2 kOhm
—
2 kOhm
—
—
(Vs - 8) x
50 Ohm4
Absolute voltage ratings5:
minimum6
-16 V
16 V
Vs
-16 V
30 V
—
-16 V
30 V
12 V
maximum6
maximum applied to output pin
(short circuit protection)7
EMC rating8:
CE compliance:
electrostatic discharge
radiated immunity
fast transient burst
immunity to conducted disturbances
radiated emissions
4 kV contact, 8 kV air per IEC 61000-4-2
10 V/m (80 MHz to 1000 MHz) per IEC 61000-4-3
1 kV per IEC61000-4-4
3 V per IEC61000-4-6
40 dB 30 MHz to 230 MHz; 47 dB 230 MHz to 1000 MHz per CISPR 11
ISO 11452-2 radiated immunity
100 V/m 200 MHz to 2 GHz 20 V/m 200 MHz to 2 GHz
1
2
3
4
5
Output transfer function options are shown in the Nomenclature and Order Guide. (See Figure 4.)
Transducer will not produce valid output when supply voltage is outside of operating range.
Applies at 25°C. See Figure 2 for Regulated Output Supply Voltage.
Applies at 25°C. See Figure 3 for Current Output Supply Voltage.
Absolute maximum ratings are the extreme limits the device can withstand without damage to the product. Voltages above these ratings may
cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability.
Absolute voltage applies to potential across power and ground terminals.
Short circuit protection between output pin and ground, and output pin and supply pin.
All EMC ratings verified with the Metri-Pack 150 electrical connector type.
6
7
8
Figure 2. Regulated Output Supply Voltage
Figure 3. Current Output Supply Voltage
Sensing and Internet of Things
3
Heavy Duty Pressure Transducers
PX2 Series, 1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to 1000 psi
Table 3. Pressure Ratings
bar
kPa
MPa
psi
Operating Over-
Burst Operating Over-
Burst Operating Over-
Burst Operating Over-
Burst
Pressure pressure Pressure Pressure pressure Pressure Pressure pressure Pressure Pressure pressure Pressure
1
1.6
2
5
5
8
100
160
250
400
600
—
500
1000
1000
1700
3100
—
800
1700
1700
2700
5100
—
1
1.6
2.5
4
3.1
5.2
6.9
6.9
6.9
13.8
13.8
—
5.1
8.6
10.3
10.3
10.3
20.6
20.6
—
15
30
70
115
250
8
150
10
10
17
31
31
31
52
69
69
69
69
138
138
17
50
250
400
2.5
4
17
100
150
200
250
300
500
600
667
750
800
850
1000
450
750
27
4.6
6
450
750
6
51
750
1250
1250
1500
1500
1500
1500
2250
2250
3000
3000
8
51
—
—
—
7
750
10
16
25
34
40
46
60
70
51
—
—
—
—
1000
1000
1000
1000
1500
1500
2000
2000
86
—
—
—
—
—
—
103
103
103
103
206
206
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Table 4. Pressure Reference Types
Pressure Reference
Description
Output is proportional to the difference between applied pressure and a built-in fixed reference to
vacuum (zero pressure), where the minimum operating pressure is set to absolute zero pressure
(perfect vacuum).
Absolute
Output is proportional to the difference between applied pressure and a built-in fixed reference to
1 atmA, where the minimum operating pressure is set to 14.7 psiA (1 atmA).
Sealed gage1
Sensor measures pressure relative to ambient pressure. Output is proportional to the difference
between applied pressure and atmospheric (ambient) pressure, where the minimum operating
pressure is set to atmospheric pressure.
Vented gage2
1
2
Sealed gage option only available in pressure ranges at or above 100 psi.
Vented gage option only available in pressure ranges between 100 psi and 667 psi.
Sensing and Internet of Things
4
Heavy Duty Pressure Transducers
PX2 Series, 1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to 1000 psi
Table 5. Environmental and Mechanical Characteristics
Characteristic
Mechanical shock
Vibration
Parameter
100 G per MIL-STD-202F, Method 213B, Cond. F (at 25°C)
20 G sweep, 10 Hz to 2000 Hz (at 25°C)
Enclosure rating
Wetted materials:
port
substrate
adhesives
per electrical connector type selection (See Figure 5.)
304 stainless steel
alumina ceramic
epoxy
electronics
glass, silicon
External materials:
housing
304 stainless steel
connector:
UL 94 HB (standard)
UL 94 V-0 (optional)
cable jacket
PBT 30ꢀ GF, black
PBT 30ꢀ GF, natural (beige)
TPE
Installation torque
per pressure port type (See Figure 6.)
CAUTION
PRODUCT DAMAGE DUE TO MECHANICAL ISSUES
• Ensure torque specifications are determined for the specific application. Values provided are for reference only. (Mating
materials and thread sealants can result in significantly different torque values from one application to the next.)
• When using mating parts made of stainless steel, use a thread sealant with anti-seize properties to prevent thread galling.
Ensure the sealant is rated for the application.
• Use appropriate tools (such as an open ended wrench or deep well socket) to install transducers.
• Always hand-start transducers into the hole to prevent cross threading and damage.
• Ensure that torque is not applied to the electrical connector.
• Ensure that the proper mating electrical connector with a seal is used to connect the transducer. Improper or damaged seals
can compromise ingress protection, leading to short circuits.
Failure to comply with these instructions may result in product damage.
CAUTION
PRODUCT DAMAGE DUE TO PARTICULATES
• Ensure that a filter is used upstream of the transducer to keep media flow free of larger particulates and increased humidity. All
PX2 Series transducers are dead-ended devices; particulate accumulation and condensing moisture may affect sensor output.
• It is recommend that the transducer be positioned with the port facing downwards; any particulates in the system are less
likely to enter and settle within the pressure transducer if it is in this position.
• Ensure that the media does not create a residue when dried. Build-up inside the transducer may affect transducer output;
rinsing of a dead-ended transducer is potentially difficult and has limited effectiveness in removing residue.
Failure to comply with these instructions may result in product damage.
Sensing and Internet of Things
5
Heavy Duty Pressure Transducers
PX2 Series, 1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to 1000 psi
Figure 4. Nomenclature and Order Guide
Sensing and Internet of Things
6
Heavy Duty Pressure Transducers
PX2 Series, 1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to 1000 psi
Figure 5. Electrical Connector Type Dimensions (For reference only: mm/[in].)
“H”
A
Metri-Pack 150, Standard
(UL 94 HB)
B
C
DIN
Micro M12
(IEC 61076-2)
J
(EN 175301-803C)
Metri-Pack 150
(UL 94 V-0)
Connector: DELPHI 12078088
Connector: IEC 61076-2-101
Connector: EN 175301-803C
Mating Connector: EN 175301-803C
DIN 43650C 8MM
IP Rating1: IP65 (all versions)
Mating Connector: DELPHI 12110192 Mating Connector: 4 POS TYPE D
IP Rating1: IP65 (all versions)
IP Rating1: IP65/IP67 (absolute, sealed
gage versions) , IP65 (vented gage
versions)
Voltage
Output
Current
Output
Voltage
Output
Current
Output
Voltage
Output
Current
Output
Pin
Pin
Pin
A
GND
V+
RTN
1
3
V+
supply
RTN
1
2
GND
V+
RTN
supply
NC
B
supply
GND
3
Vout
NC
C
Vout
NC
4
Vout
NC
PE
NC
1
4
B
C
A
3
2
1
PE
3
17,0
[0.67]
ø17,0
[0.67]
Hole
(vented gage
versions only)
Hole
(vented gage
versions only)
Hole
(vented gage
versions only)
ø11,5
[0.45]
“H” = 46,0
[1.81]
“H” = 40,7
“H” = 36,2
[1.46]
[1.60]
1
IP rating is determined by the electrical connection chosen.
Sensing and Internet of Things
7
Heavy Duty Pressure Transducers
PX2 Series, 1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to 1000 psi
Figure 5. Electrical Connector Type Dimensions (continued)
“H”
E Cable Harness, 1 Meter2
D
F Cable Harness, 2 Meter2
G Cable Harness, 3 Meter2, 3
H Cable Harness, 5 Meter2, 3
Deutsch
(DTM04-3P)
Connector: Deutsch DTM04-3P
Mating Connector: DTM06-3S
IP Rating1: IP65, IP67, IP69K (absolute,
sealed gage versions), IP65 (vented gage
versions)
Connector: 24 AWG with TPE Jacket
Mating Connector: Flying leads
IP Rating1: IP65, IP67, IP69K (absolute, sealed gage versions)
Voltage
Output
Current
Output
Voltage
Output
Current
Output
Pin
Wire Color
Wire Color
1
2
3
GND
Vout
V+
RTN
NC
red
V+
red
supply
black
white
GND
Vout
black
RTN
supply
2
B
B
1
3
A
A
C
20,61
[0.81]
ø16,1
ø16,1
[0.63]
[0.63]
Hole
(vented gage
versions only)
“H” = 55,0
[2.16]
“H” = 55,0
[2.16]
“H” = 51,2
[2.01]
1 IP rating is determined by the electrical connector type chosen.
2 Three-wire cable is required for ratiometric and regulated outputs; two wire cable is required for current output.
3 Three meter and five meter cables are only available with Output Transfer Function CH = Current, 4 mA to 20 mA.
Sensing and Internet of Things
8
Heavy Duty Pressure Transducers
PX2 Series, 1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to 1000 psi
Figure 6. Pressure Port Type Dimensions (For reference only: mm/[in].)1
22 Hex flat to flat
[0.87]
“P”
F1 7/16-20 UNF 1/4 in 45º Flare Female Schrader (SAE J512) F2 7/16-20 UNF 45º Flare Male (SAE J513)
Seal: 45º cone
Seal: 45º cone
Mating geometry: SAE J512
Mating geometry: SAE J513
Installation torque2: 17 N m [12.5 ft-lb]
Installation torque2:1/4 Turn from finger tight
“P” = 17,4
[0.68]
“P” = 19,2
[0.75]
12,3
[0.49]
12,3
[0.49]
F3 7/16-20 UNF 37º Flare Male (SAE J514)
G1 G1/4 ( ISO 1179-3)
Seal3,4: 37º cone
Seal3,4: O-ring
Mating Geometry: SAE J514
Mating geometry: ISO 1179-1
Installation Torque2: 16 N m [11.8 ft-lb]
Installation torque2: 50 N m [38.9 ft-lb]
“P” = 20,5
[0.81]
“P” = 16,2
[0.64]
11,2
15,5
[0.44]
[0.61]
G2 G1/8 (ISO 1179-3)
M1 M12 X 1.5 (ISO 6149-3)
Seal3,4: O-ring
Seal2,3: O-ring
Mating geometry: ISO 1179-1
Mating geometry: ISO 6149-1
Installation torque2: 25 N m [18.4 ft-lb]
Installation torque2: 25 N m [18.4 ft-lb]
“P” = 18,5
“P” = 12,6
[0.50]
[0.73]
13,5
[0.53]
7,6
[0.30]
N1 1/4–18 NPT
Seal: pipe thread
N2 1/8–27 NPT
Seal: pipe thread
Mating geometry: ANSI B1.20.1
Installation torque2: 2 to 3 turns
from finger tight
Mating geometry: ANSI B1.20.1
Installation torque2: 2 to 3 turns
from finger tight
“P” = 20,0
[0.79]
“P” = 15,0
[0.59]
15,0
[0.59]
10,0
[0.39]
S1 9/16–18 UNF (SAE J1926-3)
S2 7/16–20 UNF (SAE J1926-3)
Seal3,4: O-ring
Seal3,4: O-ring
Mating geometry: SAE J1926-1
Mating geometry: SAE J1926-1
Installation torque2: 30 N m [22.1 ft-lb]
Installation torque2: 18 N m [12.3 ft-lb]
“P” = 18,5
[0.73]
“P” = 17,5
[0.69]
13,5
12,5
[0.49]
[0.53]
1
2
3
4
See CAUTION “PRODUCT DAMAGE DUE TO MECHANICAL ISSUES” on page 5.
Straight thread maximum torque is validated to 150ꢀ of installation torque.
Seals for pressure port type order codes S1, S2, M1, G1 and G2 are included and assembled to the sensors.
O-ring material is nitrile 70 durometer -30ºC to 125ºC [-22ºF to 257ºF].
Sensing and Internet of Things
9
ADDITIONAL INFORMATION
The following associated literature is available on the
Honeywell web site at sensing.honeywell.com:
WARNING
PERSONAL INJURY
DO NOT USE these products as safety or emergency stop
devices or in any other application where failure of the
product could result in personal injury.
• Product line guide
• Product range guide
• Product installation instructions
• Application notes:
Failure to comply with these instructions could result in
death or serious injury.
- Heavy Duty Pressure Transducers, PX2 Series and PX3
Series
WARNING
MISUSE OF DOCUMENTATION
- PX2 Series and PX3 Series Heavy Duty Pressure
Transducers for Potential Use in Industrial Refrigeration
- PX2 Series and PX3 Series Heavy Duty Pressure
Transducers for Potential Use in Industrial HVAC/R
Applications
• The information presented in this datasheet is for reference
only. Do not use this document as a product installation
guide.
• Complete installation, operation, and maintenance
information is provided in the instructions supplied with
each product.
• Technical notes:
- Total Error Band Specification for Honeywell Heavy
Duty Pressure Transducers, PX2 Series and PX3 Series
Failure to comply with these instructions could result in
death or serious injury.
- Media Compatibility for Honeywell Heavy Duty
Pressure Transducers, PX2 Series and PX3 Series
• CAD models
Warranty/Remedy
Honeywell warrants goods of its manufacture as being free
of defective materials and faulty workmanship during the
applicable warranty period. Honeywell’s standard product
warranty applies unless agreed to otherwise by Honeywell
in writing; please refer to your order acknowledgement or
consult your local sales office for specific warranty details.
If warranted goods are returned to Honeywell during the
period of coverage, Honeywell will repair or replace, at its
option, without charge those items that Honeywell, in its sole
discretion, finds defective. The foregoing is buyer’s sole
remedy and is in lieu of all other warranties, expressed or
implied, including those of merchantability and fitness for
a particular purpose. In no event shall Honeywell be liable
for consequential, special, or indirect damages.
While Honeywell may provide application assistance
personally, through our literature and the Honeywell web site, it
is buyer’s sole responsibility to determine the suitability of the
product in the application.
Find out more
Honeywell serves its customers through
a worldwide network of sales offices and
distributors. For application assistance,
current specifications, pricing or name
of the nearest Authorized Distributor,
contact your local sales office.
Specifications may change without notice. The information we
supply is believed to be accurate and reliable as of this writing.
However, Honeywell assumes no responsibility for its use.
To learn more about Honeywell’s
sensing and switching products, call
+1.815.235.6847 or 1.800.537.6945,
visit sensing.honeywell.com, or e-mail
inquiries to info.sc@honeywell.com
Honeywell Sensing and Internet of Things
9680 Old Bailes Road
500599462-I-EN | I | 06/17
© 2017 Honeywell International Inc.
Solstice® N40 is a registered trademark of Honeywell International Inc.
Fort Mill, SC 29707
www.honeywell.com
厂商 型号 描述 页数 下载

JAE

 		PX20-FRL15H-C2 [ PCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Straight, LEAD FREE ] 8 页

JAE

 		PX20-FRL15K-C2 [ PCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Straight, LEAD FREE ] 8 页

JAE

 		PX20-FRL15N-C2 [ PCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Straight, LEAD FREE ] 8 页

JAE

 		PX20-FRR15H-C2 [ PCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Straight, LEAD FREE ] 8 页

JAE

 		PX20-FRR15K-C2 [ PCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Straight, LEAD FREE ] 8 页

JAE

 		PX20-FSL15H-C2 [ PCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Straight, LEAD FREE ] 8 页

JAE

 		PX20-FSL15K-C2 [ PCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Straight, LEAD FREE ] 8 页

JAE

 		PX20-FSL15N-C2 [ PCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Straight, LEAD FREE ] 8 页

JAE

 		PX20-FSLP-C2 [ PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal ] 9 页

JAE

 		PX20-FSR15K-C2 [ PCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Straight, LEAD FREE ] 8 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.188082s
