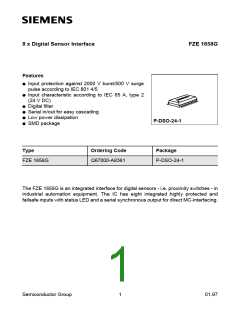

FZE 1658G
8 x Digital Sensor Interface
Features
● Input protection against 2000 V burst/500 V surge
pulse according to IEC 801 4/5
● Input characteristic according to IEC 65 A, type 2
(24 V DC)
● Digital filter
● Serial in/out for easy cascading
● Low power dissipation
● SMD package
P-DSO-24-1
Type
Ordering Code
Package
FZE 1658G
Q67000-A8361
P-DSO-24-1
The FZE 1658G is an integrated interface for digital sensors - i.e. proximity switches - in
industrial automation equipment. The IC has eight integrated highly protected and
failsafe inputs with status LED and a serial synchronous output for direct MC-interfacing.
Semiconductor Group
1
01.97
FZE 1658G
Pin Configuration
(top view)
Semiconductor Group
2
FZE 1658G
Pin Definitions and Functions
Pin Symbol Function
15, 13, 11, 9, I0 - I7
5, 3, 1, 23
Inputs for 24-V signals, in conjunction with RV and REXT
current sink characteristic.
16, 14, 12,
10, 6, 4, 2, 24
L0 - L7 Outputs for the status LEDs; LED lights when H-signal is
present at input.
21
CT
Pin for connecting the frequency-determining capacitor for
the filter clock; also reset input if CT is connected to DGND.
7
GND
Ground for all 24-V signals, substrate.
22
DGND
Ground for all 5-V signals, no internal connection to GND.
Any interruption of GND or DGND with the supply voltage
present may result in destruction of the device.
8
VS
Supply voltage; undervoltage activates internal reset.
Serial output, open drain.
20
17
SO-N
SE-N
Extention input for serial cascading with pull-up current
source.
18
19
LO-N
Latch input, edge H-L results in transfer of data from the
digital filters to the output register.
Clock for serial output, positive edge triggered.
T
Semiconductor Group
3
FZE 1658G
Functional Description and Application
The Integrated circuit FZE 1658G is used to detect the signal states of eight independent
input lines according to IEC 65A Type 2 (e.g. two-wire proximity switches) with a
common ground (GND). For operation in accordance with IEC 65A, it is necessary for
the device to be wired with resistors rated RV = 820 Ω and REXT = 4.4 kΩ with ± 2 %
tolerance and 200 ppm TK. The input device has the following characteristics:
– Minimization of power dissipation due to constant current characteristic
– Inputs protected against reverse polarity and transient overvoltages
– Status LED output for each input
– Digital averaging of the input signals to suppress interference pulses
– Serial output of the detected signals (cascadable)
Maximum voltage ratings at inputs D0 ... D7 within test circuit 2.
Voltage Range
Notes
DC voltage
– 3 V … + 32 V
– 32 V … + 32 V
full function
non-destructive, no latch-up
Overvoltage 500 ms
– 3 V … + 35 V
– 35 V … + 35 V
full function
non-destructive, no latch-up
Overvoltage 1.3 ms
to VDE 0160
– 3 V … + 55 V
± 55
full function
non-destructive, no latch-up
1)
Surge pulse 50 µs
± 0.5 kV
to IEC 801-5, Zi = 2 Ω
2)
Burst pulse 50 ns
± 2 kV
to IEC 801-4, Zi = 50 Ω
1)
Non-destructive in temperature range 15 °C ≤ TA ≤ 35 °C.
In temperature range 15 °C ≤ TA ≤ 35 °C:
2)
Data retained if the supply voltage remains within the operating range; without supply voltage
non-destructive.
The rated voltage may be applied to all inputs simultaneously.
The values given in the table may be regarded as guaranteed, but are only checked as
part of a qualification (no 100 % series testing).
Within the application circuit given the same voltage ratings as above apply for the
supply line.
Semiconductor Group
4
FZE 1658G
Circuit Description
In IEC 65A, the following values are specified for 24-VDC input stages of type 2:
Level
Input Voltage
Input Current
1
0
min. 11 V
max. 11 V
or max. 5 V
min. 6 mA
max. 2 mA
The current in the input circuit is determined by the switching element in state “0” and by
characteristics of the input stage in state “1”.
The octal input device FZE 1658G is intended for a configuration comprising two
specified external resistors per channel, as shown in the block diagram. As a result the
power dissipation within the P-DSO-24-1 package is at a minimum.
The voltage dependent current through the external resistor REXT is compensated by a
negative differential resistance of the current sink across pins E and L, therefore input D
behaves like a constant current sink.
The comparator assigns level 1 or 0 to the voltage present at input E. To improve
interference protection, the comparator is provided with hysteresis and a delay element.
A status LED is connected in series with the input circuit (REXT and current sink). The
LED drive short-circuits the status LED if the comparator detects “0”. A constant current
sink in parallel with the LED reduces the operating current of the LED, and a voltage
limiter ensures that the input circuit remains operational if the LED is interrupted. The
specified switching thresholds may change if the LED is interrupted.
For each channel a digital filter is provided which samples the comparator signal at a rate
provided by the clock oscillator. The digital filter is designed as a 5-section shift register.
If any four out of 5 sampling values are identical, the output S changes to the
corresponding state.
On a falling edge at input LO-N, the parallel data S0 - S7 are clocked into the output shift
register. The data can be shifted out serially to the output SO-N by the clock signal T,
with a “1” at the input being represented by a L-signal at the output SO-N. The serial
interface of the shift register fits the synchronous interface of the 8051 microcontroller
(see diagram Serial Data Output Function). By connecting output SO-N to input SE-
N of the next device, several FZE 1658G can be cascaded (see Application Circuit).
SO-N is designed as an open-drain output. SE-N has an internal pull-up current source.
Inputs SE-N, T and SO-N have Schmitt trigger characteristics. The device has separate
ground pins for the input circuitry (GND) and for the logic (DGND). If the supply voltage
falls below VUSR or CT is connected to DGND, the output shift register will be cleared and
the output SO-N disabled. If the supply voltage is too low, the LED drives will also be
disabled, i.e. the LED lights as soon as current flows in the input circuit.
Semiconductor Group
5
FZE 1658G
Block Diagram
Semiconductor Group
6
FZE 1658G
Absolute Maximum Ratings
Tj = – 40 to 150 °C
Parameter
Symbol
Limit Values Unit Notes
min.
max.
Transient input current
inputs I0 - I7
II
– 0.6
– 1.2
– 2.5
0.6
1.2
2.5
A
A
A
t50 % ≤ 50 µs
t50 % ≤ 1.2 µs
t50 % ≤ 50 ns
Ground current
IGND
– 5
– 10
5
10
A
A
t
t
50 % ≤ 50 µs
50 % ≤ 50 ns
Junction temperature
Storage temperature
Tj
– 40
– 50
150
125
95
°C
°C
TS
Thermal resistance
System/air
Rthja
K/W soldered-in
Transient thermal resistance;
Same current through all
inputs I0 - I7
Zth
Zth
0.15
0.4
K/W 50 µs pulse
K/W 120 µs pulse
Supply voltage
VS
– 0.3
– 4
65
4
V
Ground offset DGND to GND
Current at the LED outputs
VDGND
IL
V
VDGND < VS
– 15
15
mA
mA
mA
mA
– 500
– 250
– 125
500
250
125
t50 % ≤ 50 µs
t50 % ≤ 1.2 µs
t50 % ≤ 50 µs
Voltage at
T, LO-N, SO-N, SE-N
VLOG
CCT
– 4
– 0.3
9
9
V
V
referred to DGND
Capacitance at CT
2
µF
when VS falls
below VCT
ESD voltage 100 pF / 1.5 kΩ
VESD
1000
1000
V
MIL Std. 883
Meth. 3015
All voltages are, unless otherwise specified, referred to GND. This also applies to the
operating range and the characteristics.
Semiconductor Group
7
FZE 1658G
Operating Range
Parameter
Symbol
Limit Values Unit Notes
min.
max.
Supply voltage
VS
10
48
V
Note power
dissipation1)
Supply voltage rise
SRVS
– 0.1
9
1
V/µs
V
2)
Supply voltage
VS-VDGND
VDGND
IIT
GND potential difference
Input terminal current
Input voltage SE-N, T, LO-N
– 1.5
– 10
1.5
10
V
mA
VIH
VIL
2.8
– 0.5
6
1.7
V
V
Input current SE-N, T, LO-N
Junction temperature
Ambient temperature
Clock frequency
II
– 1
1
mA Clamp current
Tj
– 25
– 25
150
105
1
°C
TA
°C
Dependent on Rth
fT
MHz
ns
Clock pulse width H or L
SE-N set up time to T ↑
LO-N set up time to T ↑
tTH, tTL
tVSE
tVLO
300
300
1.2
ns
µs
3)
SE-N, LO-N, T rise and fall time tr, tf
3
µs
within thresholds
1)
Input voltages may rise before the supply voltage.
Full function at VS > VVSRO (see Characteristics).
2)
3)
Limits GND potential difference at minimum supply voltage.
Also applies to several cascaded FZE 1658G (note dependence with clock frequency).
For definition of timing items, see timing diagram.
Semiconductor Group
8
FZE 1658G
Characteristics
VS = 15 Vto 30 V; VDGND = 0, Tj = – 25 °C < Tj < 125 °C
Parameter
Symbol
Limit Values
min. typ. max.
Inputs I0 - I7 or D0 - D7 Respectively
Unit Test Condition Test
Circuit
Switching
threshold H
VDH
10.85 V
2
2
1)
Switching
threshold L
VDL
8
V
VL ≤ 2.2 V
VL ≤ 2.2 V
Hysteresis
VDHY
IDLL
1
V
2
2
Switching
2.5
mA
ILED = 0
threshold L
Input current
Input current
Input current
IDH
IDL
6.21)
5
8
7
mA VL ≤ 3.5 V,
VD = 11 … 30 V
2
2
mA VL = VLL,
VD = 5 V
IIC +
1
mA VI = 30 V 2)
1
1
Input clamp voltage VIT +
35
75
V
II = 10 mA,
Tj = 25 °C 2)
Input current
IIC –
– 1
mA VI = – 30 V 2)
1
1
Input clamp voltage VIT –
– 75
– 35
V
II = – 10 mA,
Tj = 25 °C 2)
1)
Headroom to IEC 65 A for tolerance of ext. resistor.
2)
Also valid at VS = 0.
Semiconductor Group
9
FZE 1658G
Characteristics (cont’d)
VS = 15 Vto 30 V; VDGND = 0, Tj = – 25 °C < Tj < 125 °C
Parameter
Symbol
Limit Values
min. typ. max.
Unit Test Condition Test
Circuit
LED Drive L0 - L7
Open-load voltage VLO
3.5
0
5
V
V
VD = 24 V,
LED = 0
2
2
I
“Low”- voltage
Output current
Output current
VLL
ILED
ILED
IL
0.75
5
VD = 5 V,
LED = 0
I
3
mA VD = 11 … 30 V, 2
VL = 1.5 … 3 V
1.5
– 0.12
7.5
6
mA VD = 11 … 30 V, 2
VL = 1.2 … 3.5 V
Power down
mA VS < VVSRU
1
output current
←
Propagation delay tDL
rising and falling
edge
75
µs
VD = 12 V
7V
2
→
Oscillator
CT source/sink
current
ICT
150
250
µA
1
Frequency
fCT
1
1.5
4.3
kHz CT = 39 nF
2
2
Upper switching
threshold
VCTP
3.3
V
Lower switching
threshold
VCTN
1.4
2.2
1.4
V
2
Reset threshold
VCTR
0.8
– 300
2
V
1
1
2
Reset input current ICTR
Signal delay
– 150 µA
4 ms
VCT = 0.8 V
CT = 39 nF
tDFI
Semiconductor Group
10
FZE 1658G
Characteristics (cont’d)
VS = 15 Vto 30 V; VDGND = 0, Tj = – 25 °C < Tj < 125 °C
Parameter
Symbol
Limit Values
Unit Test Condition Test
Circuit
min.
typ.
max.
5-V Logic
Input current
T, LO-N
II
– 10
10
µA
Vi = 0 … 5 V
Vi = 0 … 3 V
1
Input current SE-N IISE
– 600
0
– 400 µA
1
1
Input current
T, LO-N, SE-N
II0
20
µA
Vi = 0 … 5 V
VS = 0 V
Input capacitance
CI
10
8
pF
1
1
L-output current
SO-N
ISOL
5.5
mA VQ = 3 … 5 V
L-output level SO-N VSOL
0
0
0.5
50
V
ISO = 2 mA
VSO = 5 V
1
1
H-leakage current ISOH
µA
SO-N
Output
capacitance SO-N
CSOH
20
50
pF
ns
VSO = 1.5 V
VSO = 2.5 V
1
1
Rise/fall time of
output current
SO-N
trSO, tfSO
Delay time
T to SO-N
(see timing
diagram)
tSOT
150
300
ns
ns
VSO = 2.5 V
VSO = 2.5 V
1
1
Delay time
LO-N to SO-N
(see timing
diagram)
tSOLO
Hysteresis SE-N,
LO-N
60
mV no 100% testing
Semiconductor Group
11
FZE 1658G
Characteristics (cont’d)
VS = 15 Vto 30 V; VDGND = 0, Tj = – 25 °C < Tj < 125 °C
Parameter
Symbol
Limit Values
Unit Test Condition Test
Circuit
min.
typ.
max.
Hysteresis
Clock input
200
mV no 100% testing
Voltage Supply
Current drain static IS
2
2
5
mA VS = 10 … 30 V 2
V
LO-N = 5 V
VT = 5 V
SE-N = 0
I
Current drain
during serial
readout
IS
6
mA VS = 10 … 40 V 2
LO-N = 0 V
V
fT = 1 MHz
Current drain
during high supply
voltage
ISMAX
7
mA VS < 45 V
2
1
Logic ground
current
IDGND
– 2.5
0
mA VDGND =
– 1.5 … 1.5 V,
LO-N = H
Under voltage
lockout
VVSRO
VVSRU
VVSRH
10
V
V
V
upper switching 2
treshold
lower switching 2
threshold
8
0.2
hysteresis
2
Semiconductor Group
12
FZE 1658G
Test Circuit 1
Test Circuit 2
Semiconductor Group
13
FZE 1658G
Application Circuit
Supply Voltage Decoupling Circuit
Cascading Multiple FZE 1658G
Semiconductor Group
14
FZE 1658G
Serial Data Output Function
Semiconductor Group
15
FZE 1658G
Timing Diagram
Semiconductor Group
16
FZE 1658G
Input Characteristic with Worst-Case
Values per IEC 65A Input D Rest Circuit D
Semiconductor Group
17
FZE 1658G
Package Outlines
Plastic-Package, P-DSO-24-1 (SMD)
(Plastic Dual Small Outline Package)
Sorts of Packing
Package outlines for tubes, trays etc. are contained in our
Data Book “Package Information”.
Dimensions in mm
SMD = Surface Mounted Device
Semiconductor Group
18
厂商 型号 描述 页数 下载

PANDUIT

 		FZE10-10M1 [ Opti-Core 10Gig 50/125um (OM3/OM4) Patch Cords and Pigtails ] 1 页

INFINEON

 		FZE1658G 8×数字传感器接口[ 8 x Digital Sensor Interface ] 18 页

PANDUIT

 		FZE3-10M1 [ Opti-Core 10Gig 50/125um (OM3/OM4) Patch Cords and Pigtails ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.231992s
