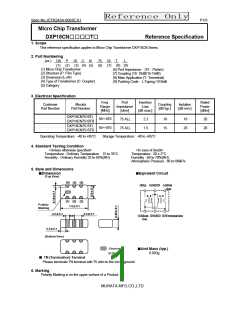

Reference Only
Spec No.JEFK243A-0003E-01
P1/9
Micro Chip Transformer
DXP18CN□□□□T□
Reference Specification
1. Scope
This reference specification applies to Micro Chip Transformer DXP18CN Series.
2. Part Numbering
(ex.) DX
(1)
P
18
C
N
75 10
(6) (7)
T
L
(2) (3) (4) (5)
(8) (9)
(1) Micro Chip Transformer
(2) Structure (P: Film Type)
(3) Dimension (LW)
(6) Port Impedance (75 : 75ohm)
(7) Coupling (10: 10dB/15:15dB)
(8) Main Application (T: Terrestrial)
(9) Packing Code L:Taping / B:Bulk
(4) Type of Transformer (C: Coupler)
(5) Category
3. Electrical Specification
Freq.
Range
[MHz]
Port
Impedance
[ohm]
Insertion
Loss
[dB max.]
Rated
Power
[dBm]
Customer
Part Number
Murata
Part Number
Coupling
[dB typ.]
Isolation
[dB min.]
DXP18CN7510TL
DXP18CN7510TB
DXP18CN7515TL
DXP18CN7515TB
50～870
50～870
75 ALL
75 ALL
2.3
1.5
10
15
18
20
20
20
Operating Temperature : -40 to +85°C
Storage Temperature : -40 to +85°C
4. Standard Testing Condition
<Unless otherwise specified>
<In case of doubt>
Temperature : 20 ± 2°C
Humidity : 60 to 70%(RH)
Temperature : Ordinary Temperature 15 to 35°C
Humidity : Ordinary Humidity 25 to 85%(RH)
Atmospheric Pressure : 86 to106kPa
5. Style and Dimensions
■Dimension
■Eqivalent Circuit
(Top View)
(6) (5) (4)
(6)In (5)GND (4)Sub
Out
(1) (2) (3)
Polarity
Marking
1.6±0.1
0.2±0.1
0.4±0.1
(1)Main
Out
(2)GND (3)Termination
0.3±0.1
(Bottom View)
: Electrode
(in mm)
■Unit Mass (typ.)
0.003g
■ TN (Termination) Terminal
Please terminate TN terminal with 75 ohm to the circuit ground.
6. Marking
Polarity Marking is on the upper surface of a Product.
MURATA MFG.CO.,LTD
Reference Only
Spec No.JEFK243A-0003E-01
P2/9
7. Electrical Performance
No.
Item
Specification
Meet item 3.
Definition and Measurement Method
7.1 Insertion
Insertion Loss is given by S12 mag extracted from the below circuit.
Loss
(IL)
Parasitics and loss factors caused by the test board have to be removed.
Port Impedance [ohm]: All 75 ohm
IL[dB] = 20log10(S12)
IN
MO
GND
Port1
Port2
GND
SO
TN
Port3
Port4
7.2 Coupling
Meet item 3.
Coupling is given by S42 mag extracted from the below circuit.
Parasitics and loss factors caused by the test board have to be removed.
Port Impedance [ohm]: All 75 ohm
Coupling[dB] = 20log10(S42)
IN
MO
GND
Port1
Port2
GND
SO
TN
Port3
Port4
7.3 Isolation
Meet item 3.
Isolation is given by S41 mag extracted from the below circuit.
Parasitics and loss factors caused by the test board have to be removed.
Port Impedance [ohm]: All 75 ohm
Coupling[dB] = 20log10(S41)
IN
MO
GND
Port1
Port2
GND
SO
TN
Port3
Port4
MURATA MFG.CO.,LTD
Reference Only
Spec No.JEFK243A-0003E-01
P3/9
8. Mechanical Performance
No.
Item
Specification
Test Method
8.1 Appearance
and
Meet all dimension on item 5.
Visual Inspection and measurement with microscope.
Dimensions
The electrodes shall be at least Flux:Ethanol solution of rosin,25(wt)%
95% covered with new solder Pre-Heating : 150±10°C 60s to 90s
8.2 Solderability
coating.
Solder : Sn-3.0Ag-0.5Cu
Solder Temperature : 240±5°C
Immersion Time : 3±1 seconds
Immersion and emersion rates : 25mm/s
Flux : Ethanol solution of rosin,25(wt)%
Pre-Heating : : 150±10°C 60s to 90s
Solder : Sn-3.0Ag-0.5Cu
8.3 Resistance
to Soldering
Heat
Meet Table 1.
Table 1
Appearance
IL
No damaged
Meet Item 3.
Solder Temperature : 270±5°C
Immersion Time : 10±1 seconds
Immersion and emersion rates : 25mm/s
Then measured after exposure in the room
condition for 4 to 48 hours.
Coupling
Isolation
8.4
Drop
It shall be dropped on concrete or steel board.
Method : free fall
Height : 1 m
The Number of Times : 3 times
8.5 Vibration
It shall be soldered on the substrate.
Oscillation Frequency : 10 to 2000 to 10Hz
for 15 minutes
Total Amplitude 3.0mm or Acceleration 196m/s2
whichever is smaller
Testing Time : A period of 2 hours in each of 3
mutually perpendicular directions. (Total 6 hours)
It shall be soldered on the Glass-epoxy substrate.
8.6
Bending
Strength
Deflection : 3mm
(t=1.0mm).
Keeping time : 5 seconds
Speed of Applying Force : 0.5mm/s
Pressure jig
R230
F
Deflection
Product
45
45
(in mm)
9. Environmental Performance(Products shall be soldered on the substrate.)
No. Item Specification Test Method
Meet Table 1.
9.1 Temperature
Cycle
1 Cycle
Step 1 -40°C(+0°C,-3°C) / 30(+3,-0) min
Step 2 Ordinary Temp. / within 3 min
Step 3 +85(+3°C,-0°C) / 30(+3,-0) min
Step 4 Ordinary Temp. / within 3 min
Total of 100 cycles.
Then measured after exposure in the room condition for
4 to 48 hours.
9.2 Humidity
Temperature : 70±2°C
Humidity : 90~95%(RH)
Time : 1000(+48 hours,-0 hours)
Then measured after exposure in the
room condition for 4 to 48 hours.
9.3 Heat
Resistance
Temperature : 85±2°C
Time : 1000(+48 hours,-0 hours)
Then measured after exposure in the
room condition for 4 to 48 hours.
9.4 Cold
Resistance
Temperature : -40± 2°C
Time : 1000(+48 hours,-0 hours)
Then measured after exposure in the
room condition for 4 to 48 hours.
MURATA MFG.CO.,LTD
Reference Only
Spec No.JEFK243A-0003E-01
P4/9
10. Frequency Characteristics (Typ.)
DXP18CN7510T
0
8
8.5
9
18
20
22
24
26
28
30
0.5
1
9.5
10
1.5
2
10.5
11
2.5
3
11.5
12
0
100 200 300 400 500 600 700 800 900
Freq[MHz]
0
100 200 300 400 500 600 700 800 900
Freq[MHz]
0
100 200 300 400 500 600 700 800 900
Freq[MHz]
DXP18CN7515T
0
0.5
1
13.5
14
18
20
22
24
26
28
30
32
34
14.5
15
.5
2
15.5
16
.5
3
16.5
0
100 200 300 400 500 600 700 800 900
Freq[MHz]
0
100 200 300 400 500 600 700 800 900
Freq[MHz]
0
100 200 300 400 500 600 700 800 900
Freq[MHz]
11. Specification of Packaging
11.1 Appearance and Dimensions ( 8mm-wide,Plastic tape)
0.1
1.5±
0
0.20±0.05
Sproket Hole
Direction of feed
1.82±0.05
0.90±0.05
4.0±0.1
4.0±0.1
2.0±0.05
0.6±0.05
11.2 Specification of Taping
(1)Packing quantity(Standard quantity) 5000 pcs. / reel
(2)Packing Method
Products shall be packaged in each embossed cavity of plastic tape and sealed with cover tape.
(3) Spliced point
The cover tape have no spliced point.
(4) Sprocket Hole
Sprocket hole shall be located on the left hand side toward the direction of feed.
(5)Missing components number
Missing components number within 0.1% of the number per reel or 1 pc, whichever is greater, and are not
continuous. The specified quantity per reel is kept.
11.3 Pull Strength of the Tape Package
Plastic Tape
Cover Tape
5N min.
10N min.
165 to 180 degree
11.4 Peeling force of the Cover Tape
F
Cover tape
Plastic tape
0.2 to 0.7N(Minimum value is Typical)
Peeling verosity is 300 mm / min
MURATA MFG.CO.,LTD
Reference Only
Spec No.JEFK243A-0003E-01
P5/9
11.5 Dimensions of Leader-tape, Trailer and Reel
Leader
Trailer
160 min.
2.0±0.5
190 min.
210 min.
Label
Empty tape Top tape
13.0±0.2
60±1
0
21.0±0.8
Direction of feed
9± 10
13±1.4
180±0
3
11.6 Marking for reel
Customer part number, MURATA part number, Inspection number(1), RoHS Marking(2), Quantity, etc
1) « Expression of Inspection No. »
□□ OOOO 
(1)
(2)
(3)
(1) Factory Code
(2) Date
First digit
: Year / Last digit of year
Second digit
: Month / Jan. to Sep. 1 to 9, Oct. to Dec. O,N,D
Third, Fourth digit : Day
(3) Serial No.
2) « Expression of RoHS Marking »
ROHS – Y (△)
(1) (2)
(1) RoHS regulation conformity parts.
(2) MURATA classification number
11.7 Marking for Outside package
Customer name Purchasing Order Number, Customer Part Number, MURATA part number,
RoHS Marking (2), Quantity, etc
11.8 Specification of Outer Case
Outer Case Dimensions
Standard Reel Quantity in Outer Case
(Reel)
Label
(mm)
W
D
H
H
186
186
93
5
D
Above Outer Case size is typical. It depends on a quantity of an
order.
W
!
12. △Caution
Limitation of Application
Please contact us before using our products for the applications listed below which require especially
high reliability for the prevention of defects which might directly cause damage to the third party's life, body
or property.
(1) Aircraft equipment
(6) Transportation equipment (vehicles, trains, ships, etc.)
(7) Traffic signal equipment
(8) Disaster prevention / crime prevention equipment
(9) Data-processing equipment
(10) Applications of similar complexity and / or reliability to the
applications listed in the above.
(2) Aerospace equipment
(3) Undersea equipment
(4) Power plant control equipment
(5) Medical equipment
13. Notice
Products can only be soldered with reflow.
This product is designed for solder mounting.
Please consult us in advance for applying other mounting method such as conductive adhesive.
13.1 TN (Termination) Terminal
Please terminate TN terminal with 75 ohm to the circuit ground, unless otherwise, it may affect on the
performance of this part.
MURATA MFG.CO.,LTD
Reference Only
Spec No.JEFK243A-0003E-01
P6/9
13.2 Flux and Solder
Flux
Use rosin-based flux, (with converting chlorine content 0.06 to 0.1(wt)%. ),
but not highly acidic flux
(with Halogen content exceeding 0.2(wt)% conversion to chlorine).
Do not use water-soluble flux.
Solder
Use Sn-3.0Ag-0.5Cu solder
Standard thickness of the solder paste should be 100 to 150µm.
13.3 Standard Land Dimensions (Reflow)
0.20 0.20
0.45
1.30
0.40
Resist
Copper foil pattern
No pattern
0.40
(in mm)
13.4 Assembling
<Thermal Shock>
Pre-heating should be in such a way that the temperature difference between solder and
ceramic surface is limited to 100°C MAX. Also cooling into solvent after soldering
should be in such a way that the temperature difference is limited to 100°C max.
13.5 Standard Soldering Condition
(1) Soldering Condition
Standard soldering profile and the limit soldering profile is as follows.
The excessive limit soldering conditions may cause leaching of the electrode and / or resulting
in the deterioration of product quality.
Temp.
(℃)
260℃/10s
230℃
245±3℃
220℃
Limit Profile
180
150
Standard Profile
30～60s
60s max.
90s±30s
Time（ｓ）
Standard Profile
Limit Profile
Pre-heating
150～180°C 、90s±30s
above 220°C、30s～60s
245±3°C
Heating
above 230°C、60s max.
260°C、10s
Peak temperature
Cycle of reflow
2 times
2 times
MURATA MFG.CO.,LTD
Reference Only
Spec No.JEFK243A-0003E-01
(2) Reworking with Soldering iron
P7/9
The following conditions must be strictly followed when using a soldering iron after being
mounted by reflow soldering.
Tip temperature / Soldering time : 350°C max / 3(+1,-0)s
Soldering iron output :30W max
Tip diameter : 3mm
Reworking should be limited to 2 times.
Notes: Do not touch the products directly with the soldering iron.
(3) Solder Volume
Solder shall be used not to be exceeded the upper limits as shown below.
Upper limit
Upper limit
Recommendable
Recommendable
t
1/3 T
≦ t ≦ T (T:thickness of electrodes)
Accordingly increasing the solder volume, the mechanical stress to Chip is also increased.
Exceeding solder volume may cause the failure of mechanical or electrical performance.
13.6 Resin coating
The electric characteristics may change and/or it may affect on the product's performance due to high
cure-stress of resin to be used for coating / molding products. So please pay your careful attention when you
select resin. In prior to use, please make the reliability evaluation with the product mounted in your application
set.
13.7 Attention regarding P.C.B. bending
The following shall be considered when designing and laying out P.C.B.'s.
(1) P.C.B. shall be designed so that products are not subject to the mechanical stress due to
warping the board.
［Products direction］
Products shall be location the sideways
a
Direction (Length : a<b) to the machanical
b
Stress.
Poor example
〈
〉
Good example
〈
〉
［Wraping direction］
Products(wraping direction 1, wraping direction
2) shall be located carefully so that products are
not subject to the mechanical stress due to
warping the board. Because they may be
subjected the mechanical stress in order of
wraping direction 1wraping direction 2.
a
a
b
b
Wraping direction 1
〈
〉
Wraping direction 2
〈
〉
(2)Products location on P.C.B. separation
Products(A,B,C,D) shall be located carefully
so that products are not subject to the
mechanical stress due to warping the board.
Because they may be subjected the mechanical
stress in order of ACB D.
C
B
Seam
D
A
a
b
Slit
Length:a b
MURATA MFG.CO.,LTD
Reference Only
Spec No.JEFK243A-0003E-01
P8/9
Portion of
Perforation
13.8 Attention Regarding P.C.B. Design
< The Arrangement of Products >
×
P.C.B. shall be designed so that products are far from the portion
P.C.B.
○
of perforation.
○
Product
The portion of perforation shall be designed as narrow as possible
and shall be designed so as not to be applied the stress in the case
of P.C.B. separation.
Portion of
Perforation
×
Products shall not be arranged on the line of a series of holes when
there are big holes in P.C.B. (Because the stress concentrate on the
line of holes.)
○
×
P.C.B.
Product
Hole
< Products Placing >
Support pins shall be set under P.C.B . to prevent causing a warp to P.C.B.
during placing the products on the other side of P.C.B.
Pick-up nozzle
Product
< P.C.B. Separation >
P.C.B. shall not be separated with hand.
P.C.B. shall be separated with the fixture so as not to cause P.C.B. bending.
P.C.B.
13.9 Cleaning Conditions
Support pin
Products shall be cleaned on the following conditions.
(1) Cleaning temperature shall be limited to 60°C max. (40°C max. for Isopropyl alcohol.)
(2) Ultrasonic cleaning shall comply with the following conditions, avoiding the resonance phenomenon
at the mounted products and P.C.B..
・Power : 20W/ l max. ・Frequency : 28kHz to 40kHz ・Time : 5 minutes max.
(3) Cleaner
1. Alternative cleaner Isopropyl alcohol (IPA)
2. Aqueous agent
PINE ALPHA ST-100S
(4) There shall be no residual flux and residual cleaner after cleaning.
In the case of using aqueous agent, products shall be dried completely after rinse with de-ionized
water in order to remove the cleaner.
(5) Other cleaning
Please contact us.
13.10 Handling of a substrate
After mounting products on a substrate, do not apply any stress to the product caused by bending or twisting to
the substrate when cropping the substrate, inserting and removing a connector from the substrate or tightening
screw to the substrate.
Excessive mechanical stress may cause cracking in the product.
Bending
Twisting
13.11 Operating Environment
Do not use this product under the following environmental conditions, on deterioration of the performance, such
as insulation resistance may result from the use.
(1) in corrosive gases (acidic gases, alkaline gases, chlorine, sulfur gases, organic gases and etc.)
(2) in the atmosphere where liquid such as organic solvent, may splash on the products.
MURATA MFG.CO.,LTD
Reference Only
Spec No.JEFK243A-0003E-01
P9/9
13.12 Storage Condition
(1) Storage period
Use the products within 12 months after delivered.
Solderability should be checked if this period is exceeded.
(2) Storage environment conditions
·Products should be stored in the warehouse on the following conditions.
Temperature ： -10 ~ +40°C
Humidity
： 15 to 85% relative humidity No rapid change on temperature and humidity.
· Products should not be storaged in corrosive gases, such as sulfureous, acid gases, alkaline gases,
to prevent the following deterioration. Poor solderability due to the oxidized electrode.
· Products should be storaged on the palette for the prevention of the influence from humidity,dust and so on.
· Products should be storaged in the warehouse without heat shock, vibration, direct sunlight and so on.
· Products should not be storaged under the air tights packaged condition.
(3) Delivery
Care should be taken when transporting or handling product to avoid excessive vibration or mechanical shock.
!
14. △Notes
(1)Please make sure that your product has been evaluated in view of your specifications with our product being
mounted to your product.
(2)You are requested not to use our product deviating from the reference specifications.
(3)The contents of this reference specification are subject to change without advance notice. Please approve our
product specifications or transact the approval sheet for product specifications before ordering.
MURATA MFG.CO.,LTD
厂商 型号 描述 页数 下载

SYNERGY

 		DXP-9A2 功率分配器0I ： 10路[ POWER DIVIDERS 0ì : 10-WAY ] 1 页

TAOGLAS

 		DXP.01.A [ Low Insertion Loss In band ] 14 页

TAOGLAS

 		DXP.02.A [ Low Insertion Loss In band ] 14 页

TAOGLAS

 		DXP01A [ SMD L1/L2 SAW Diplexer For GPS/GALILEO L1, GLONASS L2 & BeiDou B2 ] 11 页

TAOGLAS

 		DXP02A [ SMD L1/L2/L5 SAW Diplexer ] 14 页

MURATA

 		DXP18BN [ This reference specification applies to Micro Chip Transformer DXP18BN Series ] 10 页

MURATA

 		DXP18BN5014H [ Operating Temperature Range ] 3 页

MURATA

 		DXP18BN5014HB [ RF Transformer, 470MHz Min, 790MHz Max, ] 3 页

MURATA

 		DXP18BN5014HL [ RF Transformer, 470MHz Min, 790MHz Max, ] 3 页

MURATA

 		DXP18BN5014T [ Operating Temperature Range ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.191113s
