CYK001M16ZCCAU

型号：

CYK001M16ZCCAU

描述：

内存\n[ Memory ]

品牌：

ETC[ ETC ]

页数：

10 页

PDF大小：

173 K

下载PDF手册

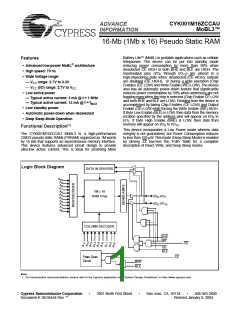

CYK001M16ZCCAU
MoBL3™
ADVANCE
INFORMATION
16-Mb (1Mb x 16) Pseudo Static RAM
Battery Life(MoBL) in portable applications such as cellular
telephones. The device can be put into standby mode
reducing power consumption by more than 99% when
deselected CE HIGH or both BHE and BLE are HIGH. The
input/output pins (I/O0 through I/O15) are placed in a
high-impedance state when: deselected (CE HIGH), outputs
are disabled (OE HIGH), or during a write operation (Chip
Enables (CE LOW) and Write Enable (WE) LOW). The device
also has an automatic power-down feature that significantly
reduces power consumption by 99% when addresses are not
toggling even when the chip is selected (Chip Enable CE LOW
and both BHE and BLE are LOW). Reading from the device is
accomplished by taking Chip Enables (CE LOW) and Output
Enable (OE) LOW while forcing the Write Enable (WE) HIGH.
If Byte Low Enable (BLE) is LOW, then data from the memory
location specified by the address pins will appear on I/O0 to
I/O7. If Byte High Enable (BHE) is LOW, then data from
Features
• Advanced low-power MoBL® architecture
• High speed: 70 ns
• Wide Voltage range:
— VCC range: 2.7V to 3.3V
— VCC (I/O) range: 2.7V to VCC
• Low active power
— Typical active current: 2 mA @ f = 1 MHz
— Typical active current: 13 mA @ f = fMAX
• Low standby power
• Automatic power-down when deselected
• Deep Sleep Mode Operation
memory will appear on I/O8 to I/O15
.
Functional Description[1]
This device incorporates a Low Power mode wherein data
integrity is not guaranteed, but Power Consumption reduces
to less than 100 µW. This mode (Deep Sleep Mode) is enabled
by driving ZZ low.See the Truth Table for a complete
description of Read, Write, and Deep Sleep modes.
The CYK001M16ZCCAU MoBL3 is a high-performance
CMOS pseudo static RAMs (PSRAM) organized as 1M words
by 16 bits that supports an asynchronous memory interface.
This device features advanced circuit design to provide
ultra-low active current. This is ideal for providing More
Logic Block Diagram
DATA IN DRIVERS
A
10
A
9
8
7
6
5
4
A
A
A
A
A
1M x 16
RAM Array
I/O –I/O
0
7
A
A
A
3
2
1
0
I/O –I/O
8
15
A
COLUMN DECODER
BHE
WE
CE
OE
BLE
ZZ
CE
Power -Down
Circuit
BHE
BLE
Note:
1. For best-practice recommendations, please refer to the Cypress application note “System Design Guidelines” on http://www.cypress.com.
Cypress Semiconductor Corporation
Document #: 38-05454 Rev. **
•
3901 North First Street
•
San Jose, CA 95134
•
408-943-2600
Revised January 8, 2004
ADVANCE
INFORMATION
CYK001M16ZCCAU
MoBL3™
Pin Configuration[2, 3, 4]
FBGA
Top View
1
2
4
3
5
6
A
A
A
2
ZZ
I/O
OE
BLE
0
1
A
B
C
A
A
I/O BHE
8
CE
I/O
4
3
0
A
A
6
I/O I/O
I/O
2
5
10
1
9
V
A
V
I/O
I/O
3
A
CC
D
E
F
SS
7
11
17
V
DNU
A
16
V
CC
SS
I/O
I/O
12
4
A
A
15
I/O
I/O
5
I/O
I/O
6
14
13
14
A
A
G
H
I/O
A
WE I/O
7
13
12
15
19
A
A
9
A
11
A
A
NC
10
8
18
Notes:
2. DNU pins are to be left floating or tied to VSS
.
3. Ball H6 is the address expansion pin for the 32M density.
4. NC “no connect” – not connected internally to the die.
Document #: 38-05454 Rev. **
Page 2 of 10
ADVANCE
INFORMATION
CYK001M16ZCCAU
MoBL3™
DC Input Voltage[5, 6, 7] ....................................−0.4V to 3.6V
Maximum Ratings
Output Current into Outputs (LOW) ............................ 20 mA
(Above which the useful life may be impaired. For user guide-
lines, not tested.)
Static Discharge Voltage ......................................... > 2001V
(per MIL-STD-883, Method 3015)
Storage Temperature .................................–65°C to +150°C
Latch-up Current ....................................................> 200 mA
Ambient Temperature with
Power Applied ..............................................–40°C to +85°C
Operating Range[9]
Supply Voltage to Ground Potential ................ −0.4V to 4.6V
DC Voltage Applied to Outputs
in High-Z State[5, 6, 7] ....................................... −0.4V to 3.0V
Range
Ambient Temperature (TA)
VCC
Industrial
−25°C to +85°C
2.7V to 3.3V
Product Portfolio
Power Dissipation
Operating, Icc (mA)
VCC Range
(V)
f = 1 MHz
f = fMAX
Standby, ISB2 (µA)
Speed
(ns)
Product
Min.
Typ.
Max.
Typ.[8]
Max.
Typ.[8]
Max.
Typ.[8]
Max.
CYK001M16ZCCAU
2.7
3.0
3.3
70
2
3.5
13
17
80
150
DC Electrical Characteristics (Over the Operating Range)
CYK001M16ZCCAU
Parameter
Description
Output HIGH Voltage
Output LOW Voltage
Input HIGH Voltage
Input LOW Voltage
Test Conditions
Min.
Typ.[8]
Max.
Unit
V
VOH
VOL
VIH
VIL
IIX
IOH = −1 mA
VCC - 0.4
IOL = 2 mA
0.4
VCC + 0.4
0.4
V
0.8*VCC
−0.4
−1
V
F = 0
V
Input Leakage Current
Output Leakage Current
GND < VI < VCC
GND < VO < VCC, Output Disabled
+1
µA
µA
mA
IOZ
ICC
−1
+1
VCC Operating Supply
Current
f = fMAX = 1/tRC Vcc = 3.3V, IOUT = 0 mA,
CMOS level
13
17
f = 1 MHz
2
3.5
ISB1
Automatic CE Power-down CE > VCC − 0.2V,
Current − CMOS Inputs
100
525
µA
VIN > VCC − 0.2V, VIN < 0.2V,
f = fMAX(Address and Data Only),
f = 0 (OE, WE, BHE and BLE)
ISB2
Automatic CE Power-down CE > VCC − 0.2V,
80
150
30
µA
µA
Current − CMOS Inputs
VIN > VCC − 0.2V or VIN < 0.2V,
f = 0, VCC =3.3V
IZZ
Deep Sleep Current
VCC=VCCMAX , ZZ=LOW
Capacitance [10]
Parameter
Description
Test Conditions
Max.
Unit
CIN
Input Capacitance
Output Capacitance
TA = 25°C, f = 1 MHz
VCC = VCC(typ)
8
8
pF
pF
COUT
Notes:
5. VIH(MAX) = VCC + 0.5V for pulse durations less than 20 ns.
6. VIL(MIN) = -0.5V for pulse durations less than 20 ns.
7. Overshoot and undershoot specifications are characterized and are not 100% tested.
8. Typical values are included for reference only and are not guaranteed or tested. Typical values are measured at VCC = VCC (typ) and TA = 25C.
9. Vcc must be at minimal operational levels before inputs are turned ON.
10. Tested initially and after design or process changes that may affect these parameters.
Document #: 38-05454 Rev. **
Page 3 of 10
ADVANCE
INFORMATION
CYK001M16ZCCAU
MoBL3™
Thermal Resistance[10]
Parameter
θJA
Description
Test Conditions
FBGA
Unit
Thermal Resistance (Junction to
Ambient)
Still Air, soldered on a 3 x 4.5 inch, two-layer
printed circuit board
55
°C/W
θJC
Thermal Resistance (Junction to
Case)
17
°C/W
AC Test Loads and Waveforms
R1
ALL INPUT PULSES
VCC
90%
90%
VCC
OUTPUT
10%
10%
Fall Time = 1 V/ns
GND
Rise Time = 1 V/ns
R2
30 pF
INCLUDING
JIG AND
SCOPE
Equivalent to:
THÉVENIN EQUIVALENT
RTH
OUTPUT
VTH
Parameters
3.0V VCC
1179
Unit
W
R1
R2
1941
733
W
RTH
VTH
W
1.87
V
Switching Characteristics (Over the Operating Range) [11]
CYK001M16ZCCAU-70
Parameter
Read Cycle
Description
Min.
Max.
Unit
tRC
Read Cycle Time
70
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
tAA
Address to Data Valid
70
tOHA
Data Hold from Address Change
CE LOW to Data Valid
10
tACE
70
35
tDOE
OE LOW to Data Valid
tLZOE
tHZOE
tLZCE
tHZCE
tDBE
OE LOW to Low Z[12, 14]
OE HIGH to High Z[12, 14]
CE LOW to Low Z[12, 14]
CE HIGH to High Z[12, 14]
BLE/BHE LOW to Data Valid
BLE/BHE LOW to Low Z[12, 14]
BLE/BHE HIGH to High-Z[12, 14]
Address Skew
5
5
25
25
70
tLZBE
tHZBE
tSK
5
25
10
Write Cycle[13]
tWC
Write Cycle Time
70
55
ns
ns
tSCE
CE LOW to Write End
Note:
11. Test conditions assume signal transition time of 1V/ns or higher, timing reference levels of VCC(typ)/2, input pulse levels of to VCC(typ), and output loading of the
specified IOL/IOH and 30-pF load cpacitance.
12. tHZOE, tHZCE, tHZBE and tHZWE transitions are measured when the outputs enter a high-impedance state.
13. The internal memory write time is defined by the overlap of WE, CE = VIL, BHE and/or BLE =VIL. All signals must be ACTIVE to initiate a write and any of these
signals can terminate a write by going INACTIVE. The data input set-up and hold timing should be referenced to the edge of the signal that terminates the write.
14. High-Z and Low-Z parameters are characterized and are not 100% tested.
Document #: 38-05454 Rev. **
Page 4 of 10
ADVANCE
INFORMATION
CYK001M16ZCCAU
MoBL3™
Switching Characteristics (Over the Operating Range) (continued)[11]
CYK001M16ZCCAU-70
Parameter
Description
Address Set-up to Write End
Min.
55
0
Max.
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
tAW
tHA
Address Hold from Write End
Address Set-up to Write Start
WE Pulse Width
tSA
0
tPWE
tBW
tSD
55
55
25
0
BLE/BHE LOW to Write End
Data Set-up to Write End
Data Hold from Write End
WE LOW to High Z[12, 14]
WE HIGH to Low Z[12, 14]
tHD
tHZWE
tLZWE
25
5
Switching Waveforms
[15]
Read Cycle 1 (Address Transition Controlled)
tRC
ADDRESS
t
AA
tSK
t
OHA
DATA OUT
PREVIOUS DATA VALID
DATA VALID
Read Cycle No. 2 (OE Controlled)[15]
ADDRESS
t
RC
CE
tSK
t
PD
tACE
tHZCE
/
BHE BLE
t
DBE
t
HZBE
t
LZBE
OE
t
HZOE
t
DOE
LZOE
HIGH IMPEDANCE
t
HIGH
IMPEDANCE
DATA OUT
DATA VALID
t
LZCE
ICC
ISB
t
PU
V
CC
50%
50%
SUPPLY
CURRENT
Note:
15. WE is HIGH for Read Cycle.
Document #: 38-05454 Rev. **
Page 5 of 10
ADVANCE
INFORMATION
CYK001M16ZCCAU
MoBL3™
Switching Waveforms (continued)
Write Cycle No. 1 (WE Controlled)[13, 14, 16, 17, 18]
t
WC
ADDRESS
t
SCE
CE
t
t
HA
AW
t
t
PWE
SA
WE
t
BW
BHE/BLE
OE
t
SD
t
HD
VALID DATA
DATAI/O
DO N’T CARE
t
HZOE
Write Cycle No. 2 (CE Controlled)[13, 14, 16, 17, 18]
t
WC
ADDRESS
t
SCE
CE
tSA
t
t
HA
AW
tPWE
WE
t
BW
BHE/BLE
OE
t
t
SD
HD
DATAI/O
VALID DATA
DON’T CARE
t
HZOE
Notes:
16. Data I/O is high impedance if OE = VIH.
17. If CE goes HIGH simultaneously with WE HIGH, the output remains in a high-impedance state.
18. During the DON’T CARE period in the DATA I/O waveform, the I/Os are in output state and input signals should not be applied.
Document #: 38-05454 Rev. **
Page 6 of 10
ADVANCE
INFORMATION
CYK001M16ZCCAU
MoBL3™
Switching Waveforms (continued)
Write Cycle No. 3 (WE Controlled, OE LOW)[17, 18]
t
WC
ADDRESS
t
SCE
CE
t
BW
BHE/BLE
t
t
HA
AW
t
t
PWE
SA
WE
t
t
HD
SD
DATAI/O
DON’T CARE
VALID D ATA
t
LZWE
t
HZWE
Write Cycle No. 4 (BHE/BLE Controlled, OE LOW)[17, 18]
t
WC
ADDRESS
CE1
tSCE
AW
t
t
HA
tBW
BHE/BLE
WE
t
SA
tPWE
t
t
HD
SD
DON’T CARE
DATA I/O
VALID DATA
Sleep Mode can be enabled by driving ZZ low. The device
stays in the deep sleep mode until ZZ is driven High.
Deep Sleep Mode
This mode can be used to lower the power consumption of the
PSRAM in an application. In this mode, the data integrity of the
PSRAM is not guaranteed. At any point of time, the Deep
Deep Sleep Mode—Entry/Exit[19]
Document #: 38-05454 Rev. **
Page 7 of 10
ADVANCE
INFORMATION
CYK001M16ZCCAU
MoBL3™
Deep Sleep Mode
ZZ
t
R
t
CDR
CE or
BLE / BHE
Deep Sleep Access Timings[20, 21]
Parameter
Description
Min.
Max.
Unit
ns
tCDR
tR
Chip Deselect to ZZ LOW
Operation Recovery Time
0
200
µs
Truth Table[22]
ZZ
H
CE
H
X
WE
X
OE
X
BHE BLE
Inputs/Outputs
High Z
Mode
Deselect/Power-down
Deselect/Power-down
Read
Power
Standby (ISB
Standby (ISB
Active (ICC
Active (ICC
X
H
L
X
H
L
)
H
X
X
High Z
)
H
L
H
L
Data Out (I/O0–I/O15)
)
H
L
H
L
H
L
Data Out (I/O0–I/O7);
I/O8–I/O15 in High Z
Read
)
H
L
H
L
L
H
Data Out (I/O8–I/O15);
I/O0–I/O7 in High Z
Read
Active (ICC)
H
H
H
H
L
L
L
L
H
H
H
L
H
H
H
X
L
H
L
L
L
High Z
High Z
High Z
Output Disabled
Output Disabled
Output Disabled
Active (ICC
Active (ICC
Active (ICC
)
)
H
L
)
L
Data In (I/O0–I/O15
)
Write (Upper Byte and Lower Active (ICC)
Byte)
H
H
L
L
L
L
X
X
X
X
H
L
L
H
H
Data In (I/O0–I/O7);
I/O8–I/O15 in High Z
Write (Lower Byte Only)
Active (ICC
Active (ICC
Deep Sleep (IZZ)
)
Data In (I/O8–I/O15);
I/O0 –I/O7 in High Z
Write (Upper Byte Only)
Deep Power-down
)
L
H
H
High Z
Notes:
19. OE and the data pins are in a “don’t care” state while the device is in Deep Sleep Mode.
20. All other timing parameters are as shown in the switching characteristics section.
21. tR applies only in the Deep Sleep Mode.
22. H = VIH, L = VIL, X = Don’t Care.
Document #: 38-05454 Rev. **
Page 8 of 10
ADVANCE
INFORMATION
CYK001M16ZCCAU
MoBL3™
Ordering Information
Speed
Package
Name
Operating
Range
(ns)
Ordering Code
CYK001M16ZCCAU-70BAI
Package Type
70
BA48K 48-ball Fine Pitch BGA (6.0 x 8.0 x 1.2 mm)
Industrial
Package Diagrams
48-Ball (6 mm x 8 mm x 1.2 mm) FBGA BA48K
BOTTOM VIEW
TOP VIEW
A1 CORNER
Ø0.05 M C
Ø0.25 M C A B
Ø0.30 0.05ꢀ(48X
A1 CORNER
1
2
3
5
6
6
5
3
2
1
(
(
A
B
A
B
C
C
D
D
E
F
E
F
G
H
G
H
1.475
A
A
0.75
3.75
6.00 0.10
B
6.00 0.10
B
0.15ꢀ(8X
REFERENCE JEDEC MO-207
SEATING PLANE
C
51-85193-*A
MoBL is a registered trademark, and MoBL3 and More Battery Life are trademarks, of Cypress Semiconductor. All product and
company names mentioned in this document are the trademarks of their respective holders.
Document #: 38-05454 Rev. **
Page 9 of 10
© Cypress Semiconductor Corporation, 2004. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use
of any circuitry other than circuitry embodied in a Cypress Semiconductor product. Nor does it convey or imply any license under patent or other rights. Cypress Semiconductor does not authorize
its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress
Semiconductor products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress Semiconductor against all charges.
ADVANCE
INFORMATION
CYK001M16ZCCAU
MoBL3™
Document History Page
Document Title: CYK001M16ZCCAU 16-Mb (1Mb x 16) Pseudo Static RAM
Document Number: 38- 05454
Orig. of
REV.
ECN NO. Issue Date Change
Description of Change
New Data Sheet
**
132407 01/27/2004
AWK
Document #: 38-05454 Rev. **
Page 10 of 10
厂商 型号 描述 页数 下载

MERRIMAC

 		CYK-10R-26G 定向耦合器[ DIRECTIONAL COUPLERS ] 2 页

MERRIMAC

 		CYK-10R-29G 定向耦合器[ DIRECTIONAL COUPLERS ] 2 页

MERRIMAC

 		CYK-16R-21G 定向耦合器[ DIRECTIONAL COUPLERS ] 2 页

CYPRESS

 		CYK001M16SCAU-55BAXI 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 10 页

CYPRESS

 		CYK001M16SCAU-70BAXI 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 10 页

CYPRESS

 		CYK001M16SCCA 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 10 页

ETC

 		CYK001M16SCCAU 内存\n[ Memory ] 10 页

CYPRESS

 		CYK001M16SCCAU-55BAI 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 10 页

CYPRESS

 		CYK001M16SCCAU-70BAI 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 10 页

CYPRESS

 		CYK001M16ZCCA 16兆位（ 1M ×16 ）伪静态RAM[ 16-Mbit (1M x 16) Pseudo Static RAM ] 11 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.222119s
