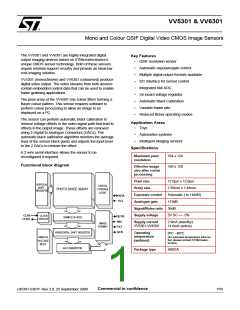

VV5301 & VV6301
®
Mono and Colour QSIF Digital Video CMOS Image Sensors
The VV5301 and VV6301 are highly integrated digital
output imaging devices based on STMicroelectronics’s
unique CMOS sensor technology. Both of these sensors
require minimal support circuitry and provide an ideal low
cost imaging solution.
Key Features
•
•
•
•
•
•
•
•
•
QSIF resolution sensor
Automatic exposure/gain control
Multiple digital output formats available
I2C interface for sensor control
Integrated 8bit ADC
VV5301 (monochrome) and VV6301 (colourised) produce
digital video output. The video streams from both devices
contain embedded control data that can be used to enable
frame grabbing applications.
On board voltage regulator
Automatic Black Calibration
Variable frame rate
The pixel array of the VV6301 has colour filters forming a
Bayer colour pattern. This sensor requires software to
perform colour processing to allow an image to be
displayed on a PC.
Reduced flicker operating modes
The sensor can perform automatic black calibration to
remove voltage offsets in the video signal path that lead to
offsets in the output image. These offsets are removed
using 2 Digital to Analogue Convertors (DACs). The
automatic black calibration algorithm monitors the average
level of the sensor black pixels and adjusts the input level
to the 2 DACs to remove the offset.
Application Areas
•
•
•
Toys
Automotive systems
Intelligent Imaging sensors
Specifications
A 2 wire serial interface allows the sensor to be
reconfigured if required.
Maximum pixel
resolution
164 x 124
160 x 120
Functional block diagram
Effective image
size after colour
processing
Pixel size
12.0µm x 12.0µm
1.92mm x 1.44mm
Automatic ( to +44dB)
+18dB
VERTICAL
SHIFT
REGISTER
DIGITAL
CONTROL
Array size
PHOTO DIODE ARRAY
LOGIC
Exposure control
Analogue gain
SDA
SCL
Signal/Noise ratio 36dB
Supply voltage
5V DC +/− 5%
CLKI
CLKO
CLOCK
CIRCUIT
D[7:0]
SIN
SAMPLE & HOLD
Supply current
VV5301-VV6301
2.9mA (standby)
14.6mA (active)
FORMAT
FST
QCK
0oC - 40oC
(for extended temperature informa-
tion please contact STMicroelec-
tronics)
HORIZONTAL SHIFT REGISTER
Operating
temperature
(ambient)
ANALOG
VOLTAGE
REFS.
A/D CONVERTOR
Package type
48BGA
Commercial in confidence
1/50
cd5301-6301f: Rev 3.0, 25 September 2000
VV5301 & VV6301
Table of Contents
2.
Introduction ...................................................................................................................... 5
2.1 Overview...........................................................................................................................................5
2.2 Exposure, Clock Division and Gain Control......................................................................................5
2.3 Digital Interface.................................................................................................................................5
3.
Operating Modes.............................................................................................................. 7
3.1 Video Timing.....................................................................................................................................7
3.2 Pixel Array.........................................................................................................................................7
3.3 System Clock Generation ...............................................................................................................10
3.4 Calculating Sensor Framerate ........................................................................................................10
4.
5.
4.
5.
Auto Black Calibration................................................................................................... 12
Exposure Control ........................................................................................................... 13
Auto Black Calibration................................................................................................... 12
Exposure Control ........................................................................................................... 13
5.1 Calculating Exposure Period...........................................................................................................13
5.2 Automatic Exposure Control ...........................................................................................................13
5.3 Updating Exposure, Gain and Clock Division Settings ...................................................................13
5.4 Clock Control ..................................................................................................................................13
5.5 Gain Setting ....................................................................................................................................14
6.
Timed Serial Interface Parameters ............................................................................... 15
6.1 Listing and Categorizing the Parameters........................................................................................15
6.2 Timed Parameter Update Points.....................................................................................................15
7.
Digital Video Interface Format ...................................................................................... 16
7.1 Embedded control data...................................................................................................................16
7.2 8-Wire Parallel Mode ......................................................................................................................18
7.3 4-Wire Parallel Mode ......................................................................................................................18
7.4 Video Frame Composition ..............................................................................................................19
7.5 Qualifying the Output Data..............................................................................................................23
8.
Serial Control Bus.......................................................................................................... 27
8.1 General Description ........................................................................................................................27
8.2 Serial Communication Protocol.......................................................................................................27
8.3 Data Format....................................................................................................................................27
8.4 Message Interpretation ...................................................................................................................28
8.5 The Programmers Model ................................................................................................................29
8.6 Types of messages.........................................................................................................................39
8.7 Serial Interface Timing....................................................................................................................41
9.
Detailed AC/DC Specification........................................................................................ 43
cd5301_6301f-3-0.fm
2/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
9.1 VV5301/VV6301 AC/DC Specification............................................................................................43
9.2 VV5301/VV6301 Power Consumption............................................................................................43
9.3 Digital Input Pad Pull-up and Pull-down Resistors..........................................................................43
10. Pinout and Pin Descriptions ......................................................................................... 44
11. VV5301/VV6301 Recommended Reference Design..................................................... 46
12. Package Details (48 pin BGA (VV5301/VV6301) .......................................................... 47
13. Evaluation kits (EVK’s) .................................................................................................. 48
14. Ordering Details ............................................................................................................. 49
cd5301_6301f-3-0.fm
3/50
Commercial in confidence
VV5301 & VV6301
1. Document Revision History
Revision
Date
Comments
1.0
1.1
03/07/2000
05/07/2000
Preliminary release
Full datasheet release, correcting formatting of document
Table 1 : Document Revison History
cd5301_6301f-3-0.fm
4/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
2. Introduction
2.1 Overview
VV5301/VV6301 is a QSIF format CMOS image sensor. The VV5301 sensor is a monochrome device and the VV6301 is the
colourised variant.
Important: The sensors’ output video data stream only contains raw data. A microprocessor and supporting software are
required to generate a video waveform that can be displayed on a VDU
System
Clock
Divisor
Lines
per
Frame
Input Clock
(MHz)
Line Time
Frame Rate
(fps)
Mode
Image Size
(µs)
Note
14.318
17.73
1
1
164 x 124
164 x 124
271.502
227.36
147
147
25.06
29.92
QSIF - 25 fps
QSIF - 30 fps
VV5301/VV6301 have an on-board 8bit ADC, this limits the number of components required to form a complete digital imaging
system.
The VV5301/VV6301 sensor will output an image size of 164 x 124. This is an oversized QSIF image. The extra pixels that the
form the 2 pixel deep border that surrounds the true QSIF image are made available to the external colour processing algorithm.
2.2 Exposure, Clock Division and Gain Control
VV5301/VV6301 have an internal automatic exposure/gain control algorithm. This algorithm can be disabled allowing the user to
externally control the exposure. The externally calculated exposure, clock division and gain control settings would then be written
to the sensor via the I2C interface.
2.3 Digital Interface
VV5301/VV6301 have a flexible digital interface, the main components of which are listed below:
1. A tri-stateable 8-wire data bus (D[7:0]) for sending both video data and embedded timing references.
2. 4-wire and 8-wire data bus alternatives available.
3. A data qualification clock, QCK, which can be programmable via the serial interface to behave in a number of different ways
(Tri-stateable).
4. A line start signal, LST (Tri-stateable).
5. A frame start signal, FST (Tri-stateable).
6. OEB tri-states all 5 data bus lines, D[4:0], the qualification clock, QCK and FST.
7. The ability to synchronise the operation of multiple cameras (sensor produces a synchronisation out pulse, SNO).
8. A 2-wire serial interface (SDA,SCL) for controlling and setting up the device.
2.3.1 Digital Data Bus
Along with the pixel data, codes representing the start and end of fields and the start and end of lines are embedded within the
video data stream to allow a co-processor to synchronise with video data the camera module is generating Section 7.defines the
format for the output video data stream.
2.3.2 Frame Grabber Control Signals
To complement the embedded control sequences the data qualification clock (QCK) and the field start signal (FST) signals can
be independently set-up as follows:
1. Disabled
2. Free-running.
3. Qualify only the control sequences and the pixel data.
4. Qualify the pixel data only
cd5301_6301f-3-0.fm
5/50
Commercial in confidence
VV5301 & VV6301
Introduction
2.3.3 2-wire Serial Interface
The 2-wire serial interface provides complete control over sensor setup and operation. Two serial interface broadcast addresses
are supported. One allows all sensors to be written to in parallel while the other allows all sensors and co-processors to be written
to in parallel.
Section 8. defines the serial interface communications protocol and the register map of all the locations which can be accessed
via the serial interface.
2.4 Other Features
2.4.1 Tristating Digital Outputs
The QCK, FST and Databus[7:0] pins can be tristated. The QCK pin can be independently tristated by driving the QCKTRI pin
low. The QCK, FST and upper nibble of the Databus can also be tristated via a serial register control bit, see register[116] for
more details. The lower nibble of the Databus can also be independently tristated using a different control bit in register[116].
2.4.2 Synchronising Video Timing
The video timing logic in VV5301/VV6301 can be synchronised, i.e. reset to the beginning of a timing field, by an external pin,
SIN. This pin is normally low. To enable the synchronising feature the user must drive the pin high for a number of clock periods,
c.10 CLKI periods, then drive it low again. This synchronisation should only be done every other field as the sensor has a 2 field
repeat cycle requirement for the video timing. If the SIN pin was asserted every field the exposure controller and application of
new external exposure and gain settings would not operate correctly.
2.4.3 Pixel Hold Feature
The HPIX signal can be used to freeze the internal ADC, forcing the sensor to stop converting new pixel values. If the HPIX is
driven high then the ADC will maintain the currently converted pixel value. This feature is intended to function as an external pixel
defect correction system, albeit a ver basic example.
cd5301_6301f-3-0.fm
6/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
3. Operating Modes
3.1 Video Timing
The video format mode on power-up is QSIF 30fps by default, although a 25fps mode can also be selected, see serial
register[17], bit 6. The number of active video lines in each mode is the same (124) for both the QSIF modes. The slower frame
rate (25 fps) is implemented by simply extending the line period from 203 pixel periods to 301 pixel periods.
Table 2 details the setup for each of the video timing modes.
System Clock Divisor Video Data Line Length
Field
Length
Output
Mode
Video
Mode
Clock
(MHz)
QSIF (30fps)
QSIF (25fps)
14.318
17.73
1
1
164 x 124
164 x 124
203
301
147
147
4-wire
4-wire
Table 2 : Video Timing Modes
3.2 Pixel Array
The physical pixel array is 168 x 124 pixels. The pixel size is 12.0 µm by 12.0 µm. The output video image size is 164 x 124
pixels. The border pixels from the array are used as a shield from edge effects.
Figure 3 shows how the 164 x 124 is aligned within the bigger 168 x 124 pixel array. Image read-out is flexible. By default the
sensor read out is configured to be horizontally ‘non-shuffled’ non-interlaced raster scan. The horizontally ‘shuffled’ raster scan
order differs from a conventional raster in that the pixels of individual rows are re-ordered, with the even pixels within a row read-
out first, followed by the odd pixels. This ‘shuffled’ read-out within a line, groups pixels of the same colour (according to the Bayer
pattern - Figure 1) together, reducing cross talk between the colour channels. The horizontal shuffle option would normally only
be selected with the colour sensor variant, VV6301.
Odd
Even
Columns Columns
(0,2,4,6,...)(1,3,5,7,...)
Odd Rows
(0,2,4,6,...)
Green 1 Red
Blue Green 2
Even Rows
(1,3,5,7,...)
Figure 1 : Bayer Colourisation Pattern (VV6301 only)
cd5301_6301f-3-0.fm
7/50
Commercial in confidence
VV5301 & VV6301
Operating Modes
G
R
G
R
G
R
G
R
G
R
G
R
R
R
R
R
R
R
G
G
G
G
G
G
Where G - Green and R - Red
Figure 2 : Horizontal Shuffle Enabled
cd5301_6301f-3-0.fm
8/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
7
8
1
2
3
4
5
6
Please note the column read out order. If the
1
2
3
4
Green Red Green Red Green Red Green Red
Blue Green Blue Green Blue Green Blue Green
readout is unshuffled then the readout order is
even,odd,even etc. If the readout is shuffled, to
avoid colour channel crosstalk, then all the even
columns are readout first followed by the odd
columns.
Green Red Green Red Green Red Green Red
Blue Green Blue Green Blue Green Blue Green
5
6
Green Red Green Red Green Red Green Red
Blue Green Blue Green Blue Green Blue Green
1,2,3,4,5,6,...
..., 164,165,166,167,168
1 pixel band
3 pixel band
164 Pixels
168Pixels
119
120
121
122
The colour dyes included in this
diagram are only applicable to
VV6301. The monochrome device
VV5301 has exactly the same
readout structure and array size as
VV6301 - but no colourised pixels
Green Red Green Red Green Red Green Red
Blue Green Blue Green Blue Green Blue Green
Green Red Green Red Green Red Green Red
Blue Green Blue Green Blue Green Blue Green
123
124
Green Red Green Red Green Red Green Red
Blue Green Blue Green Blue Green Blue Green
Figure 3 : Image Readout Order
167 168
161 162 163 164 165 166
cd5301_6301f-3-0.fm
9/50
Commercial in confidence
VV5301 & VV6301
Operating Modes
3.3 System Clock Generation
VV5301/VV6301 generates a system clock when a quartz crystal or ceramic resonator circuit is connected to the CLKI and CLKO
pins. The device can also be driven directly from an external clock source driving CLKI.
CLK
CLK
CLOCK
DIVISION
CLOCK
DIVISION
VV5301/VV6301
VV5301/VV6301
CKOUT
32
CKIN
31
CKOUT
32
CKIN
31
C1=C2=47pF
R1=1MΩ
R1
R2=510Ω
R2
Clock
Source
X1= 14.318MHz (up to 30fps)
17.73MHz (up to 25fps)
C1
C2
CMOS Driver
X1
Figure 4 : Camera Clock Source
For greater flexibility the input frequency can be divided by 1, 2, 4 or 8 to select the pixel clock frequency. Two bits in the clock
division register in the serial interface select the input clock frequency divisor. The table below gives the different frame rates that
can be selected, when CLKI = 14.318MHz, for up to 30frames per second, for each divisor.
CLKI (MHz)
Divisor
Pixel Period (us)
Frame Rate
Comments
14.318
14.318
14.318
14.318
1
2
4
8
1.1175
2.235
4.47
29.99
15.01
7.5
default
8.94
3.75
Table 3 : Clock Division (60Hz Video Mode)
3.4 Calculating Sensor Framerate
The VV5301/VV6301 frame rate depends upon:
•
•
•
•
the frequency of the system clock (CLKI)
the ADC conversion accuracy (8-bit)
the internal clock divisor selected (1, 2, 4, or 8)
the output format is a constant 2
User can set their own values for CLKI and also the clock divisor setting. The frame rate is determined as follows
An example is given with a clock input of 14.318MHz, 160 x120 (164 x 124) image format, 8-bit ADC conversion rate and a clock
divisor of 2.
1.
2.
Determine clock input (CLKI) frequency - 14.318MHz
Pixel period = (divisor x conversion factor x output format factor) / CLKI
cd5301_6301f-3-0.fm
10/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
Clock divisor = 1, 2, 4 or 8.
Conversion factor = 8 for 8-bit ADC accuracy
Output format factor is 2
Example: Pixel period = (2 x 8 x 2) / 14.318MHz = 2.235µs
3.
Line period = (no. of visible pixels + line overhead) x pixel period
The number of visible pixels per line is 160. The interline pixel period overhead (including the 4 border pixels that can be enabled
to qualify extra video information) is mode dependent, 43 pixel periods for 60Hz mode or 141 pixel periods for 50Hz mode.
Example: Line period = (160 + 43) x 2.235µs = 453.705µs
4.
Frame period = (no. of visible lines + frame overhead) x line period
For the purposes of calculating the effective frame rate the number of active lines is assumed to be fixed at 120. The frame
overhead (which includes the 4 border lines that can be enabled to qualify extra video information) has a constant value of 27 line
periods.
Example: Frame period = (120 + 27) x 453.705µs = 66.694ms
giving a frame rate = 1 / frame period = 15 frames per second
cd5301_6301f-3-0.fm
11/50
Commercial in confidence
VV5301 & VV6301
Auto Black Calibration
4. Auto Black Calibration
Black calibration is used to remove voltage offsets that cause shifts in the black level of the video signal. The VV5/6301 is
equipped with an automatic function that continually monitors the output black level and calibrates if it has moved out of range.
The signal is corrected using two “Black-Cal” DACs, B0 and B1, shown below
G2:0]
ADCLK
S/H
From Sensor
Vsig
8bit ADC
DATA[7:0]
amp
Array
Vref
to digital logic
Sig
Blk
B0 DAC (8bit)
B1 DAC (8bit)
ADSAM
Figure 5 : Block Diagram of Black Calibration System
Black calibration can be split into two stages, monitor (1 cycle over 2 lines) and update (3 cycles, each cycle takes 2 lines).
During the monitor phase the current black level is compared against two threshold values. If the current value falls outside the
threshold window then an update cycle is triggered. The update cycle can also be triggered by a change in the gain applied to
sensor core or via the serial interface.
4.1 Monitor Procedure
The decision on when to re-calibrate the black level is made during the first cycle through the black reference lines. The decision
area for the black monitor is by default the last 16 pixels of the middle 128 pixels of the second designated black line, line 2.
However if this set of pixels fail to give a “good” black level then it is possible to use the penultimate group of 16 pixels.
The black reference pixels are summed, averaged and then compared with the monitor window. If the average falls outside the
window a flag is then set to force a re-calibration of the DAC values.
4.2 Update
The black calibration update sequence requires three phases and is performed over the remaining black lines at the start of the
video field, lines 3 to 8. During the first phase initial B0 DAC calibration is performed. In the second, the B1 DAC is calibrated
within the limitation of its step size. In the final phase the black level is fine tuned by re-calibrating the BO DAC.This is due to the
B1 DAC having a relatively coarse step size when high gain is applied.
The two calibration phases for the B0 DAC differ in that the first time it is calibrated it is working on common mode data. During
the final phase the B0 DAC is fine-tuned using black reference pixels.
cd5301_6301f-3-0.fm
12/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
5. Exposure Control
5.1 Calculating Exposure Period
The exposure time, comprising coarse and fine components, for a pixel and the analogue gain are programmable via the serial
interface.
The coarse exposure value sets the number of complete lines a pixel exposes for, while the fine exposure sets the number of
additional pixel clock cycles a pixel integrates for. The sum of the two gives the overall exposure time for the pixel array.
Exposure Time = ((Coarse setting x Line Period) + (Fine setting)) x (CLKI clock period) x Clock Divider Rationote1
note1: Clock Divider Ratio = 1/(Basic Clock Division * Optional Pixel Clock Divisor)
5.2 Automatic Exposure Control
With automatic exposure control selected VV5301/VV6301 uses a complex algorithm to automatically set the exposure value for
the current scene. When combined with clock control and gain control the VV5301/VV6301 can operate over a very wide range of
illumination levels.
5.3 Updating Exposure, Gain and Clock Division Settings
Although the user can write a new exposure, gain or clock division parameter at any point within the field the sensor will only
consume these new external values at a certain point. The exception to this behaviour are when the user has selected immediate
update of gain If the user has selected the former then the new gain value will be applied as soon as the serial interface message
has completed. The fine and coarse exposure values are always written in a “timed” manner. There are two “update pending”
flags available to the user (see Status0 reg[2] for details) that allows the user to detect when the sensor has consumed one of the
timed parameters. In the next section of this document we will detail all the timed parameters and describe when they are
updated.
It is important to realise that there is a 1 frame latency between a new exposure value being applied to the sensor array and the
results of this new exposure value being read-out. The same latency does not exist for the gain value. To ensure that the effect of
the new exposure and gain values are coincident the sensor delays the application of the new gain value by approximately one
frame relative to the application of the new exposure value.
If the user is using the autoincrement option in the serial interface when writing a new series of exposure/gain and clock division
parameters then it is important to ensure that the sensor receives the complete message bunch before updating any of the
parameters. It is also important that the timed parameters are updated in the correct order, we will discuss this fully in the next
section. If an autoincrement message sequence is in progress but we have reached the point in the field timing where the gain
value would normally be updated, we actually inhibit the update. We inhibit the update to ensure that the gain change is not
passed to the sensor while a change in the exposure is still pending.
5.4 Clock Control
The system clock can be divided down internally to extend the operating range of VV5301/VV6301 by allowing longer exposure
times. The clock divisor options are as follows:
Clock divisor register
Effective clock division
2’b00
2’b01
2’b10
2’b11
1
2
4
8
Table 4 : Available clock division
If the user increases the clock divisor setting then the effective exposure period is also increased.
cd5301_6301f-3-0.fm
13/50
Commercial in confidence
VV5301 & VV6301
Exposure Control
5.5 Gain Setting
An external gain value can be written to the sensor as follows.
Gain binary code
Effective system gain
000
001
010
011
100
101
110
111
1.000
2.000
1.333
4.000
1.143
2.667
1.600
8.000
Table 5 : Gain settings
If the image is to dark and the exposure is already close to its maximum the automatic exposure algorithm will attempt to use
extra steps of gain to improve the image brightness. Each change applied by the internal algorithm will double the current value.
To compensate for this increase in gain the current exposure is set to half of the maximum value. This should ensure that the
user will not be aware of a step change in the scene brightness.
Similarly if the image is too bright and the integration period is short then gain will be reduced by one step (i.e. divide by two). As
before, the exposure value is set to half the maximum integration period. The exposure controller can then adjust the exposure
value as necessary to provide a correctly exposed image.
If the user disables the automatic exposure/gain controller then the extra gain settings detailed in Table 5 above are available.
cd5301_6301f-3-0.fm
14/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
6. Timed Serial Interface Parameters
VV5301 & VV6301
The previous section, Exposure Control, introduced the concept of a “timed parameter”, that is information that is written via the
serial interface but will not be used immediately by the sensor, rather there will be a delay before the information is passed to the
internal registers (referred to as the working registers) from the serial interface registers (referred to as the shadow registers). It is
the contents of the working registers that will determine sensor behaviour.
6.1 Listing and Categorizing the Parameters
The timed parameters are split into 2 categories as follows:
•
•
fine and coarse exposure
gain
There is a “pending” flag for each of the above categories. These flags are stored in Status0 Register[2] in bits [0] and [2]. If one
of the flags is high this indicates that the working register/s controlled by that flag have yet to be updated from the according
shadow register/s. This feedback information could be useful if a user is, for example, attempting to write an external exposure
controller. The status of the pending flags allows accurate timing of the serial interface communications.
6.1.1 Fine and Coarse Exposure
The exposure category comprises registers[32,33] and [34,35].
6.1.2 Gain
The gain category simply comprises register[36].
6.2 Timed Parameter Update Points
The timed parameter categories are updated as follows:
note: We refer to odd and even fields in the table below. Each field is identical in length but we have to be able to differentiate
between fields to enable correct updating of register parameters.
Timed parameter category
Updated point
fine and coarse exposure
During the interline period between the last line of the odd field and the first
line of the even field.
gain
During the interline period between line 143 and line 144 in the even field.
Table 6 : Timed Parameter Update Points
If a change in exposure and gain are pending at the same time then the exposure value will be updated first followed by the gain.
This will ensure image illumination continuity from field to field.
cd5301_6301f-3-0.fm
15/50
Commercial in confidence
VV5301 & VV6301
Digital Video Interface Format
7. Digital Video Interface Format
The video interface consists of a bidirectional, tri-stateable 5-wire data bus. The nibble transmission is synchronised to the rising
edge of the system clock.
Read-out Order
Progressive Scan (Non-interlaced)
Form of encoding
Uniformly quantised, PCM, 8/10 bits per sample
Correspondence between video signal
levels and quantisation levels:
The internal10-bit pixel data is clipped to ensure that 0H and 3FFH (5
Wire) or FFH (4/8 Wire) values do not occur when pixel data is being
output on the data bus.
VV5301/VV6301
8-Bit Data
Pixel Values
Black Level
1 to 254
16
Digital video data is 8 bits per sample in VV5301 and VV6301. The data can be transmitted in the following ways:
•
•
A single 8 bit byte over 8 output wiresnote
.
A series pair of 4-bit nibbles, most significant nibble first, on 4 wires.
8-bit Pixel Data
8- wire Output Mode
4 - wire Output Mode
....D2,D1,D0
D3,D2,D1,02
D7,D6,D5,D4,D3,D2,D1,D0
D7,D6,D5,D4 D3,D2,D1,D0
D7,D6,D5.........
D7,D6,D5,D4
Figure 6 : Output Modes
7.1 Embedded control data
To distinguish the control data from the sampled video data all control data is encapsulated in embedded control sequences.
These are 6 bytes long and include a combined escape/sync character sequence, 1 control byte (the ‘command byte’) and 2
bytes of supplementary data.
To minimise the susceptibility of the embedded control data to random bit errors redundant coding techniques have been used to
allow single bit errors in the embedded control words to be corrected. However, more serious corruption of control words or the
corruption of escape/sync characters cannot be tolerated without loss of sync to the data stream. To ensure that a loss of sync is
detected a simple set of rules has been devised. The four exceptions to the rules are outlined below:
1. Data containing a command word that has two bit errors.
2. Data containing two ‘end of line’ codes that are not separated by a ‘start of line’ code.
3. Data preceding an ‘end of field’ code before a start of frame’ code has been received.
4. Data containing line that do not have sequential line numbers (excluding the ‘end of field’ line).
If the receiving software or hardware detects one of these violations then it should abandon the current field of video
7.1.1 The combined escape and sync character
Each embedded control sequence begins with a combined escape and sync character that is made up of three words. The first
two of these are FFH FFH- constituting two words that are illegal in normal data. The next word is 00H - guaranteeing a clear
cd5301_6301f-3-0.fm
16/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
signal transition that allows a video processor to determine the position of the word boundaries in the serial stream of nibbles.
Combined escape and sync characters are always followed by a command byte - making up the four byte minimum embedded
control sequence.
7.1.2 The command word
The byte that follows the combined escape/sync characters defines the type of embedded control data. Three of the 8 bits are
used to carry the control information, four are ‘parity bits’ that allow the video processor to detect and correct a certain level of
errors in the transmission of the command words, the remaining bit is always set to 1 to ensure that the command word never has
the value 00H. The coding scheme used allows the correction of single bit errors (in the 8-bit sequence) and the detection of 2 bit
errors.The even parity bits are based on the following relationships:
1. An even number of ones in the 4-bit sequence (C2, C1, C0 and P0).
2. An even number of ones in the 3-bit sequence (C2, C1, P1).
3. An even number of ones in the 3-bit sequence (C2, C0, P2).
4. An even number of ones in the 3-bit sequence (C1, C0, P3).
Table 8 shows how the parity bits maybe used to detect and correct 1-bit errors and detect 2-bit errors.
Line Code
Nibble X (1 C C C )
Nibble Y (P P P P )
H 3 2 1 0
H
2
1
0
End of Line
10002 (8H)
10012 (9H)
10102 (AH)
10112 (BH)
11002 (CH)
11012 (DH)
00002 (0H)
11012 (DH)
10112 (BH)
01102 (6H)
01112 (7H)
10102 (AH)
Blank Line (BL)
Black line (BK)
Visible Line (VL)
Start of Field (SOF)
End of Field (EOF)
Table 7 : Embedded Line Codes (for 4 wire output mode)
Parity Checks
Comment
P
P
P
P
0
3
2
1
✔
✔
✔
✔
Code word un-corrupted
✔
✔
✔
✘
✘
✘
✔
✔
✔
✘
✔
✘
✔
✘
✔
✘
✔
✔
✔
✘
✘
✘
✔
✔
✔
✘
✘
✘
P0 corrupted, line code OK
P1 corrupted, line code OK
P2 corrupted, line code OK
P3 corrupted, line code OK
C0 corrupted, invert sense of C0
C1 corrupted, invert sense of C1
C2 corrupted, invert sense of C2
2-bit error in code word.
All other codes
Table 8 : Parity Checking
cd5301_6301f-3-0.fm
17/50
Commercial in confidence
VV5301 & VV6301
Digital Video Interface Format
7.2 8-Wire Parallel Mode
If this output mode is selected then the 8-bit pixel data is output on pins DATA[7:0]. The data is valid on the falling edge of the
pixel qualification clock, QCK.
7.3 4-Wire Parallel Mode
If the 4-Wire parallel mode is selected then a pixel value is output over 2, 4-wire nibbles transmitted over pins DATA[7:4]. A falling
edge on QCK will sample a data nibble.
cd5301_6301f-3-0.fm
18/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
7.4 Video Frame Composition
VV5301 & VV6301
Each frame of video sequence comprises 2 fields. Each field of data is constructed of the following sequence of data lines.
1. A start of field line
2. A number of black lines
3. A number of blank (or dark) lines
4. A number active video lines
5. An end of field line
6. A number of blank or black lines
Video Format
QSIF
Extra Black Lines
On
Off
1st Field
Start of Field Line
Black Lines
1
8
1
2
Blanking Lines
Active Video lines
Blanking Lines
End of Field Line
Blanking Lines
Total
2
8
124
10
1
124
10
1
1
1
147
147
2nd Field
Start of Field Line
Black Lines
1
8
1
2
Blanking Lines
Active Video lines
Blanking Lines
End of Field Line
Blanking Lines
Total
2
8
124
10
1
124
10
1
1
1
147
147
Table 9 : Field and Frame Composition
Each line of data starts with an embedded control sequence that identifies the line type (as outlined in). The control sequence is
then followed by two bytes that contain a coded line number. The line number sequences starts with the start-of-frame line at 00H
and increments one per line up until the end-of-frame line. Each line is terminated with an end-of-line embedded control
sequence. The line start embedded sequences must be used to recognise visible video lines as a number of null bytes may be
inserted between successive data lines.
There are two figures (Figure 7 - Figure 8) on the following pages that show line type field construction.
7.4.1 Blank lines
In addition to padding between data lines, actual blank data lines may appear in the positions indicated above. These lines begin
cd5301_6301f-3-0.fm
19/50
Commercial in confidence
VV5301 & VV6301
Digital Video Interface Format
with start-of-blank-line embedded control sequences and are constructed identically to active video lines except that they will
contain only blank bytes, 07H, (expressed as 01CH in 10bit form).
7.4.2 Black line timing
The black lines (which are used for black calibration) are identical in structure to valid video lines except that they begin with a
start-of-black line code and contain information from the sensor black lines.
The user can opt to enable extra black lines up to a maximum of 8. The black calibration algorithm always has access to the data
contained within these lines whether they are externally enabled or not.
cd5301_6301f-3-0.fm
20/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
145
146
0
End Of 1st Field Line
Blanking Line
Start Of 1st Field Line
1
2 Black Lines
2
3
4
Blanking Lines
9
10
11
124 Visible Lines
Blanking Lines
134
135
144
145
146
0
End Of 1st Field Line
Blanking Line
Start Of 1st Field Line
2 Black Lines
1
2
3
4
Blanking Lines
9
10
11
124 Visible Lines
Blanking Lines
134
135
144
145
146
End Of 1st Field Line
Blanking Line
0
Start Of 1st Field Line
Figure 7 : Field and Frame Formats - Extra Black Lines Off
cd5301_6301f-3-0.fm
21/50
Commercial in confidence
VV5301 & VV6301
Digital Video Interface Format
145
146
0
End Of 1st Field Line
Blanking Line
Start Of 1st Field Line
1
2
8 Black Lines
3
8
9
Blanking Lines
10
11
124 Visible Lines
134
135
Blanking Lines
144
145
146
0
End Of 1st Field Line
Blanking Line
Start Of 1st Field Line
1
2
8 Black Lines
3
8
9
Blanking Lines
10
11
124 Visible Lines
134
135
Blanking Lines
144
145
146
End Of 1st Field Line
Blanking Line
0
Start Of 1st Field Line
Figure 8 : Field and Frame Formats - Extra Black Lines On
cd5301_6301f-3-0.fm
22/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
7.5 Qualifying the Output Data
VV5301 & VV6301
Data is output from VV5301/VV6301 in a continuous stream. By utilizing signals, like FST, and key events, like the start of a line
or the end of line, the user can sample and display the image data. QCK is used to sample the data, as described in the previous
section.
Different periods of the frame can be qualified by QCK. The options, which are selected via setup register4 in the serial interface,
are as follows:
1. QCK disabled, no data qualified (default)
2. QCK free running, all data qualified
3. QCK qualifies image data only, to include data on black lines currently enabled
4. QCK qualifies embedded control sequences as well as image data. The status line data is also qualified with this option.
7.5.3 Frame Start Signal, FST
There are 3 modes of operation for the FST pin programmable via the serial interface:
1. FST disabled, (default).
2. FST enabled, qualifies
3. Shutter/Electronic Flash Synchronisation Signal - FST rises a the start of the video data in the first black/blank line after the
EOF line and falls at the end of data in the SOF line.
The FST output is tri-stated either when OEB is driven high or via the appropriate control bit in the serial interface, (see
data_format register[22]).
cd5301_6301f-3-0.fm
23/50
Commercial in confidence
Line Format
Start of Active Video
(SAV)
End of Active Video
(EAV)
Video Data
Pixel Data
4-wire Nibble Output Mode - D[3:0]
FH
FH
D1
D0
PM
PL
PM
PL
PM
PL
PM
PL
FH
FH
Crystal Clock or external clock applied to CKI
Qualification Clock, QCK
(i) Free running
(ii) Control sequences and Pixel Data
(iii) Pixel Data only
P = Pixel Value - Most Significant Nibble, P = Pixel Value - Least Significant Nibble, P = 8-bit Pixel Value
M
L
Figure 9 : Qualification of Output Data (Border Rows and Columns Enabled).
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
Start of Field
Blanking Lines
End of Field
Visible Lines
Blanking Lines
Black Lines
Start of Field
Blanking Lines
End of Field
Visible Lines
Blanking Lines
Black Lines
Start of Field
Blanking Lines
cd5301_6301f-3-0.fm
25/50
Commercial in confidence
1 Line
End of Active Video
(EAV)
Start of Active
Video (SAV)
End of Active Video
Video
Data
Inter-line Period (DataBus = F )
H
Video Data
168Pixels
(EAV)
6 Pixels
6 Pixels
FST Pin:
(i) Frame start pulse - qualifies status line information
(ii) Synchronisation Output - SNO
Figure 11 : Line Level Timings for FST.
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
8. Serial Control Bus
8.1 General Description
Writing configuration information to the video sensor and reading both sensor status and configuration information back from the
sensor is performed via the 2-wire serial interface.
Communication using the serial bus centres around a number of registers internal to the video sensor. These registers store
sensor status, set-up, exposure and system information. Most of the registers are read/write allowing the receiving equipment to
change their contents. Others (such as the chip id) are read only.
The main features of the serial interface include:
•
•
•
•
•
•
Broad-cast address to ease setting up multiple camera configurations.
Variable length read/write messages.
Indexed addressing of information source or destination within the sensor.
Automatic update of the index after a read or write message.
Message abort with negative acknowledge from the master.
Byte oriented messages.
The contents of all internal registers accessible via the serial control bus are encapsulated in each start-of-field line.
8.2 Serial Communication Protocol
The co- processor or host must perform the role of a communications master and the camera acts as either a slave receiver or
transmitter.The communication from host to camera takes the form of 8-bit data with a maximum serial clock video processor
frequency of up to 100 kHz. Since the serial clock is generated by the bus master it determines the data transfer rate. Data
transfer protocol on the bus is illustrated in Figure 12.
Acknowledge
Start condition
SDA
MSB
1
LSB
8
SCL
P
S
7
2
3
4
5
6
A
Address or data byte
Stop condition
Figure 12 : Serial Interface Data Transfer Protocol
8.3
Data Format
Information is packed in 8-bit packets (bytes) always followed by an acknowledge bit. The internal data is produced by sampling
sda at a rising edge of scl. The external data must be stable during the high period of scl. The exceptions to this are start (S) or
stop (P) conditions when sda falls or rises respectively, while scl is high.
A message contains at least two bytes preceded by a start condition and followed by either a stop or repeated start, (Sr) followed
by another message.
The first byte contains the device address byte which includes the data direction read, (r), ~write, (~w), bit. The lsb of the address
byte indicates the direction of the message. If the lsb is set high then the master will read data from the slave and if the lsb is reset
low then the master will write data to the slave. After the r, ~w bit is sampled, the data direction cannot be changed, until the next
address byte with a new r, ~w bit is received.
cd5301_6301f-3-0.fm
27/50
Commercial in confidence
VV5301 & VV6301
Serial Control Bus
0
0
1
0
0
0
0
R/W
Figure 13 : VV5301/VV6301’s Serial Interface Address
The byte following the address byte contains the address of the first data byte (also referred to as the index). The serial interface
can address up to 128, byte registers. If the msb of the second byte is set the automatic increment feature of the address index is
selected.
Sensor acknowledges valid address
Acknowledge from slave
DATA[7:0]
A
[0]
address
S
address[7:1]
A
INC
INDEX[6:0]
A
R
Auto increment
Index bit
/W bit
DATA[7:0]
A
P
Figure 14 : Serial Interface Data Format
8.4 Message Interpretation
All serial interface communications with the sensor must begin with a start condition. If the start condition is followed by a valid
address byte then further communications can take place. The sensor will acknowledge the receipt of a valid address by driving
the sda wire low. The state of the read/~write bit (lsb of the address byte) is stored and the next byte of data, sampled from sda,
can be interpreted.
During a write sequence the second byte received is an address index and is used to point to one of the internal registers. The
msbit of the following byte is the index auto increment flag. If this flag is set then the serial interface will automatically increment
the index address by one location after each slave acknowledge. The master can therefore send data bytes continuously to the
slave until the slave fails to provide an acknowledge or the master terminates the write communication with a stop condition or
sends a repeated start, (Sr). If the auto increment feature is used the master does not have to send indexes to accompany the
data bytes.
As data is received by the slave it is written bit by bit to a serial/parallel register. After each data byte has been received by the
slave, an acknowledge is generated, the data is then stored in the internal register addressed by the current index.
During a read message, the current index is read out in the byte following the device address byte. The next byte read from the
slave device are the contents of the register addressed by the current index. The contents of this register are then parallel loaded
into the serial/parallel register and clocked out of the device by scl.
At the end of each byte, in both read and write message sequences, an acknowledge is issued by the receiving device. Although
VV5301/VV6301 is always considered to be a slave device, it acts as a transmitter when the bus master requests a read from the
sensor.
At the end of a sequence of incremental reads or writes, the terminal index value in the register will be one greater the last
location read from or written to. A subsequent read will use this index to begin retrieving data from the internal registers.
A message can only be terminated by the bus master, either by issuing a stop condition, a repeated start condition or by a
negative acknowledge after reading a complete byte during a read operation.
cd5301_6301f-3-0.fm
28/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
8.5 The Programmers Model
VV5301 & VV6301
There are 128, 8-bit registers within the camera, accessible by the user via the serial interface. They are grouped according to
function with each group occupying a 16-byte page of the location address space. There may be up to eight such groups,
although this scheme is purely a conceptual feature and not related to the actual hardware implementation, The primary
categories are given below:
•
•
•
•
Status Registers (Read Only).
Setup registers with bit significant functions.
Exposure parameters that influence output image brightness.
System functions and analog test bit significant registers.
Any internal register that can be written to can also be read from. There are a number of read only registers that contain device
status information, (e.g. design revision details).
Names that end with H or L denote the most or least significant part of the internal register. Note that unused locations in the H
byte are packed with zeroes.
STMicroelectronics sensors that include a 2-wire serial interface are designed with a common address space. If a register
parameter is unused in a design, but has been allocated an address in the generic design model, the location is referred to as
reserved. If the user attempts to read from any of these reserved or unused locations a default byte will be read back. In
VV5301/VV6301 this data is 12H. A write instruction to a reserved (but unused) location is illegal and would not be successful as
the device would not allocate an internal register to the data word contained in the instruction.
A detailed description of each register follows. The address indexes are shown as decimal numbers in brackets [....] and are
expressed in decimal and hexadecimal respectively.
Serial Register Map for VV5301/VV6301
Index
Index
Name
Length
R/W
Default
Comments
10
16
Status Registers - [0-15]
0
1
0
1
DevH
DevL
8
8
8
RO
RO
RO
-
1100 00002
Reserved
0001 00102
0000 10002
2
2
status0
unused
unused
frame_av
unused
unused
System status information
3
3
4-6
7
4-6
7
8
8
8
RO
RO
RO
-
Average value of pixels in a frame.
8-11
8-B
C-F
12-15
Setup Registers - [16-31]
16
17
10
11
12
13
14
15
setup0
setup1
setup2
setup3
setup4
unused
8
8
8
8
8
R/W
R/W
R/W
R/W
R/W
-
(27H)
(70H)
(1FH)
(0FH)
(00H)
Configure the digital logic
Configure the digital logic
Pixel counter reset value
Exposure control modes
FST/QCK options
18
19
20
21-31
Exposure Registers - [32-47]
-
32
33
34
35
36
20
21
22
23
24
unused
fine
8
R/W
-
00H
Fine exposure initially zero
unused
coarse
gain
8
8
R/W
R/W
70H
00H
Coarse exposure
Gain value
cd5301_6301f-3-0.fm
29/50
Commercial in confidence
VV5301 & VV6301
Serial Control Bus
Serial Register Map for VV5301/VV6301
Index
Index
Name
Length
R/W
Default
Comments
10
16
37
38
39
40
41
25
26
27
28
29
clk_div
gn_lim
tl
8
8
8
8
8
R/W
R/W
R/W
R/W
R/W
-
00H
07H
55H
64H
73H
Clock division
Maximum allowable gain
Lower exposure control threshold.
Centre exposure control threshold.
Upper exposure control threshold.
tc
th
42-47
2A-2F
30-4F
50-67
68-6B
6C-6F
unused
Colour Registers - [48-79]
Video Timing Registers - [80-103]
Text Overlay Registers - [104-107]
Serial Interface Autoload Registers - [108-111]
System Registers - [112-127]
48-79
reserved
reserved
reserved
reserved
80-103
104-107
108-111
112
113
70
71
bdac
b0
8
8
R/W
RO
Black Calibration setup
Manual override of Black Calibration
DAC register, B0
114
72
b1
8
8
RO
Manual override of Black Calibration
DAC register, B0
115
116
73
74
unused
tms
R/W
Digital comparator threshold
117
75
unused
cr0
118
76
8
8
R/W
R/W
119
77
cr1
120
78
reserved
unused
120-127
79-7F
A detailed description of each register follows. The address indexes are shown as binary in brackets.
8.5.1 Status Registers - [0 - 15],[0-F]
[0-1],[0-1] -[0-1],[0-1] - DeviceH and DeviceL
These registers provide read only information that identifies the sensor type that has been coded as a 12bit number and a 4bit
mask set revision identifier. The initial mask revision identifier is 0 i.e. 00002. As the mask set is upgraded the revision identifier
will increase, i.e. the second mask set will be 00012 and so on. The device identification number for VVL301 is 301 i.e. 0001 0010
11012.
Bit
Function
Default
Comment
7:4
Device type identifier
11012
Least significant 4bits of 12bit code identifying the
chip type.
3:0
Mask set revision identifier
00002
Table 10 : [0],[0] - DeviceL
cd5301_6301f-3-0.fm
30/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
Bits
Function
Default
Comment
7:0
Device type identifier
0001_00102
Most significant 8bits of 12bit code identifying the
chip type.
Table 11 : [1],[1] - DeviceH
[2],[2] - Status0
Bit
Function
Default
Comment
0
Exposure value update pending
0
New exposure setting sent but not yet consumed by the
exposure controller
1
2
Unused
0
0
Gain value update pending
New gain value sent but not yet consumed by the
exposure controller
7:4
Unused
0
Table 12 : [2],[2] - Status0
[7],[7] - [12-15],[E-F] - unused
8.5.2 Setup Registers - [16 - 31],[10-1F]
[16],[10] - Setup 0
Setup 0 register controls some fundamental exposure and output format parameters. Defaults are shown in bold type.
Bit
Function
Default
Comment
0
Automatic exposure control.
1
Enables or disables automatic exposure control.
Current exposure value is frozen when disabled.
Off/On
1
2
Unused
1
1
Automatic gain control.
Enables or disables automatic gain control. Current
gain value is frozen when disabled.
Off/On
4:3
5
Unused
002
1
Data format select.
Unused
0 - 8 wire parallel output
1 - 4 wire parallel output
7:6
002
Table 13 : [16], [10] - Setup0
[17],[11] - Setup1
Setup 1 register controls registers that are less likely to be modified on a regular basis. The user should note that the border
pixels/lines can be disabled/enabled independently from the enabling/disabling of the custom analogue horizontal shift register.
Bit
Function
Default
Comment
0
Enable additional black lines (3-8)
0
If enabled extra black lines are visible at device output
Off/On
1
2
Unused
1
0
Enable horizontal shuffle mode.
The contents of the horizontal shift register are shuffled
so that all the even columns then all the odd columns
are read out.
Off/On
Table 14 : [17], [11] - Setup1
cd5301_6301f-3-0.fm
31/50
Commercial in confidence
VV5301 & VV6301
Serial Control Bus
Bit
Function
Default
Comment
5:3
6
Unused
1102
50Hz timing/60Hz timing
1
The sensor will produce field rates either suited to
50Hz or 60Hz (default) operating environments.
7
Unused
0
Table 14 : [17], [11] - Setup1
[19],[13] - Setup3
Bit
Function
Default
Comment
4:0
6:5
unused
Exposure step size
01
Selects exposure step size. 1/8 for fast but jerky
convergence to 1/64 for slow but smooth convergence.
Default 1/16. See Table 16 for details
7
Unused
0
Table 15 : [19],[13] - Setup3
Bit 6
Bit 5
Step size
Comment
0
0
1
1
0
1
0
1
1/8
1/16
1/32
1/64
Default
Table 16 : Exposure step size options
[20],[14] - Setup4
The data output on the serial wire or the 4/8 wire busses can be qualified by an internally generated clock signal, QCK. The QCK
function is assigned a dedicated pin, however the FST pin can also output QCK data, if reconfigured. By default, QCK is disabled.
The QCK can free run, qualify the embedded coding sequences and the visible data or the visible data only. FST can also be
enabled or disabled, default, or alternatively the FST pin can output a timing signal to synchronise several VV5301/VV6301
sensors or finally the FST pin can output the state of the custom analogue block successive approximation ADC output
comparator
Bit
Function
Default
Comment
1:0
FST/QCK pin modes
00
00
See Table 18 below for details
See Table 19 below for details
3:2
5:4
7:6
QCK modes
unused
FST modes
00
See Table 20 below for details
Table 17 : [20],[14] - fg_modes
fg_mode[1:0]
FST pin
QCK pin
0
0
FST
QCK
Table 18 : FST/QCK Pin Selection
cd5301_6301f-3-0.fm
32/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
fg_mode[1:0]
FST pin
QCK pin
0
1
1
1
0
1
FST
QCK
QCK
QCK
QCKnote
Invert QCKnote
Table 18 : FST/QCK Pin Selection
note: The FST pin will always output the free running version of QCK (either inverted or normal)
fg_mode[3:2]
QCK state
0
0
1
1
0
1
0
1
Off
Free Running
Valid during data and control period of line
Valid only during data period of line
Table 19 : QCK Modes
.
fg_mode[7:6]]
FST pin
0
0
Off
0
1
Normal behaviour, FST will qualify the visible pixels in
the status line
1
1
0
1
Synchronisation out pulse, SNO
Output ADC comparator output, CPO
Table 20 : FST Modes
[21-31],[15-1F] - unused
8.5.3 Exposure Control Registers [32 - 47],[20-2F]
There is a set of parameters that control the time that the sensor pixels are exposed. The parameters are as follows: fine and
coarse exposure time, clock division control and finally gain control. The latter parameter does not affect the integration period
rather it amplifies the video signal at the output stage of the sensor core. An internal automatic algorithm will, if enabled,
continually monitor the pixel output and then, if required, use this data to correct the current exposure.
Manually changing the divisor applied to the incoming crystal clock can alter the effective integration of the sensor. By slowing the
internal clock down the integration period can be increased, i.e. halving the pixel clock frequency will double the integration
period.
If the user wishes to use the automatic exposure algorithm, the automatic exposure control (controlling fine and coarse exposure)
must be enabled. Additional gain control is optional. It is also possible to change the gain manually via the serial interface even if
the exposure is adjusted automatically.
If a user wishes to write an external value to one of the automatic exposure algorithm registers then it is advised that the
automatic control for that register be disabled prior to using the serial interface to write the external value.
Note: The external exposure (coarse, fine or gain) values do not take effect immediately. Data from the serial interface is read by
the exposure algorithm at the start of a video frame. If the user reads an exposure value via the serial interface then the value
reported will be the data as yet unconsumed by the exposure algorithm, because the serial interface logic locally stores all the
data written to the sensor.
Between writing the exposure data and the point at which the data is consumed by the exposure algorithm, bit 0 of the status
register is set. The gain value is updated a frame later than the coarse and fine exposure parameters. The gain is applied directly
cd5301_6301f-3-0.fm
33/50
Commercial in confidence
VV5301 & VV6301
Serial Control Bus
at the video output stage and does not require the long set up time of the coarse and fine exposure settings.
The automatic exposure algorithm uses a set of exposure threshold settings. These thresholds may also be modified by the user
to alter the algorithm’s performance. The exposure algorithm uses these thresholds in a histogram. The three thresholds divide
the histogram into 4 regions, very overexposed, overexposed, underexposed and very underexposed. The pixel data received
from the sensor core is compared against the thresholds to determine the accuracy of the current exposure setting. A series of
flags are set to describe the outcome of the histogram comparison and the new exposure setting can then be derived.
Each exposure parameter is subject to a maximum setting. The fine exposure setting can be clamped to a fixed value regardless
of the decision made by the automatic algorithm. The clamping will occur if the coarse exposure setting exceeds a predetermined
value and the clamping has been enabled via the serial interface.
Bit
Function
Default
Comment
7:0
Fine exposure value
0000_00002 (00H)
maximum fine (50Hz mode) = FFH
maximum fine (60Hz mode) = A8H
Table 21 : [33],[21] - Fine Exposure Value
Bit
Function
Default
Comment
7:0
Coarse exposure value
0111_00002 (70H)
maximum coarse (50Hz and 60Hz modes) = 91H
Table 22 : [34],[22] - Coarse Exposure Value
Bit
Function
Default
Comment
2:0
Gain value
0
8 possible gain states can be written via the serial interface
Table 23 : [36],[24] - Gain Value
All 8 binary codes can be written to the core via the serial interface. Only the 4 thermometer codes 000,001,011 and 111 are
selected by the automatic exposure algorithm. The 4 other codes are however still valid and will be evaluated as detailed in the
table below. It is clear, from the non-linear relationship between the binary code and the actual gain applied at the analogue
output stage, that care should be taken when using non thermometer code gain settings. If the user writes a gain code of 110
(real gain = 1.600) and then enables automatic gain control and the controller then decided to reduce the gain, the new gain
value would be 011 (real gain = 4.000) i.e. the effective applied gain at the analogue output stage has actually been increased.
Care must be taken when writing manual gain values.
The effective system gain for a given binary gain code is as follows:
VV5301/6301
Gain binary code
Effective system gain
000
001
010
011
100
1.000
2.000
1.333
4.000
1.143
Table 24 : System Gain
cd5301_6301f-3-0.fm
34/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
VV5301/6301
Gain binary code
Effective system gain
101
110
111
2.667
1.600
8.000
Table 24 : System Gain
The undivided input crystal clock is used by the clock generator circuitry, elements of the serial interface and a small number of
other registers in the design. The remaining digital logic and the analogue circuitry, use internally generated clocks, namely the
pixel clock and the faster ADC clocks. These clocks are all slower versions of the crystal clock. The ADC clocks may be up to half
the crystal frequency, but can be further divided by factors of 2, 4 or 8. The pixel clock is lower frequency than the ADC clock.
Bit
Function
Default
Comment
Pixel clock = Crystal clock ÷2n+1
1:0
Clock divisor value
0
Table 25 : [37],[25] - Clock Divisor Value
Bit
Function
Default
Comment
2:0
Gain limit
7
The programmed gain cannot be greater than this
value
Table 26 : [38],[26] - Gain Limit
Bit
Function
Default
Comment
7:0
Exposure lower threshold
85
Table 27 : [39],[27] - Exposure Lower Threshold
Bit
Function
Default
Comment
7:0
Exposure centre threshold
100
Table 28 : [40],[28] - Exposure Centre Threshold
Bit
Function
Default
Comment
7:0
Exposure higher threshold
115
Table 29 : [41],[29] - Exposure Higher Threshold
cd5301_6301f-3-0.fm
35/50
Commercial in confidence
VV5301 & VV6301
Serial Control Bus
[41-47],[29-2F] - unused
[48-111],[30-6F] - reserved
8.5.4 System Registers [112-127],[70-7F]
[112],[70] - Black Calibration Setup Register
The sensor contains an automatic function to help maintain an ideal black level for the video signal. The centre 128 pixels, from
the designated black lines are summed, averaged and then compared with a reference, to determine if the black level has to be
adjusted. If an adjustment is required then the values of the 2 DAC registers, B0 and B1 - addresses [113-114],[71-72], can be
altered to remove any offset in the video black level.
Bit
Function
Default
Comment
1:0
Black calibration trigger select
101
00 - Never BCal
01 - Always BCal
10 - BCal if failed monitor
11 - BCal if gain has changed
3:2
Black calibration monitor window
select (pixel average comparison
range)
00
00 - 14.00 to 17.99
01 - 13.00 to 18.99
10 - 12.00 to 19.99
11 - 11.00 to 20.99
4
Monitor window size set by serial
interface.
0
If enabled the monitor window size is set directly by
the user via the serial interface
Yes/No
5
6
Narrow bcal target window
0
0
If enabled the bcal test target window can be
narrowed to force pixel black level closer to the
ideal 16.00 value.
Yes/No
External black calibration DAC
register values
If enabled the DAC values used by the analogue
sensor core
Yes/No
7
unused
0
Table 30 : [112],[70] - Black Calibration Window Parameters
It is strongly recommended that the user select 2’b01 for bits[1:0] of register[112],[70]. This will ensure that the black calibration
algorithm will run each field.
The monitor window size is programmable. If bit 4 of the register above is set then bits[3:2] will determine the size of the monitor
window otherwise the current gain setting will fix the monitor window width.
There are two DAC value adjustment phases during black calibration. The first is a successive approximation technique to
establish an approximate value for the DAC register. This estimate is then improved by a linear tracking routine. The latter will
change the DAC register setting if the current pixel average is outwith the black calibration target window. The target window can
also be altered via the serial interface.
It will only be possible to read back the values of the DAC registers, as set by the automatic black cal algorithm, with the VV5301/
VV6301 sensors.
cd5301_6301f-3-0.fm
36/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
Bit
Function
Default
Comment
7:0
bcal0
bcal1
80H
This register is read only
Table 31 : [113],[71] - Black Calibration DAC B0
Bit
Function
Default
Comment
7:0
80H
This register is read only
Table 32 : [114],[72] - Black Calibration DAC B0
[116],[74] - System Test
The sensor can operate in several different test modes. These test modes detect faults in the sensor pixel array and the
supporting analogue circuitry. Only one test mode should be enabled at any time.
Bit
Function
Default
Comment
0
reserved
0
1
Tristate digital outputs
0
If enabled the upper nibble of the data bus,
FST & QCK will be tristated.
Yes/No
2
3
reserved
0
0
Tristate digital outputs
If enabled the lower nibble of the data bus
will be tristated.
Yes/No
reserved
unused
6:4
7
Table 33 : [116],[74] - System Test
‘[118-119],[76-77] - Analogue Control Registers
There are 2 registers used to configure the custom analogue section of the sensor.
Bit
Function
Default
Comment
0
1
2
3
4
5
Enable bit line clamp
0
0
0
0
0
0
Off/On
Inhibit horizontal shift register
Off/On
Enable anti-blooming protection
Off/On
Inhibit OSA fast reset
Off/On
External bit line white reference
Off/On
Inhibit array read during blank lines
Disable additional MFI and
BLOOP signals
Off/On
Table 34 : [118],[76] - Analogue Control Register 0
cd5301_6301f-3-0.fm
37/50
Commercial in confidence
VV5301 & VV6301
Serial Control Bus
Bit
Function
Default
Comment
6
7
unused
RST/MRST clock select
0
0
0 - adck0
1 - adck1
Table 34 : [118],[76] - Analogue Control Register 0
Bit
Function
Default
Comment
0
Enable Mag_B0
0
0
0
0
0
Double magnitude of B0 DAC current
Off/On
1
2
3
4
New PXRDB scheme
Off/On
B1 Offset DAC High Gain Select
B1_HG
low (x1)/High (x2)
Stand-by
Powers down ALL analogue circuitry
and the majority of the digital logic
Off/On
unused
7:5
RST/MRST phase select
000
The RST/MRST timing signals can be
delayed by up to 7 adck periods prior
to transfer to the analogue circuits.
000 - no delay
001 - 1 adck period delay
010 - 2 adck period delay
011 - 3 adck period delay
100 - 4 adck period delay
101 - 5 adck period delay
110 - 6 adck period delay
111 - 7 adck period delay
Table 35 : [119],[77] - Analogue Control Register1
cd5301_6301f-3-0.fm
38/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
8.6 Types of messages
This section gives guidelines on the basic operations to read data from and write data to the serial interface.
The serial interface supports variable length messages. A message may contain no data bytes, one data byte or many data
bytes. This data can be written to or read from common or different locations within the sensor. The range of instructions
available are detailed below.
•
•
•
Write no data byte, only sets the index for a subsequent read message.
Single location data write or read for monitoring (real time control)
Multiple location read or write for fast information transfers.
Examples of these operations are given below. A full description of the internal registers is given in the previous section. For all
examples the slave address used is 3210 for writing and 3310 for reading. The write address includes the read/write bit (the lsb)
set to zero while this bit is set in the read address.
8.6.1 Single location, single data write.
When a random value is written to the sensor, the message will look like this:
Device
address
Stop
Ack
Index
Data
Inc
Start
S
32
A 0
32
A
85
10
A
P
10
10
Figure 15 : Single location, single write.
In this example, the fineH exposure register (index = 3210) is set to 8510. The r/w bit is set to zero for writing and the inc bit (msbit
of the index byte) is set to zero to disable automatic increment of the index after writing the value. The address index is preserved
and may be used by a subsequent read. The write message is terminated with a stop condition from the master.
8.6.2 Single location, single data read.
A read message always contains the index used to get the first byte.
Device
address
Stop
Ack
Index
Data
Start
S
33
A 0
32
A
85
10
A
P
10
10
Figure 16 : Single location, single read.
This example assumes that a write message has already taken place and the residual index value is 3210. A value of 8510 is read
from the fineH exposure register. Note that the read message is terminated with a negative acknowledge (A) from the master: it is
not guaranteed that the master will be able to issue a stop condition at any other time during a read message. This is because if
the data sent by the slave is all zeros, the sda line cannot rise, which is part of the stop condition.
8.6.3 No data write followed by same location read.
When a location is to be read, but the value of the stored index is not known, a write message with no data byte must be written
first, specifying the index. The read message then completes the message sequence. To avoid relinquishing the serial to bus to
another master a repeated start condition is asserted between the write and read messages, i.e. no stop condition is asserted. In
cd5301_6301f-3-0.fm
39/50
Commercial in confidence
VV5301 & VV6301
Serial Control Bus
this example, the gain value (index = 3610) is read as 1510
:
No data write
Read index and data
36
A
33
A
33
10
15
A P
S
36
Sr
A
0
A
0
10
10
10
10
Figure 17 : No data write followed by same location read.
As mentioned in the previous example, the read message is terminated with a negative acknowledge (A) from the master.
8.6.4 Same location multiple data write.
It may be desirable to write a succession of data to a common location. This is useful when the status of a bit must be toggled.
Write to pin_mapping
32 A 0 21
Toggle control bit
4
P
S
A
4
A
0
10
A
10
10
10
10
Figure 18 : Same location multiple data write.
8.6.5 Same location multiple data read
When an exposure related value (fine
H, fineL, coarseH, coarse L, gain or clk_div) is written, it takes effect on the output at the beginning of the next video frame,
(remember that the application of the gain value is a frame later than the other exposure parameters). To signal the consumption
of the written value, a flag is set when any of the exposure or gain registers are written and is reset at the start of the next frame.
This flag appears in status0 register and may be monitored by the bus master. To speed up reading from this location, the sensor
will repeatedly transmit the current value of the register, as long as the master acknowledges each byte read.
In the below example, a fineH exposure value of 0 is written, the status register is addressed (no data byte) and then constantly
read until the master terminates the read message.
Write fineL with zero
Address the status0 register
A Sr 32
S
32
A 0 33
A
0
A
0
10
A
10
10
10
10
Read continuously...
Sr 33
A 0
0
A
1
A
1
A
1
10
A
10
10
10
10
...until flag reset
1
A
0
A P
10
10
Figure 19 : Same location multiple data read.
cd5301_6301f-3-0.fm
40/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
8.6.6 Multiple location write
VV5301 & VV6301
If the automatic increment bit is set (msb of the index byte), then it is possible to write data bytes to consecutive adjacent internal
registers, (i.e. 23,24,25,26 etc), without having to send explicit indexes prior to sending each data byte. An auto-increment write to
the exposure registers with their default values is shown in the following example, where we write 1710 to the pin_mapping
register[21] and 19310 to the data format register[22].
.
Incremental write
S
32
A 1 21
A
17
A
193
10
A P
10
10
10
Figure 20 : Multiple location write.
8.6.7 Multiple location read
In the same manner, multiple locations can be read with a single read message. In this example the index is written first, to
ensure the exposure related registers are addressed and then they are read. Note that the user will get the base index, in this
case 3210, read back twice before the first data byte is read back. The user must therefore always request an extra byte of data
to be read back.
No data write
A 1 32
Incremental read
A 1 32 32
10
S
32
A Sr
33
A
A
10
10
10
10
Incremental read
fineL
coarseL
fineH
A
A
coarseH A
A
A P
gain
Figure 21 : Multiple location read.
Note that a stop condition is not required after the final negative acknowledge from the master, the sensor will terminate the
communication upon receipt of the negative acknowledge from the master.
8.7 Serial Interface Timing
Parameter
Symbol
Min.
Max.
Unit
SCL clock frequency
fscl
tbuf
0
2
100
kHz
us
ns
ns
ns
ns
ns
ns
Bus free time between a stop and a start
Hold time for a repeated start
LOW period of SCL
-
-
-
-
-
-
-
thd;sta
tlow
80
320
160
80
0
HIGH period of SCL
thigh
Set-up time for a repeated start
Data hold time
tsu;sta
thd;dat
tsu;dat
Data Set-up time
0
Table 36 : Serial Interface Timing Characteristics
cd5301_6301f-3-0.fm
41/50
Commercial in confidence
VV5301 & VV6301
Serial Control Bus
Parameter
Symbol
Min.
Max.
Unit
Rise time of SCL, SDA
tr
tf
-
-
300
300
-
ns
ns
ns
pF
Fall time of SCL, SDA
Set-up time for a stop
tsu;sto
Cb
80
-
Capacitive load of each bus line (SCL,
SDA)
200
Table 36 : Serial Interface Timing Characteristics
stop start
start
stop
SDA
SCL
...
tbuf
tlow tr
tf
thd;sta
...
thd;sta
thd;dat
thigh
tsu;dat
tsu;sta
tsu;sto
all values referred to the minimum input level (high) = 3.5V, and maximum input level (low) = 1.5V
Figure 22 : Serial Interface Timing Characteristics
cd5301_6301f-3-0.fm
42/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
9. Detailed AC/DC Specification
9.1 VV5301/VV6301 AC/DC Specification
Image Format
Image size output
Pixel Size
160 x 120 pixels (QSIF)
164 x 124 pixels
12.5 x 12.5µm
QSIF
Array Format
Exposure control
Sensor signal / Noise ratio
Supply Voltage
up to 44000:1
36dB
5.0v +/-10%
48BGA
Package type
Operating Temp. range
Logic 0 input
0oC - 40oC
0.2 x Vdd Max
0.8 x Vdd Min
0-100kHz
Logic 1 input
Serial interface frequency range
Table 37 : VV5301/VV6301 AC/DC specification
VV5301/VV6301 Power Consumption
9.2
Low power mode current consumption
Normal operating mode current consumption
4.6mA
15.1mA
Table 38 : VV5301/VV6301 Current consumption in different modes
9.3 Digital Input Pad Pull-up and Pull-down Resistors
Pad Type
Pads
Typical resistance
Library pulldown
Library pullup
d[7:0],hpix,sin
tba
tba
scl, sda, ce, qcktri
Table 39 : VV5301/ 6301 pull up/pull down resistor specification
cd5301_6301f-3-0.fm
43/50
Commercial in confidence
VV5301 & VV6301
Pinout and Pin Descriptions
10. Pinout and Pin Descriptions
BGA
Name
Pin
Type
Description
POWER SUPPLIES
Analogue ground
Analogue power
Digital power
Power
C5
A7
D7
D5
G7
F6
G2
F3
E1
E2
AVSS
AVDD
DVDD
VDD
VDD
VSS
GND
PWR
PWR
PWR
PWR
GND
GND
PWR
GND
GND
Power
Ground
VSS
Ground
VDD
VSS
Power
Ground
DVSS
Ground
ANALOGUE OUTPUTS
Pixel reset voltage
Voltage reference
Analogue test
B4
A5
B5
C3
B3
A3
C4
A4
VRT
IA
VCDS
TEST
IA
IA
VREG
VBLOOM
VBLTW
VBG
OA
OA
IA
Reference voltage input
Internal reference voltage
Bitline test white reference
OA
OA
Internally generated bangap reference voltage 1.22V
Internally generated reference voltage 2.5V
DIGITAL OUTPUTS
VREF2V5
E6
F7
FST
OD
OD
Frame start. Synchronises external image capture.
QCK
Pixel sample clock. Qualifies video output for external
image capture.
G6,E5,
G5,F5,
G4,F4,
G3,E4
D[7:0]
OD↑
Parallel 8-wire databus.
VV5301/VV6301 only, bidirectional pads always
configured as outputs
DIGITAL CONTROL SIGNALS
Serial bus clock (bidirectional, open drain)
Serial bus data (bidirectional, open drain)
QCK tristate
E3
F1
D1
D2
SCL
BI↑
BI↑
ID↓
ID↑
SDA
QCKTRI
CE
Chip enable
cd5301_6301f-3-0.fm
44/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
VV5301 & VV6301
BGA
Pin
Name
Type
Description
A6
HPIX
ID↓
Hold pixel value.
E7
SIN
ID↓
Sensor synchronisation
SYSTEM CLOCKS
Oscillator input.
G1
F2
CLKI
ID
CLKO
OD
Oscillator output.
Key
A
Analog Input
ΙD
Digital Input
Digital input with internal pull-up
OA
BI
Analog Output
Bidirectional
ID↑
ID↓
OD
ODT
Digital input with internal pull-down
Digital Output
BI↑
BI↓
Bidirectional with internal pull-up
Bidirectional with internal pull-down
Tri-stateable Digital Output
cd5301_6301f-3-0.fm
45/50
Commercial in confidence
VV5301 & VV6301
VV5301/VV6301 Recommended Reference Design
11. VV5301/VV6301 Recommended Reference Design
cd5301_6301f-3-0.fm
46/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
12. Package Details (48 pin BGA (VV5301/VV6301)
VV5301 & VV6301
Figure 23 : Package drawing for 48pin BGA with VVx301
cd5301_6301f-3-0.fm
47/50
Commercial in confidence
VV5301 & VV6301
Evaluation kits (EVK’s)
13. Evaluation kits (EVK’s)
It is highly recommended that an Evaluation Kit (EVK) is used for initial evaluation and design-in of the VV5301/VV6301. Please
contact STMicroelectronics for further details.
cd5301_6301f-3-0.fm
48/50
Commercial in confidence
CMOS Sensor; Customer Datasheet, Rev 3.0, 25 September 2000
14. Ordering Details
VV5301 & VV6301
Part Number
Description
VV5301B001
VV6301B001
STV-5301-R01
STV-6301-R01
STV-5301-E01
STV-6301-E01
BGA packaged, QSIF Monochrome sensor
BGA packaged, QSIF Colour sensor
Reference design board for (mono) 5301 sensor
Reference design board for (colour) 6301 sensor
Evaluation kit (monochrome)
Evaluation kit (colour)
cd5301_6301f-3-0.fm
49/50
Commercial in confidence
VV5301 & VV6301
Ordering Details
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the
consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from
its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications
mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information
previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or
systems without express written approval of STMicroelectronics
The ST logo is a registered trademark of STMicroelectronics
© 2000 STMicroelectronics - All Rights Reserved
asiapacific.imaging@st.com
.Imaging Division
www.st.com
centraleurope.imaging@st.com
france.imaging@st.com
japan.imaging@st.com
nordic.imaging@st.com
southerneurope.imaging@st.com
ukeire.imaging@st.com
usa.imaging@st.com
cd5301_6301f-3-0.fm
50/50
Commercial in confidence
厂商 型号 描述 页数 下载

STMICROELECTRONICS

 		VV6404 黑白和彩色数字视频CMOS图像传感器[ Mono and Colour Digital Video CMOS Image Sensors ] 54 页

STMICROELECTRONICS

 		VV6404C001 黑白和彩色数字视频CMOS图像传感器[ Mono and Colour Digital Video CMOS Image Sensors ] 54 页

STMICROELECTRONICS

 		VV6404C001-B2 黑白和彩色数字视频CMOS图像传感器[ Mono and Colour Digital Video CMOS Image Sensors ] 54 页

STMICROELECTRONICS

 		VV6410 双模式数码相机芯片组[ DUAL-MODE DIGITAL CAMERA CHIPSET ] 63 页

STMICROELECTRONICS

 		VV6410C036 双模式数码相机芯片组[ DUAL-MODE DIGITAL CAMERA CHIPSET ] 63 页

STMICROELECTRONICS

 		VV6411 双模式数码相机芯片组[ DUAL-MODE DIGITAL CAMERA CHIPSET ] 63 页

STMICROELECTRONICS

 		VV6411C036 双模式数码相机芯片组[ DUAL-MODE DIGITAL CAMERA CHIPSET ] 63 页

STMICROELECTRONICS

 		VV6444 低价数码相机（ LCDC ）芯片组[ Low Cost Digital Camera (LCDC) Chipset ] 60 页

STMICROELECTRONICS

 		VV6444C001 低价数码相机（ LCDC ）芯片组[ Low Cost Digital Camera (LCDC) Chipset ] 60 页

STMICROELECTRONICS

 		VV6500 双模式数码相机芯片组[ DUAL-MODE DIGITAL CAMERA CHIPSET ] 63 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于壹壹捌

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：sales@ic118.com

服务时间：周一至周六 8:30-17:30

壹壹捌官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.260372s
