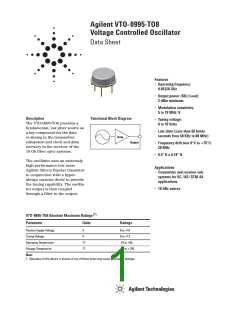

Agilent VTO-0995-TO8
Voltage Controlled Oscillator
Data Sheet
Features
• Operating frequency:
9.95328 GHz
• Output power (50Ω Load):
2 dBm minimum
• Modulation sensitivity:
5 to 10 MHz/V
Description
Functional Block Diagram
• Tuning voltage:
0 to 10 Volts
The VTO-0995-TO8 provides a
fundamental, low jitter source as
a key component for the data
re-timing in the transmitter
subsystem and clock and data
recovery in the receiver of the
10 Gb fiber optic systems.
• Low jitter (Less than 50 femto
seconds from 50 KHz to 80 MHz)
Amp
Output
• Frequency drift over 0°C to +75°C:
20 MHz
• 0.5" D x 0.18" H
The oscillator uses an extremely
high performance low noise
Agilent Silicon Bipolar transistor
in conjunction with a hyper-
abrupt varactor diode to provide
the tuning capability. The oscilla-
tor output is then coupled
Applications
• Transmitter and receiver sub-
systems for OC-192/STM-64
applications
• 10 GHz source
through a filter to the output.
VTO-0995-TO8 Absolute Maximum Ratings[1]
Parameter
Units
Ratings
Positive Supply Voltage
Tuning Voltage
V
0 to +10
V
0 to +12
Operating Temperature
Storage Temperature
Note:
°C
°C
-10 to +95
-40 to +130
1. Operation of this device in excess of any of these limits may cause permanent damage.
