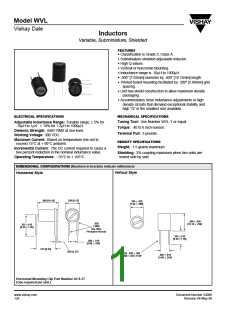

Model WVL
Vishay Dale
Inductors
Variable, Subminiature, Shielded
FEATURES
• Classification is Grade 3, Class A.
• Subminiature shielded adjustable inductor.
• High Q values.
• Vertical or horizontal mounting.
• Inductance range is .10µH to 1000µH.
• .300" [7.62mm] diameter by .400" [10.16mm] length.
• Printed board mounting facilitated by .200" [5.08mm] grid
spacing.
• Unit has shield construction to allow maximum density
packaging.
• Accommodates close inductance adjustments in high
density circuits that demand exceptional stability and
high “Q” in the smallest size available.
ELECTRICAL SPECIFICATIONS
MECHANICAL SPECIFICATIONS
Tuning Tool: Use Number WVL-T or equal.
Adjustable Inductance Range: Tunable range; ± 5% for
.10µH to 1µH. ± 10% for 1.2µH to 1000µH.
Dielectic Strength: 840V RMS at sea level.
Working Voltage: 300 VDC.
Torque: .40 to 6 inch-ounces.
Terminal Pull: 3 pounds.
Maximum Current: Based on temperature rise not to
exceed 15°C at + 90°C ambient.
Incremental Current: The DC current required to cause a
DENSITY SPECIFICATIONS
Weight: 1.5 grams maximum.
five percent reduction in the nominal inductance value.
Shielding: 3% coupling maximum when two units are
Operating Temperature: - 55°C to + 105°C.
tested side by side.
DIMENSIONAL CONFIGURATIONS [Numbers in brackets indicate millimeters]
Vertical Style
Horizontal Style
.400 [10.16]
.320 [8.13]
.300 ± .020
[7.62 ± .508]
.400 ± .030
[10.16 ± .762]
.020
[.508]
3/8 ± 1/16
[9.52 ± 1.59]
Dia. Wire
Phosphor-Bronze
3/8 ± 1/16
[9.52 ± 1.59]
.200 ± .010
[5.08 ± .254]
.375 [9.53]
.050 [1.27]
#24 .020 ± .002
[.508 ± .051] TCW
.200 ± .010
[5.08 ± .254]
Horizontal Mounting Clip Part Number ACS-57
(One required per unit.)
www.vishay.com
128
Document Number 34086
Revision 04-May-99
